See all parts that fit your 2000 S-Type

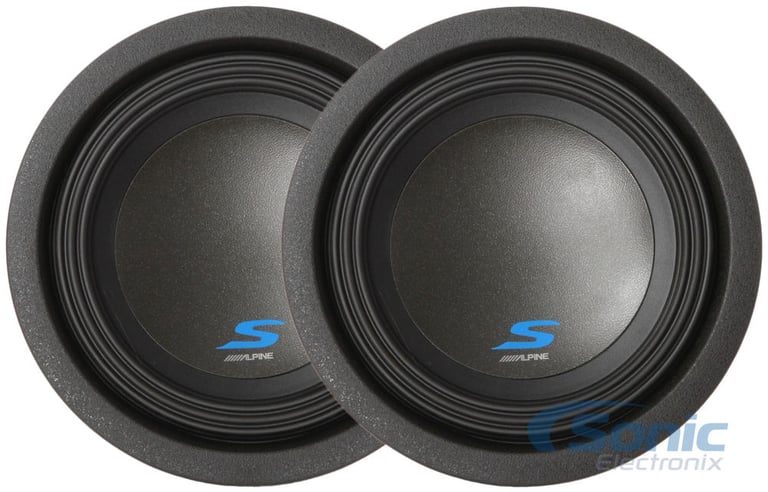

(2) Alpine S-W8D4 Subwoofers

900W Max (300W RMS) 8" Type S Series Dual 4 Ohm Car Subwoofers

Alpine
Shop all Alpine
highlight-star-icon

• 900 Watts Max
• 300 Watts RMS
• Pulp/ Kevlar Cone
• High-Amplitude Multi-Roll Surround
• Concealed Mount Gasket
• 35mm Underhung Voice Coils
• Progressive Spider with Reinforced Layer Tinsel Leads

Learn more about the sw8d4_2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Description


Alpine brand icon

Authorized dealer

General Features:

  • 8" 4 Ohm Type S Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 300 watts
  • Recommended Power Range: 150 - 300 Watts
  • Kevlar Reinforced Pulp Cone
  • HAMR Santoprene Rubber Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Compound Radius Curve Extended Pole Geometry
  • Perimeter Vented Frame with Airflow Management System
  • 10 AWG Push Terminals
  • 35mm Underhung Voice Coils
  • Concealed Mount Gasket
  • 34oz Ferrite Magnet
  • Top-mount depth: 3-3/4"
  • Cutout diameter: 6-7/8"
  • Frequency Response: 34-200Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Alpine S-W8D4 Subwoofers Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Alpine S-W8D4 Subwoofers Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Alpine S-W8D4 Subwoofers Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 (2) Alpine S-W8D4 Subwoofers Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

Specifications & Details


Subwoofer Specifications
Series
S Series
Subwoofer Size
8"
Peak Power Handling
900 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
34 - 200 Hz
Sensitivity
83.4 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar/Pulp
Woofer Surround
High Roll Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.15 cubic feet
Maximum Sealed Box Volume
0.5 cubic feet
Minimum Ported Box Volume
0.35 cubic feet
Maximum Ported Box Volume
0.7 cubic feet
Top-Mount Depth (Mounting Depth)
3-3/4"
Cutout Diameter
6-7/8"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
48 Hz
Equivalent Compliance (Vas)
7.2 liters
Total Speaker Q Value (Qts)
0.53
Electrical Q Value (Qes)
0.64
Electrical Resistance of Voice Coil (Re)
1.7 ohm
Mechanical Q Value (Qms)
3.17
What is in the box?
Paperwork
User manual
Serial number card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

(2) sw8d4

Weight:

20.00lbs

Internal SKU:

sw8d4_2

Internal Product ID:

176715
