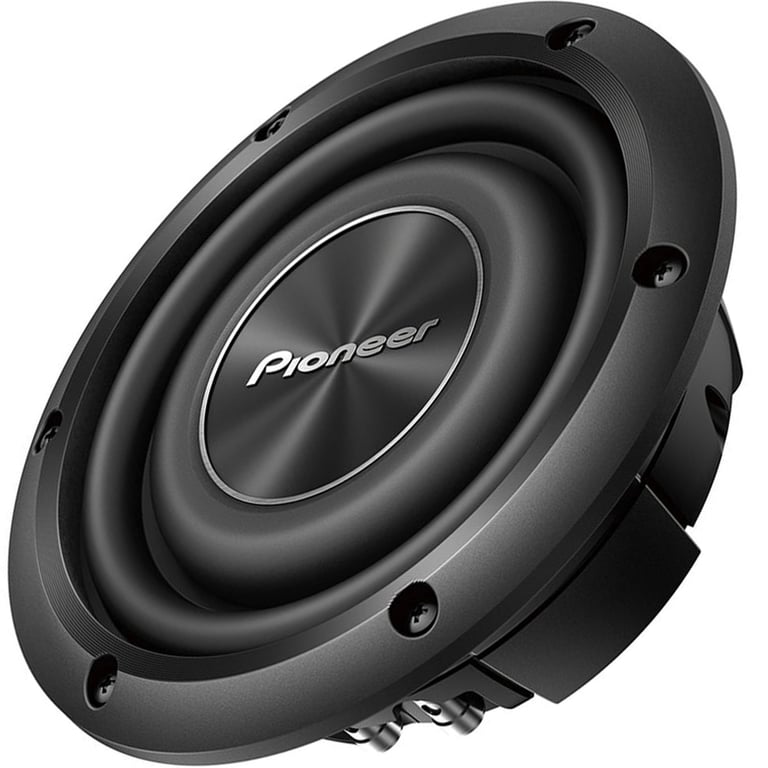

Pioneer TS-A2000LD2 (Open Box, Good)

700W Peak (250W RMS) 8” A-Series Dual 2-ohm Shallow Car Subwoofer

Pioneer
Shop all Pioneer
highlight-star-icon

• 700 Watts Max / 350 Watts RMS
• Impedance: Dual 2 Ohm
• Glass Fiber and Mica Reinforced IMPP Cone
• Double Reinforced Spider
• Rubber Surround

Learn more about the ls-tsa2000ld2-u7

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.


TS-A2000LD2


Easily Upgrade to High Performance

Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.


Reinforced Cone Structure

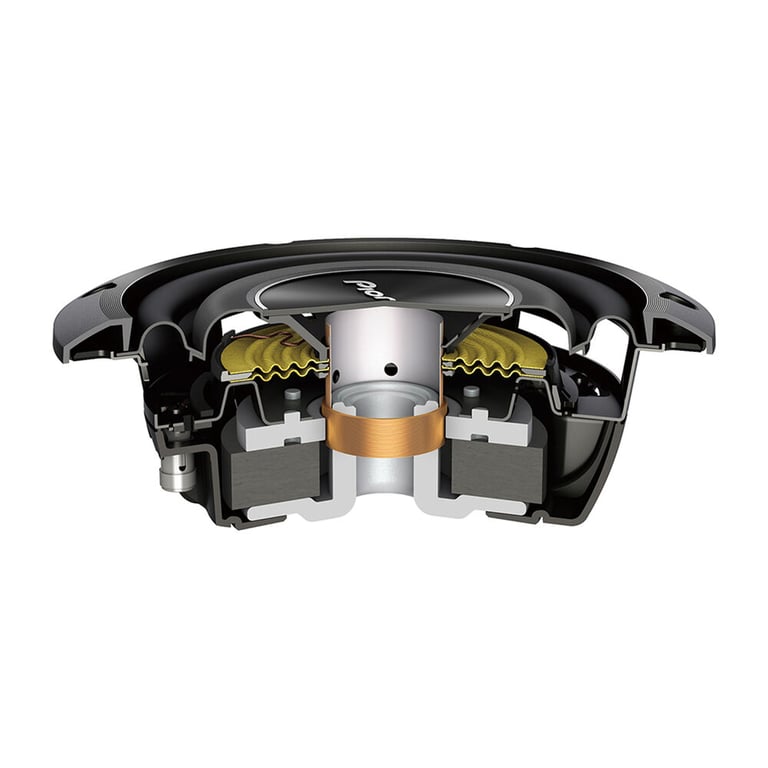

The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.


Shallow Compact Design

Pioneer's line of shallow subwoofers are designed to provide wider installation options for a broad range of vehicles. These shallow-mount subwoofers feature multiple patent-pending features to deliver the big bass performance of a full-size subwoofer, but in a compact design that can be installed either behind or under seats depending on the type of vehicle. The mounting depth is just 3-3/8 - less than half a typical subwoofer in this class.


CarSoundfit

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.


Product Details:

  • 8" Dual 2 ohm A Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 250 watts
  • Mica Injected Polypropylene - MIPP Cone
  • Rubber Surround
  • 3" High Temperature Aluminum Voice coil
  • 2.3 mm Xmax
  • 29.6 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 20 - 1400 Hz
  • Resonance Frequency (Fs): 63 Hz
  • Sensitivity: 83 dB
  • Recommended sealed box volume: 0.5 cubic feet
  • Recommended ported box volume: 0.5 cubic feet
  • Top-mount depth: 2-5/8"
  • Cutout diameter: 7"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconPioneer TSA2000LD2 owner’s manual

Product history:

Pioneer TS-A2000LD2-2 thumbnail
(newest, current model)
Pioneer TS-SW2002D2 thumbnail
(previous model, replaced by Pioneer TS-A2000LD2 (Open Box, Good))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-A2000LD2 (Open Box, Good) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-A2000LD2 (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-A2000LD2 (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-A2000LD2 (Open Box, Good) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
A Series
Subwoofer Size
8"
Peak Power Handling
700 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
3"
Frequency Response
20 - 1400 Hz
Sensitivity
83 dB
Xmax (millimeters)
2.3 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Magnet weight
29.6 oz.
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.5 cubic feet
Optimum Ported Box Volume
0.5 cubic feet
Top-Mount Depth (Mounting Depth)
2-5/8"
Cutout Diameter
7"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
63 Hz
Equivalent Compliance (Vas)
4.11 liters
Total Speaker Q Value (Qts)
0.99
Electrical Q Value (Qes)
1.14
Mechanical Q Value (Qms)
7.49
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-A2000LD2-2

Weight:

5.49lbs

Internal SKU:

ls-tsa2000ld2-u7

Internal Product ID:

221156
