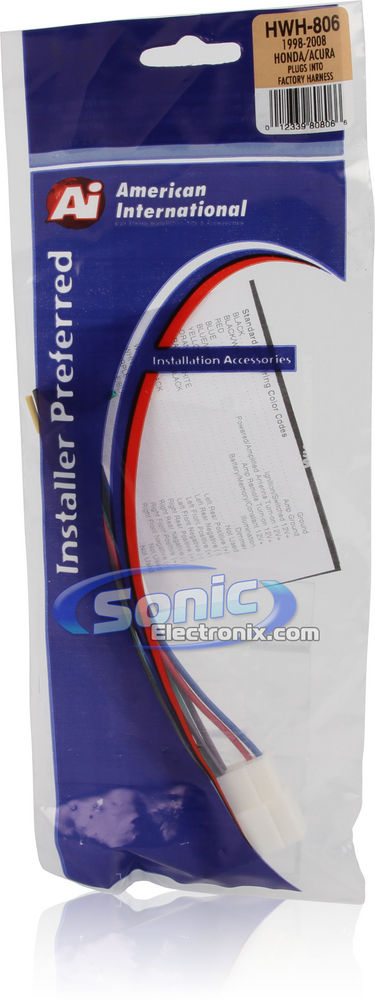

American International HWH-806

Wire Harness to Connect an Aftermarket Stereo Receiver to Select 1998-2008 Honda/Acura Vehicles

highlight-star-icon

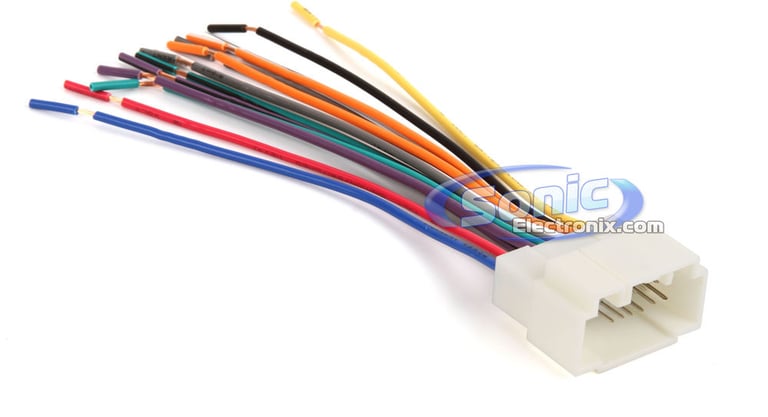

In-dash car radio harness that plugs into the factory OEM radio plug for select 1998-2006 Honda/Acura vehicles, keeping it in tact (instead of cutting it off), and converting colors to the aftermarket standard

Learn more about the hwh806

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


American International brand icon

Authorized dealer

When replacing your factory radio with an after-market car stereo, the HWH-806 wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the HWH-806, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the HWH-806 allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:
  • Harness is used when installing an aftermarket stereo
  • Connects the aftermarket stereo harness to the vehicles factory harness
  • Designed specifically to fit the compatible vehicles
  • Plugs into the factory harness without cutting any wires
  • Standard color coded wires provide a consistent and simplified installation
  • Made from OEM quality materials
Compatible with the following vehicles:
  • Acura:
    • 1999-2003 CL
    • 1999-2001 Integra
    • 2001-2006 MDX
    • 2001-2005 NSX
    • 1999-2004 RL
    • 2002-2006 RSX
    • 1999-2008 TL
    • 2004-2008 TSX
  • Honda:
    • 1998-2007 Accord
    • 1999-2000 Civic
    • 2001-2005 Civic Sedan
    • 2002-2005 Civic SI Hatchback
    • 1998-2006 CRV
    • 2003-2009 Element
    • 1999-2007 Odyssey
    • 2006-2008 Pilot (Non-Navigation)
    • 2003-2005 Pilot
    • 1999-2001 Prelude
    • 2006-2009 Ridgline
    • 2000-2009 S2000

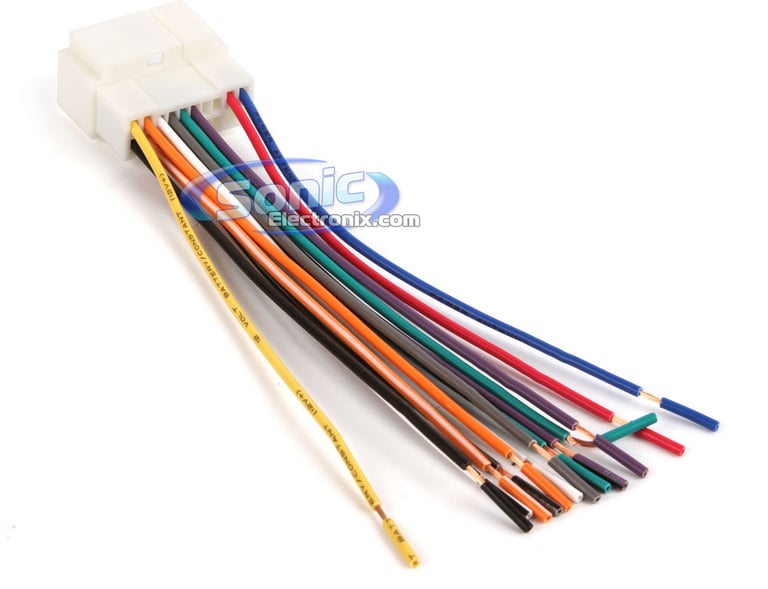

Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue - Power Antenna
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
