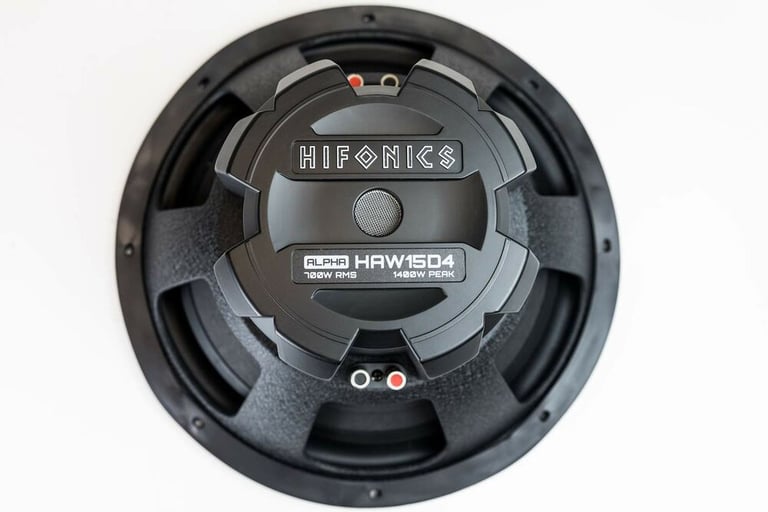

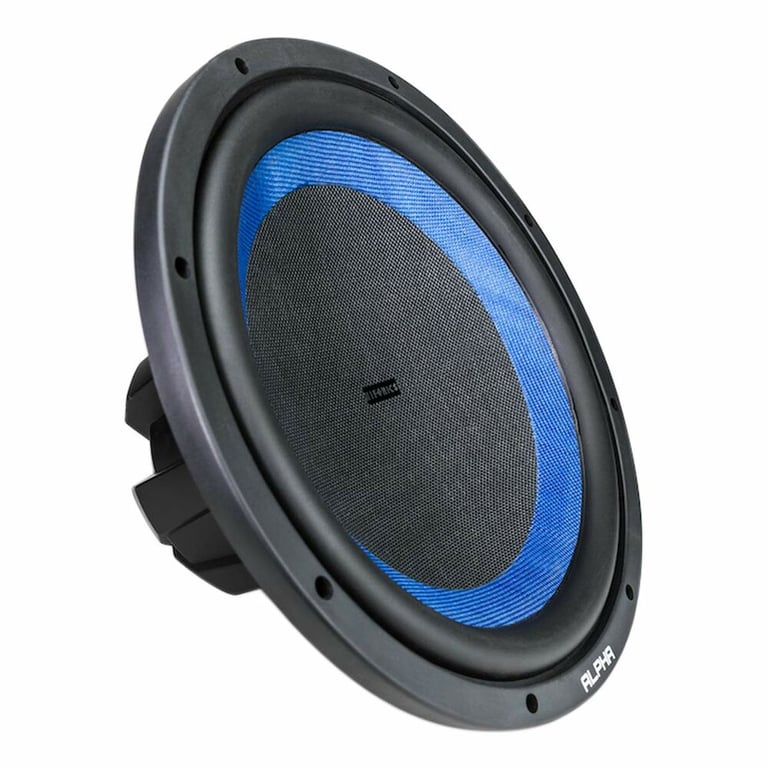

Hifonics HAW15D4

15" Alpha Series 1400W Dual Car Subwoofer

Hifonics
Shop all Hifonics
highlight-star-icon

• 1400W Max / 700W RMS
• 4 Ohm
• UV rubber
• Alpha Series
• Steel Basket
• 5.54" Top Mount

Learn more about the haw15d4

We apologize

This item has been discontinued


Loading...
VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Description


Hifonics brand icon

Authorized dealer

Product Overview

ALPHA’s distinct subwoofer appearance highlights glass fiber cones and large concave dust caps. The utilization of these materials provides outstanding performance because they are light-weight and rigid at the same time. Featuring up to 2.5" voice coils, ALPHA subwoofers handle up to 1400 watt peaks of energy.

General Features:

  • 15" 4 Ohm ALPHA Series Car Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 700 watts
  • Round, easy to choose a prefabricated enclosure

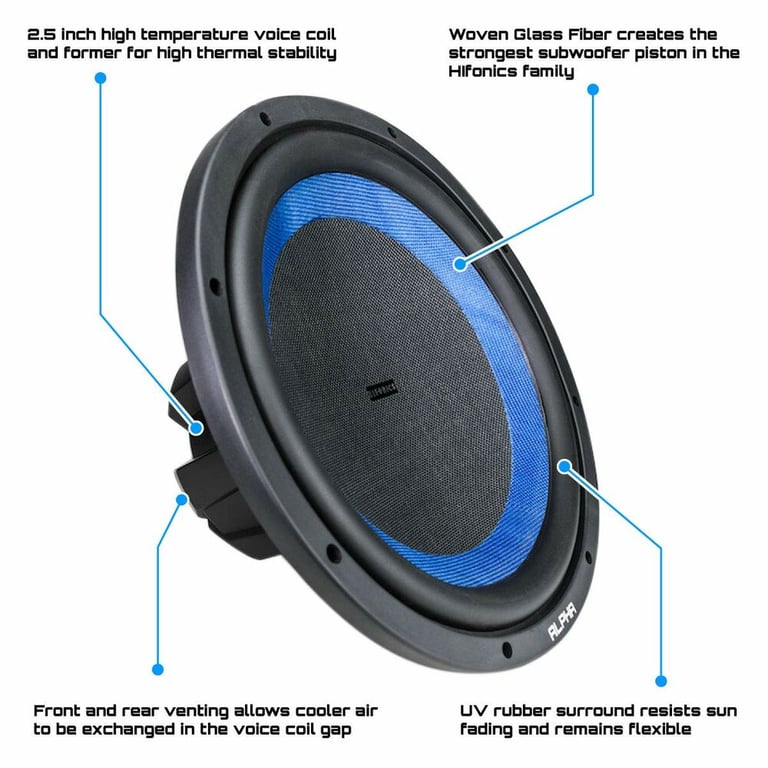

  • Woven Glass Fiber creates the strongest subwoofer piston in the HIfonics family
  • UV rubber surround resists sun fading and remains flexible
  • Stainless Push & Insert for a very secure electrical connection with a high end fit and finish
  • Vented former allows more dissipation of heat
  • Powder coated, deep draw stamped steel basket
  • Nickel plated push & insert to resist corrosion and aide in easy of installation
  • 2.5" high temperature voice coil and former for high thermal stability in small enclosure volumes where the internal box temperatures can rob you of performance
  • Top-mount depth:6.09"
  • Cutout diameter: 13.9"
  • Sensitivity: 90 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics HAW15D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics HAW15D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics HAW15D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics HAW15D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
1400 watts
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Subwoofer Design
Round / Circle
Main Cone Color
Blue
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.024 cubic feet
Optimum Ported Box Volume
4.125 cubic feet
Shallow Mount Installation
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HAW15D4

Weight:

16.00lbs

Internal SKU:

haw15d4

Internal Product ID:

178549
