Infinity BassLink Mini

200W Peak (100W RMS) 6x8" BassLink Series Amplified Car Subwoofer with Bass Remote

Infinity
Shop all Infinity
highlight-star-icon

• 6 x 8" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

Learn more about the subblminiam

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Limited time!
TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

7
-30.78%

$44.99

List price $65.00

T152 main

Rockford Fosgate Power T1 T152

240W Peak (120W RMS) 5.25" Power Series 2-way 4-ohm Coaxial Car Speakers

22

Description


Infinity brand icon

Authorized dealer

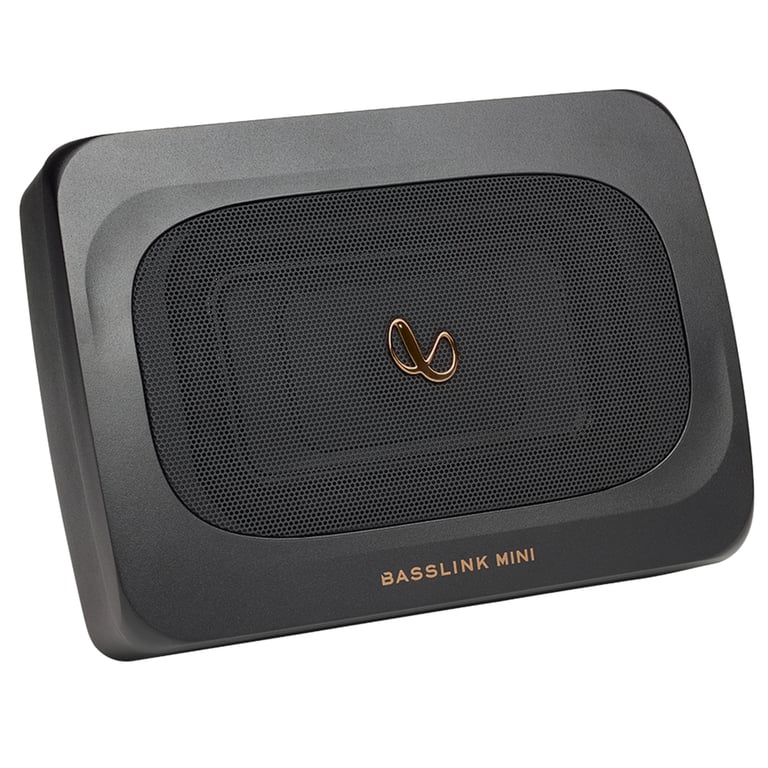

Infinity BassLink Mini

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity’s smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100 Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.


Product Features:

  • Single 6 x 8" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • RMS: 200 watts
  • Built-in Class D amplifier

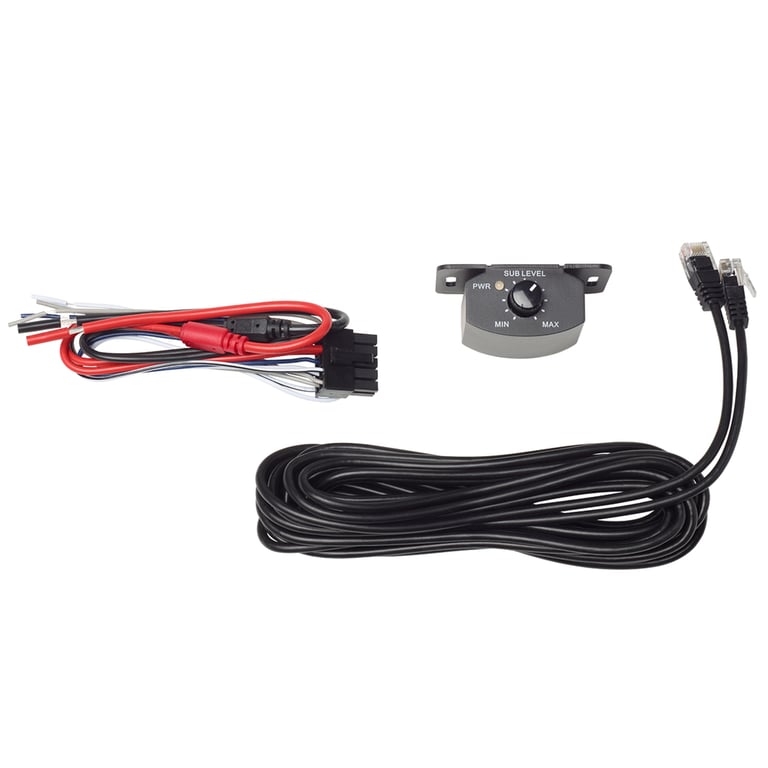

  • Includes Remote Bass Level Controller
  • Sealed Underseat enclosure
  • 10 AWG gauge power and ground wiring is recommended for installation
  • Enclosure Dimensions: 8-1/4" TD x BD x 8-1/4" W x 2-7/8" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • 6 x 8" Subwoofer
  • Polypropylene Cone
  • Rubber Surround
  • BassLink Series
  • Frequency Response: 30 - 150 Hz

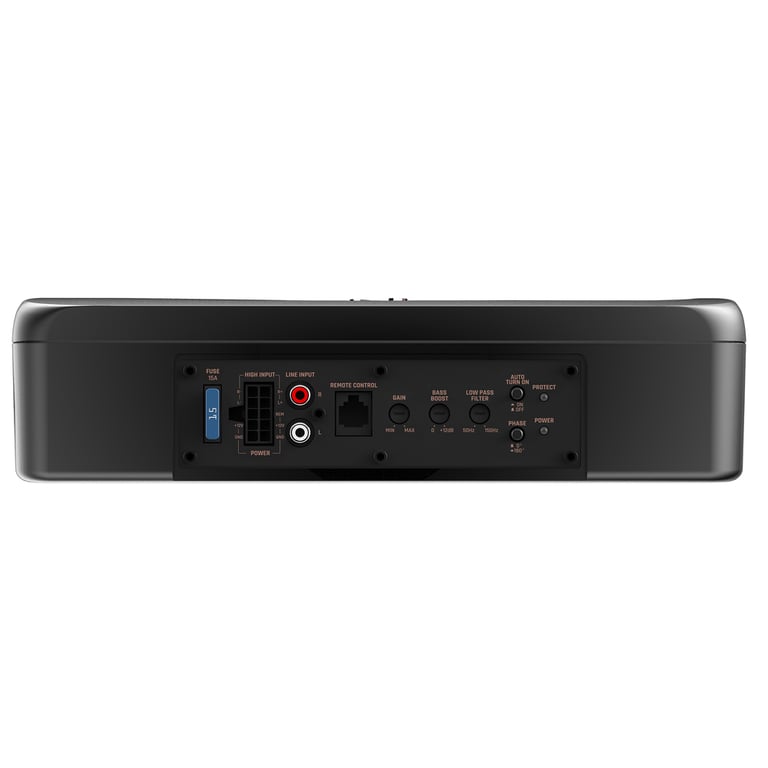

Amplifier Features:

  • Class D Monoblock Amplifier
  • Low-Pass Crossover Frequency: 50 - 150 Hz
  • Bass Boost: 0 - 12 dB
  • RCA Preamp Output: No
  • Speaker-level (high-level) inputs
  • Input sensitivity: 0.05V - 2 volts
  • Fuse Rating: 15A x 1

Enclosure Features:

  • 6 x 8" Sealed Enclosure
  • Box Finish: Black Injection molded plastic (ABS)

Best selling similar products

51HS10 small

Kicker HS10 (51HS10)

• 10" Amplified Loaded Subwoofer System
• 180 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(1)

$319.96

List price $429.99

VPAS12 small

Cerwin Vega VPAS12

• 12" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(15)

$329.99

List price $395.99

QBUS10P small

NVX QBUS10P

• Low Profile Ported Subwoofer System
• 200 Watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(38)

$199.99

List price $219.99

Specifications & Details


Series
Series
BassLink Series
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
10 AWG
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Low-Level Input Sensitivity
0.05V - 2 volts
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
15A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
6 x 8"
RMS Power Handling
100 watts
Total RMS Power Handling
200 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Frequency Response
30 - 150 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Underseat
Height
2-7/8"
Width
8-1/4"
Depth
8-1/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Injection molded plastic (ABS)
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Basslink Mini

Weight:

8.22lbs

Internal SKU:

subblminiam

Internal Product ID:

178581
