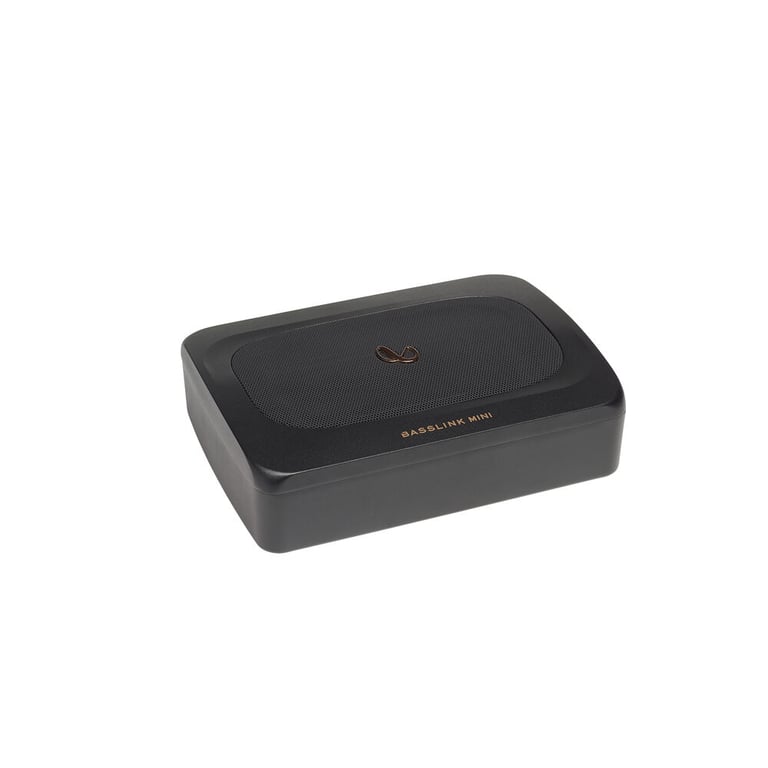

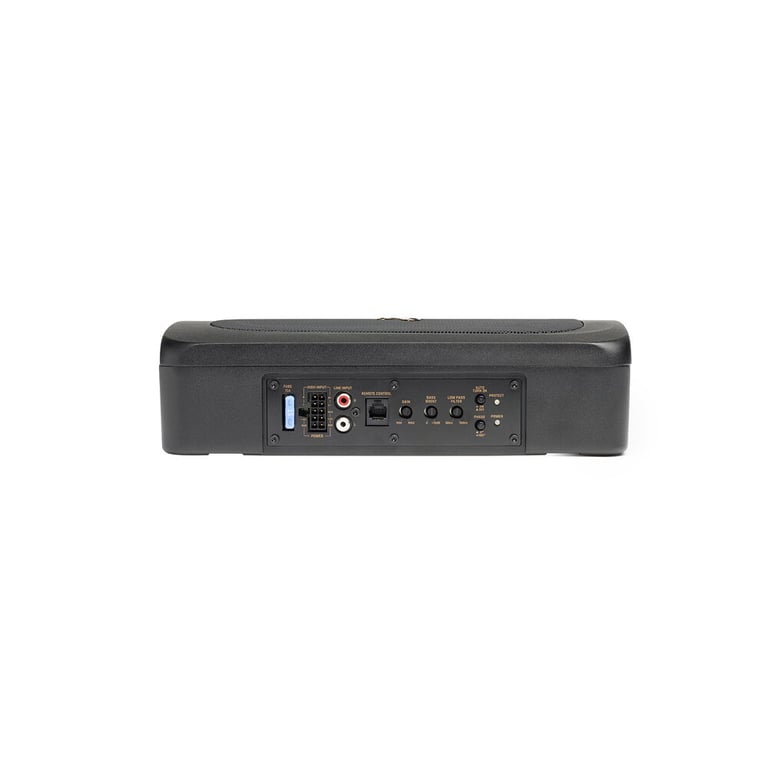

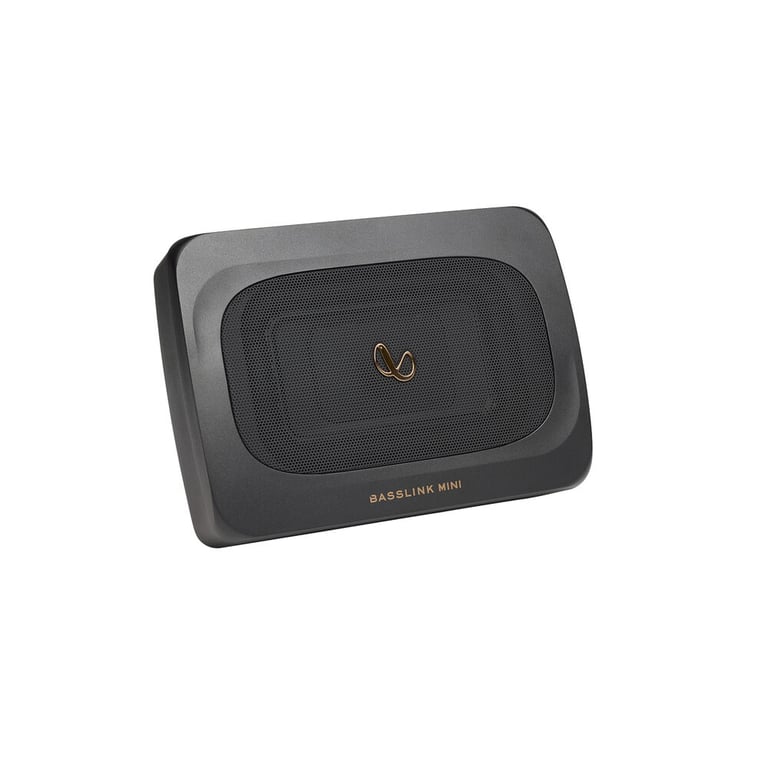

Infinity Basslink Mini

6" x 8" Compact Under Seat Powered Subwoofer System

Infinity
Shop all Infinity
highlight-star-icon

• Big Bass, Small Space
• Intelligent Electronic Design for Reliable and Extraordinary Performance
• Die-Casting Aluminum Enclosure Design
• Bass Volume Remote Control
• Dimensions: 11-7/16” x 8-5/16” x 3”

Learn more about the basslinkmini

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
-17.86%

$229.99

List price $279.99

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

H7TAK main

Cerwin Vega H7TAK

600W Peak (70W RMS) 0.75" HED Series 4-ohm Silk Dome Tweeters

8
-16.67%

$69.99

List price $83.99

Description


Infinity brand icon

Authorized dealer


Infinity BassLink MINI Under seat subwoofer

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.


Product Details:

  • 6" x 8" Under Seat Subwoofer
  • Power Handling:

    • RMS: 100 watts
    • Peak: 200 watts
  • Big Bass, Small Space
  • Intelligent Electronic Design for Reliable and Extraordinary Performance
  • Die-Casting Aluminum Enclosure Design
  • Bass Volume Remote Control
  • Input sensitivity:

    • Low level: 0.1V - 4V
    • High level: 0.25V - 10V
  • Frequency Response: 35 - 150 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • Fuse Rating: 15A x 1
  • Maximum Current Draw: 13A
  • Quiescent Current Draw: <600mA
  • Dimensions: 11-7/16"W x 8-5/16"L x 3"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Check out the Infinity Basslink Mini Owner's Manual


    PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov
