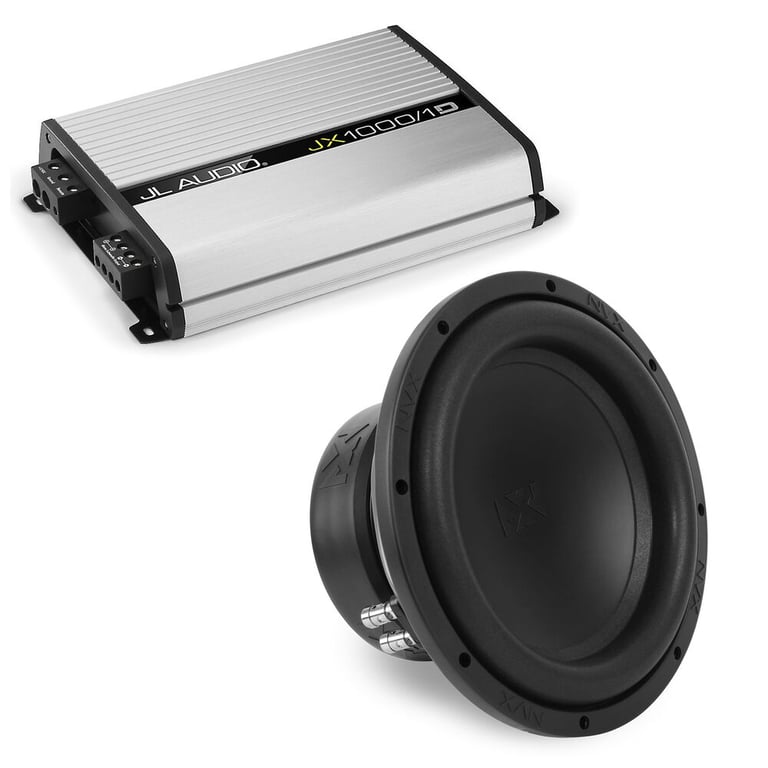

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 1 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

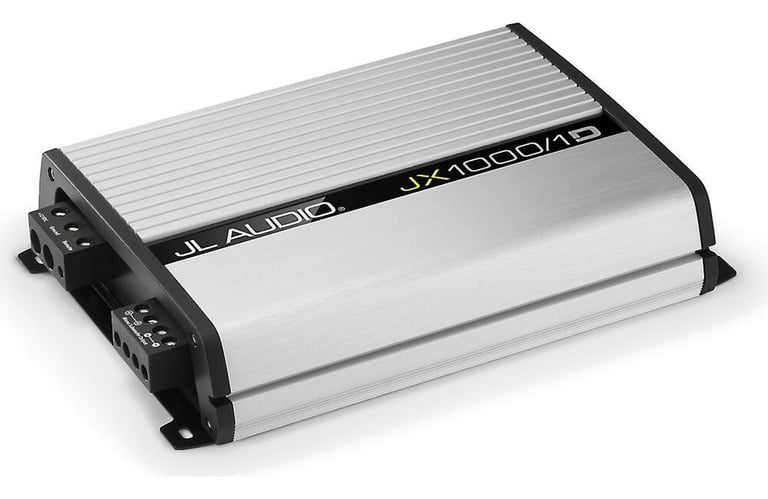

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 2 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 3 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

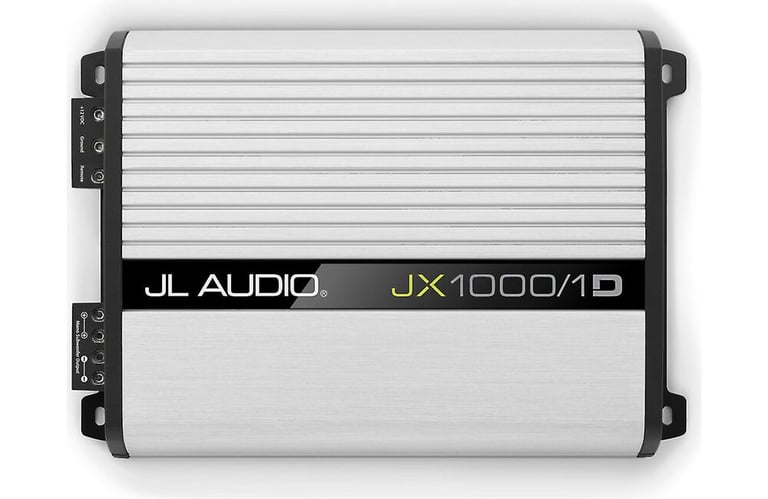

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 4 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

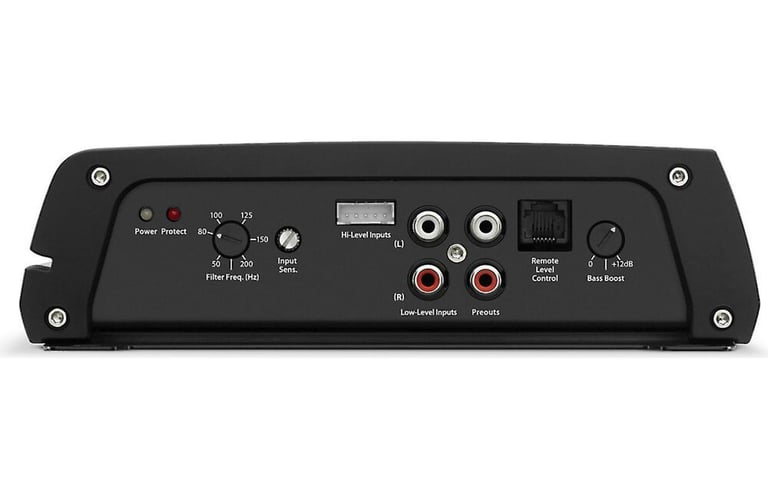

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 5 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 6 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 7 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 8 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

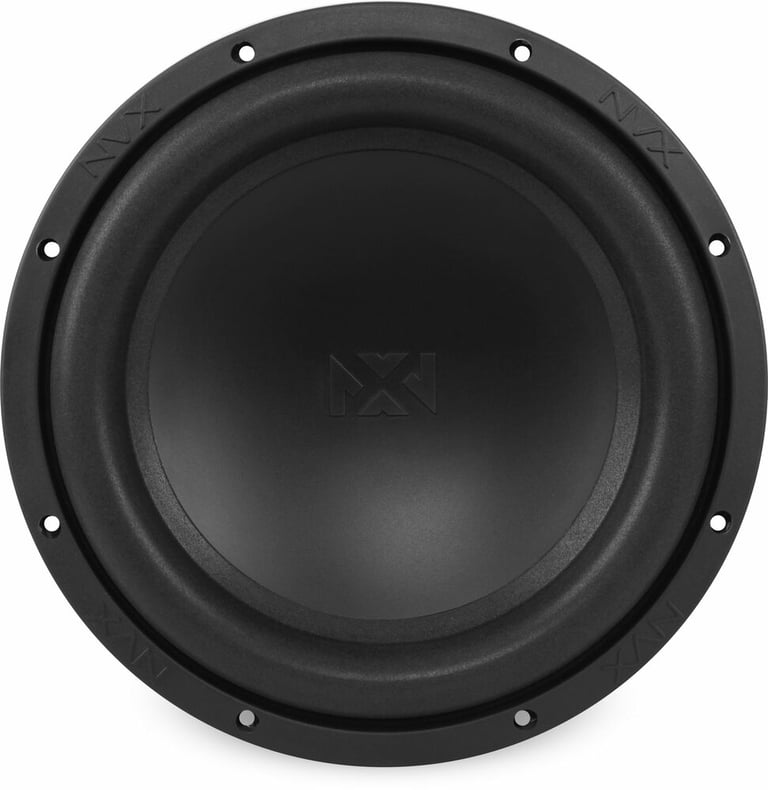

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 9 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 10 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

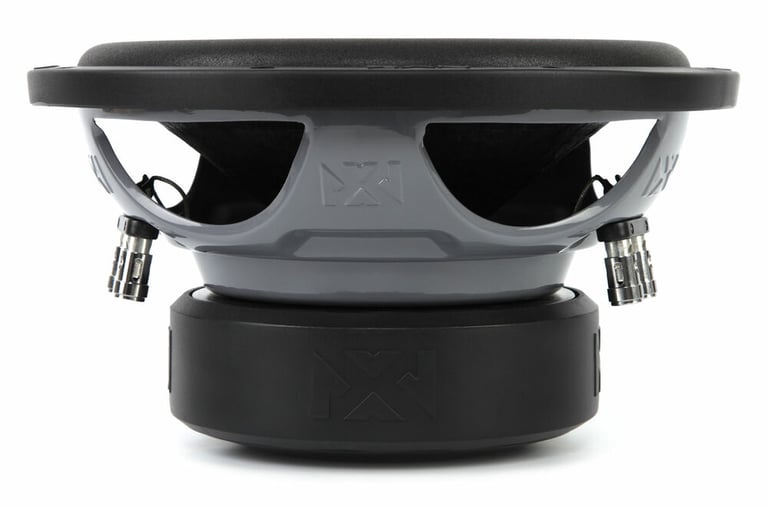

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 11 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 12 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

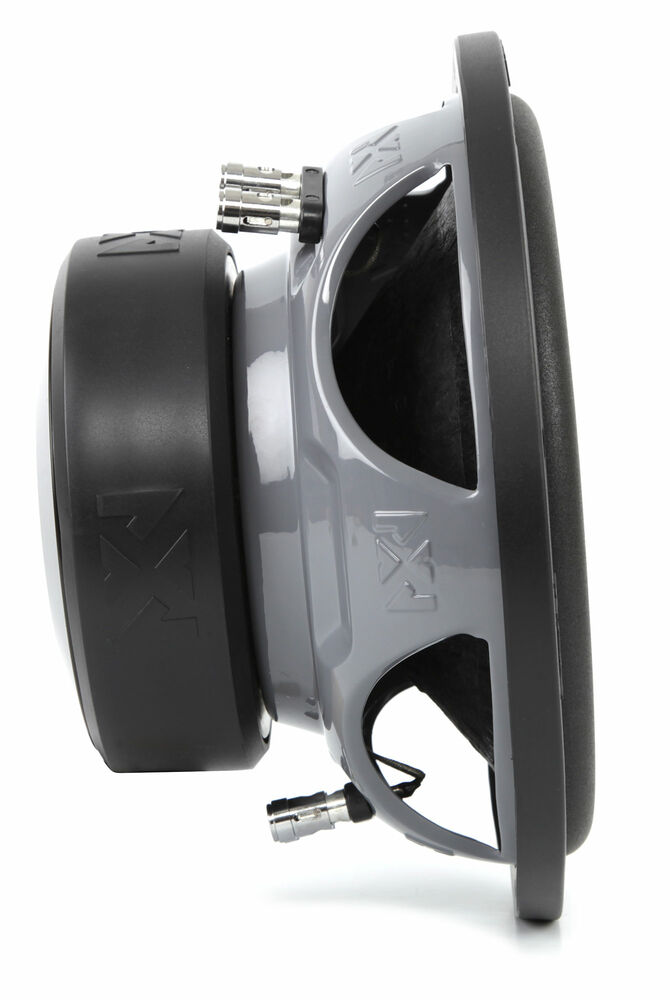

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 13 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

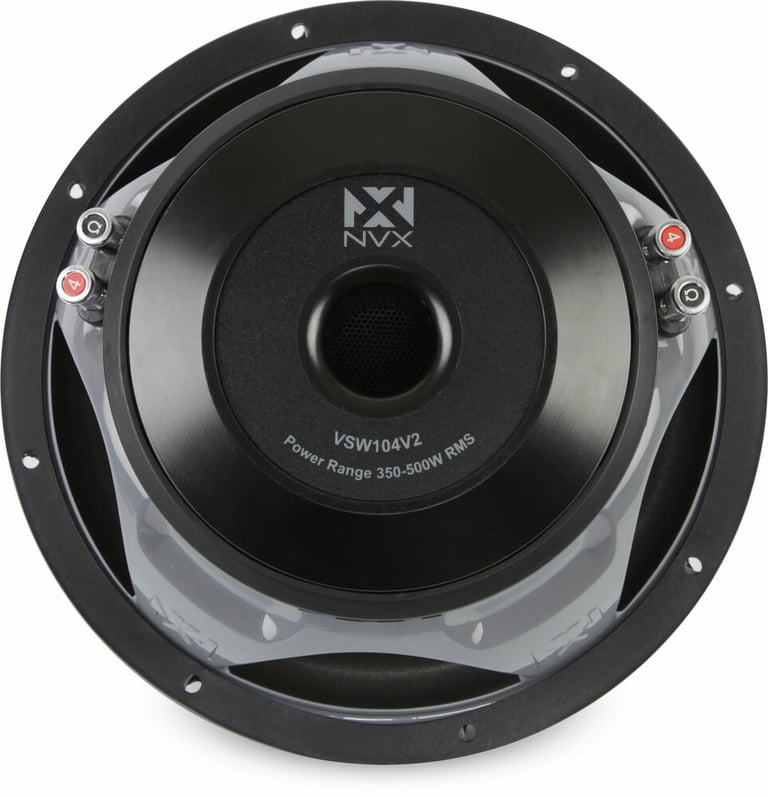

JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer Image 14 — JL Audio JX1000/1D with NVX Dual 4-Ohm Subwoofer

Product highlights

• Peak: 500W x 1 @ 4 ohm, 750W x 1 @ 3 ohm, 1000W x 1 @ 2 ohm
• Unregulated PWM switching type power supply
• Class D Circuitry
• Bass Boost: 0-12 dB
• Speaker-level (high-level) inputs with included harness
• Dimensions: 7.68"W x 10.94"L x 2.09"H

Learn more about the jx10001d_vsw104v2

Description

Authorized dealer

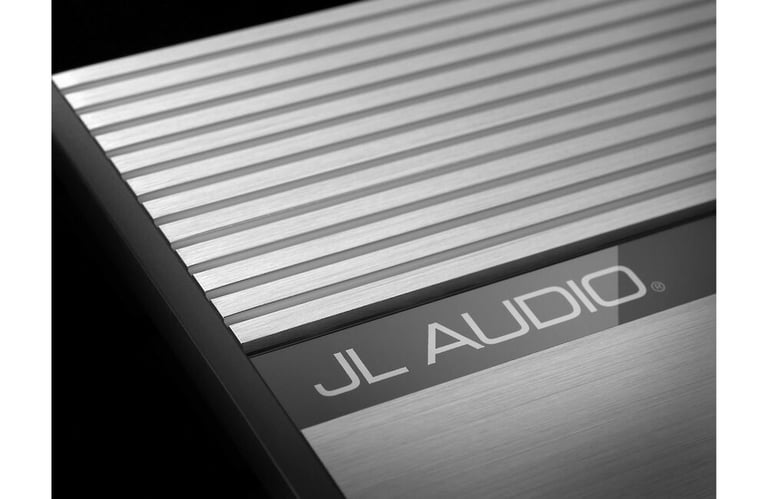

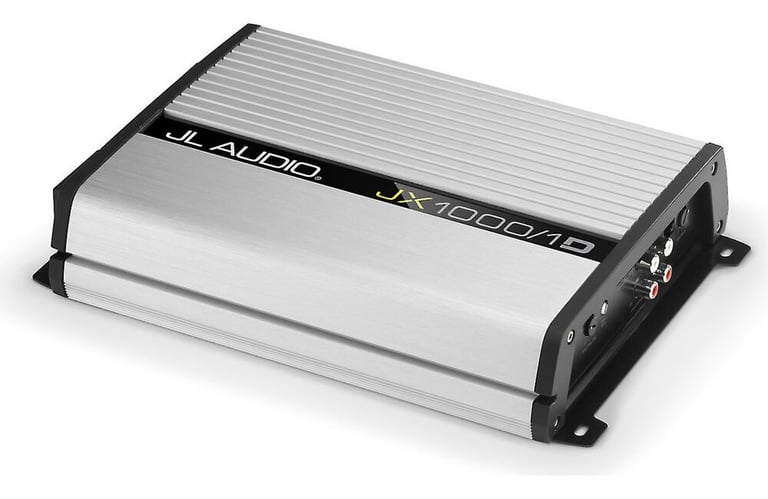

JL Audio JX1000/1D - JX Series Monoblock Class D Subwoofer Amplifier

The JL Audio JX Series of amplifiers are designed with a specific purpose; to deliver clean, rock-solid performance and reliability at an affordable price. Unlike gimmicky price-conscious amplifiers, JL Audio employs specified oversized output transistors and rugged MOSFET power supplies to unsure proper current, thermal capacity and better overall performance. In addition, the JX1000/1D includes flexible signal processing capabilities with a fully variable 12 dB/octave crossover filter, pass-through preamp outputs and a Bass EQ. With the optional JL Audio RBC-1 Remote Level Control (sold separately), you can control the subwoofer volume from the front of the vehicle.

JX monoblock subwoofer amplifiers are specifically designed to drive subwoofers. Their frequency response is limited to the range below 150 Hz., making them unsuitable for driving midrange speakers or tweeters.

Integration Flexibility

For those systems that do not offer a preamp level signal option, you can connect speaker level signals directly to the "Hi-Level Inputs" connector using the supplied connector and wire harness. Simply splice the appropriate left/right and positive/negative wires to the included harness and plug the harness into the "Hi-Level Inputs" connector on the amplifier. The JX monoblock will attenuate the high-level signal to make it compatible with its input stage. Alternatively, a traditional left/ right pair of RCA type jacks is used for preamp level (low-level) signals. This is the preferred connection method whenever available.

Low-Pass Active Filter

The JX monoblock features a 12 dB/octave low-pass active filter for its internal channel. This feature is designed to attenuate frequencies above its filter frequency, so that the system's subwoofer(s) do not reproduce any audible and often harmful mid-range frequencies. The low-pass filter is fully variable between 50 Hz and 200 Hz via the "Filter Frequency" control knob. 80 Hz is a good starting point for system tuning, but its also advisable to match the crossover point with that of your satellite speakers' high-pass filter - this ensures that your system is properly distributing the frequencies to the appropriate medium.

General Features:

JX Series Monoblock Class D Subwoofer Amplifier
RMS Power Rating (14.4V):

4 ohm: 500 watts x 1 chan.
3 ohm: 750 watts x 1 chan.
2 ohm: 1000 watts x 1 chan.

RMS Power Rating (12.5V):

4 ohm: 500 watts x 1 chan.
3 ohm: 700 watts x 1 chan.
2 ohm: 900 watts x 1 chan.

Unregulated PWM switching type power supply
LED power (green) and protect (red) indicators
Soft start turn-on prevent clicking and popping when system turns on
Speaker-level (high-level) inputs with included harness
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for effective heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals

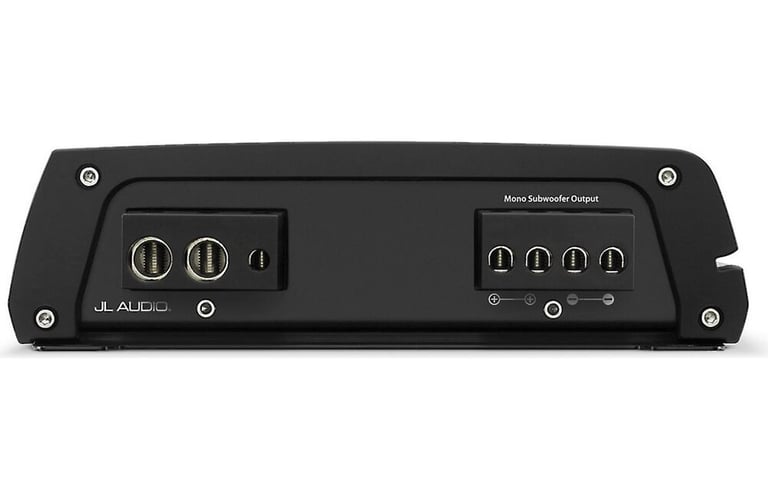

Dual speaker terminals simplify the hookup of multiple speakers
Remote bass level input (JL Audio RBC-1 sold separately)
Input sensitivity:

Low level input: 200mV - 4V
High level input: 2.0mV - 10.0V

Variable Bass Boost: 0 to +12 dB bass boost centered at 45 Hz
Variable low-pass filter: 50 - 200 Hz, 12 dB/octave
Frequency Response: 20 - 150 Hz ± 1 dB
Total Harmonic Distortion (THD): 1%
Signal to Noise Ratio: >75 dB
Damping Factor @ 4 ohm: >1000 @ 4 ohm
Fuse Rating: 80A x 1 inline (not supplied)
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Weight: 7.0 lb
Dimensions: 7.68"W x 10.94"L x 2.09"H
Authorized Internet Dealer
2 Year Manufacturer's Warranty

Check out the JL Audio JX1000/1D Owner's Manual
