Infinity BassLink SM2 (SUBBLSM2AM) (Like New (Open Box))

125W RMS 8" BassLink Series Amplified Car Subwoofer with Bass Remote

Infinity
Shop all Infinity
highlight-star-icon

• 8" Amplified Loaded Subwoofer System
• 125 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

Learn more about the ls-subblsm2am-u9

We apologize

This item has been discontinued

Description


Infinity brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

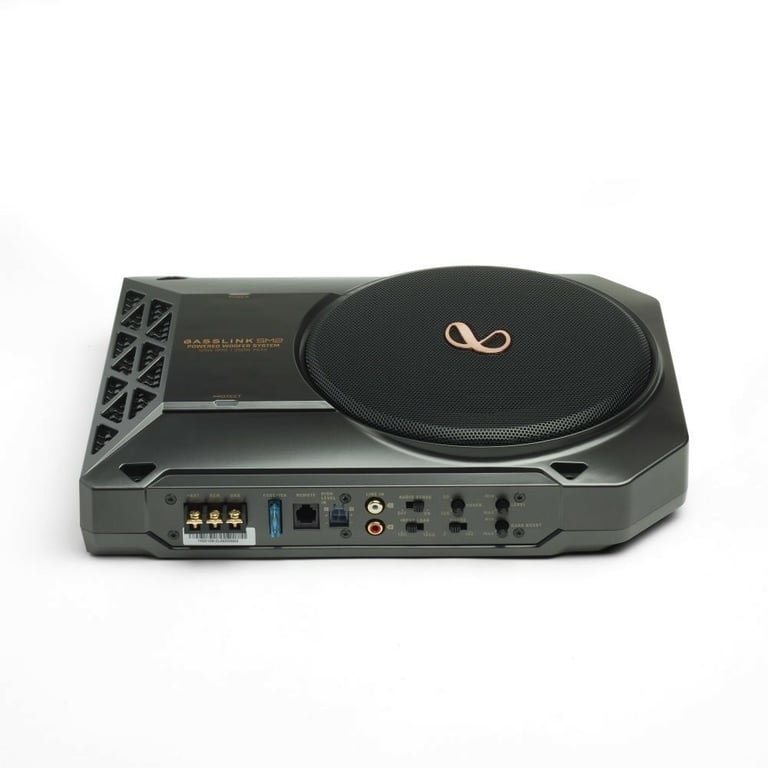

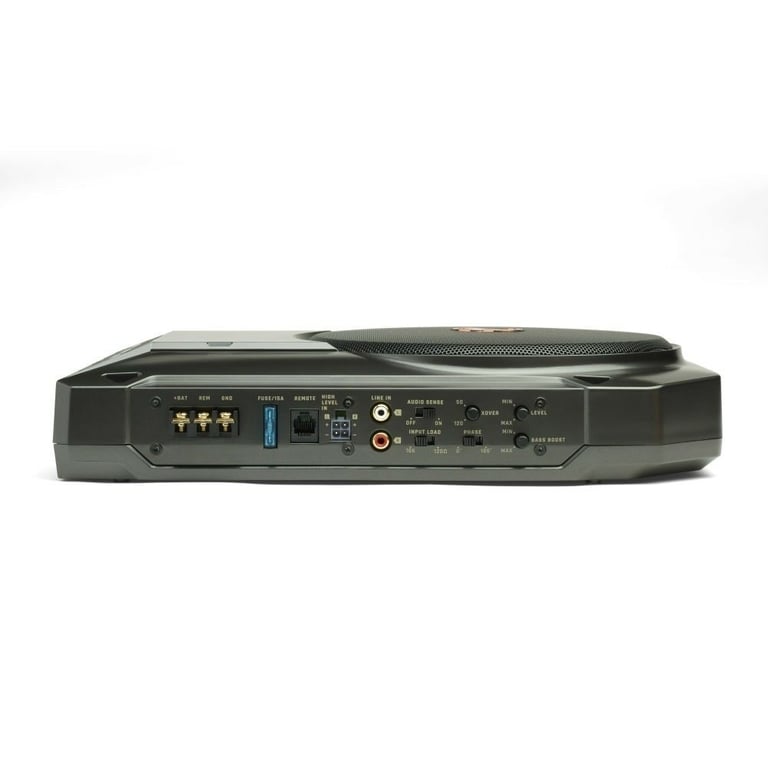

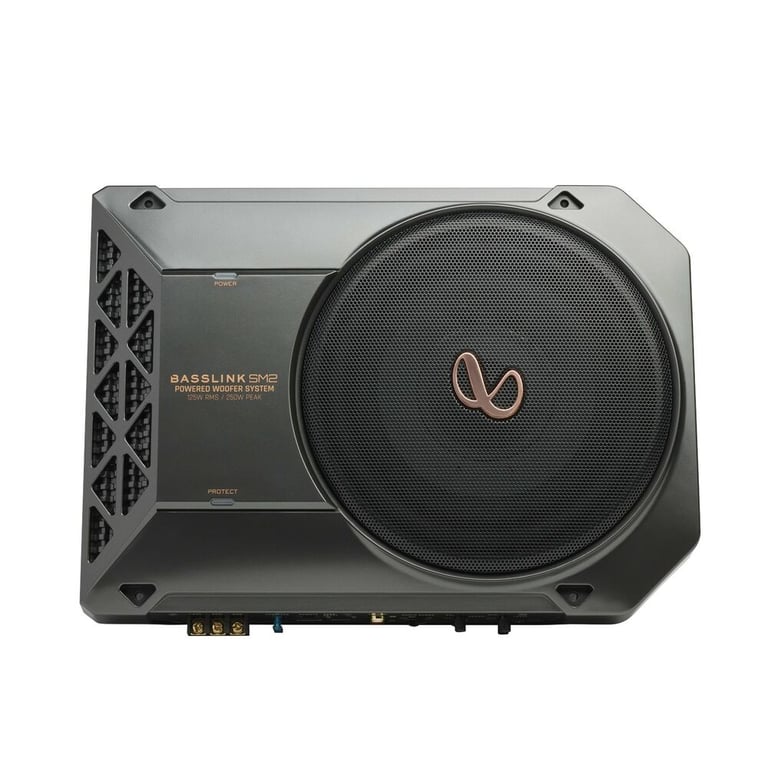

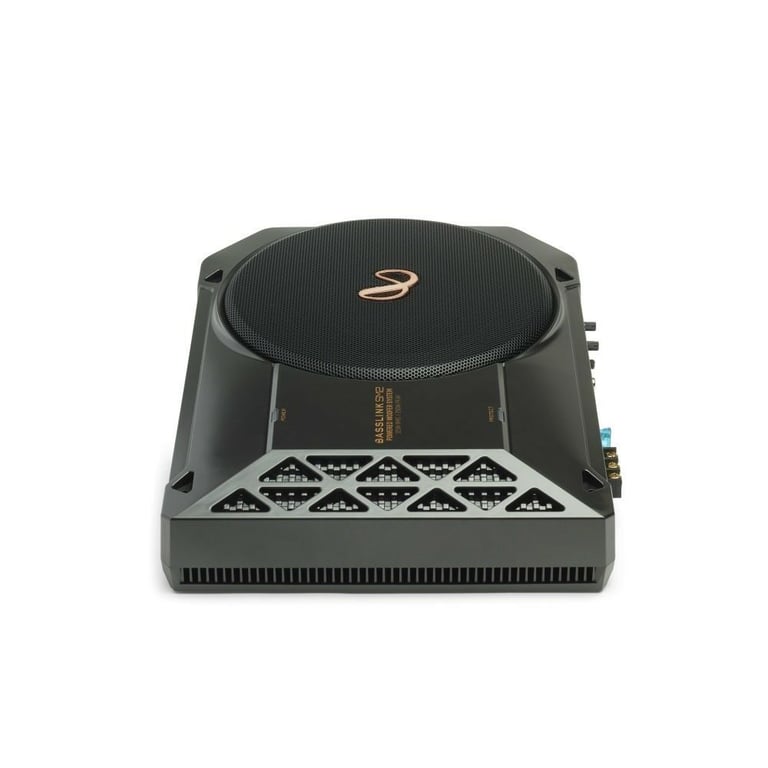

Infinity BassLink SM2

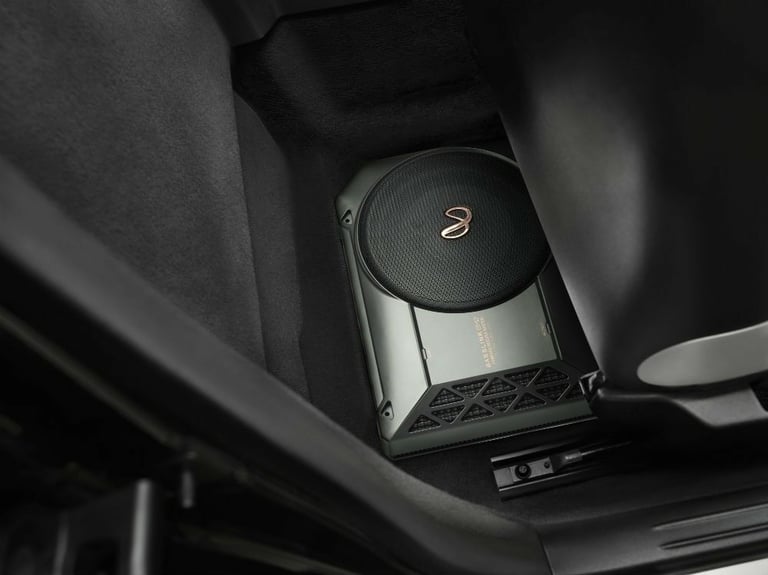

The BassLink SM2 self-powered subwoofer fits under the front seat of many vehicles, and adds great bass to any vehicle audio system. Its shallow-profile, 8" woofer and custom tuned low profile enclosure makes it possible to add bass in vehicles where space is limited. Its fully adjustable crossover and bass EQ, gives you the tools needed to tune the BassLink SM2 to your system and vehicle. To drive the proprietary 8" woofer an energy efficient Class D digital amplifier delivers great power while keeping cool and drawing minimal current from your vehicle's charging system.


Product Features:

  • Single 8" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • RMS: 125 watts
  • Built-in Class D amplifier
  • Includes Remote Bass Level Controller
  • Sealed Underseat enclosure
  • Proprietary, shallow-profile woofer
  • Intelligent electronic design
  • Crossover control
  • Flexible EQ adjustments
  • Line- and high-level inputs
  • 10 AWG gauge power and ground wiring is recommended for installation
  • Enclosure Dimensions: 10-1/16" TD x BD x 10-1/16" W x 2-7/8" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • 8" Subwoofer
  • Polypropylene Cone
  • Rubber Surround
  • BassLink Series
  • Frequency Response: 35 - 120 Hz

Amplifier Features:

  • Class D Monoblock Amplifier
  • Low-Pass Crossover Frequency: 50 - 120 Hz
  • Bass Boost: 0 - 9 dB
  • RCA Preamp Output: No
  • Speaker-level (high-level) inputs
  • Input sensitivity: 0.05V - 2 volts
  • Fuse Rating: 15A x 1

Enclosure Features:

  • 8" Sealed Enclosure
  • Box Finish: Black Injection molded plastic (ABS)

Specifications & Details


Series
Series
BassLink Series
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
10 AWG
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 120 Hz
Low-Level Input Sensitivity
0.05V - 2 volts
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
15A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
8"
Total RMS Power Handling
125 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Frequency Response
35 - 120 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Underseat
Height
2-7/8"
Width
10-1/16"
Depth
10-1/16"
Wood Thickness
5/8"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Injection molded plastic (ABS)
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BassLink SM2-3

Weight:

12.00lbs

Internal SKU:

ls-subblsm2am-u9

Internal Product ID:

214294
