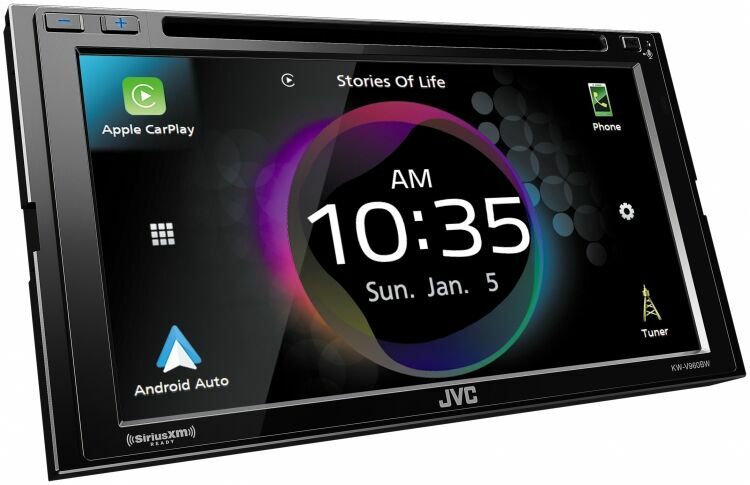

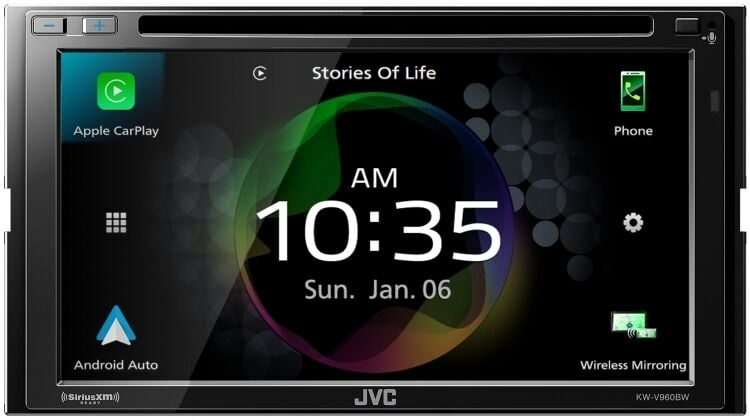

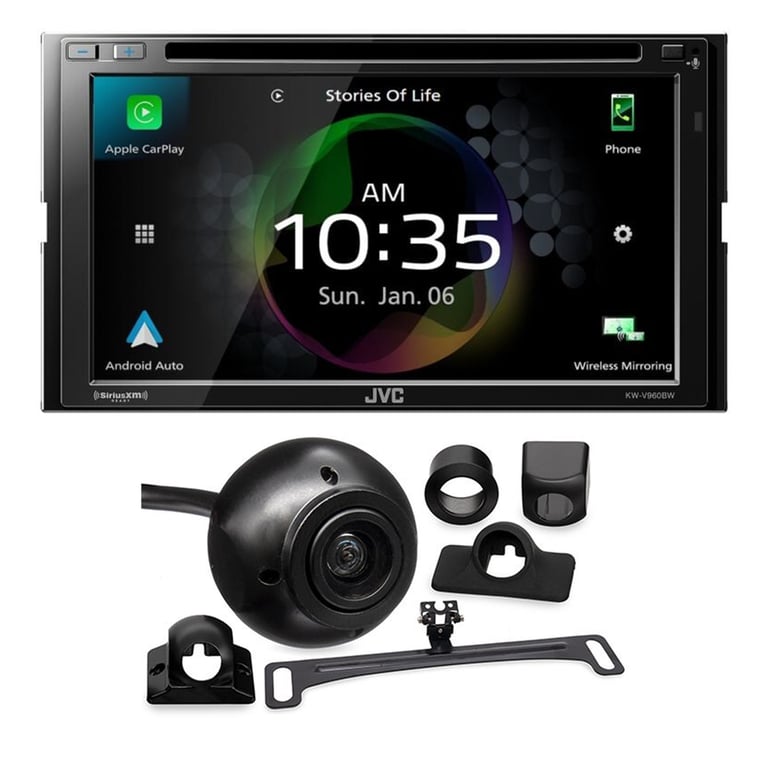

JVC KW-V960BW with Backup Camera

Product Details

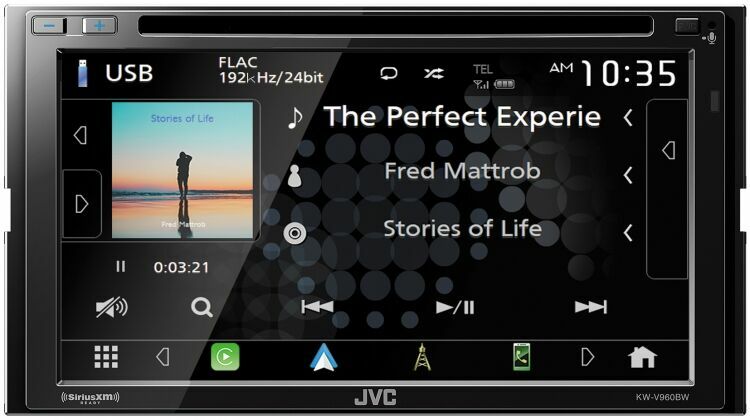

• Double DIN In-Dash Bluetooth CD/DVD Receiver
• 6.8" Resistive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control JVC RM-RK258 (sold separately)
• Gestures touch control feature
• Dynamic GUI with customizable layout
• Live wallpaper syncs background visuals with music
• Features multilingual display for up to 20+ languages
• Adjustable viewing angle from 0-20 degree
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #:KW-V960BW

Smartphone Features

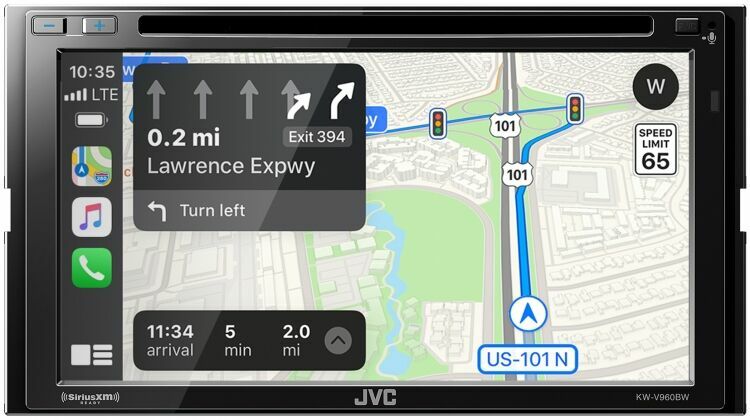

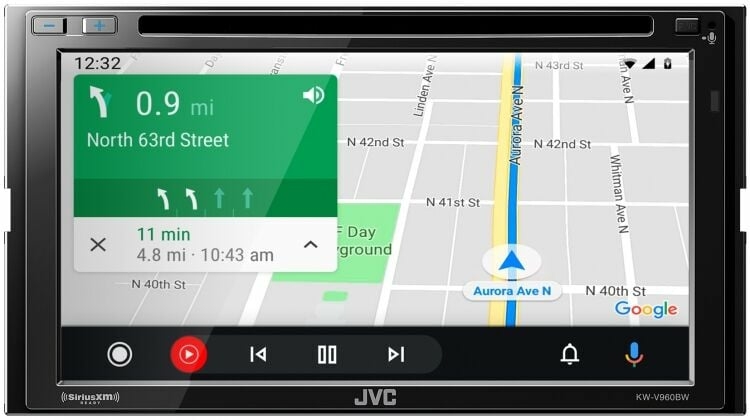

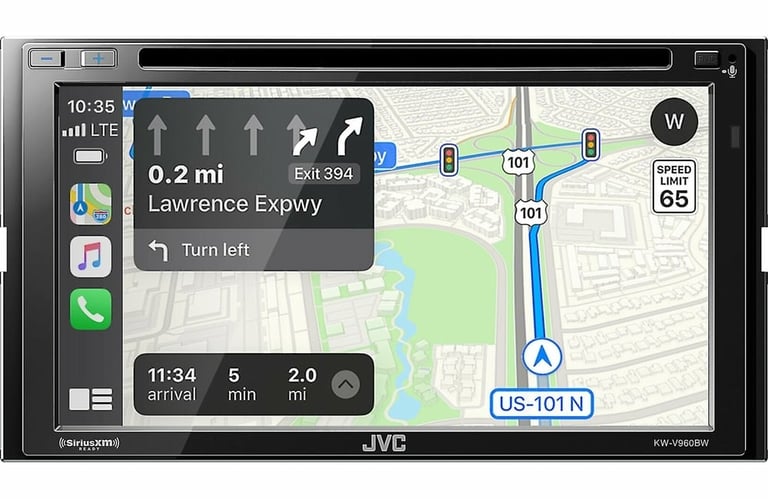

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Pandora and Spotify application capable
• Waze-ready with Apple CarPlay or Android Auto
• Siri Eyes Free control for select iPhones
• Phone-mirroring for Android and iPhone via Wi-fi or USB
• Bluetooth pairing for Android and iPhone
• Control music directly from JVC Remote S smartphone application
• JVC Streaming DJ allows music streaming and control 5 paired phones

Playback and Audio Features

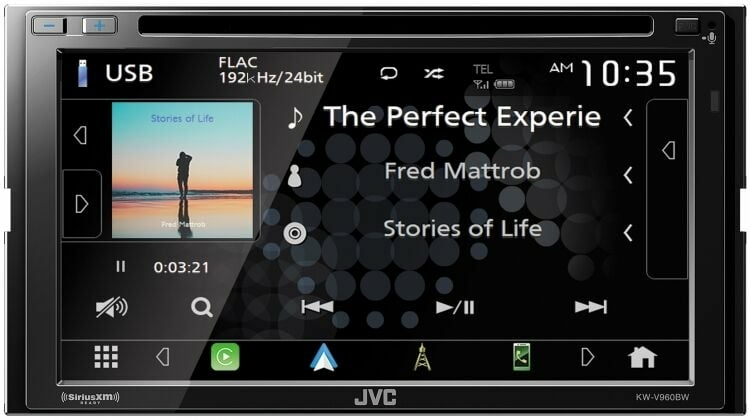

• CD | CD-R/RW | DVD±R/RW | MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MP4 | MPG |MOV and WMV Video Playback
• AM/FM tuner with 15FM/5AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• Subwoofer level, phase, and low-pass crossover controls
• Volume Link EQ (compensates for road noise)
• Sound Lift (adjust perceived speaker height)
• Space Enhancement (virtual surround using 2 speakers)
• Sound Response (restores clarity in compressed files)
• Bass boost, high-pass filter, and low-pass filter feature
• 13-Band Graphics Equalizer with 8 Selectable Presets

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.

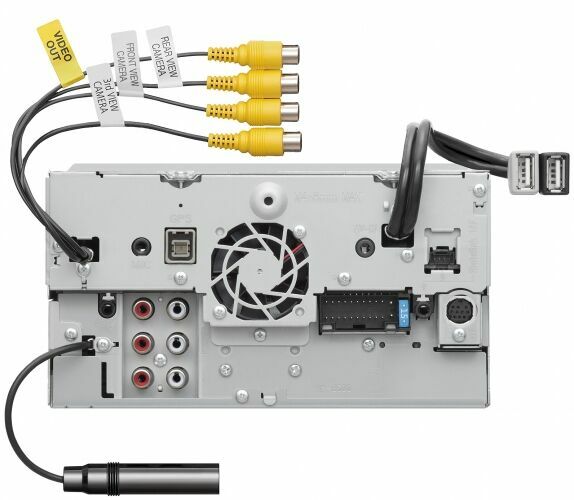

Audio/Video Inputs and Outputs

• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• 2 Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
• Dual-zone A/V output lets you choose two different sources for different areas of your vehicle

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external 10" wired microphone for clear, convenient, distortion-free talking
• Hands-Free Calling (HFP 1.7 with HD Voice)
• Audio Streaming and Control (A2DP, AVRCP1.6)
• Phonebook Access (PBAP) with alphabetical search
• JVC Streaming DJ (connect up to 5 BT devices simultaneously)

JVC KWV960BW owner’s manual

Product Details:

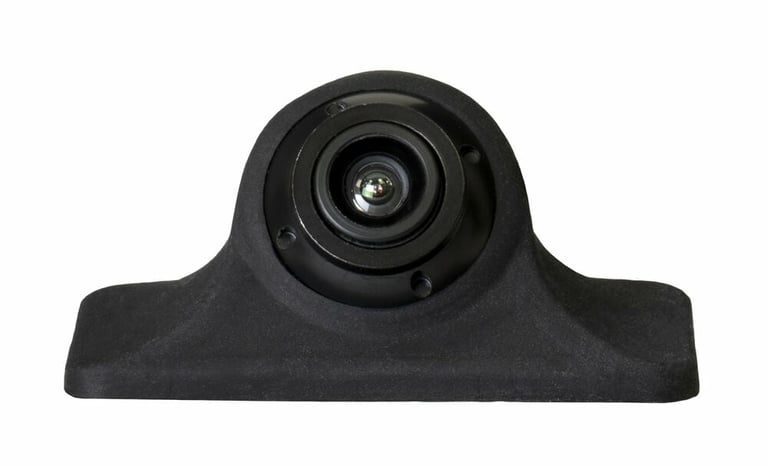

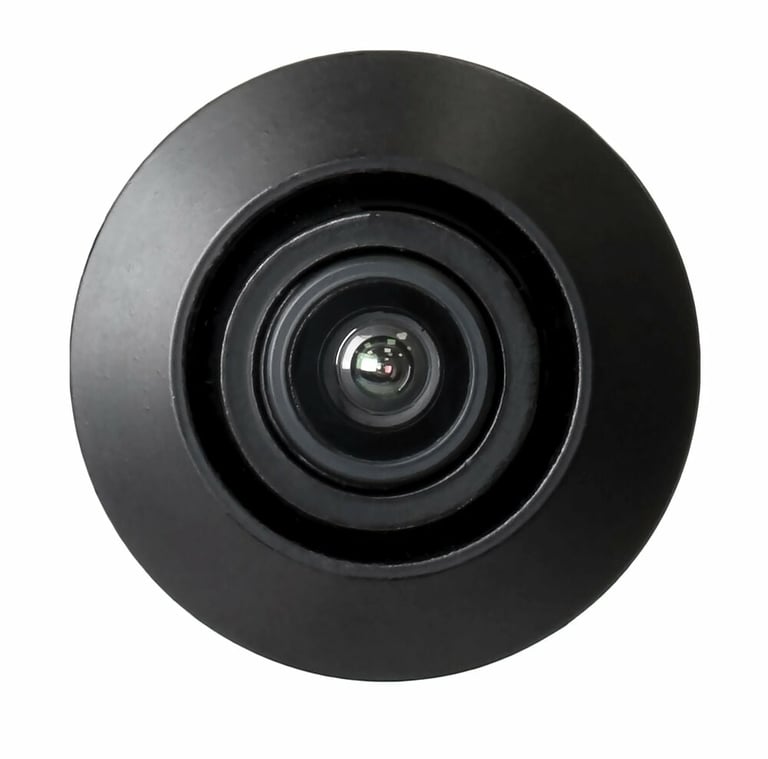

• NVX XC5N1

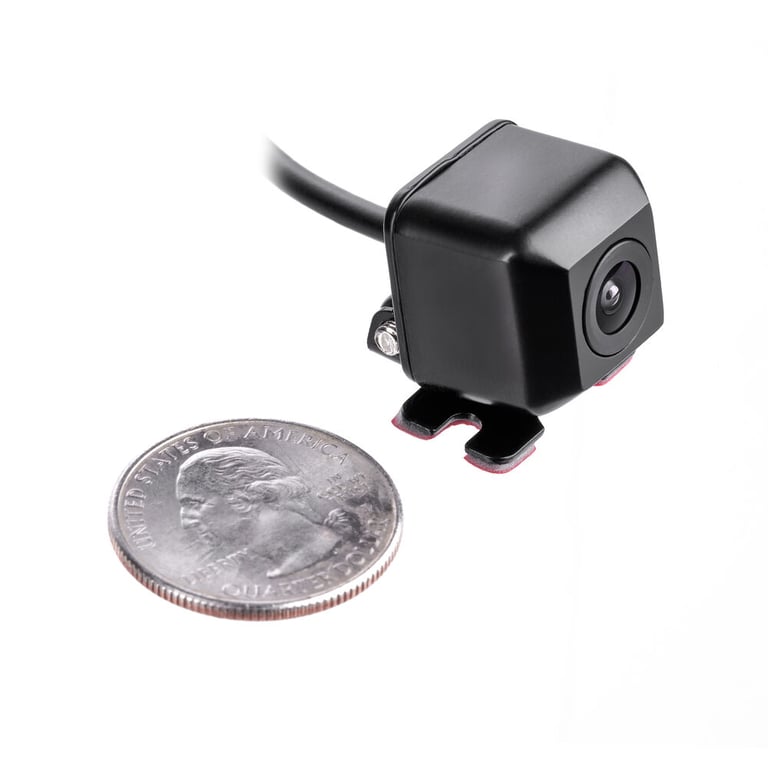

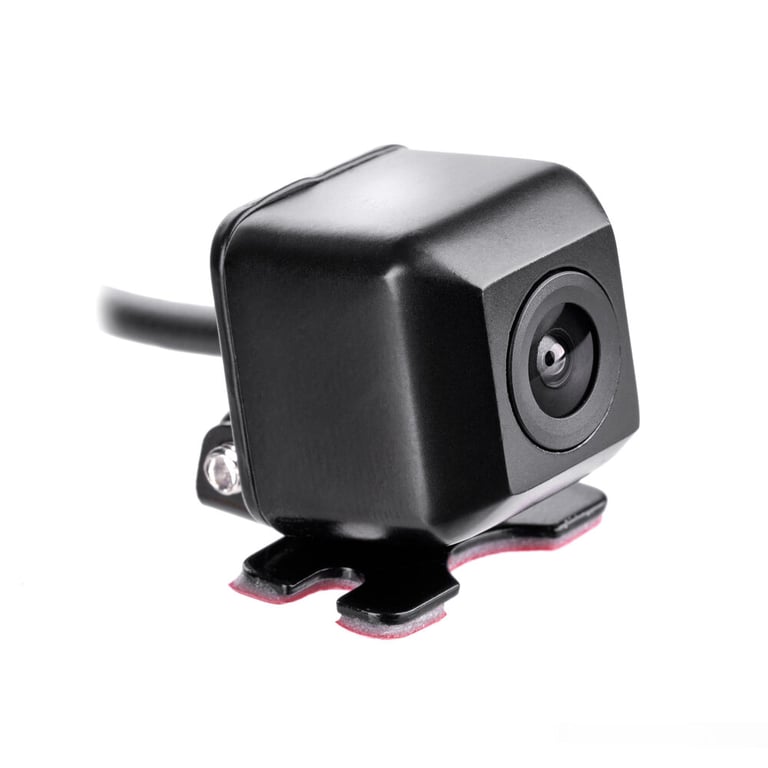

• Universal Rear View Backup Camera
• NATSC/PAL TV System
• Resolution: 720 x 480
• Mounting Style: Bracket Mount \ Surface Mount
• Adjustable 170° Viewing Angle
• Compact Small Design
• IP68 Waterproof Rating
• RCA Connections
• 12 Volt Power Usage
• Ultra low LUX for Low Light Conditions
• 0.08 Lux Minimum Illumination
• Video Output: CVBS 0.5M Pixels
• Operating Temperature: -31°F (-35°C) to 167°F (75°C)
• ON/OFF Parking Line Function
• Selectable Image Allows For Front and Rear Mounting
• Video Cable and Camera Harness Included

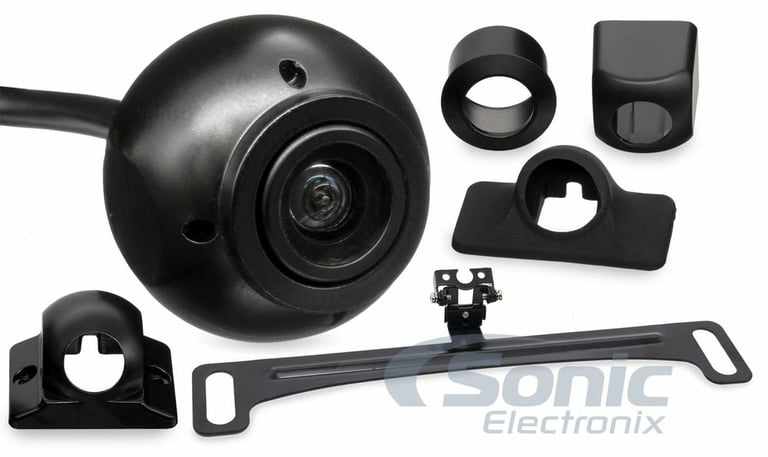

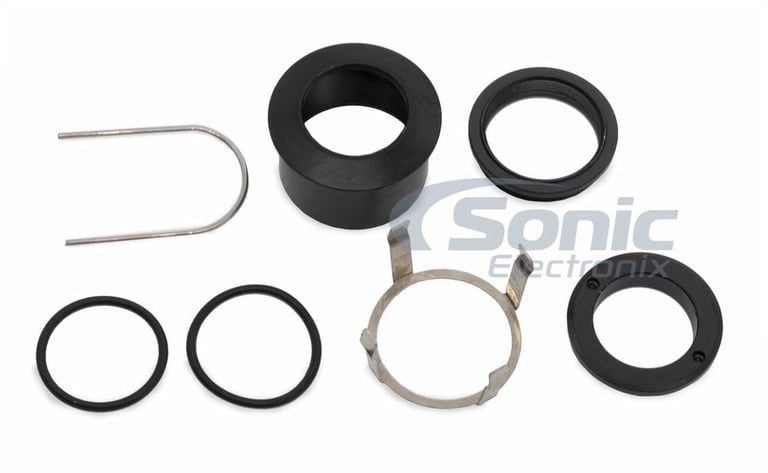

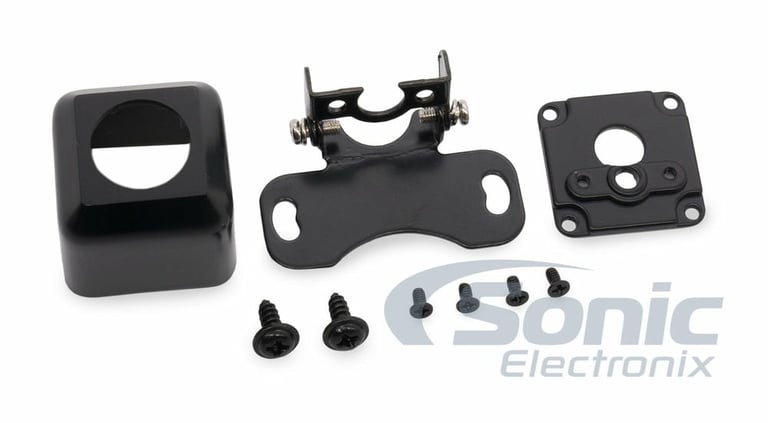

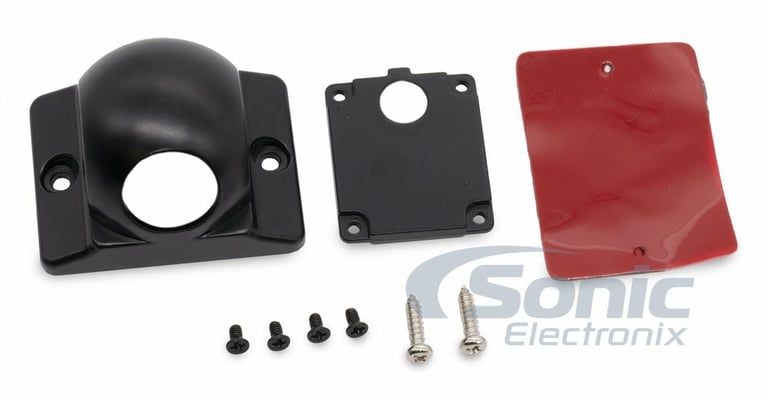

• Five Different Mounts Included:

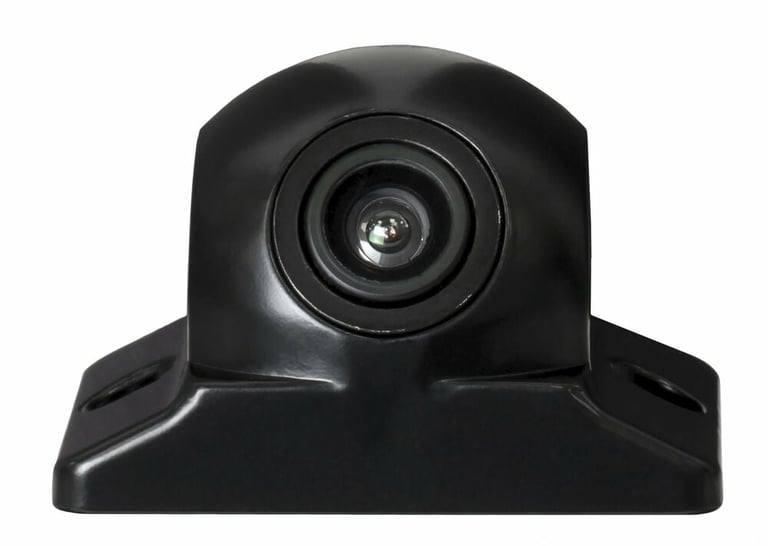

• Square Mount
• Flush Mount
• Angle Mount
• Rubber Mount
• Metal Mount
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What's in the box?

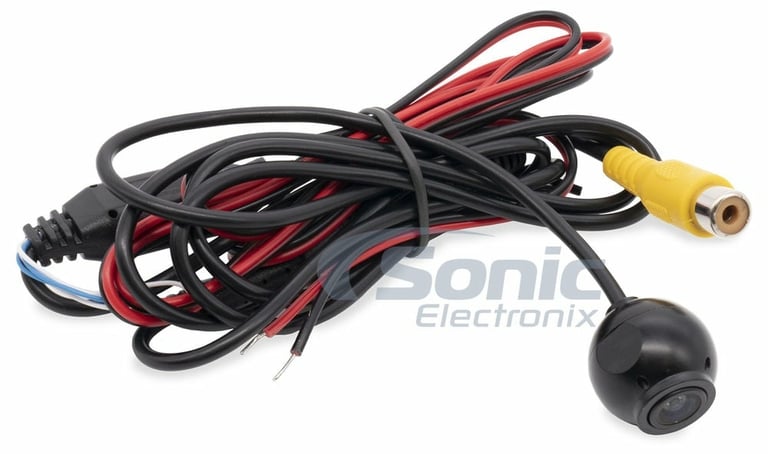

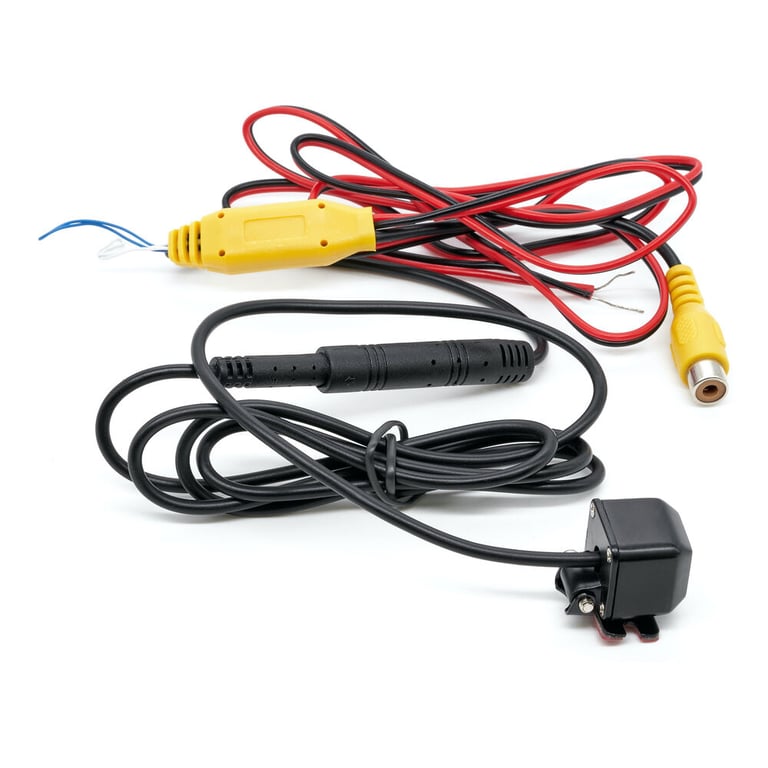

• Camera main wiring harness with 6-pin connector guideline + reverse view loops

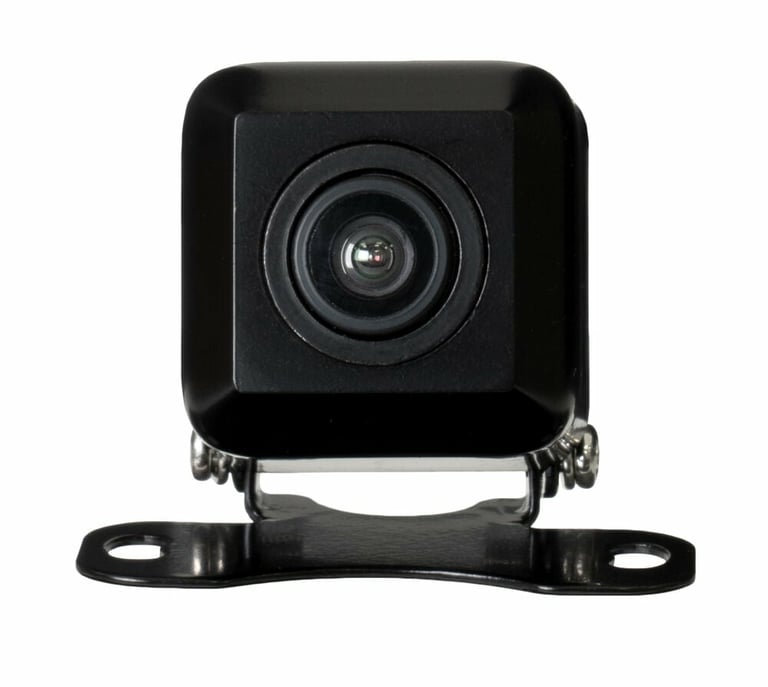

• License plate mounting bar

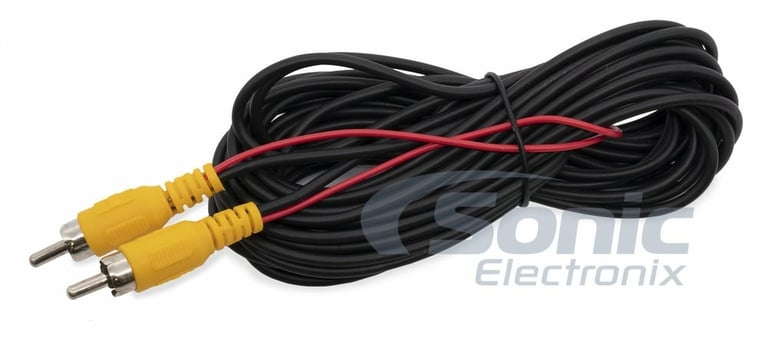

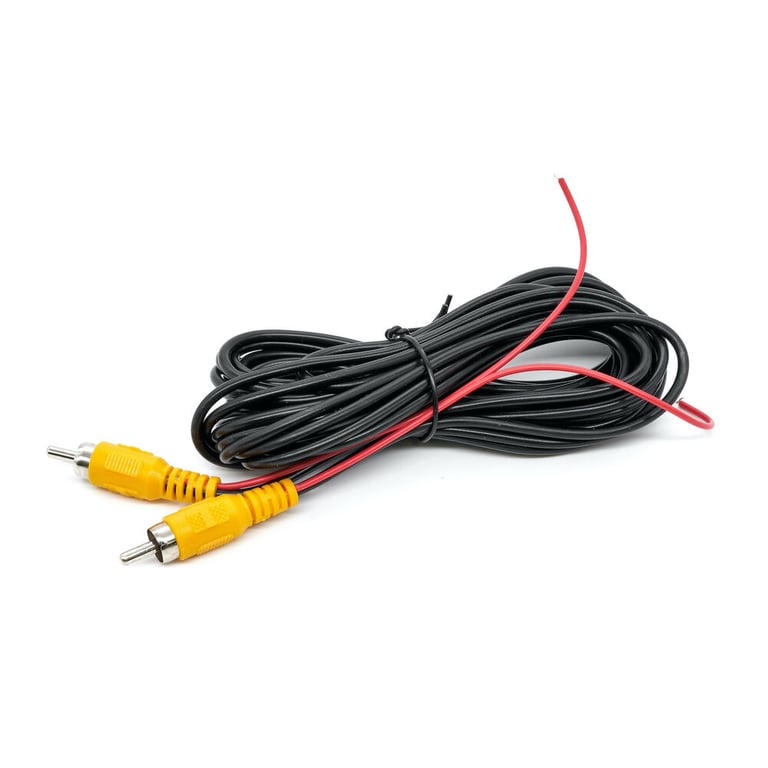

• 19ft extended connection cable
• Full metal mounting shell / camera housing

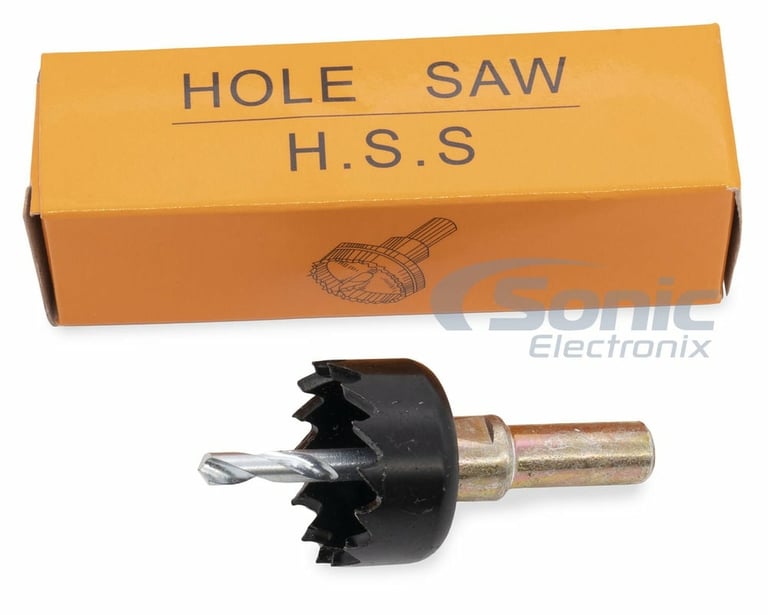

• Hole saw drillbit

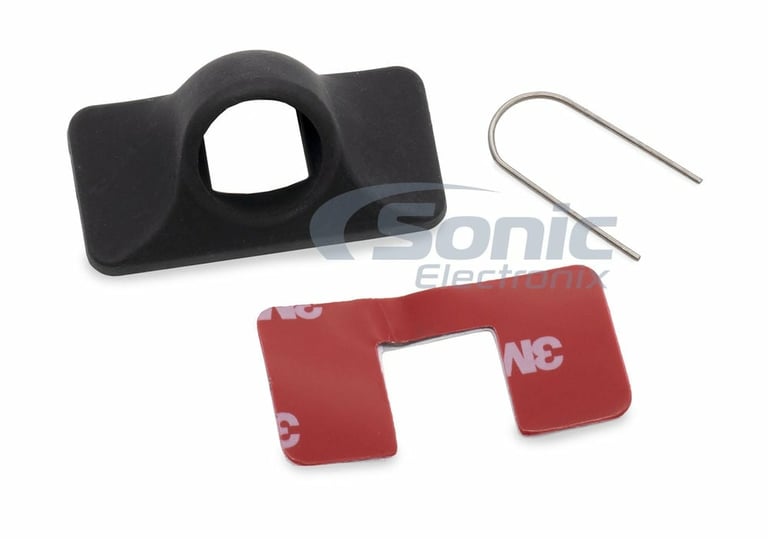

• 3M adhesive strip
• Screws and mounting bits
• Misc installation hardware
• Installation guide
