See all parts that fit your 2011 CX-7

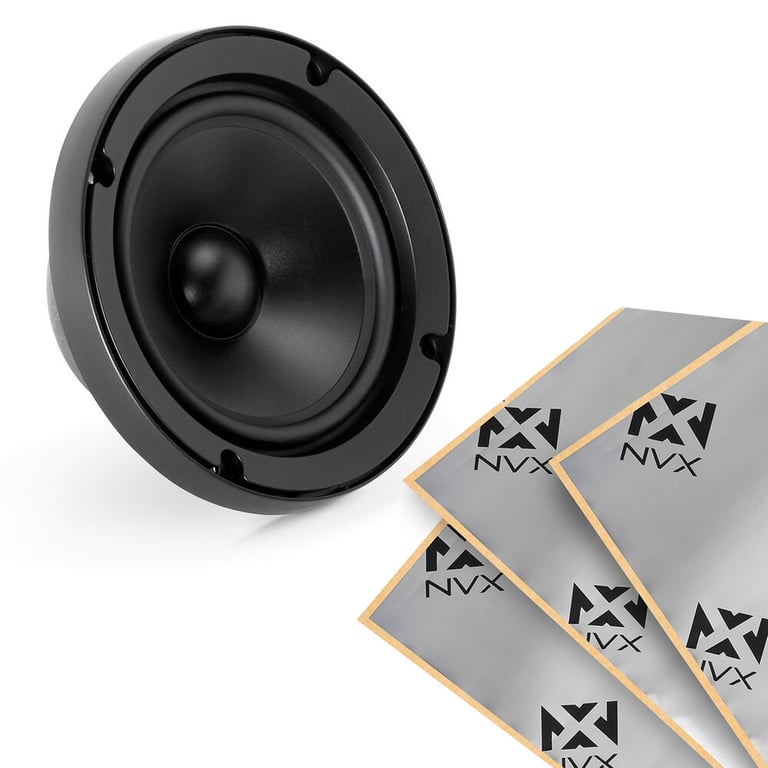

JL Audio C5-525cw (Priced Individually) + Free Sound Deadening

5.25" 225W Max Evolution C5 Series Component Woofer + NVX SDSK2

JL Audio
Shop all JL Audio
highlight-star-icon

• 75 Watts RMS
• Kurt Mueller designed cone and suspension
• Mineral-Filled Polypropylene Woofer
• Patented Elevated Frame Cooling
• DMA-Optimized Motor System
• Symmetrical Rolled Spider

Learn more about the c5525cwrp_sdsk2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
MA03B main

Scosche MA03B Wiring Harness

Install a new car stereo in select 2001-2018 vehicles from Mazda

26
HO6 main

PAC HO6

Install a New Car Stereo and Retain the Factory Antenna in select 2003-2016 vehicles from Honda, Mazda, Acura

-70.83%

$7.00

List price $24.00

99-7520B main

Metra 99-7520B

Install a new Single-DIN or Double-DIN car stereo in select 2010-2012 CX-7 (Matte Black)

-10.98%

$72.99

List price $81.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

15
-33.36%

$79.96

List price $119.99

Description


JL Audio brand icon

Authorized dealer

JL Audio Evolution C5 Series Component Woofer

Evolution™ C5 is serious product, engineered by JL Audio to meet the demands of the toughest acoustic and environmental conditions in the high-fidelity world. It is not about cute buzzwords or the exotic material of the month... it's all about making your music come alive with realism and excitement. C5 woofers and tweeters¹ are precision-built in Germany alongside JL's flagship ZR components, incorporating their exclusive DMA-optimized motor and patented Elevated Frame Cooling technologies. Particular emphasis has been placed on off-axis response and dynamic stability which might not be that important during a five minute evaluation on a demo board, but makes all the difference when installed in your car. The woofers feature renowned Kurt Müller designed cone and suspension.

JL Audio Linearity and Control

Unparalleled Build and Precision

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C5 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. In addition, JL Audio turns to their partners at Germany's Dr. Kurt Müller & Co. for critical cone and suspension elements that provide unparalleled woofer performance.

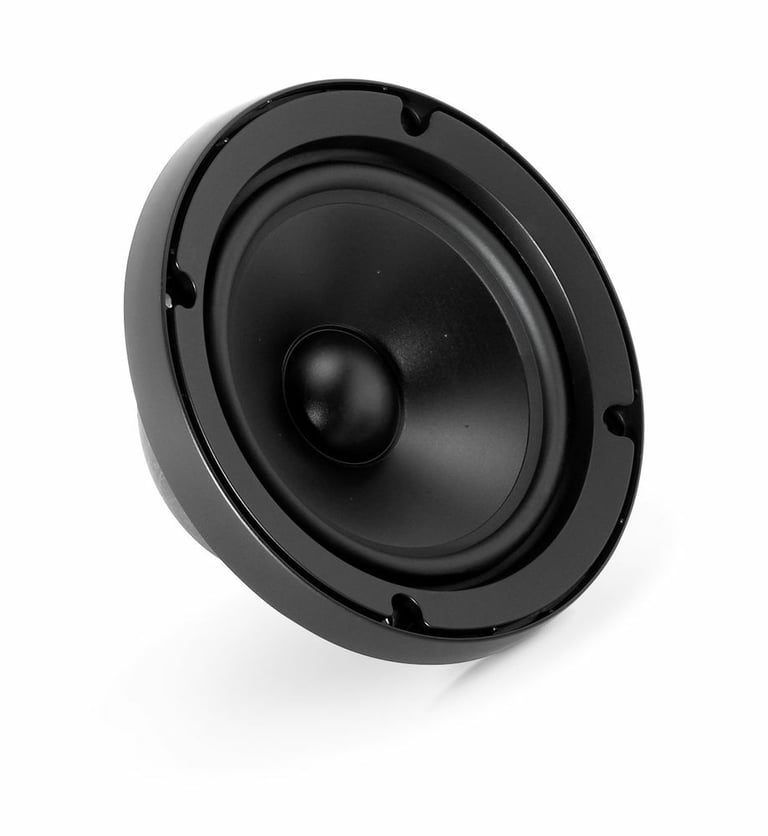

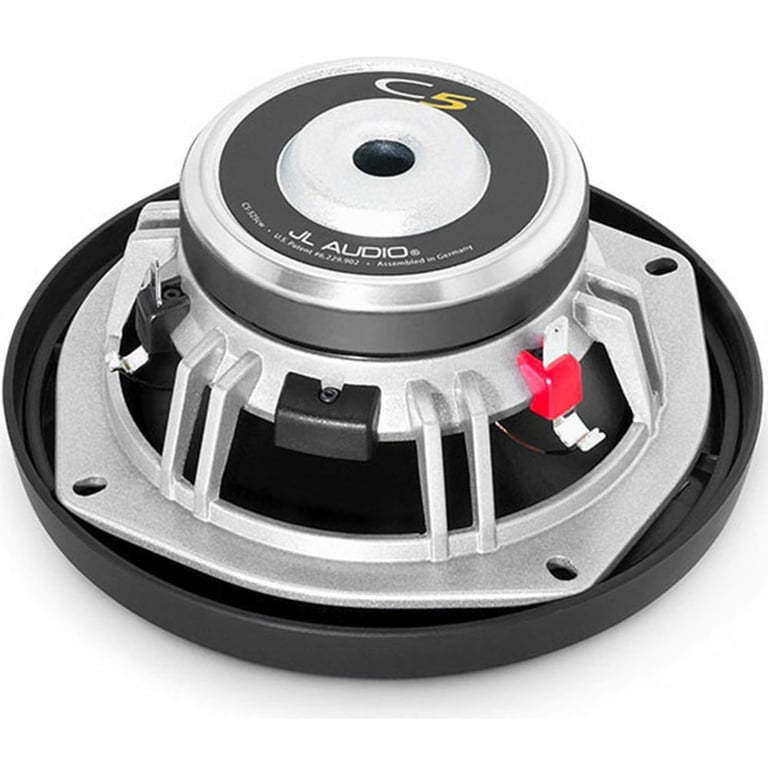

JL Audio C5-525cw (Priced Individually)

5.25" 225W Max Evolution C5 Series Component Woofer
Quantity: 1

Product Details:







  • 5.25" Evolution C5 Series Component Woofer¹
  • Power Handling:
    • Peak: 225 watts
    • RMS: 75 watts
  • Recommended Power Range: 25 - 150 watts per channel
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Cast Alloy Frame/Basket
  • Elevated Frame Cooling
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
  • Top-mount depth: 2.27"
  • Cutout Dimensions: 4.48"
  • Nominal Impedance: 4 ohm
  • Efficiency: 88.5 dB @ 1 watt / 1 meter
  • Frequency Response: 53 Hz - 7 KHz ± 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually
    (No Tweeter Included!)

Check out the JL Audio C5-525x Owner's Manual

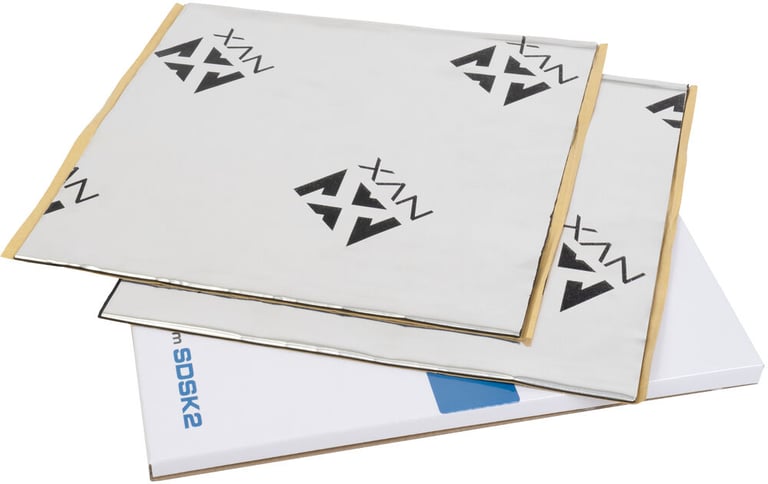

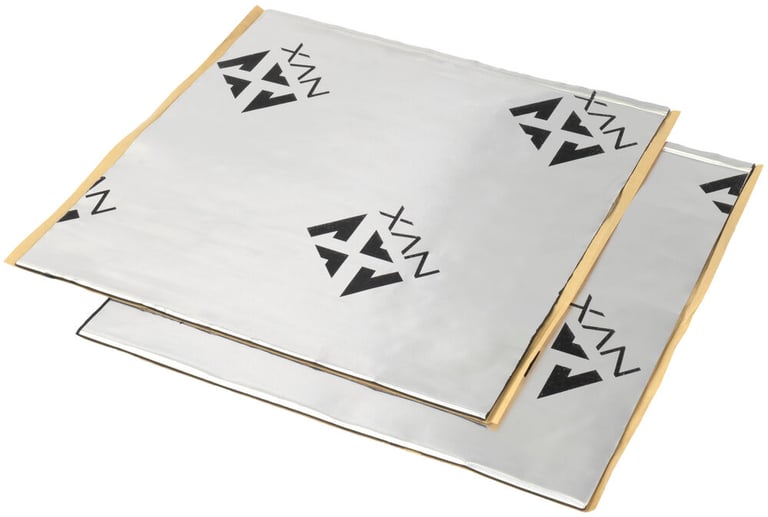

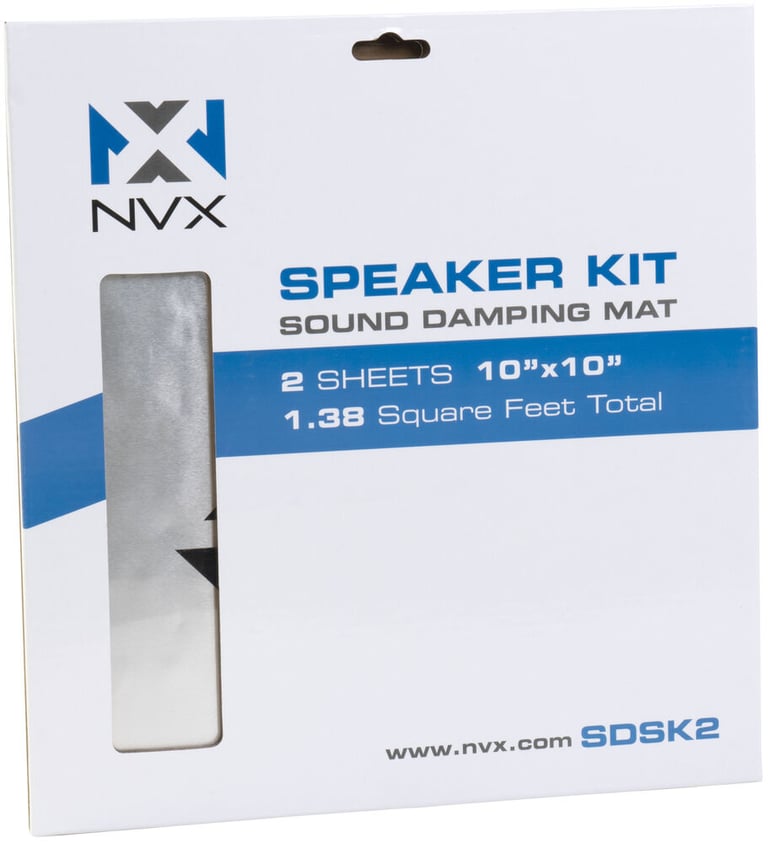

NVX SDSK2

91 mil 1.38 sq ft Car Speaker Sound Deadening Kit (Two 10" x 10" Sheets)
Quantity: 1

Product Details:

  • 1.38 square feet sound deadening kit

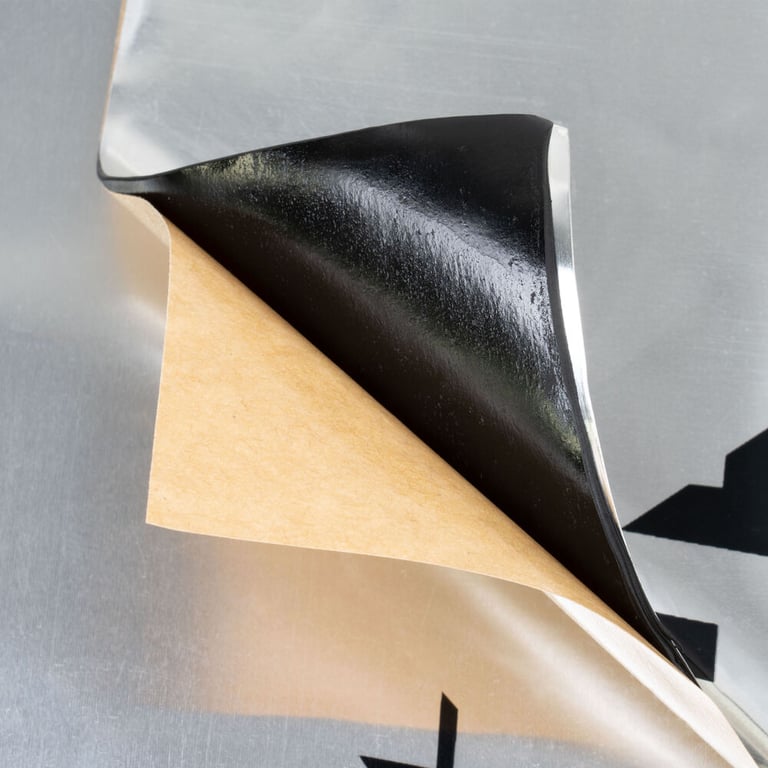

  • Core is based with 100% pure butyl rubber to withstand extreme heat
  • No asphalt, tar, or cheap fillers - will not outgas, melt or fall off
  • Waterproof barrier protects against moisture damage and mechanical oils
  • Up to 30% thicker than cheap 50–80 mil alternatives
  • Flexible aluminum backing contours tightly to complex door panels and vehicle curves with ease
  • Structural damping kills unwanted sheet metal resonance caused by heavy mid bass
  • Seals the door cavity to drastically increase speaker bass response and clarity
  • Lowers cabin ambient noise so you hear your music instead of the highway
  • Reflects radiant heat to help keep your vehicle interior cooler
  • Simple three step peel and stick installation process makes upgrading your sound quick

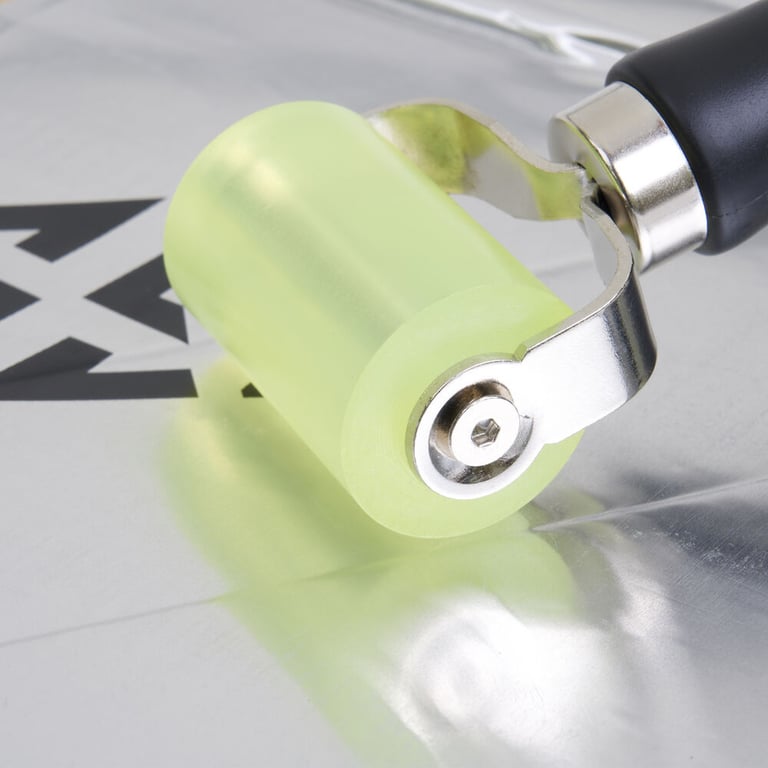

  • Combine this kit with NVX SDRLR1 Rubber Roller for easy installation

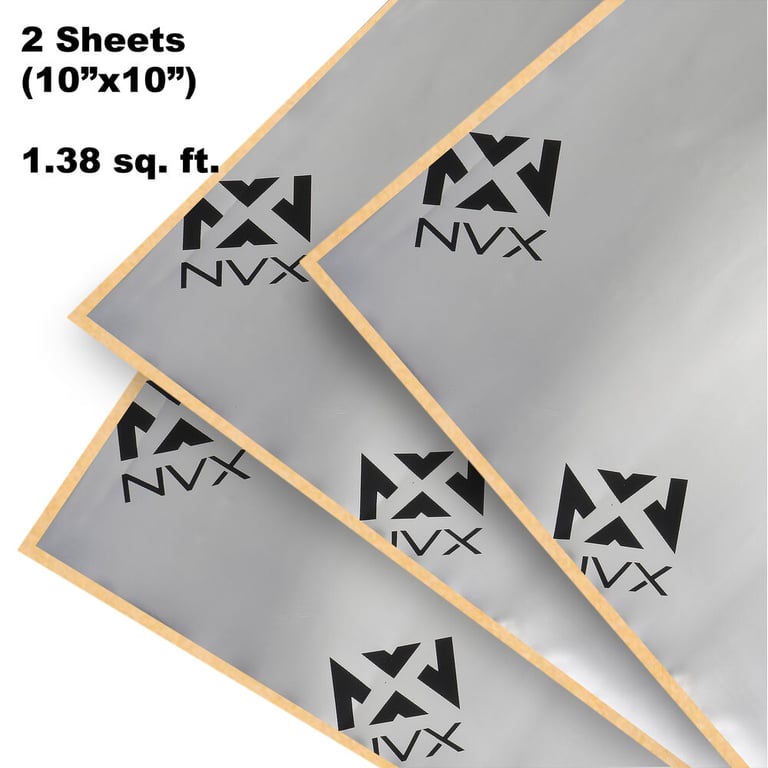

  • Pack includes two 10" x 10" sheets
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • Install Location: Speaker

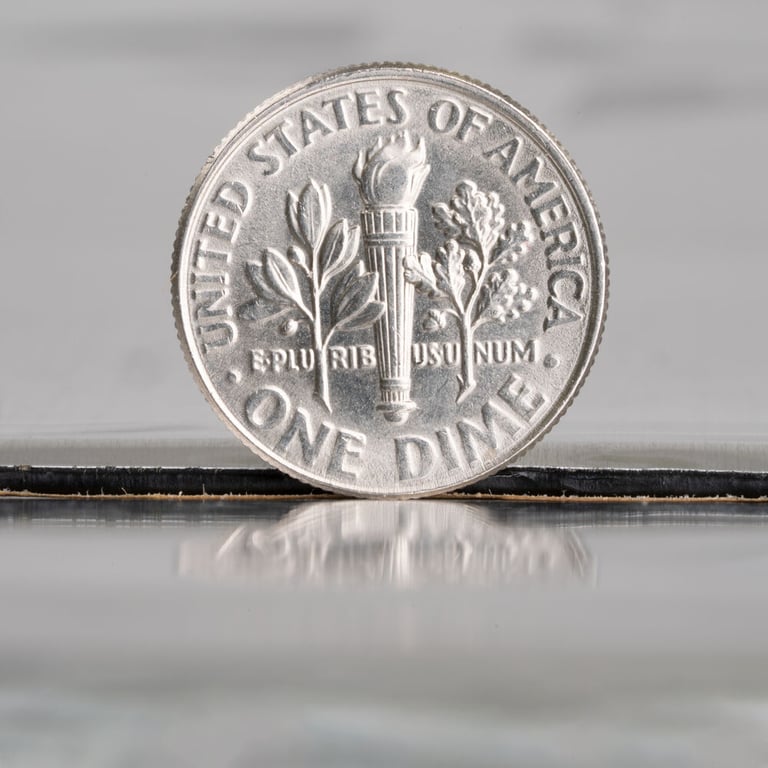

  • Material Thickness: 0.091 (2.3 mm)
  • Amount of Material: 1.38 square feet
  • Material Use: Vibration Dampener
  • Optimal Performance Temperature: 14°F to 140°F
  • Rated Temperature Range: -75°F to 450°F
  • Application Temperature: 60°F to 90°F
  • Dimensions (each piece): 10"L x 10"W

Product history:

JL Audio C5-525cw-RP, SDSK2 thumbnail
(newest, current model)
JL Audio C5-525cw thumbnail
(previous model, replaced by JL Audio C5-525cw (Priced Individually) + Free Sound Deadening)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

(1)

$74.99

List price $129.95

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(15)

$79.96

List price $119.99

43DSC504 small

Kicker DSC50 (43DSC504)

• 200 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(59)

$74.99

List price $84.99

Specifications & Details


Speaker Specifications
Series
C5 Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
5-1/4"
Design
Subwoofer
Tweeter Design
N/A
Tweeter Size
N/A
Tweeter Composition
N/A
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
225 watts
RMS Power Handling
75 watts
Sensitivity
88.5 dB
Frequency Response
53 - 7,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.27"
Cutout Dimensions
4.48"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C5-525cw-RP, SDSK2

Weight:

4.30lbs

Internal SKU:

c5525cwrp_sdsk2

Internal Product ID:
