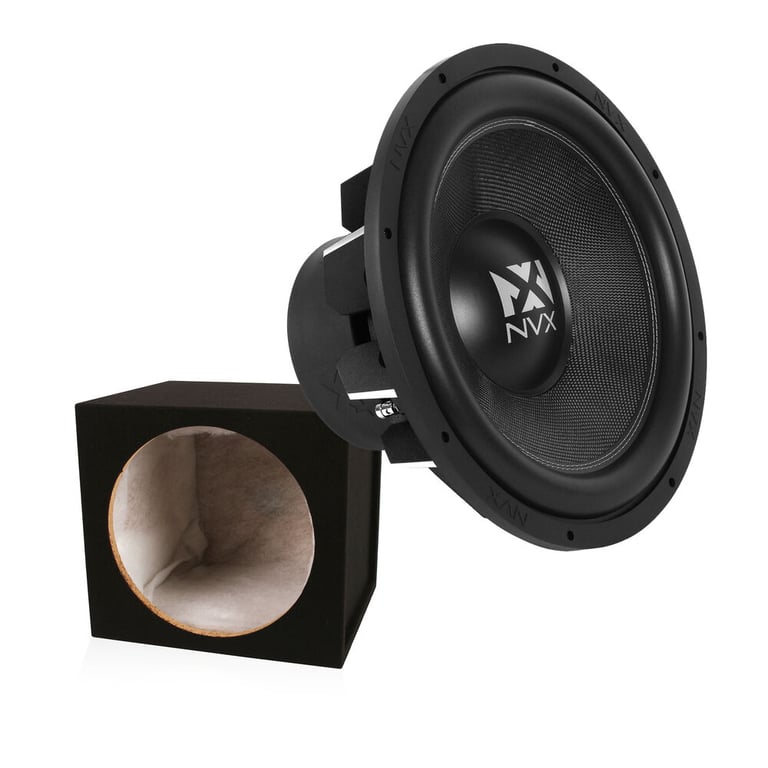

NVX VCW154 + 15" Sealed Enclosure

2000 Watt (1000W RMS) 15" VC-Series Dual 4-ohm Car Subwoofer

NVX
Shop all NVX
Lowest price in 30 days
highlight-star-icon

• 1000 Watts RMS / 2000 Watts Max
• Dual 4-ohm Voice Coil
• Pressed Paper Cone With Woven Fiber Top
• High Excursion Foam Surround
• 3" Aluminum Voice coil

Learn more about the vcw154_mdfs15

We apologize

This item has been discontinued


Loading...

JBL Stadium 52F

360W Peak (120W RMS) 5.25" Stadium Series 2-way Coaxial 3-ohm Speakers

-13.64%

$189.95

List price $219.95

Description


NVX brand icon

Authorized dealer

Incredible Bass with Ability to Perform in a Tight Space!

NVX's VC-Series car subwoofers are about to blow you away. The VCW154 is a jack-of-all-trades and has been engineered to the highest standards. The woven fiber pressed paper cone and custom High Roll foam surround with Nylon stitching help reproduce tight and accurate bass, keeping cone distortion to a minimum even at the highest volume levels. The next key components in the design of the VCW154 are the large dual 3" high-temperature Aluminum voice coils and triple stacked motor structure. These features combined help this sub handle some serious power at 850-1000 Watts RMS. The dual voice coils also give you many options for different Ohm load wiring configurations. With all the above engineering elements combined, the VCW154 subwoofer gives you better sound and build quality than many subs costing almost twice as much. Plus, they will sound great in a small sealed enclosure for those who do not have a lot of space!

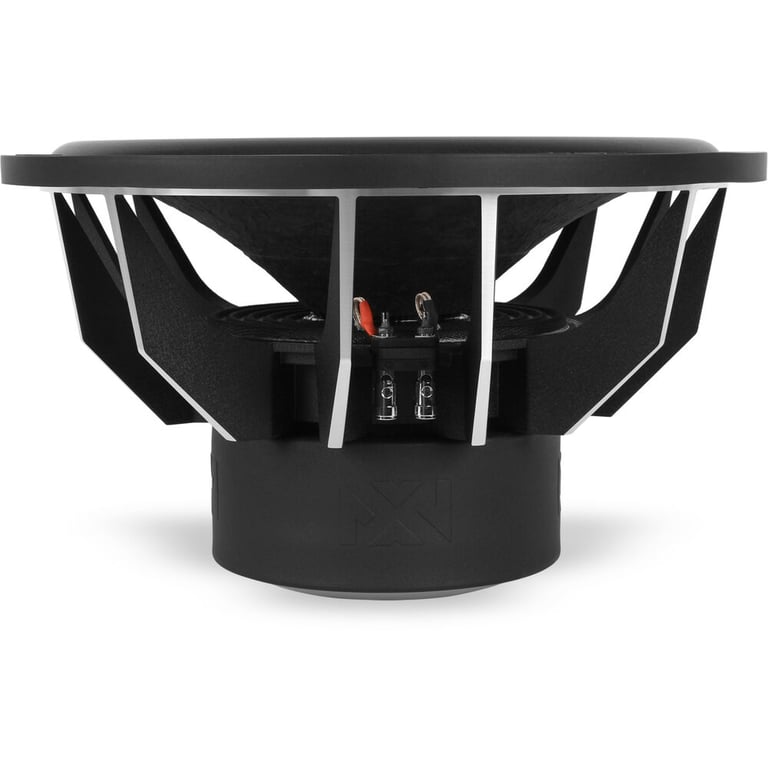

NVX VC Series Subwoofer Breakdown



Surround: Most materials used in commercial subwoofer surrounds rip and tear at peak levels. Keeping this in mind, the NVX team developed a custom high-roll foam surround that gives their subs improved linearity and MORE output. Combining that with high-strength adhesive and nylon stitching means that this subwoofer will last through some serious audio output!

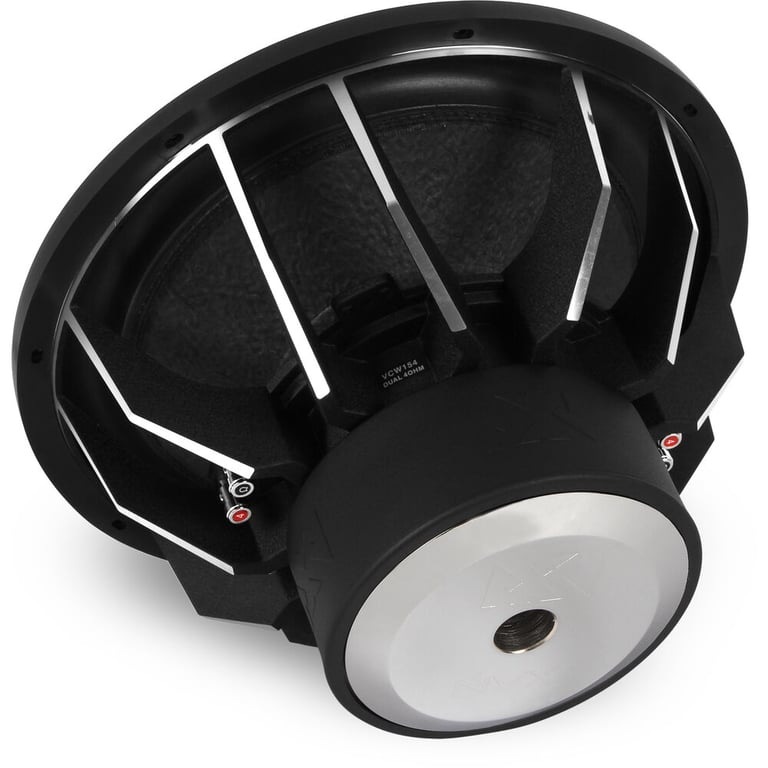

Basket: The 3-dimensional cast provides outstanding strength while keeping the subwoofer light due to the aluminum construction. Aluminum is a non-ferrous metal, which means the basket will not interfere with the magnetic energy of the voice coil and motor structure.

Spiders: The Dual Poly-Cotton Spiders are designed to be durable and long-lasting. They give the voice coil the suspension it needs and restore the subwoofer to its normal resting position with ease.

Voice Coil: The 3" (2.5" for the VCW102 and VCW 104) High Temperature Aluminum Voice Coil along with the triple-stacked magnet give massive power handling capability for the VC Series Subwoofers. The effective heat dissipation of the voice coil allows you to play the subwoofer louder without distortion.

CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

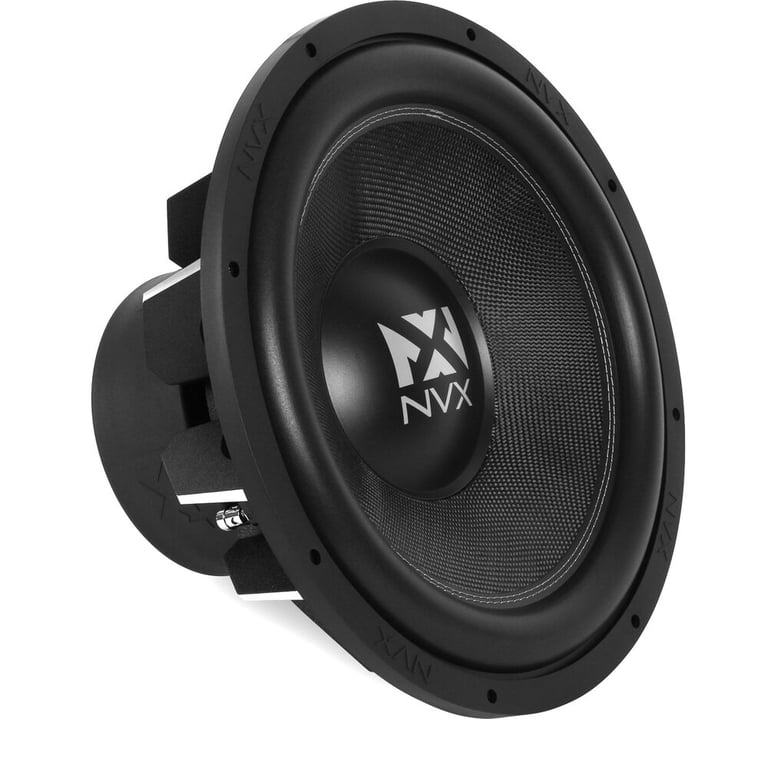

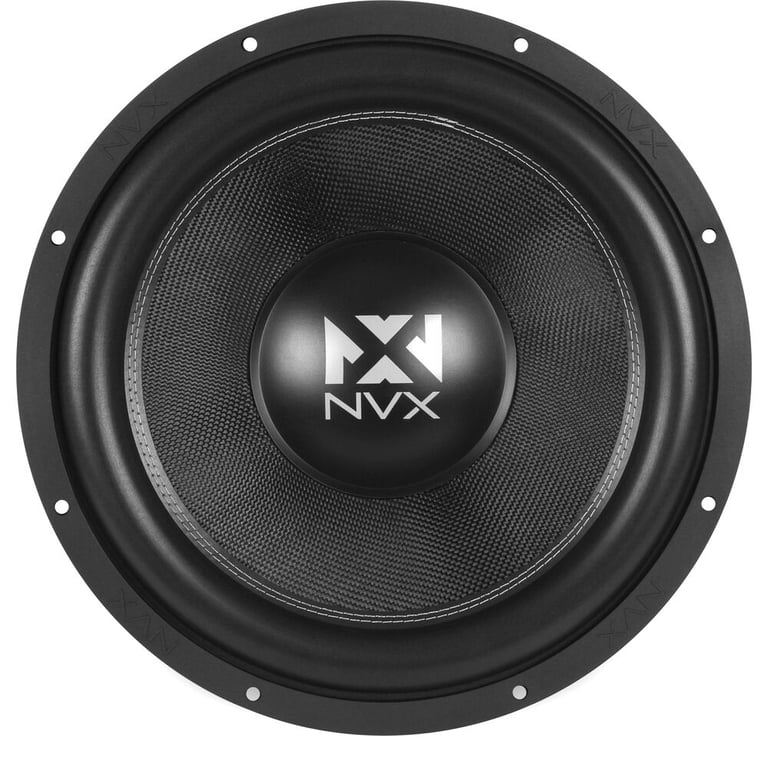

NVX VCW154 Version 3 (VCW154v3)

3000W Peak (1500W RMS) 15" VC-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 15" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1500 watts

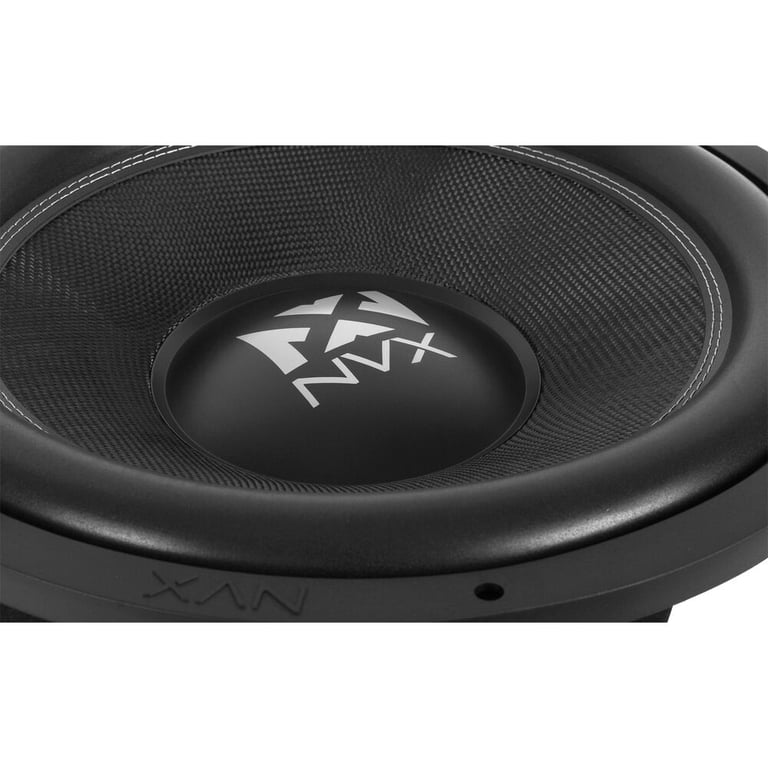

  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket

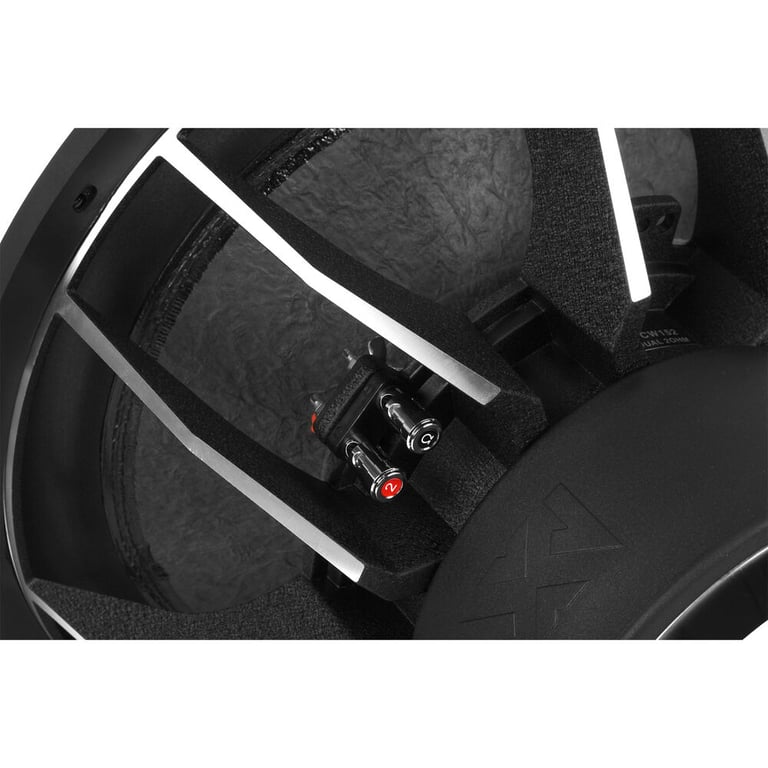

  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 31.30 Hz
  • Sensitivity: 88 dB (1W/1m)
  • Optimal sealed box volume: 2.00 cubic feet
  • Optimal ported box volume: 3.5 cubic feet
  • Top-mount depth: 8.19"
  • Cutout diameter: 14.21"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF Icon NVX VCW154v3 owner’s manual

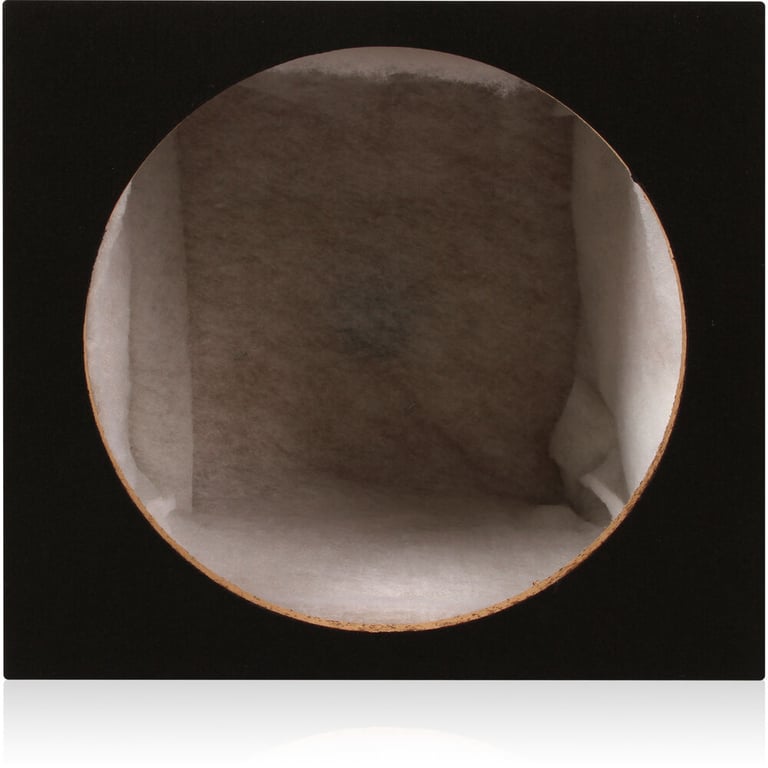

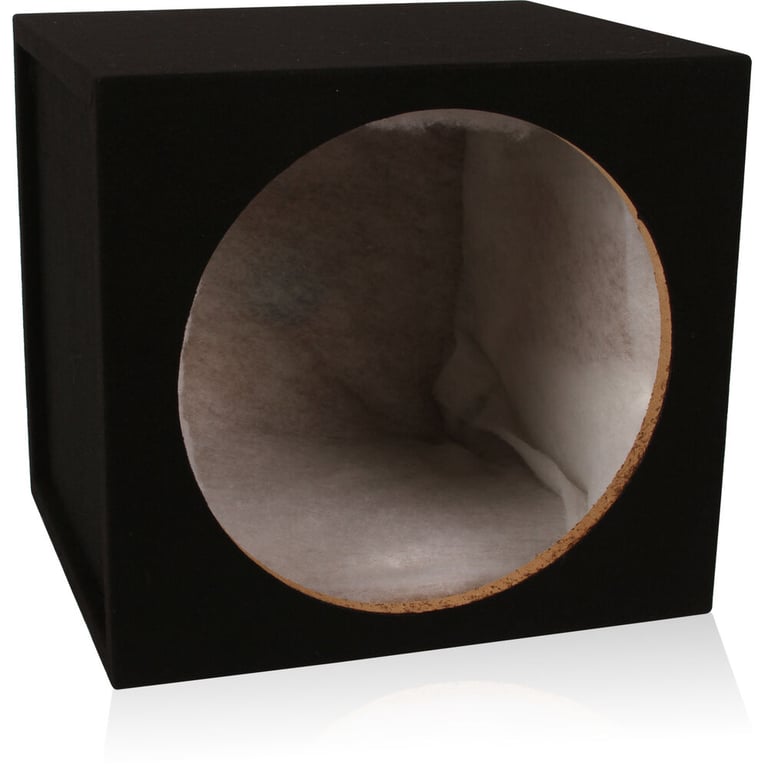

Single 15" Sealed MDF Subwoofer Enclosure (Belva MDFS15)

15-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.9 cu ft airspace 15SQTC)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Belva MDF 3/4-inch Thickness

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Belva MDF 3/4-inch Thickness

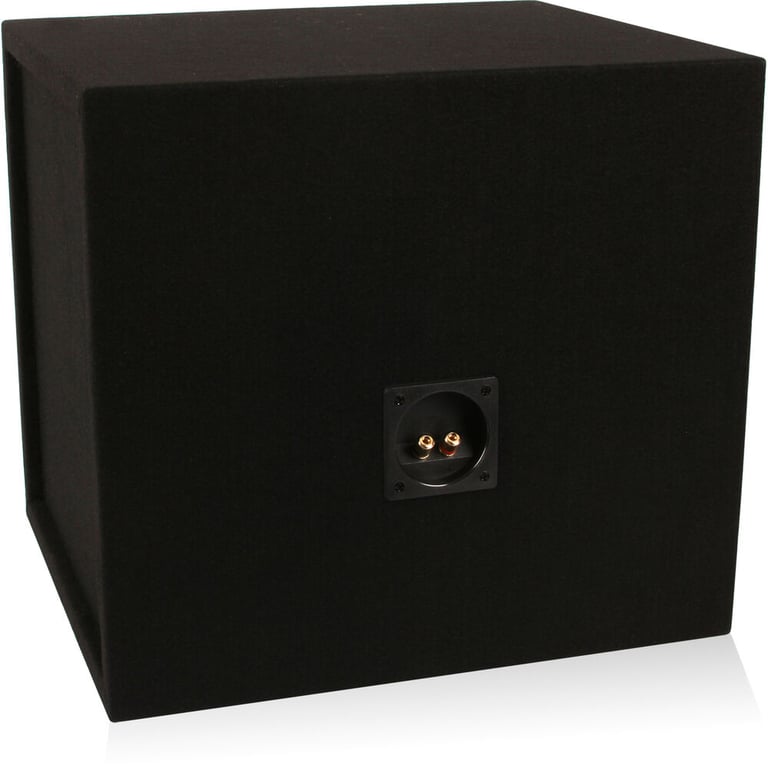

Product Features:

  • 15" Single Sealed Subwoofer Enclosure
  • 3/4" High Quality MDF Material machine-cut to perfection
  • Now lined with Poly-fill
  • Professionally Sealed, caulked, and carpeted
  • Terminal cup installed with gold screw posts
  • Durable black carpeting
  • Mounting Depth: 14-1/2"
  • Cutout Diameter: 13-3/4"
  • Internal Box Volume: 1.90 cubic ft.
  • Box Dimensions: 17-3/4"W x 16-1/4"H x 15-1/4"D
  • 1 Year Manufacturer's Warranty

Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95


Best selling similar products

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

P3-2X12 small

Rockford Fosgate Punch P3 P3-2X12

• Dual Punch P3 12" Loaded Subwoofer Enclosure
• 2400W Peak
• 1200W RMS
• Constructed with Durable 5/8" MDF
• High Current Binding Posts
• Durable Black Carpet Covering
• Computer Optimized Design
• 1 Ohm Final Impedance

(40)

$709.99

List price $947.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
15"
RMS Power Handling
1000 watts
Peak Power Handling
2000 watts
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
Foam
Sensitivity
87 dB
Frequency Response
20 - 200 Hz
Subwoofer Design
Round / Circle
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW154, MDFS15

Weight:

65.00lbs

Internal SKU:

vcw154_mdfs15

Internal Product ID:

183093

Customer Ratings & Reviews


NVX VCW154 + 15

5 star
84%
4 star
16%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

This box kicks a**!

The following review is for MDFS15, which is a part of the bundle you are viewing.

I have a 15" kicker compR, it works great with this box. Very good quality, cheap in price.

By Henrique on March 13, 2014

101 found this helpful


Nice Box

The following review is for MDFS15, which is a part of the bundle you are viewing.

Very well designed Box. The carpet on this box is really nice and the box looks perfect. I have a kicker cvr 15 in this box and it absolutely pounds!! Oh yea and if you have a New body Style(04-08) f-150 it will fit in the space between the passenger seat and the rear seat with the smaller rear seat on the passenger side flipped up and the box will face up.

By Michael on July 21, 2008

94 found this helpful


BELVA 15'' BOX

The following review is for MDFS15, which is a part of the bundle you are viewing.

AWESOME BOX VERY SOLID AND FITS NICELY IN ANY TRUNK WITH ROOM TO SPARE

By CHECO on June 10, 2014

92 found this helpful


Couldnt Ask for More!

The following review is for MDFS15, which is a part of the bundle you are viewing.

Purchased this box for my JBL W15GTI MKII. For the amount paid and product received, its a great purchase. Couldn't have built this or have it built locally for even close to the price. Is it as good as a custom ported box? Probably not but that would be subjective but I love the SQ coming from it now. Can't comment on the durability because I've only had the box for about a week but I do not hear any leaks or rattles from the box. Connection pieces are solid. But best part of my experience with this purchase was the customer service given by 'Justin'. Gave me a great deal and got it shipped to my door within the week.... Couldn't ask for more. Would definitely recommend it.

By Duy on June 2, 2014

92 found this helpful


Decent Enclosure

The following review is for MDFS15, which is a part of the bundle you are viewing.

The box works great for my new Polk MM 15". It's a little bigger than the recommended 1.5 cubic ft. but it seemed like it would suffocate in a box that small. At the 50 dollar price point you can't hardly build yourself one for that and this one has quality connectors and it's built solid. Definitely recommend to someone looking for a 15" sealed box. And Sonic was great with shipping and customer service as always.

By Gregg on October 14, 2013

90 found this helpful


W/ 15" Kicker

The following review is for MDFS15, which is a part of the bundle you are viewing.

This is a great looking box. Well designed and built. The carpeting looks amazing. It's big, but fits perfectly in my '99 Durango. I figured I would have to remove the 3rd seat when I saw it, but there's actually enough space where it isn't even touching the seat or rear door.

By SouthLos323 on November 12, 2013

89 found this helpful


Perfect

The following review is for MDFS15, which is a part of the bundle you are viewing.

Fits very nicely into the back of my '90 Jetta. Could even fit two in the trunk if I crammed them together. Carpeting is very nice and so is the construction quality.

By PriNT2357 on September 21, 2010

89 found this helpful


Great box

The following review is for MDFS15, which is a part of the bundle you are viewing.

Great box. I bought this box that is great box, for the value. I really am the shipping was fast also.

By Chet on April 4, 2011

85 found this helpful


good box

The following review is for MDFS15, which is a part of the bundle you are viewing.

i have a 15" kicker comp and it slams. it fits perfectly in my grand am. the carpet is really nice. looks good in the trunk

By Joe on October 23, 2013

81 found this helpful


Belva MDFS15

The following review is for MDFS15, which is a part of the bundle you are viewing.

great price. nice looking box works very well. I have it in the trunk of a mazda protege.

By Al (303) on September 17, 2013

79 found this helpful
