JBL ARENA 10 (JBLSUBAR10AM) (Open Box, Good)

2100W Peak (700W RMS) 10” Arena Series Dual 2-or 4-ohm Car Subwoofer

JBL
Shop all JBL
highlight-star-icon

• Peak Power: 2100 watts
• RMS Power: 700 watts
• Impedance: Dual 2 or 4 ohm
• Composite Paper Concave Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.16"
• Sensitivity: 85.4 dB

Learn more about the ls-arena10-u7

We apologize

This item has been discontinued

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

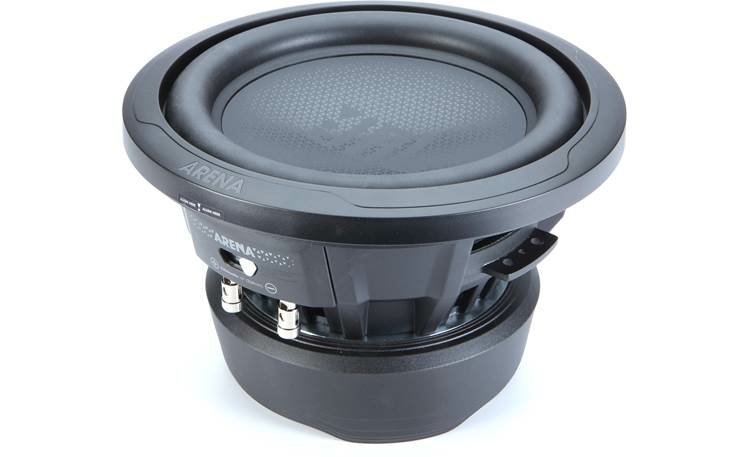

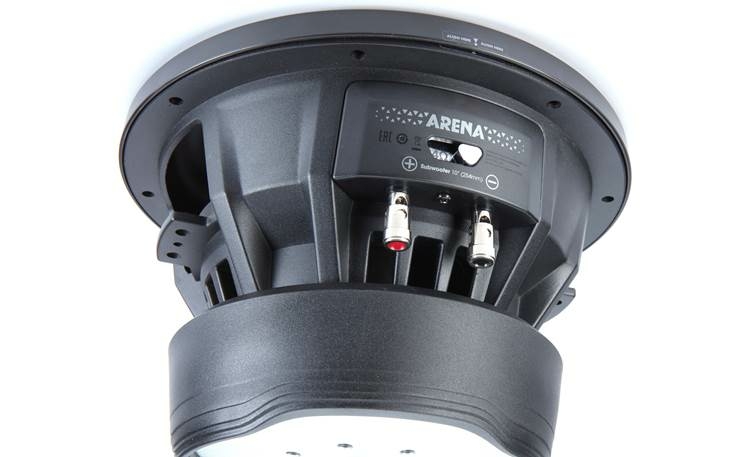

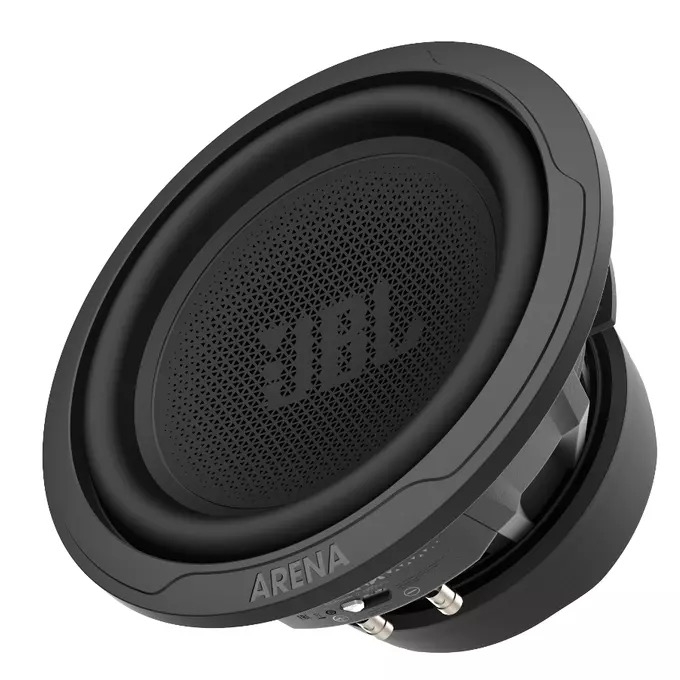

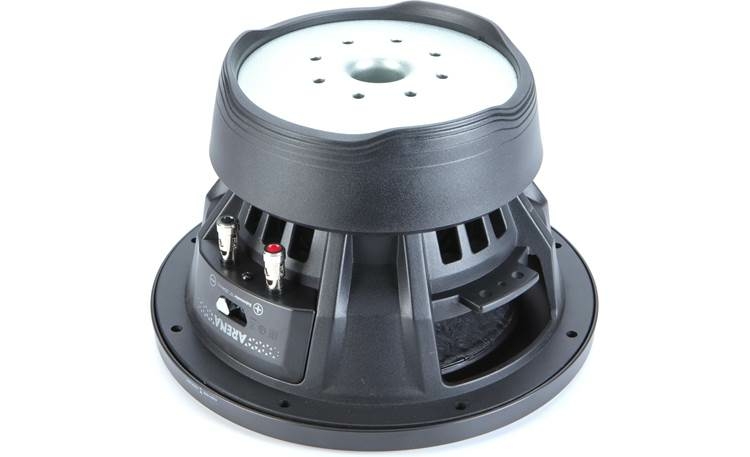

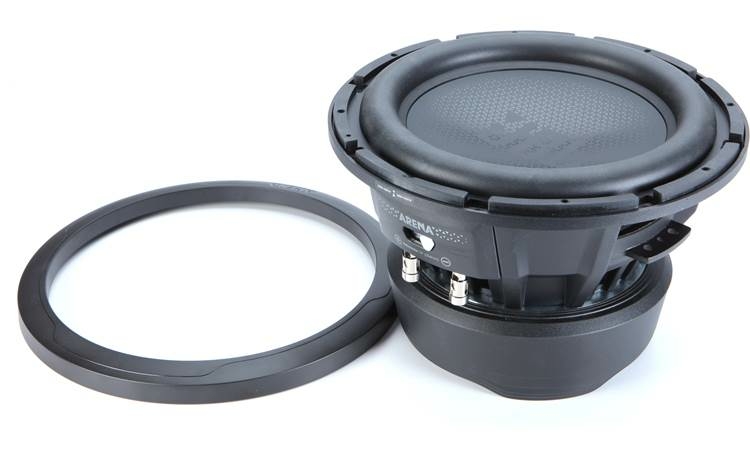

JBL ARENA 10

Leveraging patented Selectable Smart Impedance (SSI) technology and features from JBL's Luxury Audio division where subwoofers have fill rooms far larger than a car, the 10" Arena takes a completely new approach to car audio which uses light and agile opposed 2.5-inch voice coils in magnetic gap to provide completely linear control of cone excursion all the way up to Xmax. Symmetrical Field Geometry design ensures linear cone travel and low distortion at virtually any output level.

Surrounding the proprietary motor design are other high-tech materials, including a cast-aluminum frame,concave cone, a nitrile butadiene rubber (NBR) one-piece surround, golden-plated speaker-terminal binding posts, progressive spider and vented pole piece. This subwoofer handles an amazing 2,100 watts peak power (700 watts RMS), and all of its parts work in harmony to cool the voice coils for maximum output.


Product Details:

  • 10" Dual 2 or 4 ohm Arena Series Subwoofer
  • Power Handling:
    • Peak: 2100 watts
    • RMS: 700 watts
  • Composite Paper Concave cone
  • Nitrile Butadiene Rubber NBR surround
  • Die cast, vented aluminum frame
  • Progressive spider and vented pole piece
  • Patented Selectable Smart Impedance (SSI) technology
  • Symmetrical Field Geometry design ensures linear cone travel
  • Golden-plated speaker-terminal binding posts
  • 2.58" high temperature Aluminum voice coil
  • 11 mm Xmax
  • Double Stacked Ferrite magnet motor structure
  • Frequency Response: 36 - 1500 Hz
  • Resonance Frequency (Fs): 34.3 Hz
  • Sensitivity: 85.4 dB
  • Recommended sealed box volume: 0.96 cubic feet
  • Recommended ported box volume: 0.96 cubic feet
  • Top-mount depth: 6.16"
  • Cutout diameter: 9.25"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconJBL ARENA10 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL ARENA 10 (JBLSUBAR10AM) (Open Box, Good) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL ARENA 10 (JBLSUBAR10AM) (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL ARENA 10 (JBLSUBAR10AM) (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 JBL ARENA 10 (JBLSUBAR10AM) (Open Box, Good) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Arena Series
Subwoofer Size
10"
Peak Power Handling
2100 watts
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.58"
Frequency Response
36 - 1500 Hz
Sensitivity
85.4 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Paper Concave
Woofer Surround
Nitrile Butadiene Rubber NBR
Magnet Structure
Double Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.96 cubic feet
Optimum Ported Box Volume
0.96 cubic feet
Top-Mount Depth (Mounting Depth)
6.16"
Cutout Diameter
9.25"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.3 Hz
Equivalent Compliance (Vas)
16.621 liters
Total Speaker Q Value (Qts)
1.023
Electrical Q Value (Qes)
1.146
Electrical Resistance of Voice Coil (Re)
2.15 ohm
Mechanical Q Value (Qms)
9.577
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Mounting screws (4)
Other Accessory #1
Sealed Tape (1)
Other Accessory #2
JBL Speakers (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

ARENA 10

Weight:

26.00lbs

Internal SKU:

ls-arena10-u7

Internal Product ID:

231147
