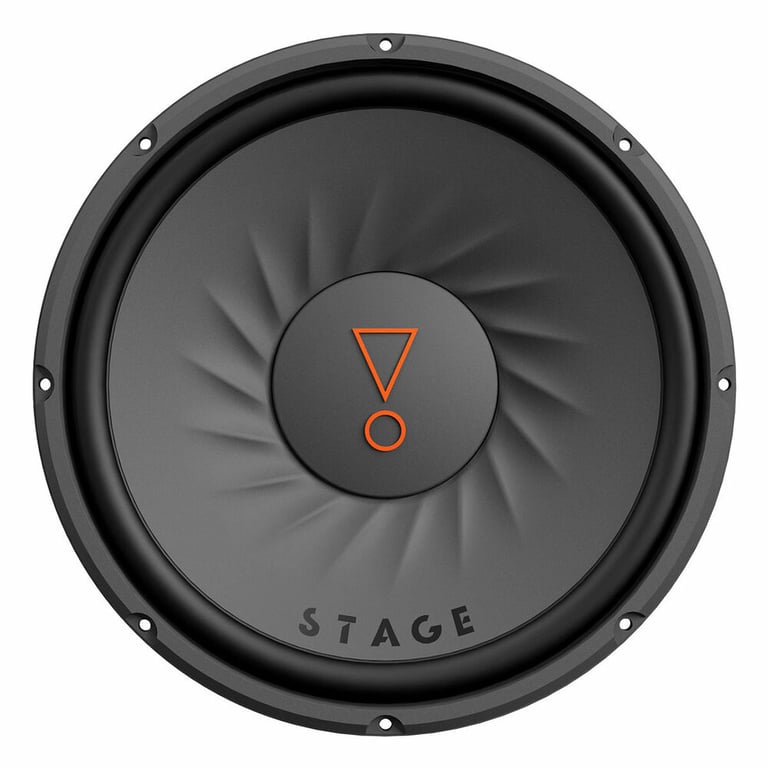

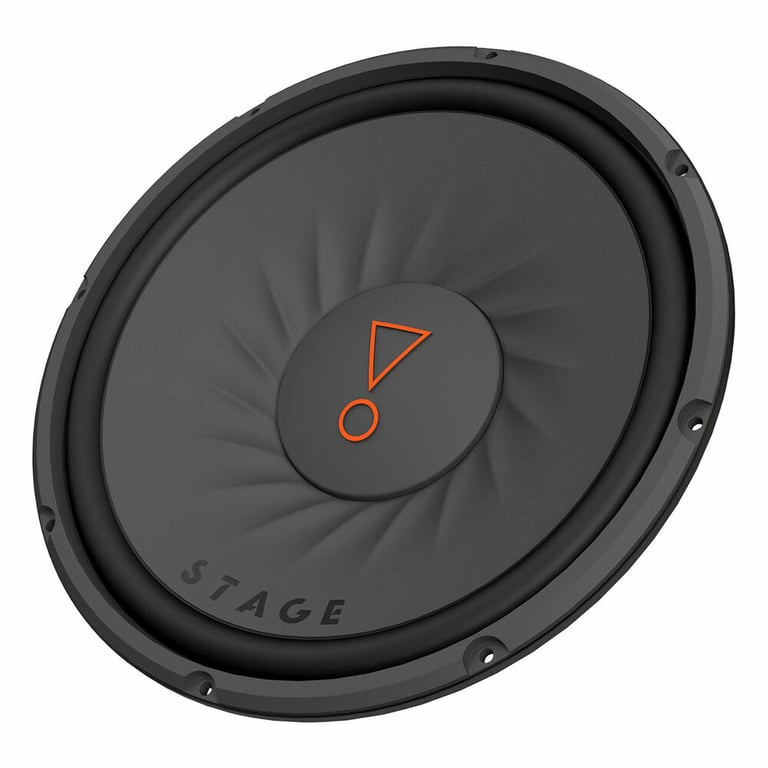

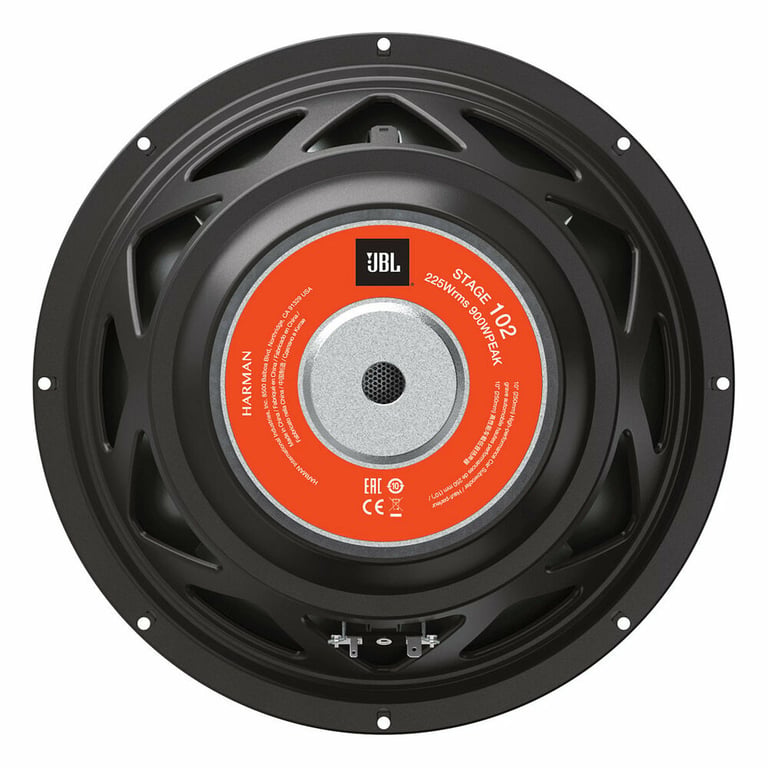

JBL Stage 102 (JBLSUBST102AM) (Open Box, Great)

900W Peak (225W RMS) 10" Stage Series Single 4-ohm Car Subwoofer

JBL
Shop all JBL
highlight-star-icon

• Peak Power: 900 watts
• RMS Power: 225 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.525"
• Sensitivity: 89 dB

Learn more about the ls-stage102-u8

We apologize

This item has been discontinued

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.


Stage 102

Price leading JBL Stage car subwoofers were engineered to deliver high-output, low-distortion bass with power handling capability of up to 1000 watts peak power. (Available in three sizes—8" (200mm), 10" (250mm), 12" (300mm)—for every size vehicle from compact to limo.) These subwoofers feature lightweight yet stiff polypropylene woofer cones with hi-roll rubber surrounds to provide high-efficiency and super durability to best interface with a variety of amplifiers. Finally, our subwoofers and loudspeakers are individually voiced by some of the world's best transducer engineers to ensure we achieve the signature sound that is unmistakably JBL.


Product Details:

  • 10" Single 4 ohm Stage Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 225 watts
  • Polypropylene Cone
  • Rubber Surround
  • Highest grade materials
  • HARMAN standard reliability testing
  • Completely tuned to assure high SPL and low distortion
  • 1.5" High Temperature Voice coil
  • 6.15 mm Xmax
  • Double Stacked magnet motor structure
  • Frequency Response: 35 - 200 Hz
  • Resonance Frequency (Fs): 37.1 Hz
  • Sensitivity: 89 dB
  • Recommended sealed box volume: 0.76 cubic feet - 1.48 cubic feet
  • Recommended ported box volume: 0.8 cubic feet - 1.24 cubic feet
  • Top-mount depth: 4.525"
  • Cutout diameter: 9"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL Stage 102 (JBLSUBST102AM) (Open Box, Great) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL Stage 102 (JBLSUBST102AM) (Open Box, Great) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL Stage 102 (JBLSUBST102AM) (Open Box, Great) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL Stage 102 (JBLSUBST102AM) (Open Box, Great) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Stage Series
Subwoofer Size
10"
Peak Power Handling
900 watts
RMS Power Handling
225 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1.5"
Frequency Response
35 - 200 Hz
Sensitivity
89 dB
Xmax (millimeters)
6.15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.76 cubic feet
Maximum Sealed Box Volume
1.48 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.24 cubic feet
Top-Mount Depth (Mounting Depth)
4.525"
Cutout Diameter
9"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
37.1 Hz
Equivalent Compliance (Vas)
41.5 liters
Total Speaker Q Value (Qts)
0.42
Electrical Q Value (Qes)
0.46
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
5.92
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

Stage 102-2

Weight:

6.61lbs

Internal SKU:

ls-stage102-u8

Internal Product ID:

214291
