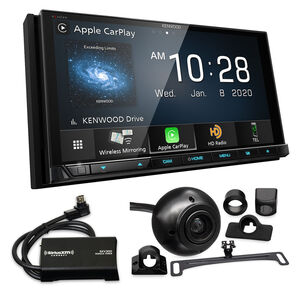

Kenwood eXcelon DDX9907XR Package with Backup Camera and SiriusXM Tuner

Product Details

• Double DIN In-Dash Bluetooth CD/DVD Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control Kenwood KNA-RCDV331 (sold separately)
• Built-in HD Radio tuner
• Wi-Fi connection certified
• Built-in LDAC
• High-definition touch panel
• Customizable multi widget
• High-Resolution wireless audio
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DDX9907XR

Smartphone Features

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, and other apps with iPhone and Android
• Pandora and Spotify capable
• Control the stereo using Kenwood's free Remote S app
• Siri Eyes Free control for select iPhones
• Wired phone-mirroring for select devices via USB

Playback and Audio Features

• CD | CD-R/RW | DVD±R/RW | MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MP4 | MPG | MOV and WMV Video Playback
• AM/FM tuner with 15FM/5AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with Digital Time Alignment
• DriveEQ boosts specific frequencies to compensate for road noise
• Subwoofer level, phase, and low-pass crossover controls
• Dual Phone Connection
• Music Mix up to 5 Bluetooth® devices can be paired to the receiver

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.
• 4 Camera Inputs for optional camera connection method for up to 4 cameras in various configurations
• HD Rear Camera (CMOS-740HD) can be connected for High Definition viewing
• Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen

Audio/Video Inputs and Outputs

• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• 2 Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes external 10" wired microphone for clear, convenient, distortion-free talking

Kenwood DDX9907XR owner’s manual

Product Details:

• NVX XC5N1
• Universal Rear View Backup Camera
• NATSC/PAL TV System
• Resolution: 720 x 480
• Mounting Style: Bracket Mount \ Surface Mount
• Adjustable 170° Viewing Angle
• Compact Small Design
• IP68 Waterproof Rating
• RCA Connections
• 12 Volt Power Usage
• Ultra low LUX for Low Light Conditions
• 0.08 Lux Minimum Illumination
• Video Output: CVBS 0.5M Pixels
• Operating Temperature: -31°F (-35°C) to 167°F (75°C)
• ON/OFF Parking Line Function
• Selectable Image Allows For Front and Rear Mounting
• Video Cable and Camera Harness Included
• Five Different Mounts Included:
• Square Mount
• Flush Mount
• Angle Mount
• Rubber Mount
• Metal Mount
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What's in the box?

• Camera main wiring harness with 6-pin connector guideline + reverse view loops
• License plate mounting bar
• 19ft extended connection cable
• Full metal mounting shell / camera housing
• Hole saw drillbit
• 3M adhesive strip
• Screws and mounting bits
• Misc installation hardware
• Installation guide

Product Details:

• SiriusXM vehicle tuner
• Pause, rewind, and replay live radio
• TuneStart feature
• Supports display of album art and channel logos on compatible stereos
• Provides seamless plug-and-play
• Works with any car stereo displaying the SiriusXM Ready logo
• One cable connection to supported radio
• Magnetic mount antenna included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Note: Consult car stereo receiver manufacturer for detailed description of features, operations and capabilities.

A subscription to XM is also required. Satellite radio service is available only within Canada and the lower 48 states; not available in Hawaii or U.S. territories.
