Kenwood DNX577S + NVX 5-in-1 Backup Camera + Sirius XM Tuner

Product Details

• Double DIN In-Dash Bluetooth CD/DVD Multimedia Receiver
• 6.75" Resistive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control Kenwood KNA-RCDV331 (sold separately)
• Customizable multi widget screen
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DNX577S

Smartphone Features

• Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Pandora and Spotify capable
• Siri Eyes Free control for select iPhones
• Compatible with Kenwood Remote S smartphone app for wireless source selection through your phone
• Wired phone-mirroring for select devices via USB

Playback and Audio Features

• CD | CD-R/RW | DVD±R/RW | MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MP4 | MPG | MOV and WMV Video Playback
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13 Band Equalizer with Time Alignment
• Drive EQ boosts specific frequencies to overcome road noise
• High- and low-pass filters
• Music Mix up to 5 Bluetooth devices can be paired to the receiver simultaneously
• Dual-zone A/V output
• Dual Phone Connection
• Supports rear-view camera adjustable parking lines

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.
• 4 Camera Inputs for optional camera connection method for up to 4 cameras in various configurations
• Dash Camera Kenwood DRV-N520 (Sold Separately) can be controlled and viewed from the touchscreen.

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input (Kenwood CMOS-740HDLP recommended, sold separately)
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Navigation Features

• Built-in navigation system with maps of the United States, Canada, and Puerto Rico, plus 6 million points of interest
• Reliable navigation with preloaded Garmin, and HERE
• 2D/3D map view offers traditional display or 3D terrain, landmarks, buildings, and elevated roads
• Day/Night mode automatically adapts to driving conditions for optimal viewing and minimal eye strain
• Helpful lane information & signpost guidance, along with junction & tunnel views, plus exit services for highway drivers.
• Voice guidance and turn-by-turn directions, capable of text-to-speech (TTS), announcing the street names along with the turn directions

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes external 10" wired microphone for clear, convenient, distortion-free talking

Kenwood DNX577S owner’s manual

Product Details:

• NVX XC5N1
• Universal Rear View Backup Camera
• NATSC/PAL TV System
• Resolution: 720 x 480
• Mounting Style: Bracket Mount \ Surface Mount
• Adjustable 170° Viewing Angle
• Compact Small Design
• IP68 Waterproof Rating
• RCA Connections
• 12 Volt Power Usage
• Ultra low LUX for Low Light Conditions
• 0.08 Lux Minimum Illumination
• Video Output: CVBS 0.5M Pixels
• Operating Temperature: -31°F (-35°C) to 167°F (75°C)
• ON/OFF Parking Line Function
• Selectable Image Allows For Front and Rear Mounting
• Video Cable and Camera Harness Included
• Five Different Mounts Included:
• Square Mount
• Flush Mount
• Angle Mount
• Rubber Mount
• Metal Mount
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What's in the box?

• Camera main wiring harness with 6-pin connector guideline + reverse view loops
• License plate mounting bar
• 19ft extended connection cable
• Full metal mounting shell / camera housing
• Hole saw drillbit
• 3M adhesive strip
• Screws and mounting bits
• Misc installation hardware
• Installation guide

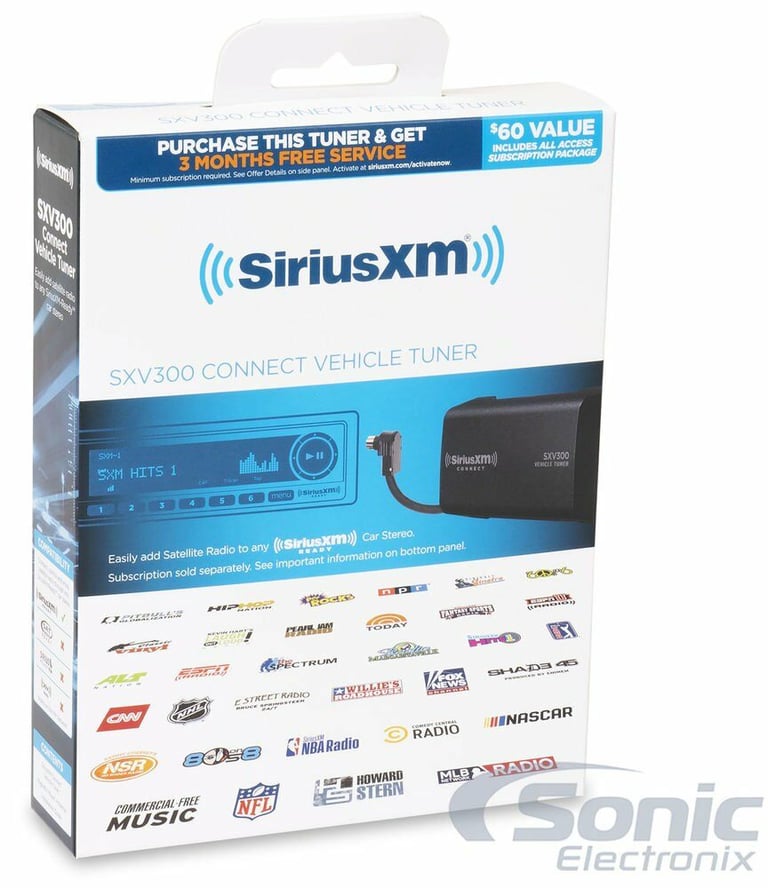

Product Details:

• SiriusXM vehicle tuner
• Pause, rewind, and replay live radio
• TuneStart feature
• Supports display of album art and channel logos on compatible stereos
• Provides seamless plug-and-play
• Works with any car stereo displaying the SiriusXM Ready logo
• One cable connection to supported radio
• Magnetic mount antenna included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Note: Consult car stereo receiver manufacturer for detailed description of features, operations and capabilities.

A subscription to XM is also required. Satellite radio service is available only within Canada and the lower 48 states; not available in Hawaii or U.S. territories.
