Memphis EQL7

7-Band 1/2-Din Parametric Equalizer

Memphis
Shop all Memphis
Limited time!
highlight-star-icon

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 8 volts max preamp outputs
• Subwoofer frequency and level control

Learn more about the eql7

We apologize

This item has been discontinued


Loading...
VSP4 main

NVX VSP4

450W Peak (150W RMS) 4" V-Series 2 Way Coaxial Car Speakers

17
-16.67%

$59.99

List price $71.99

Lowest price in 30 days
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Description


Memphis brand icon

Authorized dealer

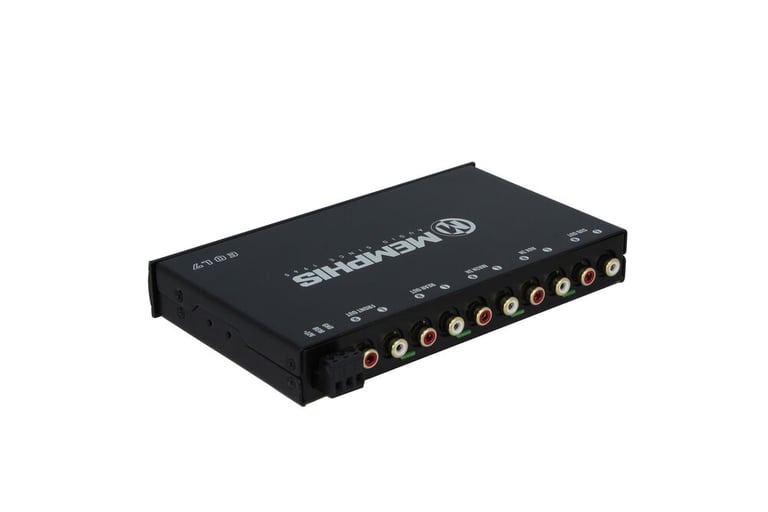

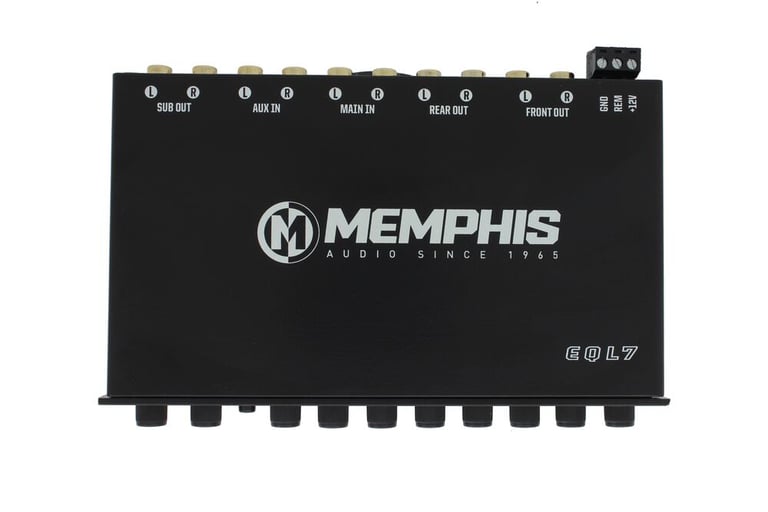

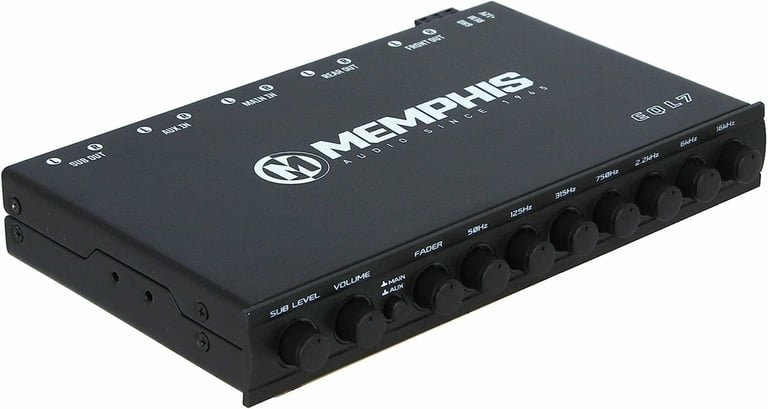

Memphis EQL7

The EQL7 7 band parametric EQ allows you to dial in your system for peak performance. The universal 1/2 din design will fit easily in multiple applications and serve as the command center for your systems audio. Control every aspect of your system from one device to lock in precision sound for the best possible audio experience.


Product Features:

  • 7 band-Band Parametric Equalizer
  • PWM (Pulse Width Modulated) power supply
  • Dual color backlighting for easy visibility
  • Master and subwoofer volume control
  • 3 sets of preamp outputs (front, rear and subwoofer)
  • 8 volts max preamp outputs
  • Subwoofer frequency and level control
  • Left and right gain adjustments
  • 2 pairs of RCA inputs
  • Individual left and right sensitivity controls for main and auxiliary inputs
  • Low noise BI-FET op-amp design yields minimal distortion
  • On-board 30-volt bi-polar switching power supply
  • 1/2-din chassis for near universal installation
  • High-grade golden RCA jack inputs and outputs
  • 20dB headroom eliminates signal overload
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product Specifications:

  • Number of Bands: 7 band
  • Input sensitivity: 200 mV - 3.5 volts
  • Signal-to-noise ratio: 96 dB
  • Cut/Boost: -1 dB
  • THD: 0.05%
  • Frequency response: 10 - 50000 Hz

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

Specifications & Details


Equalizer Specifications
Type of Equalizer
Graphic
Equalizer Bands
7 band
Equalizer Frequencies
50 - 16000 Hz
Built-in Crossover
None
Built-in Bass Reconstruction
No
Line Driver
No
Speaker Level Inputs
No
Total Number of Inputs
2
Total Number of Outputs
3
Signal Boost/Cut
-1 dB
Max Output Level
8 volts
Frequency Response
10 - 50000 Hz
Input Sensitivity
200 mV - 3.5 volts
THD (Total Harmonic Distortion)
0.05%
Signal-to-Noise Ratio
96 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EQL7

Weight:

1.55lbs

Internal SKU:

eql7

Internal Product ID:

186779
