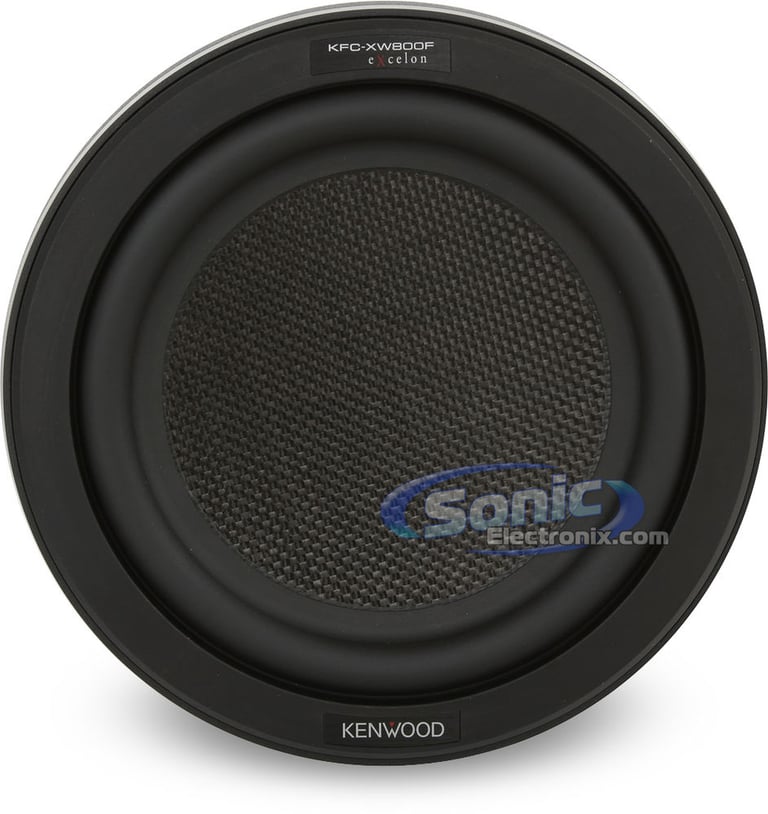

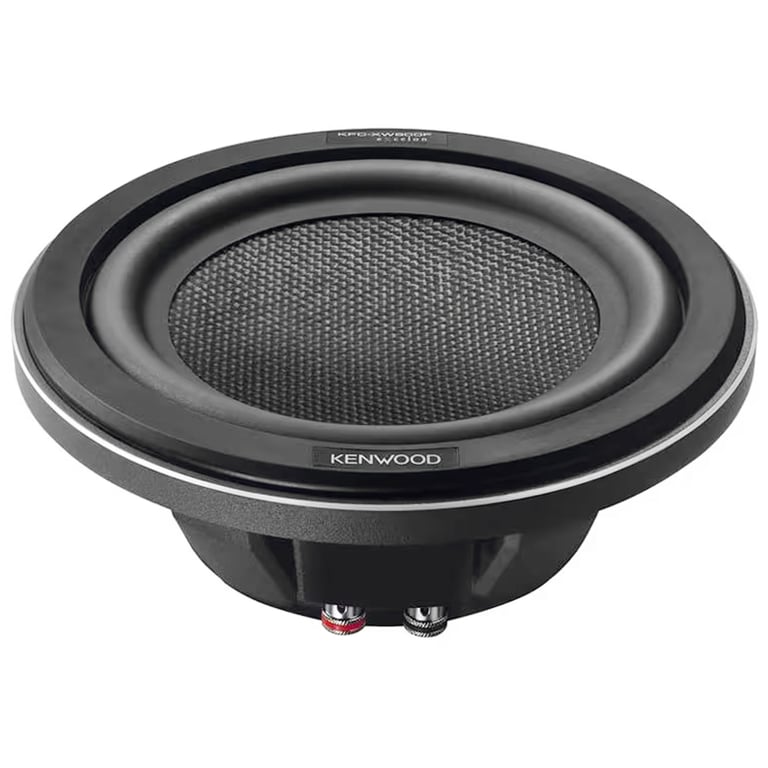

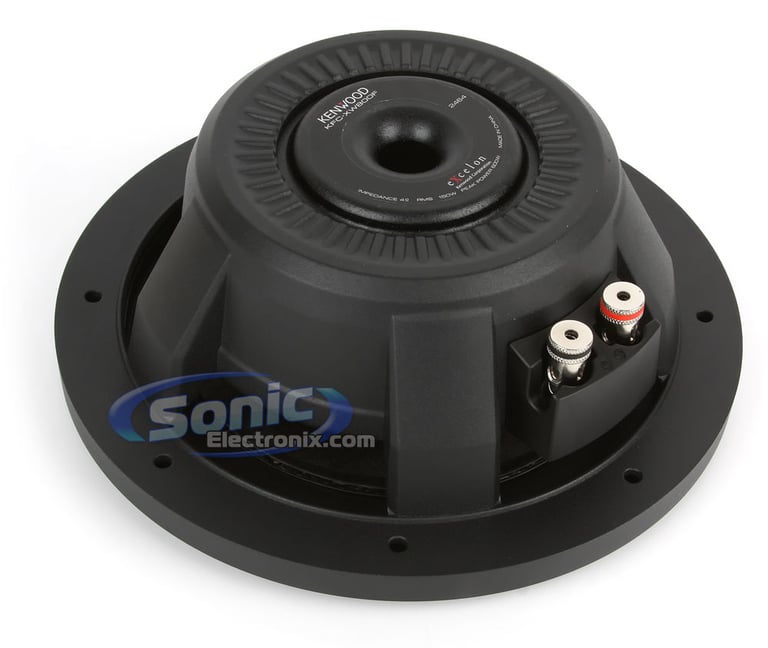

Kenwood eXcelon KFC-XW800F

600W Peak (150W RMS) 8" eXcelon Series Single 4-ohm Shallow Car Subwoofer

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• Peak Power: 600 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Glass Fiber Cone
• Butyl Rubber Surround
• Mount depth: 2-3/4"
• Sensitivity: 78 dB

Learn more about the kfcxw800f

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

99-5858CH main

Metra 99-5858CH Dash Kit

[Single DIN and Double DIN Stereo Dash Kit and Harness for select 2011-2019 Explorer with Factory 8" Screens

-33.91%

$379.99

List price $574.99

AXAMP-FD2 main

Axxess AXAMP-FD2

Amplifier Integration Interface for select 2011-2023 vehicles from Ford

-10.07%

$410.99

List price $456.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Product Highlights


• Peak Power: 600 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Glass Fiber Cone
• Butyl Rubber Surround
• Mount depth: 2-3/4"
• Sensitivity: 78 dB

Description


Kenwood brand icon

Authorized dealer

Product Details:

  • 8" Single 4 ohm eXcelon Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 150 watts
  • Glass Fiber Honeycomb Cone
  • Butyl Rubber Surround
  • Heat transfer system
  • Super linear spider
  • Aluminum diecast basket
  • High Temperature Voice coil
  • Single Stacked magnet motor structure
  • Frequency Response: 40 - 500 Hz
  • Resonance Frequency (Fs): 43 Hz
  • Sensitivity: 78 dB
  • Recommended sealed box volume: 0.5 cubic feet
  • Recommended ported box volume: 0.5 cubic feet
  • Top-mount depth: 2-3/4"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconKenwood KFCXW800F owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kenwood eXcelon KFC-XW800F Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kenwood eXcelon KFC-XW800F Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kenwood eXcelon KFC-XW800F Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kenwood eXcelon KFC-XW800F Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Series
eXcelon Series
Subwoofer Size
8"
Peak Power Handling
600 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
40 - 500 Hz
Sensitivity
78 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Fiber
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.5 cubic feet
Optimum Ported Box Volume
0.5 cubic feet
Top-Mount Depth (Mounting Depth)
2-3/4"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
43 Hz
Equivalent Compliance (Vas)
10.7 liters
Total Speaker Q Value (Qts)
0.812
Electrical Q Value (Qes)
1.015
Mechanical Q Value (Qms)
4.07
What is in the box?

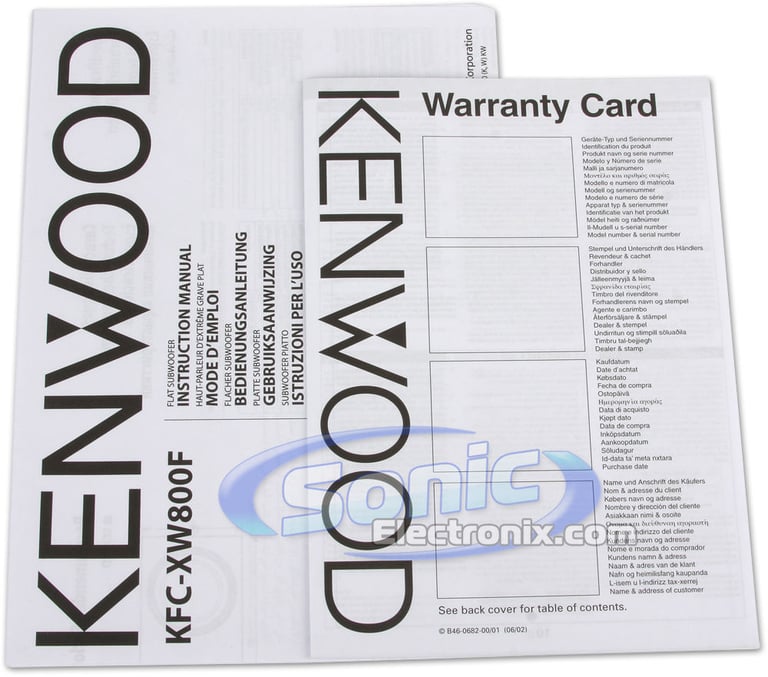

Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KFC-XW800F

Weight:

10.00lbs

Internal SKU:

kfcxw800f

Internal Product ID:

18879

Product and How-to Videos


Customer Ratings & Reviews


Kenwood eXcelon KFC-XW800F thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4.6
Features
4.4
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Decent

This speaker is decent for the price. I would recommend to anyone looking to replace factory speakers.

By Angelo on March 25, 2012

62 found this helpful


Kenwood fit perfect, works perfect

I bought this on recommendation from Ford Explorer forums as a replacement for the factory subwoofer. This drops tight in and works and sounds perfect. Good price, quick shipping. Recommended.

By Fordie on December 9, 2014

55 found this helpful


Nice woofer!

Bought this to put in a 1984 Fiero. Very little room; needed something shallow and small. This was perfect. Sound is tight; very solid. This isn't going to wake up your neighbors, but it is going to give you good solid base. I'm assuming if you are looking for a compact woofer that you are using it in a small vehicle like I did. You'll be more than happy with this one!

By Alan E on May 17, 2012

55 found this helpful


GREAT BUY!

I purchased two of these subs to put under the seat of my 2006 chevy colorado and they SLAM!!! Everyone thinks I have 10s or 12s. The bass these little speakers put out is incomparable to any 8s I've heard. For $90 a piece this is a steal! Definitely worth buying if your space is limited!!

By joe on November 25, 2011

51 found this helpful


great sub

I purchased this sub for my fiancee's vehicle. i did a custom enclosure to fit in the spare tire well. the sub sounds incredible for its size. definitely a good buy for anyone with limited space.

By Charles on October 31, 2009

51 found this helpful




M6-650STR-S-Si small

JL Audio M6-650STR-S-Si

6.5" Trim Ring for Sport Grilles in JL Audio M6 Series Marine Speakers (Silver)

$34.99

List price $34.99

DMH-C2550NEX, XCMINI1 small

Pioneer DMH-C2550NEX with Backup Camera

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Apple CarPlay, Android Auto and SiriusXM Ready

(36)

$559.98

List price $719.99

H7693_ACC_KIT small

Cerwin Vega H7693 with Speaker Installation Kit

140W RMS 6"x9" Coaxial 3-Way Speakers + 6x9" Speaker Baffles, Sound Dampening, Roller, and Panel Removal Kit

(205)

$135.67

List price $200.70

CY-PA4003U small

Panasonic CY-PA4003U

4-Channel Amplifier

(1)

$104.99

List price $179.99

44KXMA12001 small

Kicker KXMA1200.1 (44KXMA12001)

Marine 1-Ohm Stable Monoblock Amplifier w/ Wireless Remote Control Knob

$729.95

List price $749.95

VRFGM-80J small

Crux VRFGM-80J

Front and Rear View Camera Integration Interface for select 2006-2017 vehicles from GMC, Cadillac, Buick

$145.99

List price $384.30

AXAMP-CH3 small

Axxess AXAMP-CH3

Amplifier Integration Interface for select 2011-2020 Journey and 300 and Charger

$410.99

List price $456.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Chevrolet Malibu

2016 Ford Explorer

2011 Nissan Cube

2007 Nissan Murano

2006 Cadillac CTS

2006 Ford Ranger

2008 Mazda RX-8

2010 Lexus LS460

2010 Ford Flex

2007 Mazda Mazdaspeed3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
