See all parts that fit your 2017 Viper

Pioneer TS-Z65C (Open Box, Good)

600W Peak (200W RMS) 6.5" Z-Series 2-way 4-ohm Component Speaker System

Pioneer
Shop all Pioneer
highlight-star-icon

• 300 watts Peak Each, 100 watts RMS Each
• 1-1/8" Aluminum Alloy Balanced Dome Tweeters
• IMPP - Aramid Fiber and Carbon Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB
• Mounting Depth: 2-1/2"

Learn more about the ls-tsz65c-u7

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.


Pioneer TS-Z65C

The Z-Series TS-Z65C 6-1/2" component speaker system makes the very best way to add smooth, open, Pioneer sound quality to your car. High-res audio files contain significantly more data than CDs, or cassettes. Pioneer built the Z-Series to harness that wealth of information and reproduce music incredibly close to the original performance.

With these gold-trimmed Z-Series speakers installed in your doors, turn up your music with confidence and savor all the nuances you've been craving in the car.


Product Details:

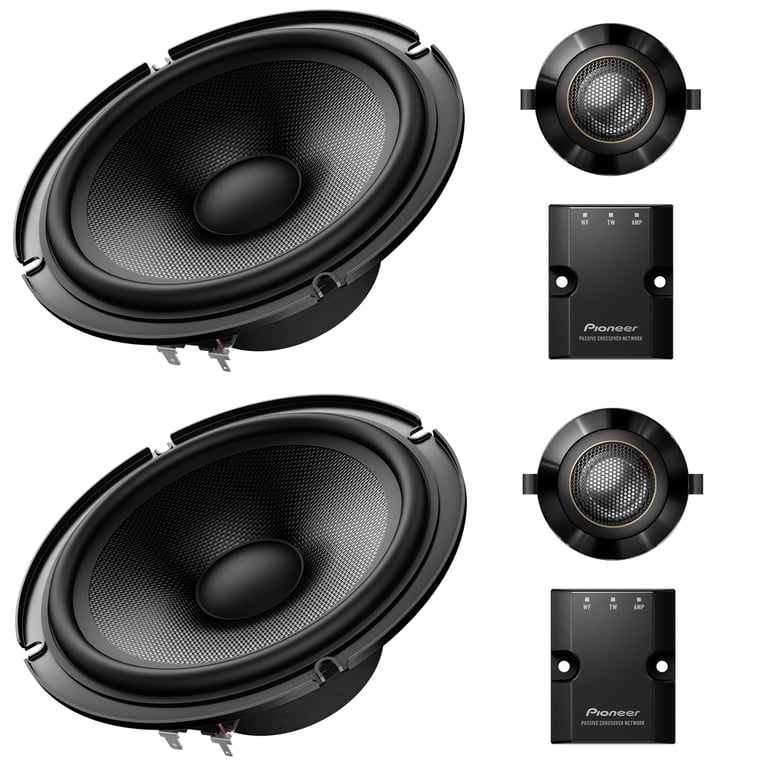

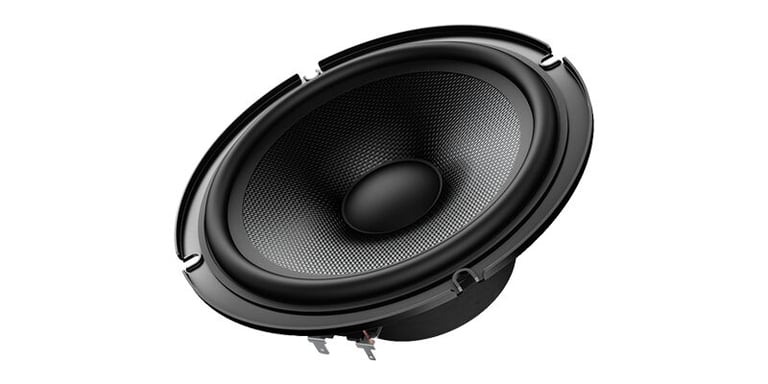

  • 6-1/2" 2-way Component System Car Speakers
  • Power Handling:
    • Peak: 600 watts per set / 300 watts each side
    • RMS: 200 watts per set / 100 watts each side
  • IMPP - Aramid Fiber and Carbon Fiber dual layer cone material
  • Butyl Rubber rolled speaker surround

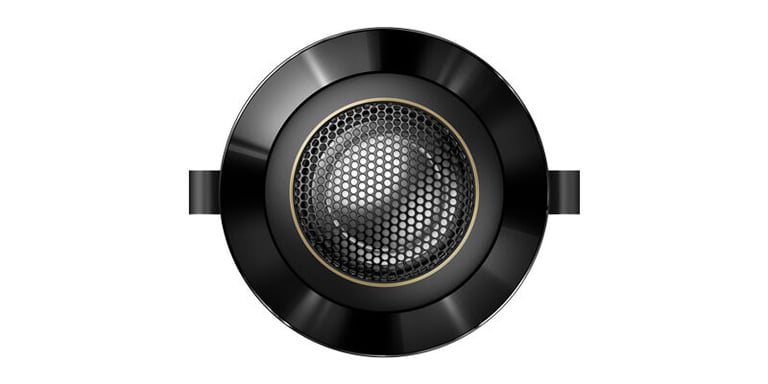

  • 1-1/8" Aluminum Alloy Balanced Dome swivel tweeters with Vertex Drive System
  • "Open & Smooth" sound technology
  • OFC short ring stabilizes voice coil impedance to reduce distortion and extend high frequencies
  • Powerful motor assembly optimized using finite element analysis
  • Passive crossover network
  • Unique tweeter fitting attachment to fit on many OEM speaker locations
  • Lug type wire terminals
  • Glass Imide voice coil with copper wire
  • 11.3 oz. Neodymium magnet motor structure
  • Compatible with Pioneer's CarSoundFit app
  • Top-mount Depth: 2-1/2"
  • Cutout Dimensions: 5-5/8"
  • Impedance: 4 ohm
  • Frequency Response: 32 - 96000 Hz
  • Sensitivity: 85 dB
  • Hi-Res Audio certified
  • CEA-2031 compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Specifications & Details


Speaker Specifications
Series
Z Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Balanced Dome
Tweeter Size
1-1/8"
Tweeter Composition
Aluminum Alloy
Woofer Composition
IMPP - Aramid Fiber and Carbon Fiber
Woofer Surround
Butyl Rubber
Peak Power Handling
300 watts
RMS Power Handling
100 watts
Total PEAK Per Pair/Set
600 watts
Total RMS Per Pair/Set
200 watts
Sensitivity
85 dB
Frequency Response
32 - 96000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet weight
11.3 oz.
Magnet Type
Neodymium
Top-Mount Depth (Mounting Depth)
2-1/2"
Cutout Dimensions
5-5/8"
CTA-2031 Compliant
Yes
General specifications
Marine Certified
No
Hi-Res Certified
Yes
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
Warranty/Registration card
Quick start guide
WITB: Speakers
Mounting Brackets/Hardware
Speakers (2)
Grilles (2, detached)
Tweeters (2)
Crossover networks (2)
Mounting clips (4)
Mounting clips (8)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-Z65C-2

Weight:

5.70lbs

Internal SKU:

ls-tsz65c-u7

Internal Product ID:

221408
