Pioneer TS-D65C (Open Box, Good)

540W Peak (180W RMS) 6.5" D-Series 2-Way 4-ohm Component Speaker System

Pioneer
Shop all Pioneer
highlight-star-icon

• 270 watts Peak Each, 90 watts RMS Each
• 1" Polyester Fiber Dome tweeters
• Aramid fiber reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84 dB
• Mounting Depth: 2-1/2"

Learn more about the ls-tsd65c-u7

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

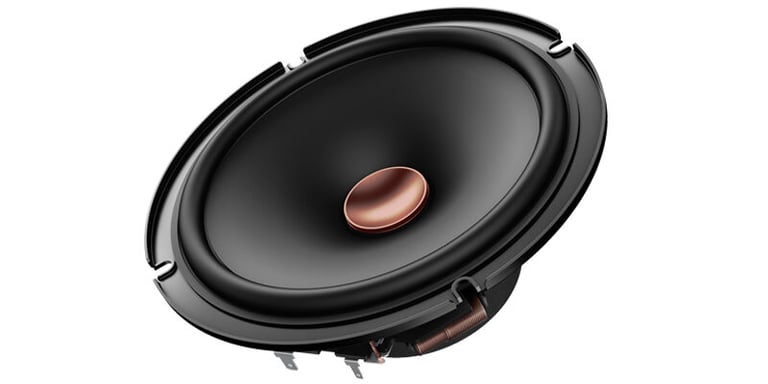

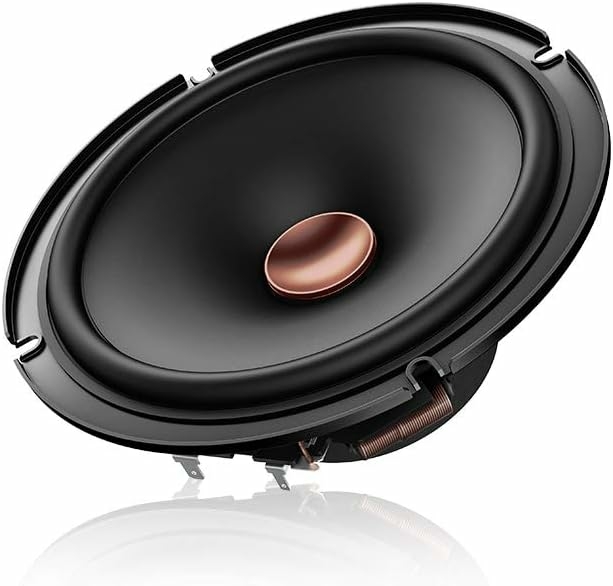

Pioneer TS-D65C

The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities. Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage, ambience and amazing fidelity for the listener. The D component speakers utilize the same unique swivel mount as the Z component speakers to ensure optimal tweeter placement and a superior listening experience. The D full range speakers are designed with a universal woofer basket to expand installation flexibility for maximum bass and sound quality.


Product Details:

  • 6-1/2" D-Series 2-way Component System Car Speakers
  • Power Handling:
    • Peak: 540 watts per set / 270 watts each side
    • RMS: 180 watts per set / 90 watts each side
  • Aramid fiber reinforced Injection Molded Polypropylene cone material
  • Butyl Rubber speaker surround

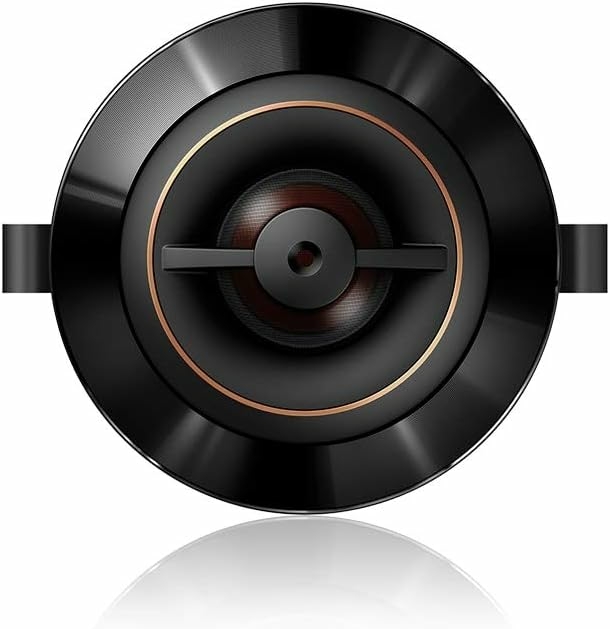

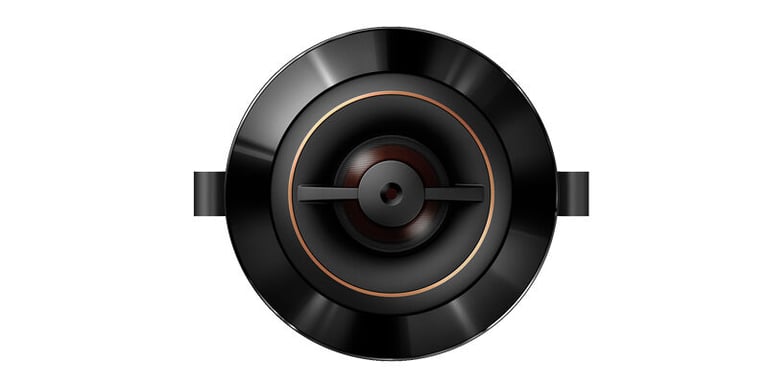

  • 1" Polyester Fiber Dome tweeters
  • Features Vertex Drive System to improve voice coil and tweeter
  • High resolution audio quality
  • Features "Open and Smooth" sound concept
  • Lug type wire terminal connection
  • Copper shorting ring material
  • Aramid fiber speaker damping material

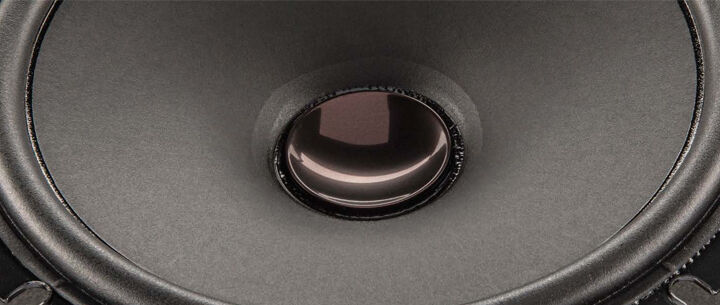

  • Twaron aramid fiber center cap material
  • Stamped steel basket material
  • Experience car sound through phone via Car Sound Fit
  • 11.3 oz. Ferrite magnet motor structure
  • Top-mount Depth: 2-1/2"
  • Cutout Dimensions: 5-5/8"
  • Impedance: 4 ohm
  • Frequency Response: 32 - 49000 Hz
  • Crossover Frequency: 3500 Hz
  • Sensitivity: 84 dB
  • CEA-2031 compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

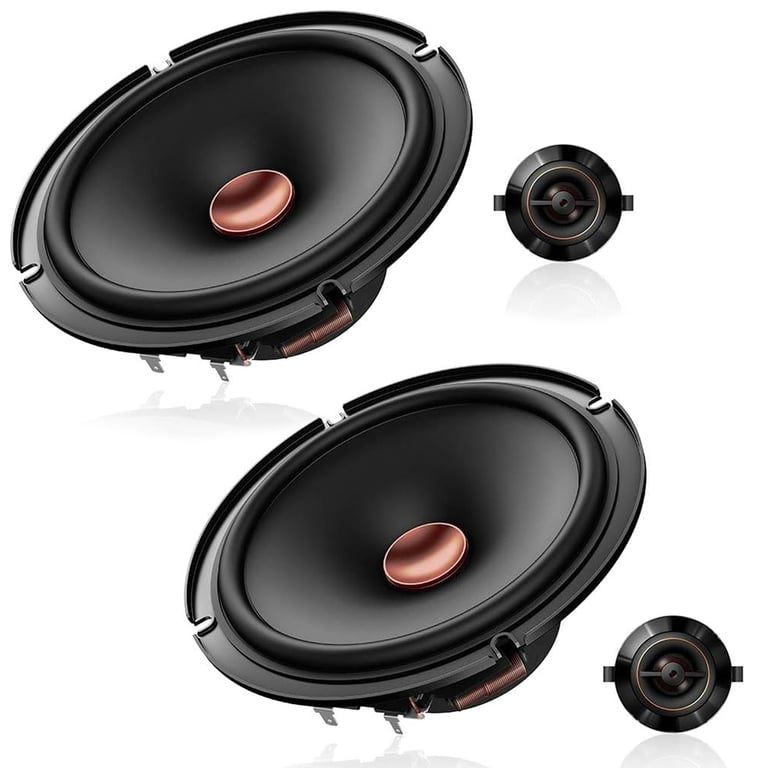

  • Priced Per Complete Component System: 2 woofers and 2 tweeters

Specifications & Details


Speaker Specifications
Series
D-Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
1"
Tweeter Composition
Polyester Fiber
Woofer Composition
Aramid fiber reinforced Injection Molded Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
270 watts
RMS Power Handling
90 watts
Total PEAK Per Pair/Set
540 watts
Total RMS Per Pair/Set
180 watts
Sensitivity
84 dB
Frequency Response
32 - 49000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet weight
11.3 oz.
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
2-1/2"
Cutout Dimensions
5-5/8"
CTA-2031 Compliant
Yes
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
Compatible vehicle types
Car/Truck/SUV/Van
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Speakers
Speakers (2)
Tweeters (2)
Mounting screws (4)
Mounting screws (8)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-D65C-3

Weight:

5.60lbs

Internal SKU:

ls-tsd65c-u7

Internal Product ID:

225215
