Axxess AXDSPL-HK2

Install a DSP and New Amplifier to Factory System in select 2011-2025 vehicles from Hyundai, Kia

Axxess
Shop all Axxess
highlight-star-icon

• DSP data interface with pre-wired harness
• For select 2011-2025 vehicles from Hyundai, Kia
• Designed for non-amplified systems
• Can be used with factory and aftermarket radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

See compatible vehicles Learn more about the axdsplhk2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Description


Axxess brand icon

Authorized dealer


Axxess AXDSPL-HK2


Overcome the factory radio’s built-in “audio processing” with our patented digital signal processor, or “DSP”, vehicle-specific packages. Factory radios have built-in sound processing designed to make your mass-produced factory speakers sound as good as they can without breaking. This means that if you upgrade to aftermarket speakers, your factory radio will process the sound according to the factory settings and your system just won’t sound as great as you hoped it would.

To remove the limitations of the factory radio and get clean signals for aftermarket audio gear, you will need a sound processor like Axxess' line of patented DSP products. Axxess' DSP is unlike any other on the market offering not only serious sound improvements but retains many of the features commonly lost when upgrading a sound system.


Product Features:

  • Compatible with select 2011-2025 vehicles from Hyundai, Kia
  • DSP data interface with pre-wired harness
  • Retains ability to work with S/PDIF digitally controlled amplified systems
  • Selectable 31-band graphic equalizer or 5-band parametric equalizer
  • Independent equalization on each of the 10 outputs
  • Each channel with high pass, low pass, and bandpass filters
  • Each channel can be delayed independently up to 10 ms
  • 6 inputs and 10 individually assignable outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Clipping detection and limiting circuits
  • Adjust settings wirelessly in the free AX-DSP-XL app for iPhone/iOS or Android
  • Password protect feature available in the app
  • Can be used with factory and aftermarket radios
  • Read, write, and store configurations for future recall

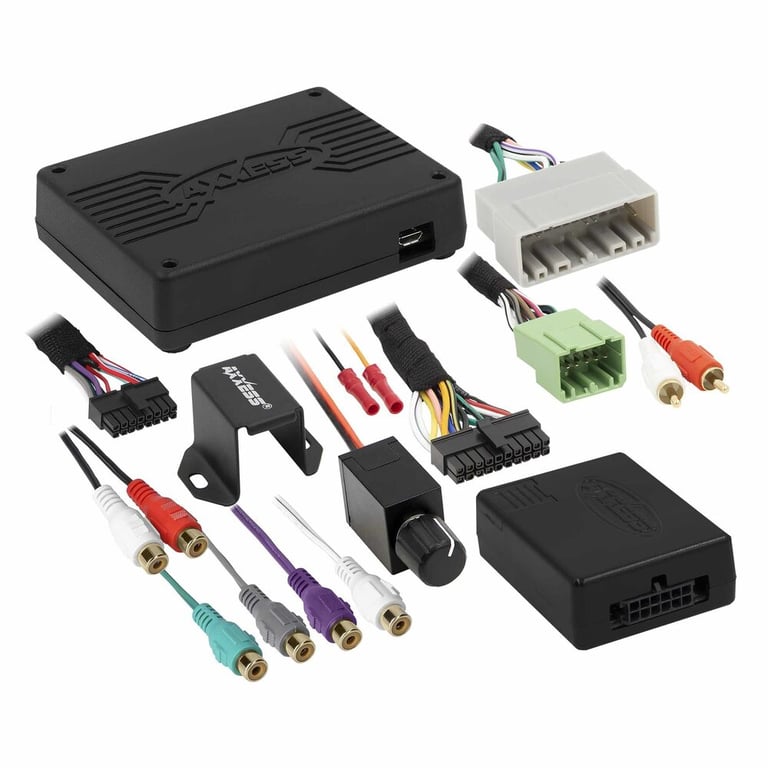

  • Includes AXDSP-X interface, t-harness, and bass knob
  • Micro "B" USB updatable
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2012 Audi A5 is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

AXDSPX-ETH1 small

Axxess AXDSPX-ETH1

• Plug and Play T-harness for faster installation
• For select 2019-2024 vehicles from Chevrolet, GMC, Cadillac
• Designed for Ethernet amplifiers
• Designed to be used with factory radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

(3)

$517.99

List price $613.99

AXDSPX-GMM50 small

Axxess AXDSPX-GMM50

• Plug and Play T-harness for faster installation
• For select 2010-2021 vehicles from Chevrolet, GMC, Cadillac
• Designed for MOST amplified systems
• Designed to be used with factory radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$638.99

List price $709.99

AXDSPX-BMWM25 small

Axxess AXDSPX-BMWM25

• Plug and Play T-harness for faster installation
• For select 2010-2025 vehicles from BMW
• Designed for MOST amplified sound systems
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$637.99

List price $708.99

AXDSPL-CH8 small

Axxess AXDSPL-CH8

• Plug and Play T-harness for faster installation
• For select 2021-2022 vehicles from Ram, Dodge, Chrysler
• Designed for both amplified and non-amplified systems
• Selectable 15-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$255.99

List price $419.99

AXDSPX-TY2 small

Axxess AXDSPX-TY2

• Plug and Play T-harness for faster installation
• For select 2010-2019 vehicles from Subaru, Toyota, Scion
• Designed for non-amplified systems
• Can be used with factory and aftermarket radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$533.99

List price $593.99

BC-DSPX-HD2 small

Metra BC-DSPX-HD2

• Digital Signal Processor (DSP) Interface and Harness
• Designed to integrate aftermarket amplifier with OEM systems
• All programming done using the Axxess DSP XL app
• 31-band graphic equalizer
• 5-band parametric equalizer per channel
• Designed for

(3)

$641.99

List price $713.99

AXDSPX-GL44 small

Axxess AXDSPX-GL44

• DSP interface with pre-wired harness for select 2008-2017 vehicles from GMC, Chevrolet, Cadillac
• Designed for amplified and non-amplified systems
• Can be used with factory and aftermarket radios
• Package includes AXDSP-X interface, vehicle-specific T-harness, bass knob
• Must be installed at the factory stereo location
• Features updatable Micro "B" USB function

$533.99

List price $593.99

AXDSPX-FD3 small

Axxess AXDSPX-FD3

• Plug and Play T-harness for faster installation
• For select 2020-2025 vehicles from Ford
• Designed for non-amplified systems
• Can be used with factory and aftermarket radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

(1)

$533.99

List price $593.99

AXDSPX-BM1 small

Axxess AXDSPX-BM1

• Plug and Play T-harness for faster installation
• For select 2006-2025 vehicles from BMW, MINI
• Designed for non-amplified systems
• Can be used with factory and aftermarket radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$533.99

List price $593.99

AXDSPX-TY3 small

Axxess AXDSPX-TY3

• DSP data interface with pre-wired harness
• For select 2016-2023 vehicles from Toyota
• Designed for non-amplified systems
• Can be used with factory and aftermarket radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$533.99

List price $593.99

Specifications & Details


General Specifications
Built-in Crossover
Band-Pass (BP)
Low-Pass (LP)
High-Pass (HP)
Built-in Bass Reconstruction
No
Line Driver
No
Speaker Level Inputs
No
Total Number of Inputs
6
Total Number of Outputs
10
Signal Boost/Cut
10 dB
Max Output Level
5 volts
Frequency Response
20 - 20000 Hz
THD (Total Harmonic Distortion)
0.03%
Signal-to-Noise Ratio
105 dB
Equalizer Bands
31 band
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AXDSPL-HK2

Weight:

1.00lb

Internal SKU:

axdsplhk2

Internal Product ID:

189611
