Planet Audio PCPA975W

6.75" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, and Android Auto

Planet Audio
Shop all Planet Audio
highlight-star-icon

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.75" TFT Active Matrix Display
• Apple CarPlay and Android Auto compatible
• 3 sets of 2 volts preamp outputs
• 16-Band Equalizer

Learn more about the pcpa975w

We apologize

This item has been discontinued

Description


Planet Audio brand icon

Authorized dealer

Product Details

  • Double DIN In-Dash Bluetooth Digital Multimedia Receiver
  • 6.75" TFT Active Matrix Display
  • Power Output:
    • Peak: 80 watts x 4 channel
    • RMS: 22 watts x 4 channel
  • Bluetooth hands-free calling and audio streaming
  • Multi Color Illumination options
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: PCPA975W

Smartphone Features

  • Apple CarPlay and Android Auto compatible
  • Display and control music, and other apps with iPhone and Android
  • Pandora and Spotify capable
  • Siri Eyes Free control for select iPhones and Voice assistant button for Siri or Google Assistant
  • Wired phone-mirroring for select devices via USB

Playback and Audio Features

  • MP3 | WMA | WAV | AAC | FLAC (Hi-Res) Audio Playback
  • AVI | MP4 | MPG and WMV Video Playback
  • AM/FM tuner with 18FM/12AM presets
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 16-Band Equalizer

Expandability Options

  • Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

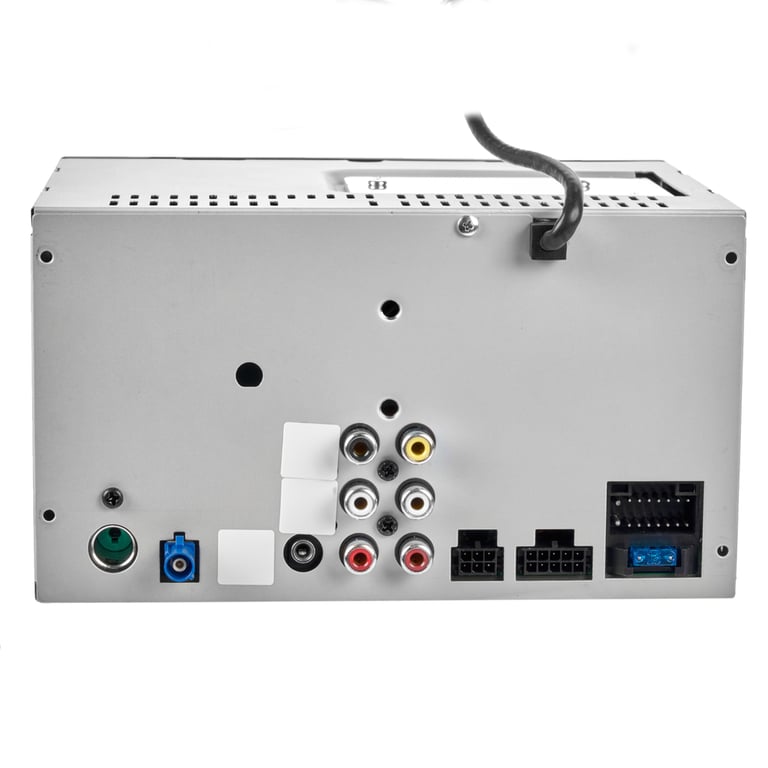

Audio/Video Inputs and Outputs

  • 3 sets of 2 volts preamp outputs (front, rear, and subwoofer)
  • Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
  • Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
  • Backup Camera Input: Used for universal rear view cameras with an RCA composite input
  • Front-view Camera Input: Used for universal cameras with an RCA composite input
  • Rear RCA Video Output: Used for connection to separate monitors and other devices
  • Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Includes a Built-in microphone for clear, convenient, distortion-free talking

Planet Audio PCPA975W Manual

Specifications & Details


Key Features
Key Features
USB input
Aux input
Touchscreen
In-Dash Receiver Specifications
Receiver Size
Double DIN
Radio Type
Digital Multimedia (does not play discs)
Bluetooth Features
Hands-free Calling
Audio Streaming (A2DP)
Built-in Microphone
Volume Control Type
Touch Sensitive
Anti-Theft Security
None
Wireless Remote
No
Peak Power Output
80 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
16-Band Equalizer
Display Type
TFT Active Matrix Display
Touchscreen
Yes
Screen Size
6.75"
Display Adjustment
Brightness
Dimmer
Button Color
Variable
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
CarPlay
Navigation App Compatible
Siri Eyes Free Control
Pandora Control
Spotify Control
Mirroring Control
Android Control
Android Auto
Navigation App Compatible
Google Assistant
Pandora Control
Spotify Control
Mirroring Control
Expandability Features
Inputs
Audio/Video (Rear)
Auxiliary (Rear)
Backup Camera
Second Camera
USB (Rear)
Outputs
Audio/Video (RCA)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Radio Data System (RDS)
Yes
Playback
Music File Playback Type
MP3
WMA
WAV
High-Res FLAC (192kHz/24bit)
AAC

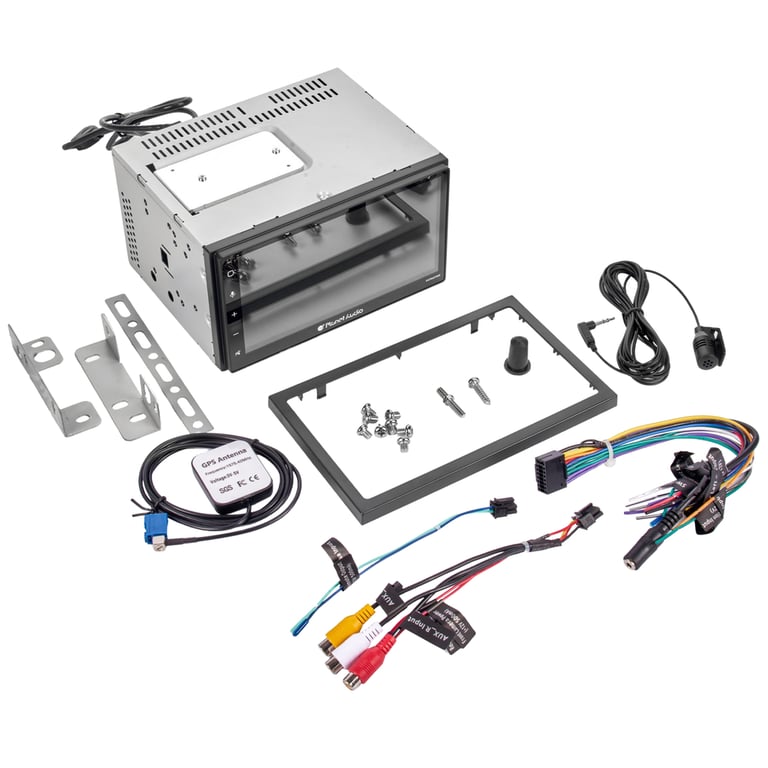

What is in the box?
Paperwork
User manual
Warranty/Registration card
Product and accessories
In-dash receiver
Wiring harness with all connections
Mounting sleeve (attached)
Trim ring (attached)
Microphone with attached cable
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PCPA975W

Weight:

4.70lbs

Internal SKU:

pcpa975w

Internal Product ID:

193273
