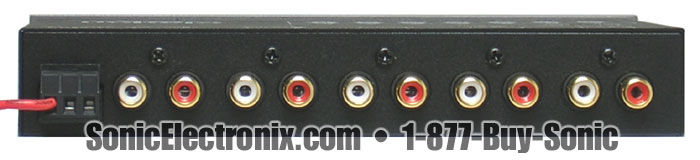

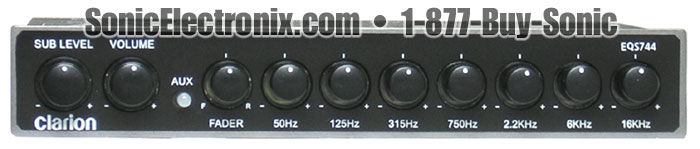

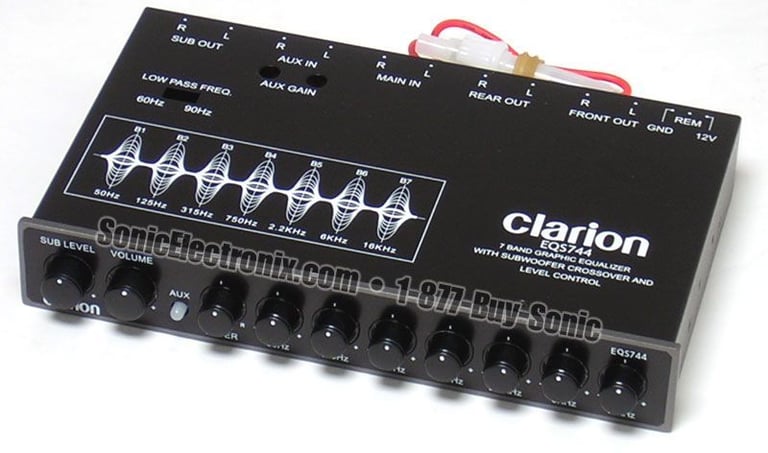

Clarion EQS744 7-Band Equalizer

Clarion
Shop all Clarion
Product videos
highlight-star-icon

7-Band Graphic Equalizer • 7V RCA Line-Level Output • Subwoofer Control

Learn more about the eqs744

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

xeq7 thumbnail

NVX XEQ7 - Graphic Equalizer (Equivalent to Clarion EQS755)

OUR PRICE: $49.99

View item

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1986-2024 vehicles from Toyota, Subaru, Scion

90

$6.99

List price $19.99

99-8271CHG main

Metra 99-8271CHG

Single DIN or Double DIN Stereo Dash Kit for select 2010-2025 Toyota 4Runner (Charcoal High Grade)

$62.99

List price $79.99

Limited time!
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

117

$299.95

List price $349.95

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

120

$74.96

List price $119.99

DCPA701-4 main

Dual DCPA701-4

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto

6

$159.99

List price $179.99

P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

80

$109.99

List price $109.99

Limited time!
Club 64 main

JBL Club 64 (JBLSPKCB64)

360W Peak (120W RMS) 6.5" Club Series 2 Way Coaxial 3-ohms Speakers

1

$82.95

List price $139.95

TS-A879 main

Pioneer TS-A879

900W Peak (200W RMS) 3.5" A-Series 2 Way Coaxial 4-ohm Speakers

4

$69.99

List price $90.00

KW-M690BW main

JVC KW-M690BW

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

$399.00

List price $449.00

Limited time!
CLUB 964M main

JBL CLUB 964M (JBLSPKCB964M)

450W Peak (170W RMS) 6x9" Club Series 2 Way Coaxial 3-ohm Speakers

$112.95

List price $179.95

Product Highlights


7-Band Graphic Equalizer • 7V RCA Line-Level Output • Subwoofer Control

Description


Clarion brand icon

Authorized dealer

  • Selectable Subwoofer Low-Pass Frequency 60Hz or 90Hz
  • 6-Channel / 7-Volt RCA Line-Level Output
  • 7-Band Graphic Equalizer
  • Subwoofer-Level Control
  • Selectable Main Aux. Inputs
  • 1-year warranty

Specifications:

  • Graphic Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
  • Boost/Cut: 12dB
  • S/N Ratio: 100dB
  • Frequency Response: 10Hz - 50kHz +/- 1dB
  • Max Output Voltage: 7V RMS
  • THD: 0.005
  • Input Sensitivity: 50mV - 3V RMS
  • Head Room: 20dB
  • Input Impedance: 20kOhm
  • Output Impedance: 2kOhm
  • Stereo Separation: 82dB / 1kHz
  • Operating Voltage: 11V - 15V Negative Ground
  • Dimensions: 1-1/8"H x 7"W x 4"H

Product history:

NVX XEQ7 thumbnail
(newest, current model)
Clarion EQS746 thumbnail
(previous model, replaced by NVX XEQ7 - Graphic Equalizer (Equivalent to Clarion EQS755))
Clarion EQS744 thumbnail
(previous model, replaced by Clarion EQS746 (Ships as EQS755))
