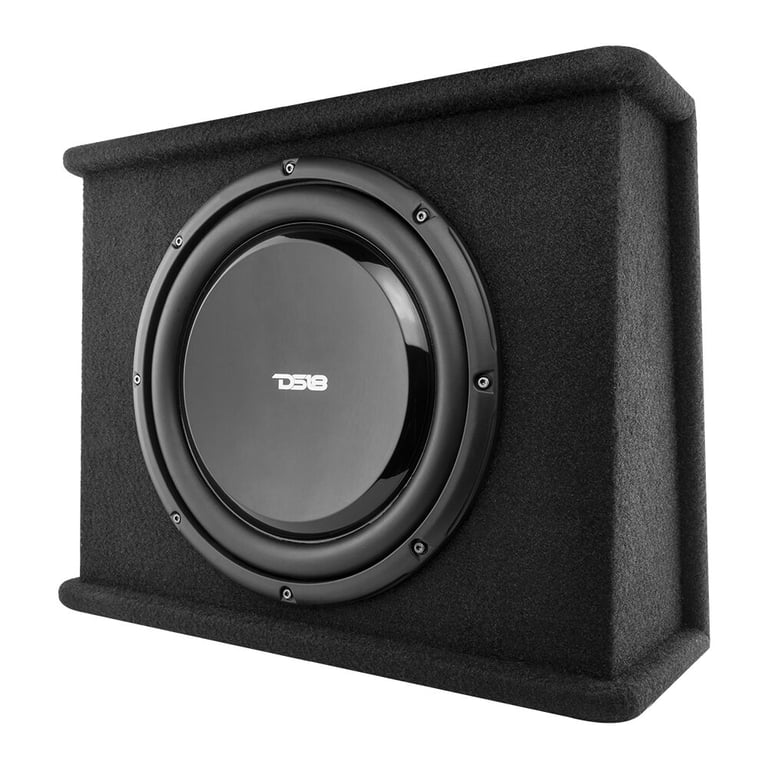

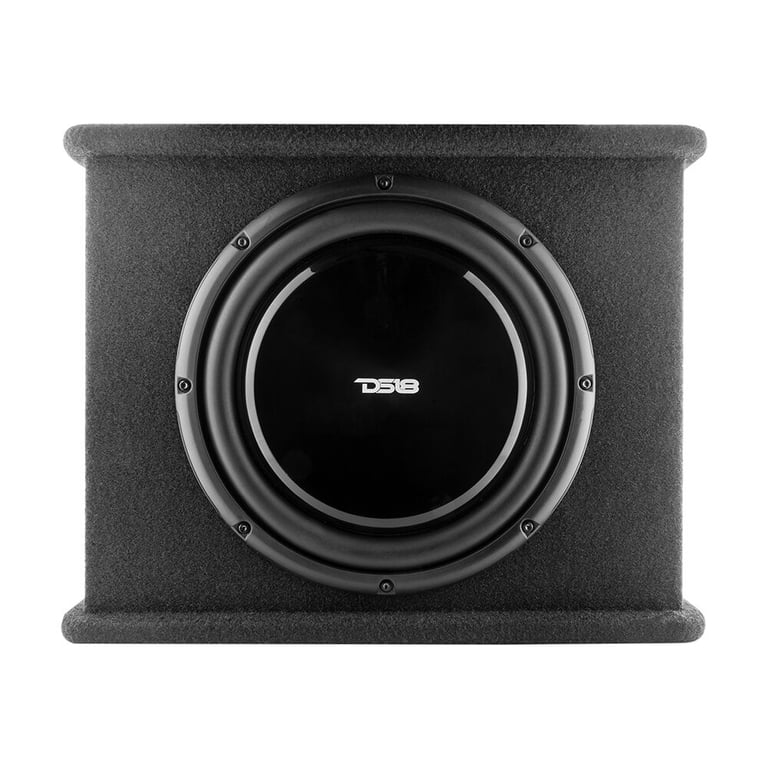

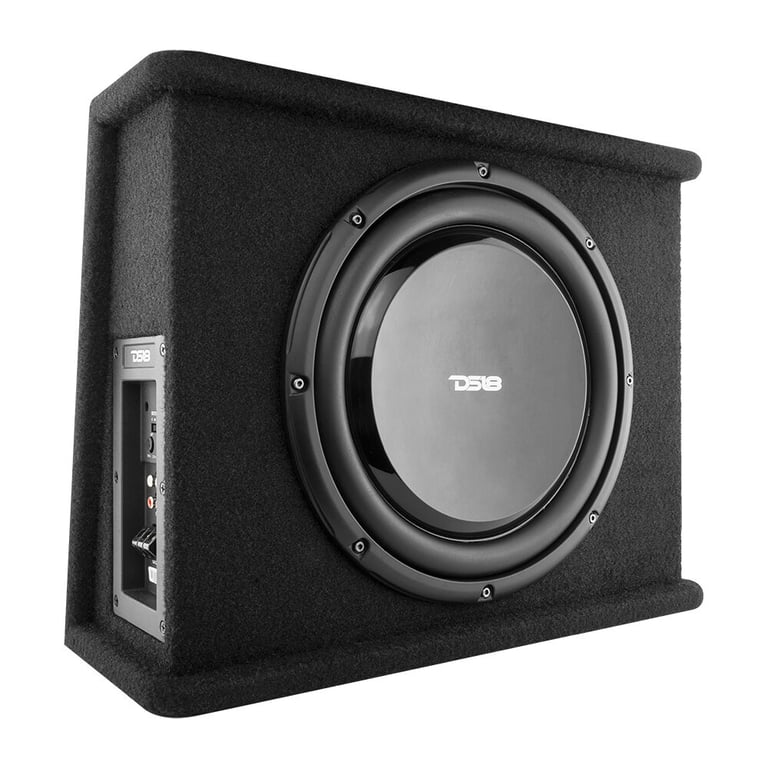

DS18 SB12A (Open Box, Great)

700W Peak (350W RMS) 12" Sealed Amplified Loaded Subwoofer Enclosure

DS18
Shop all DS18
highlight-star-icon

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

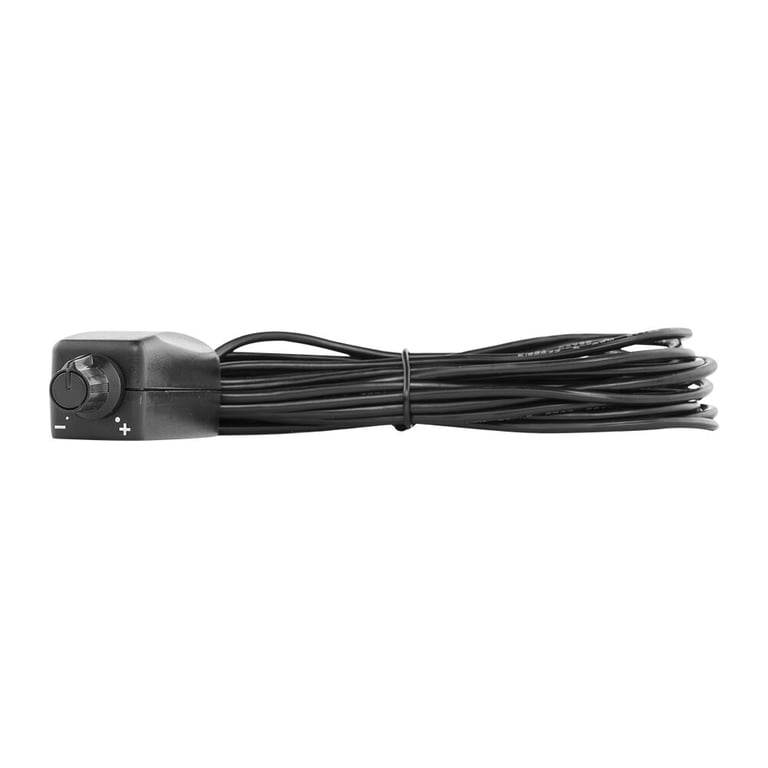

• Wired Remote Bass Level Control

Learn more about the ls-sb12a-u8

We apologize

This item has been discontinued

Description


DS18 brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

  • Single 12" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Final Impedance: 2-ohm
  • Built-in Class D amplifier
  • Includes Remote Bass Level Controller: Yes
  • Sealed Hatchback Style, Angled Back enclosure
  • 8 AWG gauge power and ground wiring is recommended for installation
  • Enclosure Dimensions: 4.92" TD x 7.4" BD x 19.3" W x 14.96" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • 12" Subwoofer
  • Polypropylene Cone
  • Rubber Surround
  • Ferrite Magnet Motor Structure
  • Frequency Response: 30 - 250 Hz
  • Sensitivity: 87 dB

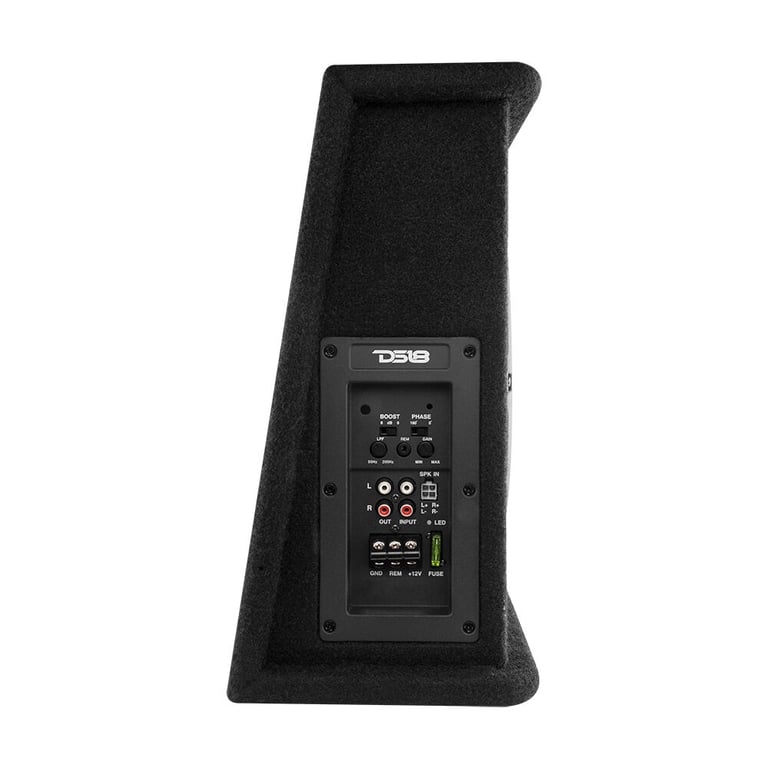

Amplifier Features:

  • Class D Monoblock Amplifier
  • Low-Pass Crossover Frequency: 51 - 200 Hz
  • Bass Boost: 0 - 6 dB
  • RCA Preamp Output: 1 pair
  • Speaker-level (high-level) inputs: Yes - with included adapter
  • Input sensitivity: 100mV - 6 volts
  • Fuse Rating: 30A x 1

Enclosure Features:

  • 12" Sealed Enclosure
  • Total Box Volume: .56 cubic feet
  • Tuning Frequency: 45 Hz
  • Box Finish: Black Carpet

Specifications & Details


Series
Series
SB12-A
Subwoofer Amplifier Power Specifications
RMS Power @ 2 ohms
350 watts x 1 channel
Peak Power Output
700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.30%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
51 - 200 Hz
Signal-to-Noise Ratio
75 dB
Low-Level Input Sensitivity
100mV - 6 volts
Bass Boost
0 - 6 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
350 watts
Total RMS Power Handling
350 watts
Peak Power Handling
700 watts
Total Peak Power Handling
700 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
1.75"
Magnet Type
Ferrite
Sensitivity
87 dB
Frequency Response
30 - 250 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Total Box Volume
.56 cubic feet
Height
14.96"
Width
19.3"
Depth
4.92"
Second Width
7.4"
Wood Thickness
5/8"
Box Exterior Color
Black
Box Finish
Carpet
Tuning Frequency
45 Hz
Final Wired Impedance
2-ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

sb12a

Weight:

26.00lbs

Internal SKU:

ls-sb12a-u8

Internal Product ID:

231131
