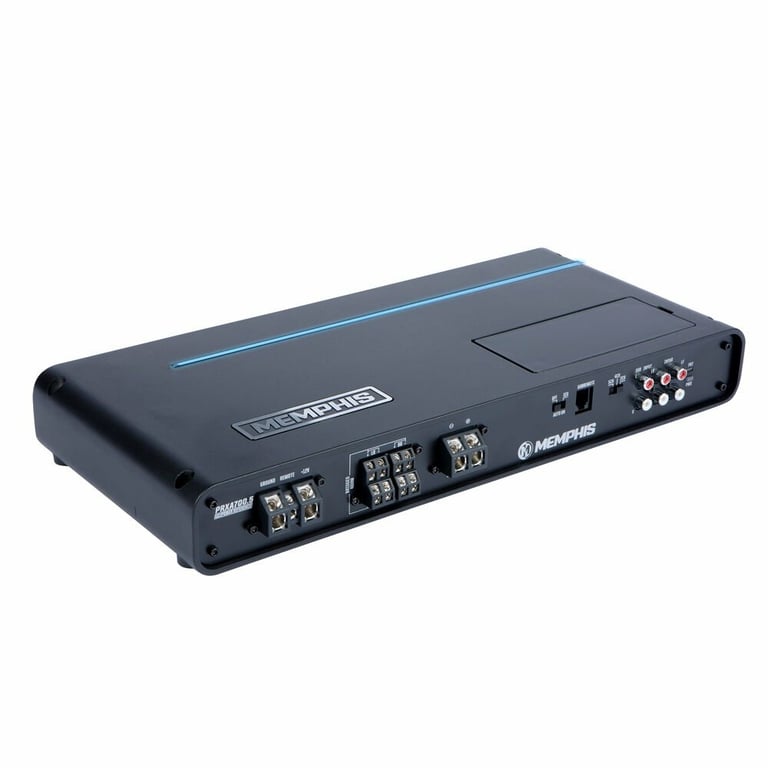

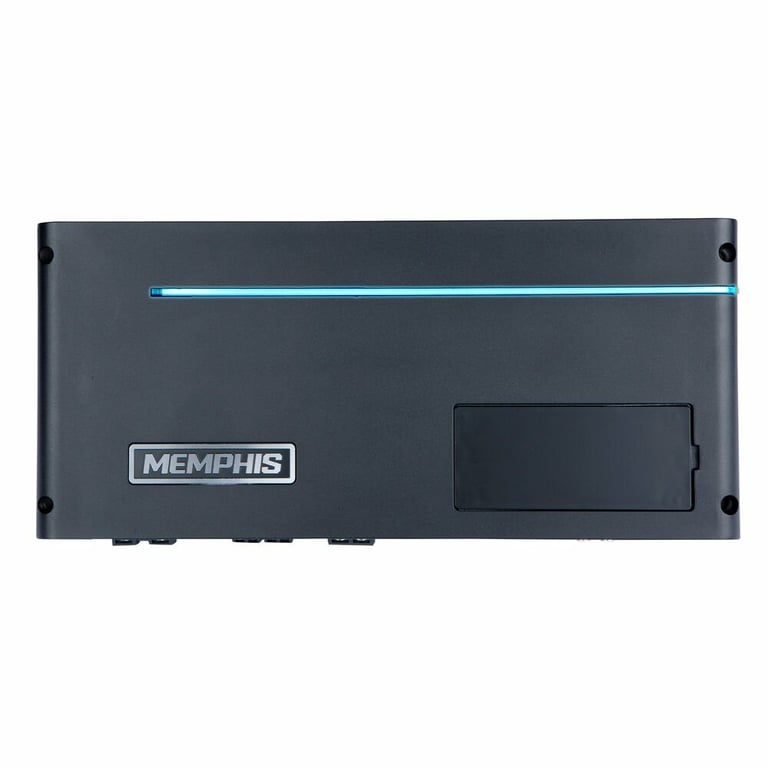

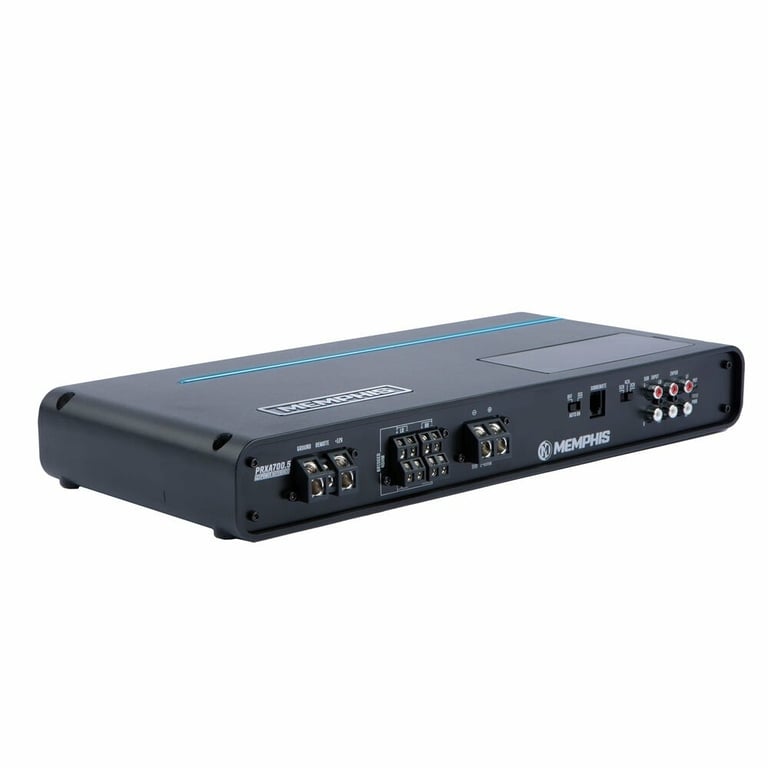

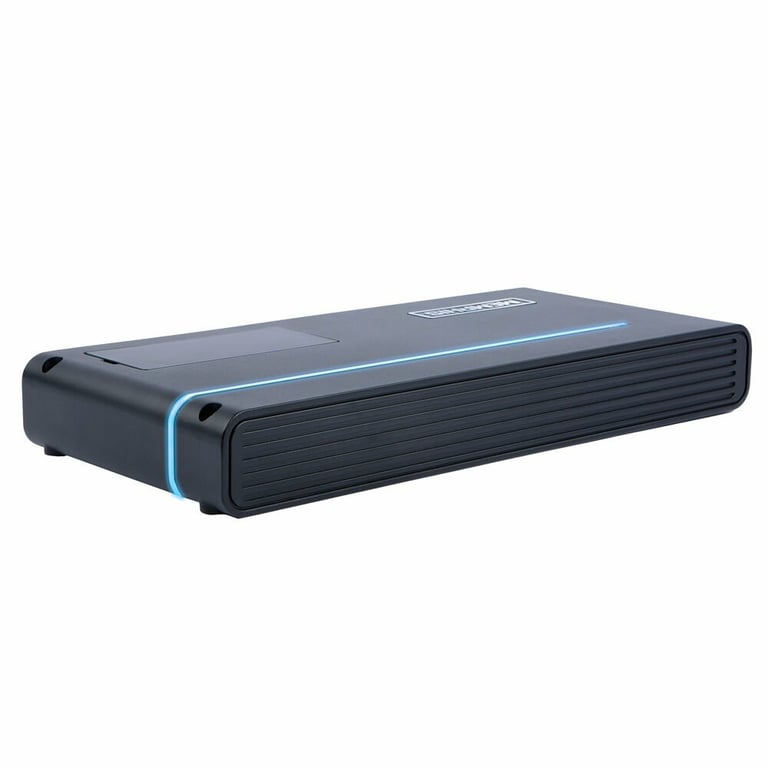

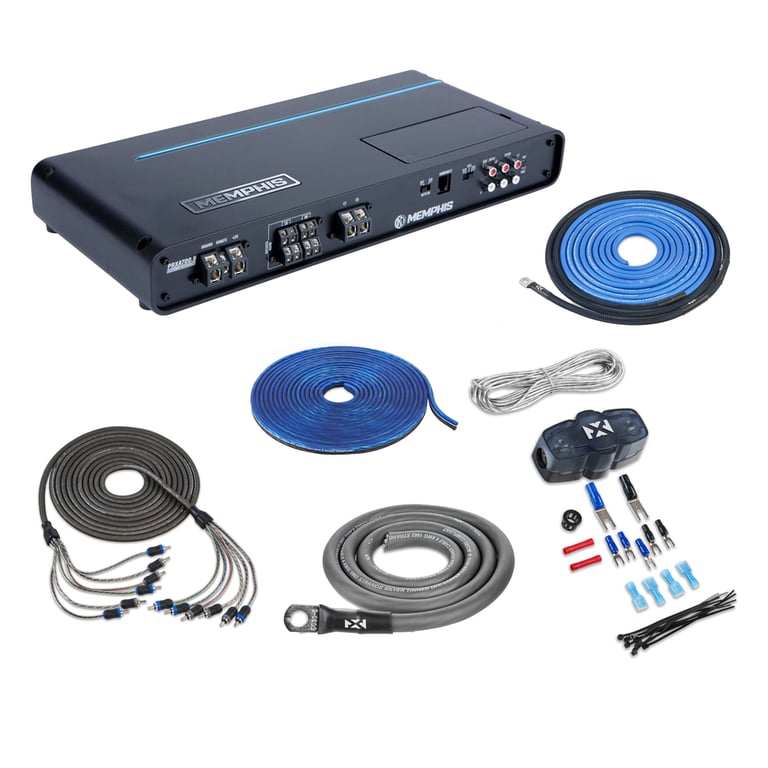

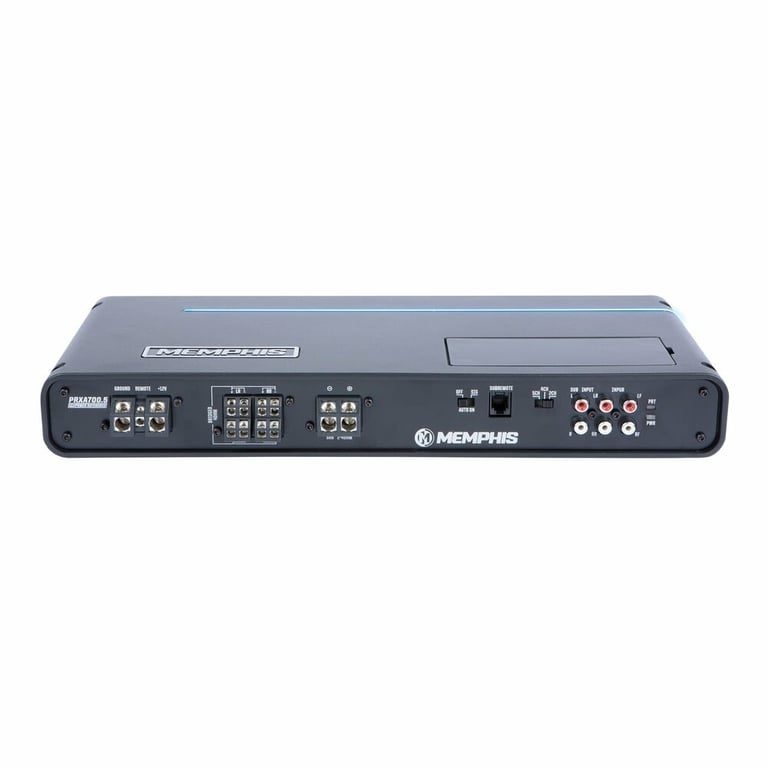

Memphis PRXA700.5 + Premium NVX XKIT46 4 Gauge Amp Wiring Kit

Product Details:

• PRX Series Class A/B 2 ohm Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 50 watts x 4 channel + 200 watts x 1 channel
• 2 ohm: 75 watts x 4 channel + 400 watts x 1 channel
• Bridged: 140 watts x 2 channel @ 4 ohm + 400 watts x 1 channel @ 2 ohm
• Total power output: 700 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Signal sensing remote turn-on
• Protection Circuitry
• Platinum-plated Connectors
• Removable magnetic panel conceals top-mounted controls
• Input sensitivity: 0.22 - 6 volts
• Frequency Response: 20 - 20K Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 80 dB
• Variable high-pass filter: 80 - 1K Hz
• Variable low-pass filter: 50 - 250 Hz
• Subsonic filter: 20 - 50 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 150A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 16" L x 7-9/16" W x 2-3/16" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: PRXA700.5

Product Details:

• 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant

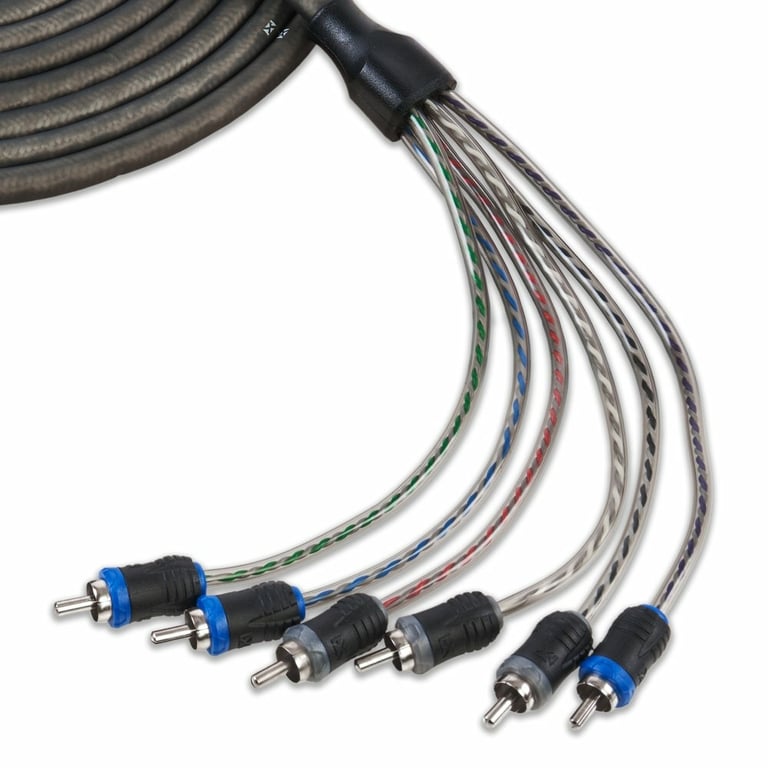

• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 60 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
8. One Black rubber firewall grommet
9. Two 4 Gauge Nickel Plated spade terminals
10. Four 18 Gauge Spade terminal
11. Two 18 Gauge Red butt connectors
12. Four 16 Gauge quick disconnect
13. Five 16 Gauge Nickel Plated spade terminals
14. Two Heat Shrink tubes with the NVX logo
15. Ten 6" Black zip ties
