  8. Panamax PM8-HT

See all parts that fit your 1989 Conquest

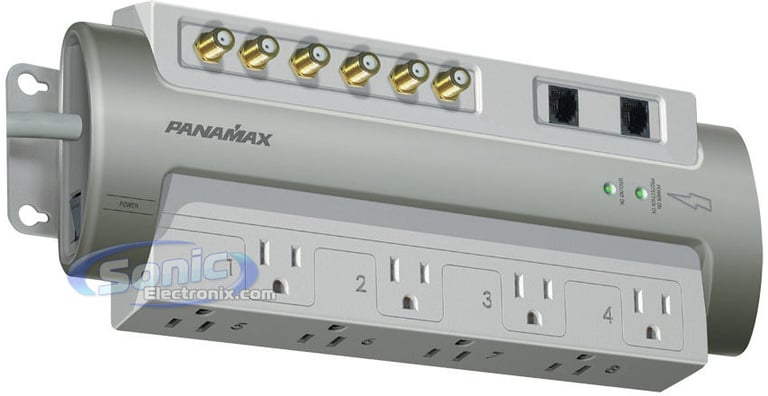

Panamax PM8-HT

8 Power Outlet Max with Satellite and CAT5 Protection

Panamax
Shop all Panamax
highlight-star-icon

8-Outlet Max Satellite and CAT5 Protection • Protect or Disconnect™ Circuitry • EMI/RFI filtration • SurgeGate Plus™ Circuitry • Automatic Voltage Monitoring™ • Catastrophic Surge Circuit • Thermal Fuse Protection

Learn more about the pmxpm8ht

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
PR503CF main

Infinity Primus 503CF (PR503CF)

300W Peak (100W RMS) 5.25” Primus Series 2 Way 3-ohm Component Speaker System

1
-20.01%

$119.95

List price $149.95

Add to cart

Description

Panamax brand icon
General Features:
  • 8 Outlet Power Max with Satellite and CAT5 Protection
  • Typically used with power only type equipment such as appliances, office equipment, stereos and radios, etc.
  • Eight AC outlets with transformer spacing
  • Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts)
  • Protect or Disconnect™ Circuitry safeguards equipment against all surges
  • EMI/RFI filtration reduces unwanted interference and noise
  • Features Protection OK and Ground OK diagnostic lights
  • Protects cable and sat equipment from electrical surges that travel over Cable, Satellite, and Antenna lines
  • Protects equipment from electrical surges that travel over Telephone lines
  • Designed to work with your High Definition system
  • Plugs directly into the wall using a right-angle offset plug that has an 6ft cord
  • SurgeGate Plus™ circuitry protects against prolonged brownouts as well as over-voltage
  • Automatic Voltage Monitoring™
  • Catastrophic surge circuit opens automatically to prevent damage if the surge exceeds protection capability
  • Thermal fuse shuts off power in case of a period of over voltage occurs
  • Wall mountable (brackets and screws included)
  • Dimensions: 12"L x 5"W x 1-3/4"H
  • 1-year SonicElectronix.com warranty
Specifications:
  • UL 1449 Suppression Rating: 330V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1125 Joules
  • Response Time: less than 1 nanosecond
  • Protection Modes: L-N, L-G, N-G
  • Protect or Disconnect™ Circuitry: Yes
  • Peak Impulse Current: 52,000 Amps
  • Patented Power Management Circuit: Yes
  • Maximum Current Rating: 15 A (1800W)
  • Line Voltage: 120VAC, 50/60Hz
  • Initial Clamping Level: 200V Peak, 141V RMS
  • EMI/RFI Noise Filtration: 45 dB (100 KHz - 1MHz)
Telco Protection Specifications:
  • Wires Protected: 2 wire, 1 pair (3,4)
  • Suppression Modes: Metallic & Longitudinal
  • Fuse-less / Auto-resetting: Yes
  • Connectors: RJ-11
  • Clamping Level: 260V
  • Capacitance: 30pf (approx.)
Universal Coaxial Protection Specifications:
  • Shielded: Yes
  • Insertion Loss: < 0.5 dB
  • HD 1080 i/p Ready: Yes
  • Frequency Range: 0MHz - 2.2 GHz
  • Connections: Female “F”, Gold Plated
  • Clamping Level: 75V
  • Bidirectional: Yes
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Add to cart
Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Add to cart
REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

Add to cart
DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

$159.99

Add to cart
DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Add to cart
DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

Add to cart
Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

Add to cart
Limited time!
THUNDER51 main

MTX Audio THUNDER51

360W Peak (180W RMS) 5.25" Thunder Series 2-way 4-ohm Component Speakers System

1
-16.67%

$199.96

List price $239.95

Add to cart
43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

Add to cart
VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

Add to cart

Specifications & Details

Connections
Number of Power Outlets
8
Outlet Power Detection and Turn-Off
No
Surge Energy Rating (Joules)
1125 joules
RJ45 Phone & Network Ports
Yes
Coaxial Surge Protection
Yes
General Features
Width
5"
Height
1-3/4"
Depth
12"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Panamax

Model Number:

PM8-HT

Weight:

2.93lbs

Internal SKU:

pmxpm8ht

Internal Product ID:

19665
