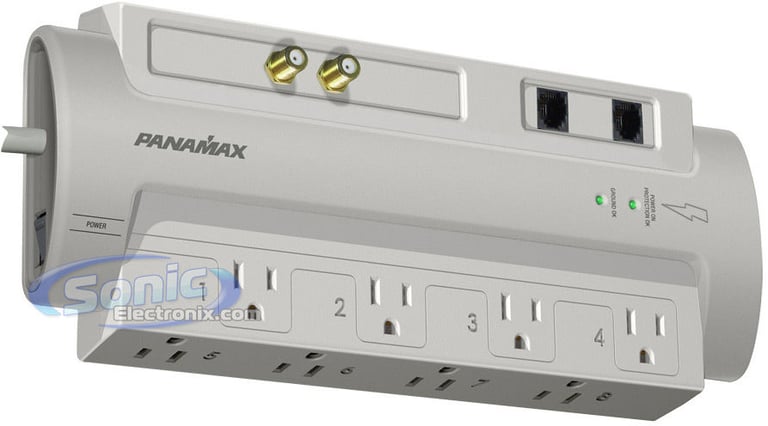

Panamax SP8-AV

8 Outlet SurgeProtector Audio/Video with Coaxial and Telephone Protection

Panamax
Shop all Panamax
highlight-star-icon

8-Outlet A/V and Telephone Line Protection • Protect or Disconnect™ Circuitry • EMI/RFI filtration • SurgeGate Plus™ Circuitry • Automatic Voltage Monitoring™ • Catastrophic Surge Circuit • Thermal Fuse Protection

Learn more about the pmxsp8av

We apologize

This item has been discontinued


Loading...

Infinity REF307F (INFSPKRF307FUS)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Speakers

4
-23.09%

$99.95

List price $129.95

Description


General Features:
  • 8 Outlet SurgeProtector Audio/Video with Coaxial and Telephone Protection
  • Typically used with power only type equipment such as appliances, office equipment, stereos and radios, etc.
  • Eight AC outlets with transformer spacing
  • Eliminates voltage irregularities and protects your AV system
  • Protect or Disconnect™ Circuitry safeguards equipment against all surges
  • EMI/RFI filtration reduces unwanted interference and noise
  • Features Protection OK and Ground OK diagnostic lights
  • Protects cable and sat equipment from electrical surges that travel over Cable, Satellite, and Antenna lines
  • Protects equipment from electrical surges that travel over Telephone lines
  • Plugs directly into the wall using a right-angle offset plug that has an 6ft cord
  • SurgeGate Plus™ circuitry protects against prolonged brownouts as well as over-voltage
  • Automatic Voltage Monitoring™
  • Catastrophic surge circuit opens automatically to prevent damage if the surge exceeds protection capability
  • Thermal fuse shuts off power in case of a period of over voltage occurs
  • Wall mountable (brackets and screws included)
  • Dimensions: 12"L x 5"W x 1-3/4"H
  • 1-year SonicElectronix.com warranty
Specifications:
  • UL 1449 Suppression Rating: 330V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1125 Joules
  • Response Time: less than 1 nanosecond
  • Protection Modes: L-N, L-G, N-G
  • Protect or Disconnect™ Circuitry: Yes
  • Peak Impulse Current: 60,000 Amps
  • Patented Power Management Circuit: Yes
  • Maximum Current Rating: 15 A (1800W)
  • Line Voltage: 120VAC, 50/60Hz
  • Initial Clamping Level: 200V Peak, 141V RMS
  • EMI/RFI Noise Filtration: 45 dB (100 KHz - 1MHz)
Telco Protection Specifications:
  • Wires Protected: 1 Line (3,4)
  • Suppression Modes: Metallic and Longitudinal
  • Fuse-less / Auto-resetting: Yes
  • Connectors: RJ-11
  • Clamping Level: 260V
  • Capacitance: 30pf (approx.)
Universal Coaxial Protection Specifications:
  • Shielded: Yes
  • Insertion Loss: < 0.5 dB
  • HD 1080 i/p Ready: Yes
  • Frequency Range: 0MHz - 2.2 GHz
  • Connections: Female “F”, Gold Plated
  • Clamping Level: 75V
  • Bidirectional: Yes

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Specifications & Details


Connections
Number of Power Outlets
8
Outlet Power Detection and Turn-Off
No
Surge Energy Rating (Joules)
1125 joules
RJ45 Phone & Network Ports
Yes
Coaxial Surge Protection
Yes
General Features
Width
5"
Height
1-3/4"
Depth
12"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SP8-AV

Weight:

2.35lbs

Internal SKU:

pmxsp8av
