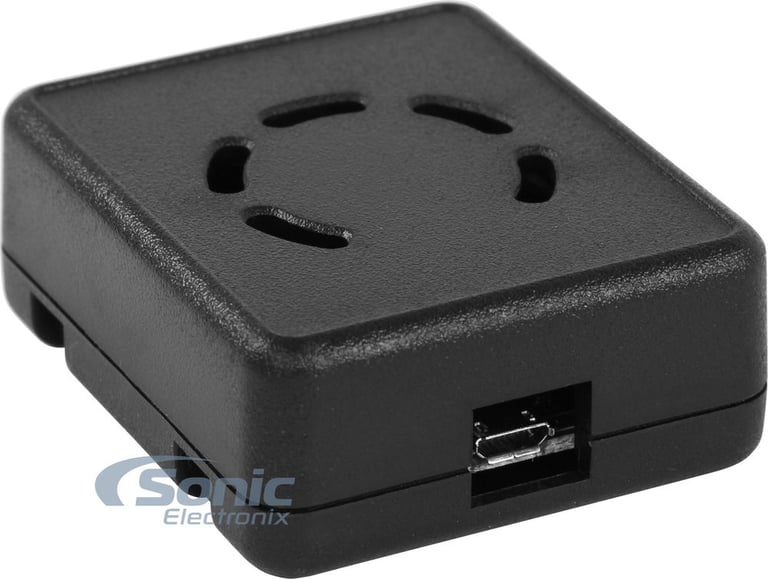

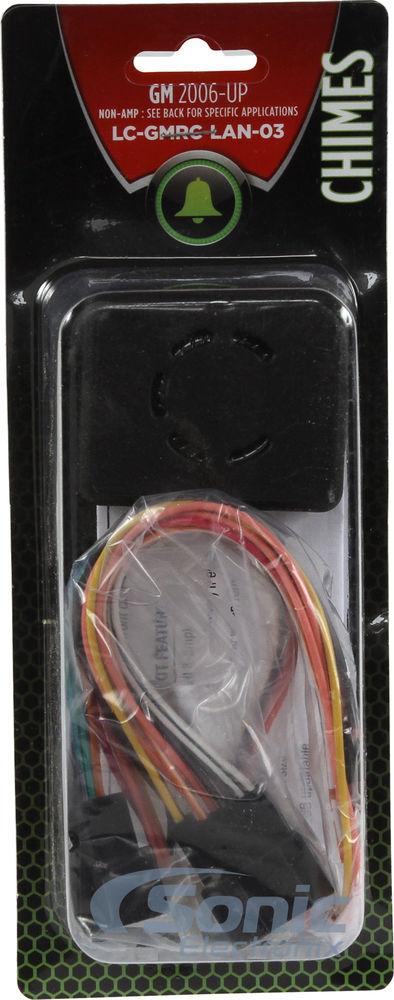

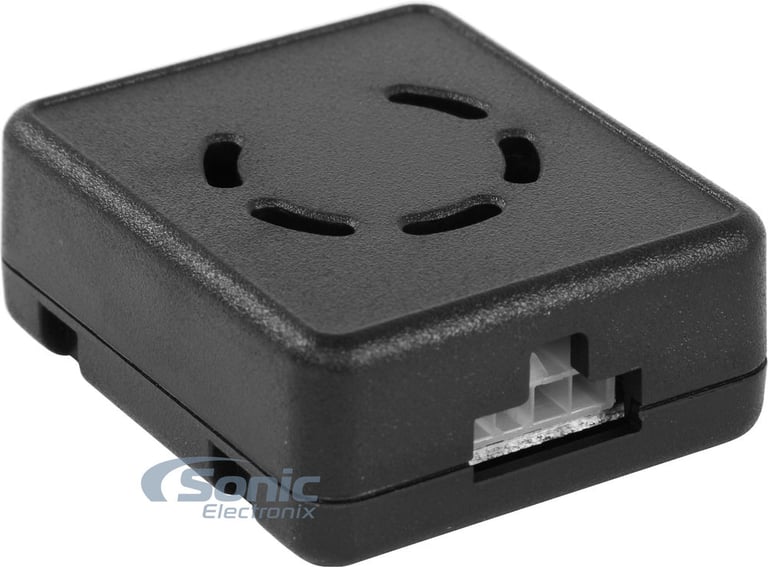

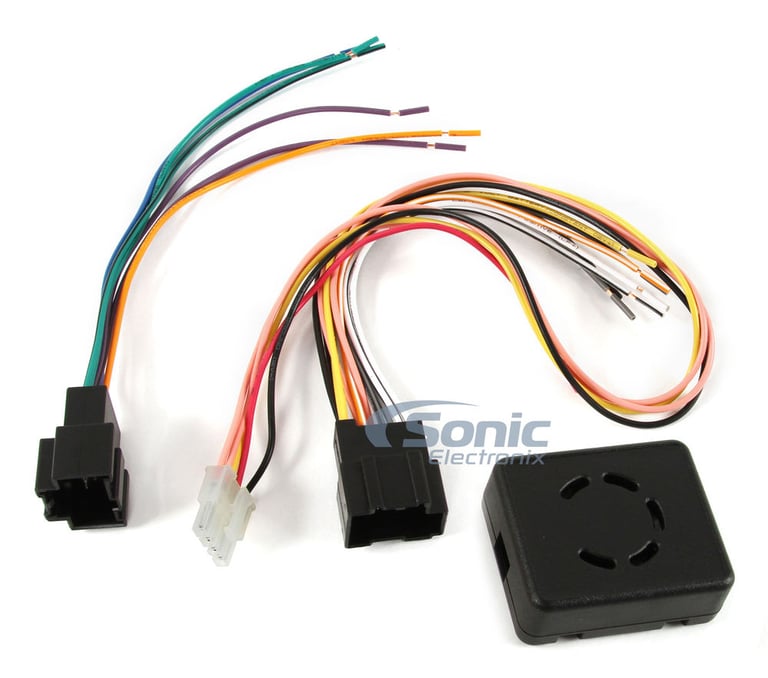

Axxess LC-GMRC-LAN-03 Wiring Interface

Install a new car stereo and retain the safety warning chimes in

Axxess
Shop all Axxess
highlight-star-icon

• Provides 12-Volt accessory power (RAP)
• Compatible with non-amplified audio systems
• Micro-B USB Updatable

Learn more about the lcgmrclan03

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Description


Axxess brand icon

Authorized dealer

Product Features:

  • Designed to install a new aftermarket car stereo and retain waring chimes
  • Provides accessory power (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Provides NAV outputs (parking brake, reverse, and V.S.S)
  • Retains all safety and warning chimes
  • For non-amplified models, or when bypassing a factory amplifier
  • Micro-B USB updatable
  • Authorized Internet Dealer
  • 1 Year Manufacturer's Warranty

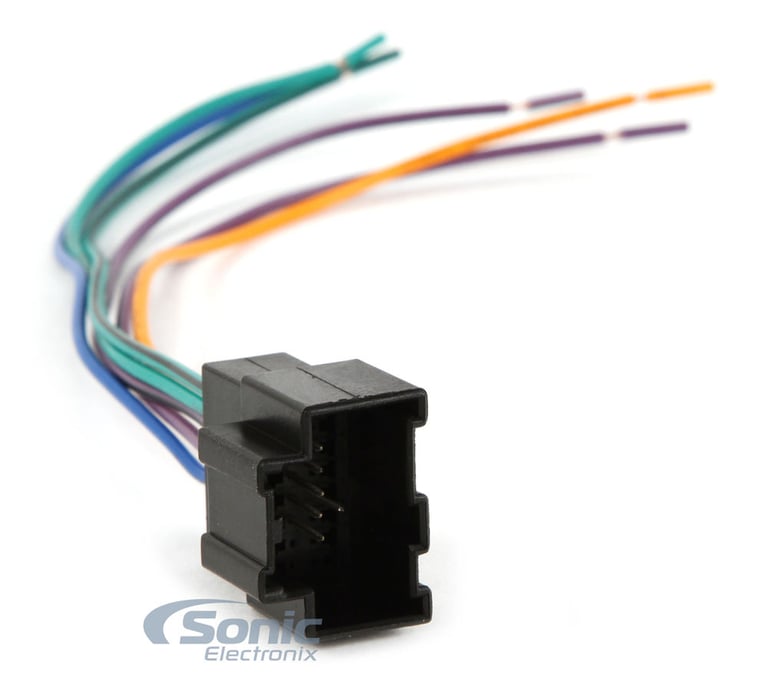

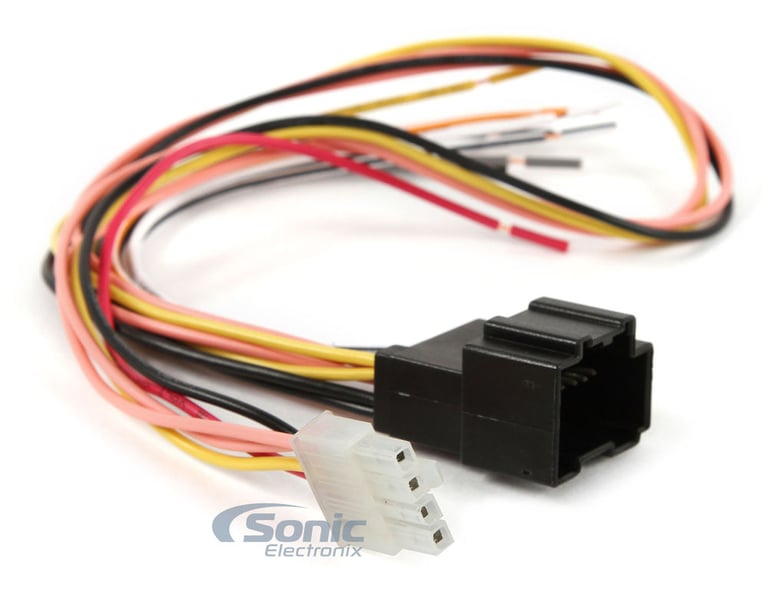

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Best selling similar products

70-1782 small

Metra 70-1782 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(1)

$6.99

List price $6.99

DKGM-49 small

Crux DKGM-49 Stereo Replacement Interface

• Stereo Replacement Interface with Dash Kit
• Fits select 2006-2020 vehicles from GMC, Chevrolet, Buick Vehicles
• Accommodates ISO Double DIN Mount
• Retain steering wheel controls and chime functions

(41)

$129.60

List price $201.60

70-1771 small

Metra 70-1771

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(51)

$12.99

List price $6.99

70-1761 small

Metra 70-1761 Wiring Harness

• Direct connection to the factory radio harness
• Color coded wires for easy installation
• No cutting or splicing required

(97)

$5.99

List price $6.99

70-5520 small

Metra 70-5520 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(56)

$9.95

List price $6.99

C2R-CHY4 small

PAC C2R-CHY4 Wiring Interface

• Provides 12-Volt accessory power (RAP)
• Designed for non-amplified and amplified models
• Retains balance and fade
• Pre-wired for steering wheel audio controls

(25)

$99.99

List price $299.00

RP4-CH11 small

PAC RP4-CH11

• Direct connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(12)

$152.99

List price $379.00

GM02B small

Scosche GM02B Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(246)

$7.95

List price $8.99

70-1858 small

Metra 70-1858 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(63)

$9.95

List price $6.99

70-7552 small

Metra 70-7552 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(34)

$10.99

List price $12.99

Specifications & Details


Harness Features
Vehicle Sound System
Premium Sound
Main Harness Function
Connect/Install an Aftermarket Car Stereo
Additional Harness Features
Chime Retention
Retained Accessory Power (RAP) Retention
Premium Harness Features
Factory System Amplification
Non-Amplified
On-Star Compatible
No
GM-LAN Compatible
Yes
Chime Retention
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LC-GMRC-LAN-03

Weight:

0.50lbs

Internal SKU:

lcgmrclan03

Internal Product ID:

19877

Customer Ratings & Reviews


Axxess LC-GMRC-LAN-03 Wiring Interface thumbnail image

5 star
86%
4 star
0%
3 star
14%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Exact match

It arrived promptly and was the exact match for my car. Was the third one I had ordered. The first two from other companies that did match what they said they would. Was great doing business with a company that sends what it is suppose to be.

By Doyle on May 5, 2014

45 found this helpful


working great

I originally got this to tone down the loud chimes after installing a Kicker 180.4 amp with the factory radio - I wanted the 180.4s equalizer and DSP capibilities. However, the factory radio won't work with the LC-GMRC-LAN-O3 in the mix. So I have since replaced the factory radio with a Pioneer radio I had laying around, and everything is working great! I haven't tried the steering wheel controls yet, but I understand they probably will NOT work.

By James on April 1, 2020 Checkmark Icon Verified purchase

25 found this helpful


Perfect

Had no problem fit right and came with the speaker for the chimes in the car

By Anonymous on July 23, 2019

24 found this helpful


Sort of OK

Nice to have the chimes. The retained power works good. Reverse trigger didn't work, so I had to run a separate wire. The connectors are so touchy that I had to open the dash several times and wiggle things to finally get everything working.

By Sean on July 16, 2019 Checkmark Icon Verified purchase

22 found this helpful


Axxess LC-GMRC-LAN-03

Arrived earlier then it was supposed to and it did the job so the BOSS Elite BV960NV work great and have not losted and of the factory bells and whistles, Definitely a purchase for Chevy / GMC from 2006 and up when u want to retain all the factory bells & whistles

By Anonymous on June 11, 2018

21 found this helpful


By Marcus on January 6, 2025 Checkmark Icon Verified purchase
