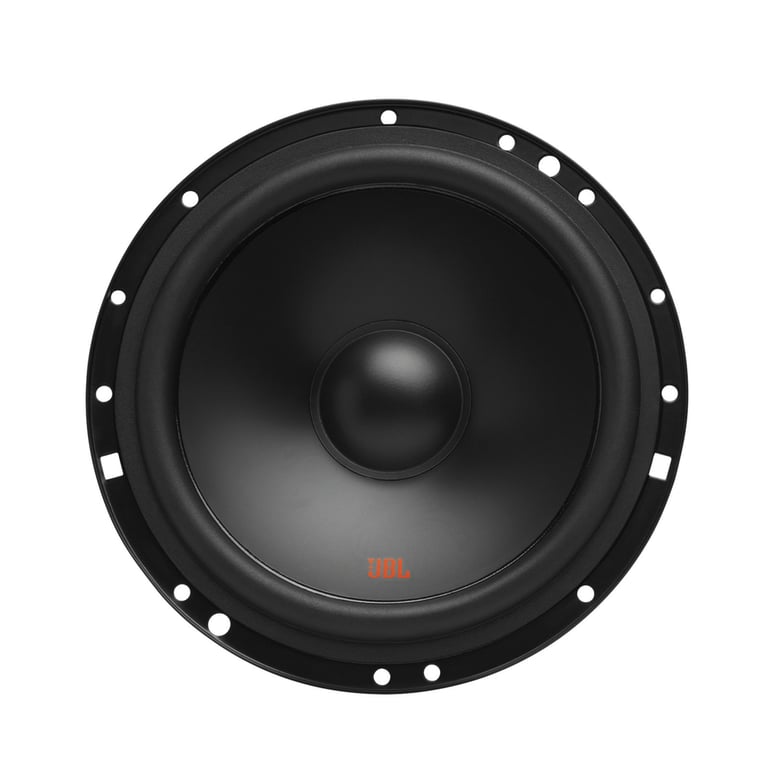

JBL Stage2 604C (stage2604c) (Like New (Open Box))

540W Peak (90W RMS) 6.5” Stage2 Series 2-way 4-ohm Component Speaker System

JBL
Shop all JBL
highlight-star-icon

• 270 watts Peak Each, 45 watts RMS Each
• PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

Learn more about the ls-stage2604c-u9

We apologize

This item has been discontinued

Description


JBL brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

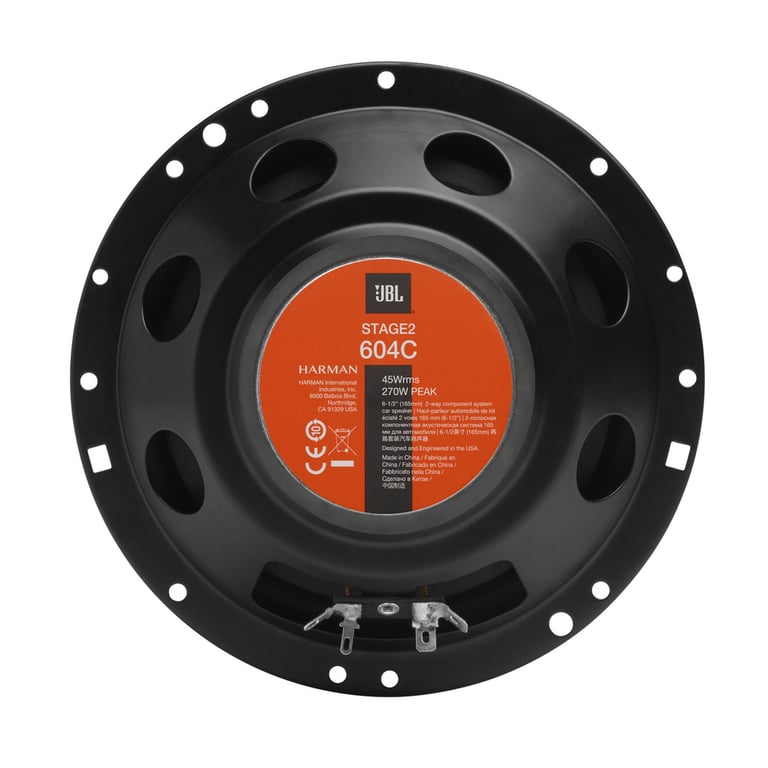

JBL STAGE2 604C

Stage2 Series speakers brings a JBL concert experience to your car, truck or SUV and a surprisingly affordable price. Their Polypropylene woofer delivers a strong performance with great low end extension and clean tight midrange. The woofer is couple with a PEI Balanced dome tweeter which fills out their sonic signature with crisp, high-end frequencies. An added bonus of Stage 2 series is JBL's frame design, which has been engineered to easily fit into most factory openings without the need to modify the vehicle, mounting location or the speaker itself.


Product Details:

  • 6-1/2" 2-way Component System Car Speakers
  • Power Handling:
    • Peak: 540 watts per set / 270 watts each side
    • RMS: 90 watts per set / 45 watts each side

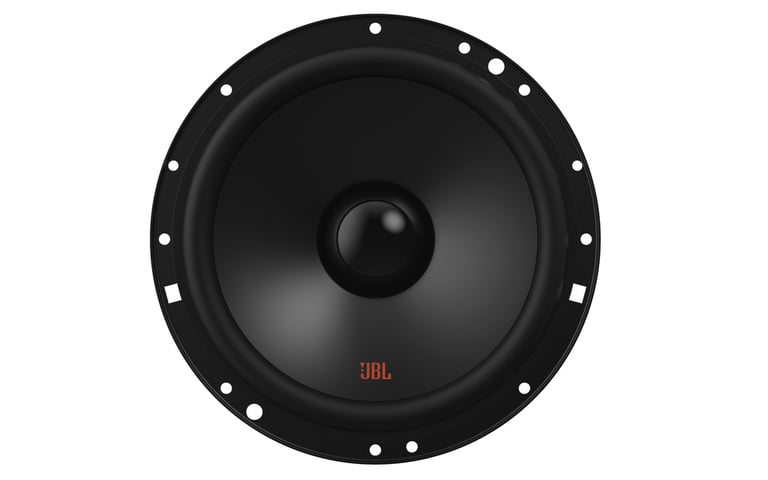

  • Polypropylene cone material
  • Rubber speaker surround

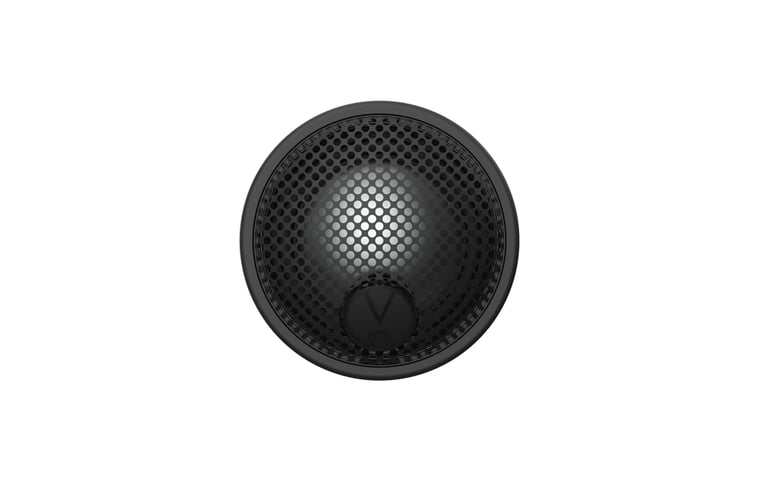

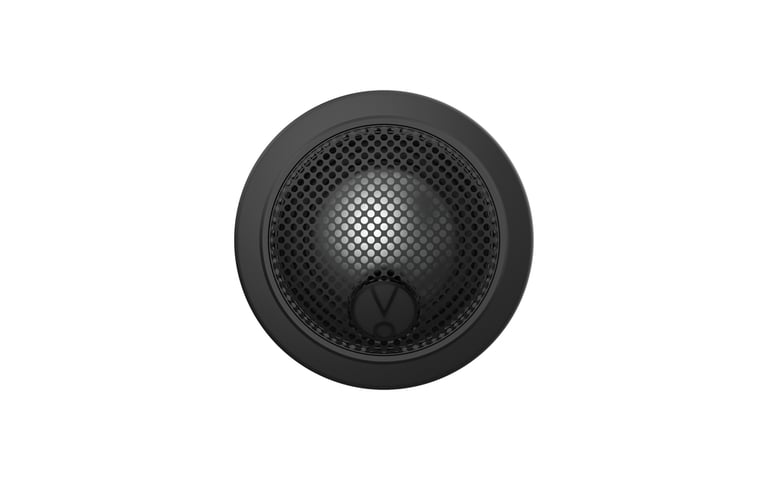

  • PEI (Polyetherimide) Balanced Dome tweeters
  • Woofer delivers a strong performance with great low end extension and clean tight midrange
  • Frame design engineered to easily fit into most factory openings
  • Ferrite magnet motor structure
  • Top-mount Depth: 2-1/4"
  • Cutout Dimensions: 6-9/16"
  • Impedance: 4 ohm
  • Frequency Response: 55 - 20000 Hz
  • Sensitivity: 91 dB

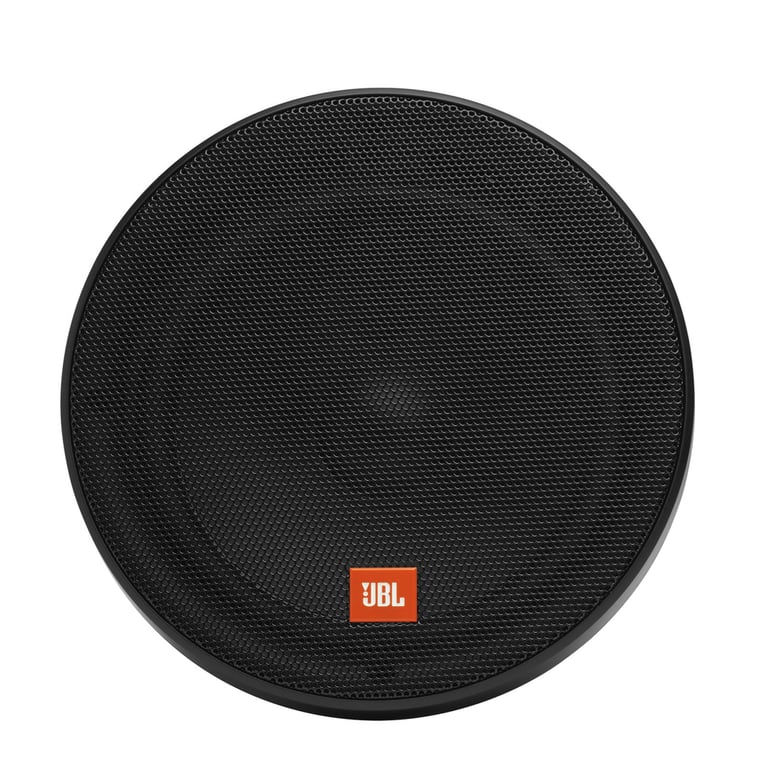

  • 2 woofer grilles included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

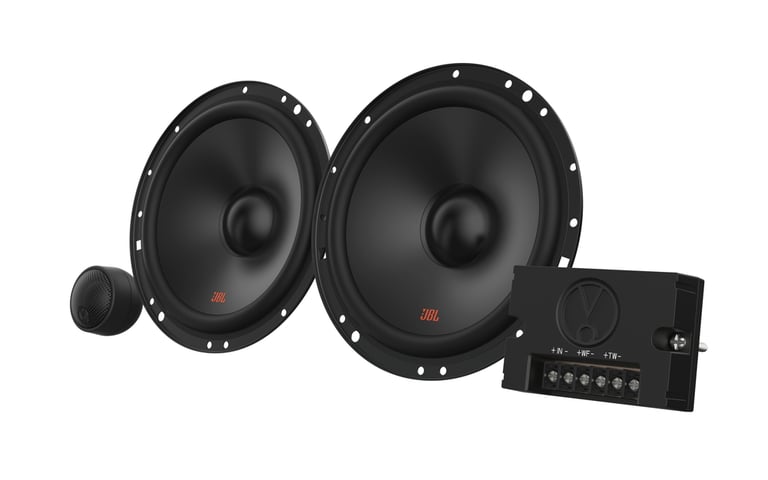

  • Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


PDF Icon JBL STAGE2 604C Manual

Specifications & Details


Speaker Specifications
Series
Stage 2 Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
270 watts
RMS Power Handling
45 watts
Total PEAK Per Pair/Set
540 watts
Total RMS Per Pair/Set
90 watts
Sensitivity
91 dB
Frequency Response
55 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
2-1/4"
Bottom-Mount Depth
2-1/2"
Cutout Dimensions
6-9/16"
General specifications
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
What is in the box?

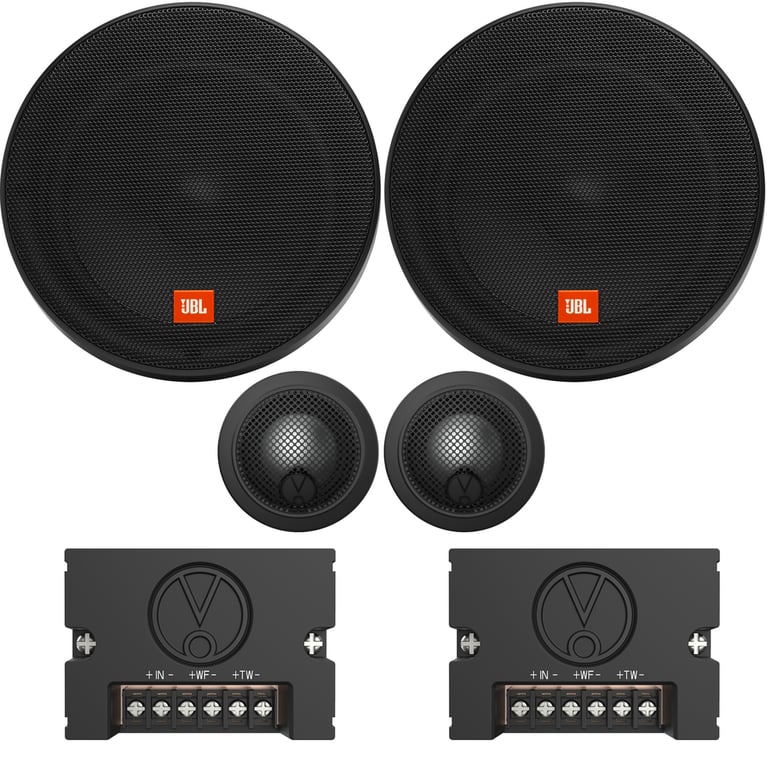

WITB: Speakers
Speakers (2)
Grilles (2, attached)
Tweeters (2)

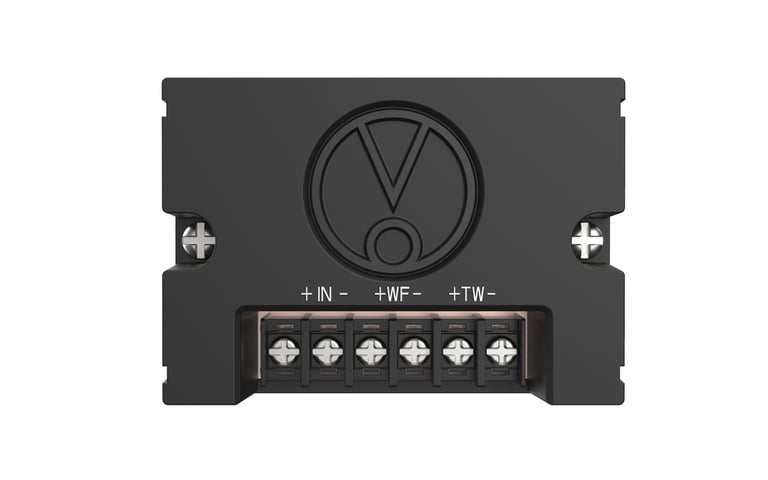

Crossover networks (2)
Mounting clips (8)
Adhesive brand badges
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

Stage2 604C-2

Weight:

1.00lb

Internal SKU:

ls-stage2604c-u9

Internal Product ID:

207245
