  6. Pioneer LS-tswx1210am-u7

See all parts that fit your 2015 Patriot

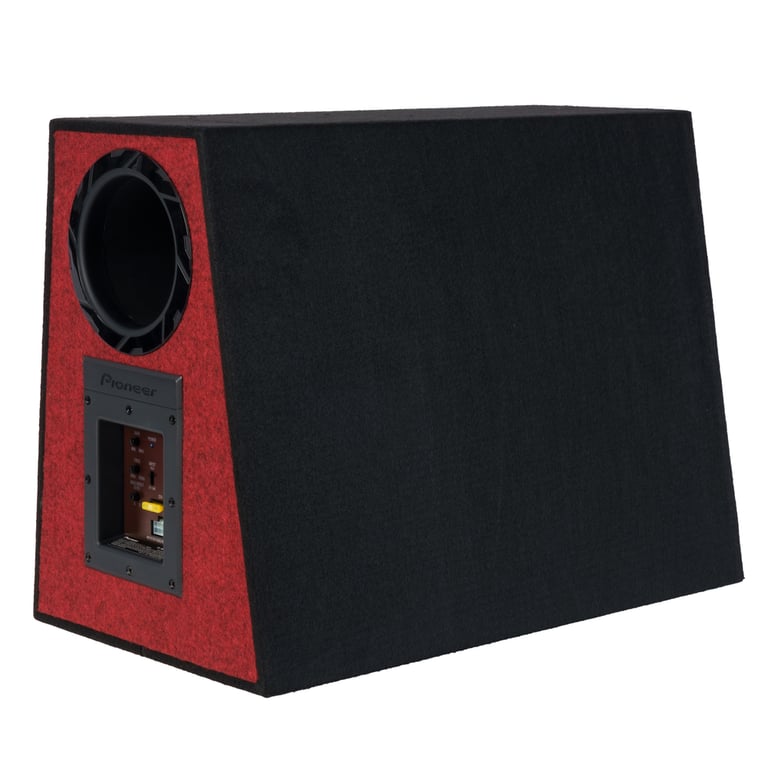

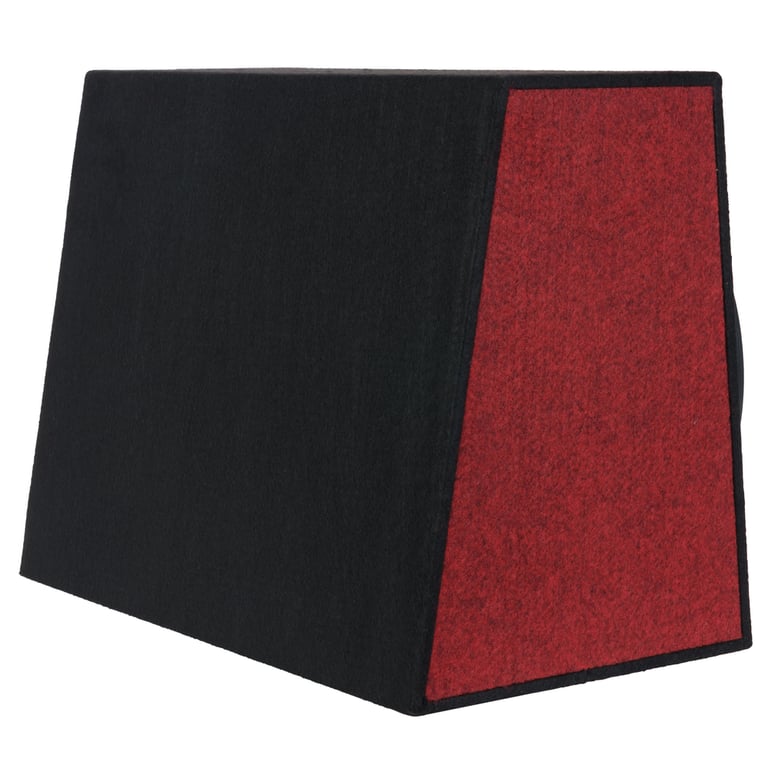

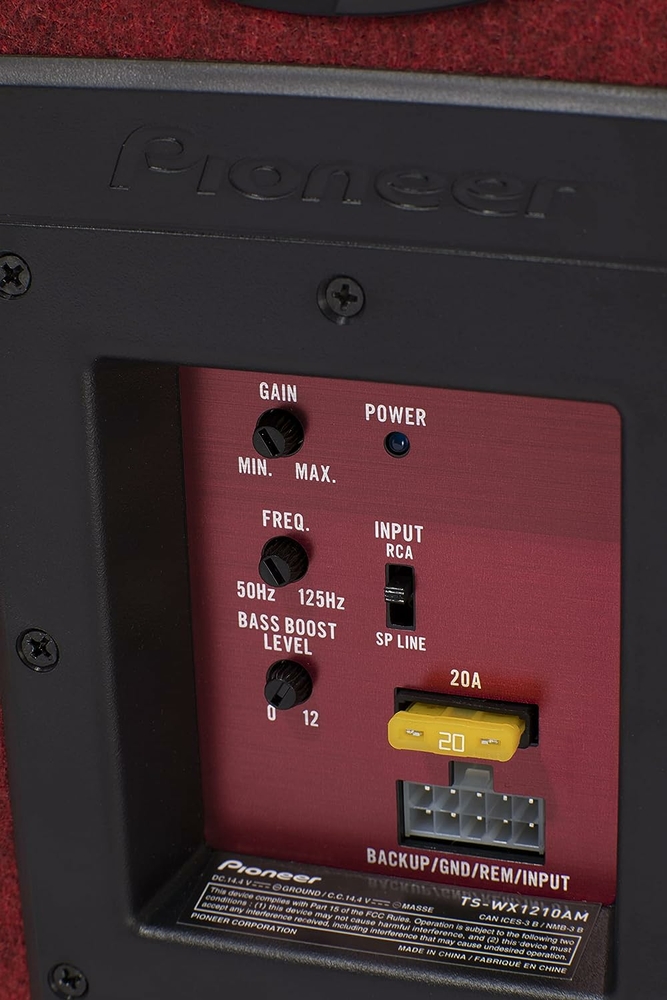

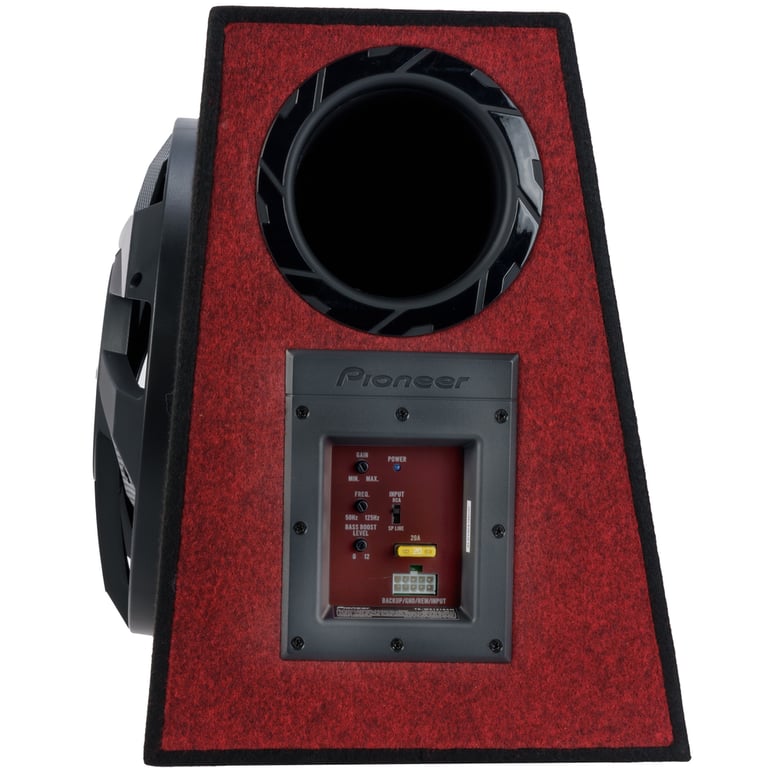

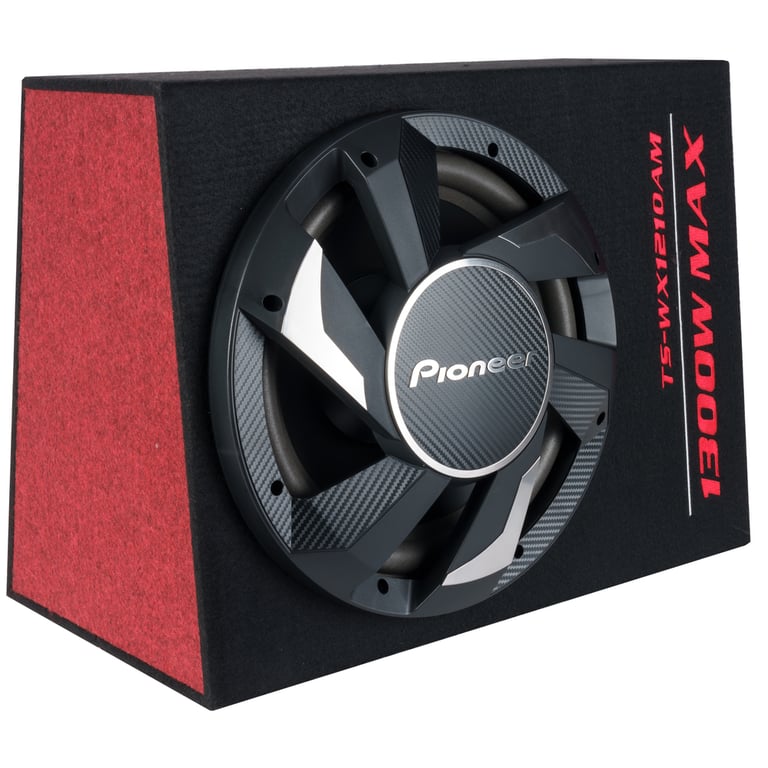

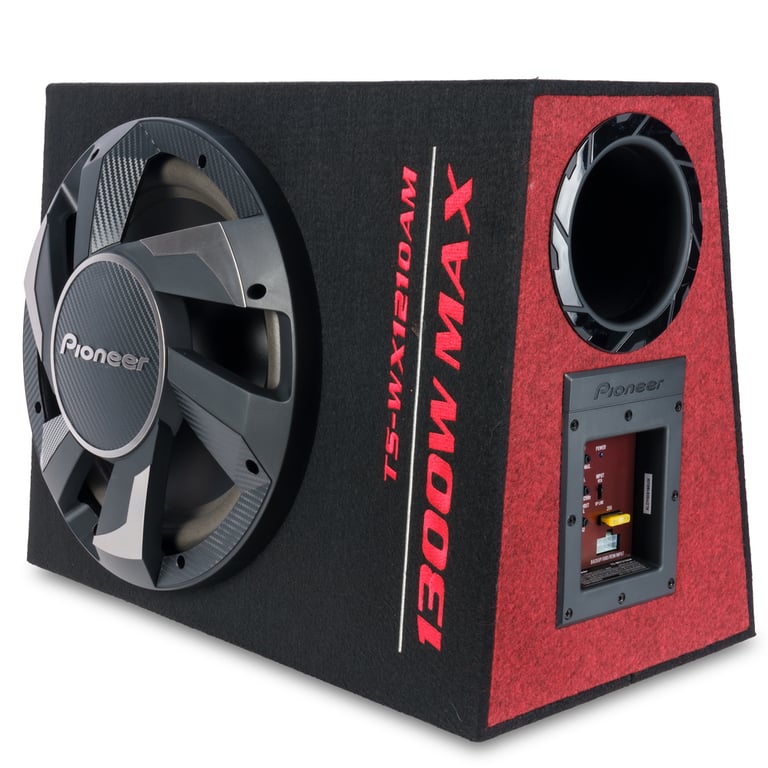

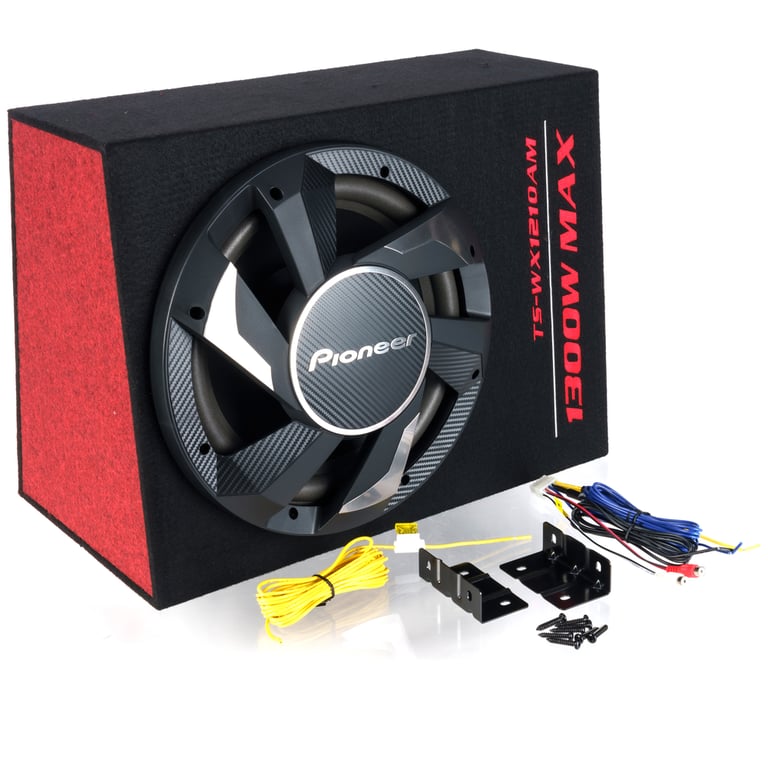

Pioneer TS-WX1210AM (Open Box, Good)

1300W Peak (350W RMS) 12” Ported and Powered Subwoofer Enclosure

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 350 watts Single 12" Subwoofer Enclosure
• 4 ohm Impedance
• Spring-loaded Terminal Posts
• Enclosure Dimensions: 10" TD x 12-1/2" BD x 19-3/4" W x 14-7/8" H

Learn more about the ls-tswx1210am-u7

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• 350 watts Single 12" Subwoofer Enclosure
• 4 ohm Impedance
• Spring-loaded Terminal Posts
• Enclosure Dimensions: 10" TD x 12-1/2" BD x 19-3/4" W x 14-7/8" H

Description

Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

Product Details:

  • 350 watts Single Ported Subwoofer Enclosure
  • Power Handling:
    • Peak: 1300 watts Total
    • RMS: 350 watts Total
  • Final Impedance: 4 ohm
  • Preloaded with single 12" Subwoofers
  • Ported Hatchback Style, Angled Back enclosure
  • Enclosure Dimensions: 10" TD x 12-1/2" BD x 19-3/4" W x 14-7/8" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • Cellulose Cone
  • Foam Surround
  • Frequency Response: 30 - 130 Hz
  • Sensitivity: 113dB dB
  • Class D amplifier uses less power, takes up less space, and generates less heat than traditional amplifier designs

Enclosure Features:

  • 12" Hatchback Style Enclosure
  • Box Finish: Carpet
  • Class-D Amplifier
  • Customizable settings such as bass boost
  • The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface

Specifications & Details

Series
Series
TS Series
Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
350 watts x 1 channel
Peak Power Output
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Signal-to-Noise Ratio
113 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
350 watts
Total RMS Power Handling
350 watts
Peak Power Handling
1300 watts
Total Peak Power Handling
1300 watts
Woofer Surround
Foam
Woofer Composition
Cellulose
Impedance (Per Voice Coil)
4 ohm
Magnet Type
Ferrite
Sensitivity
113dB dB
Frequency Response
30 - 130 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Total Box Volume
1.16 cubic feet
Height
14-7/8"
Width
19-3/4"
Depth
10"
Second Width
12-1/2"
Box Exterior Color
Black
Box Finish
Carpet
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Pioneer

Model Number:

LS-tswx1210am-u7

Weight:

25.60lbs

Internal SKU:

ls-tswx1210am-u7

Internal Product ID:

208498
