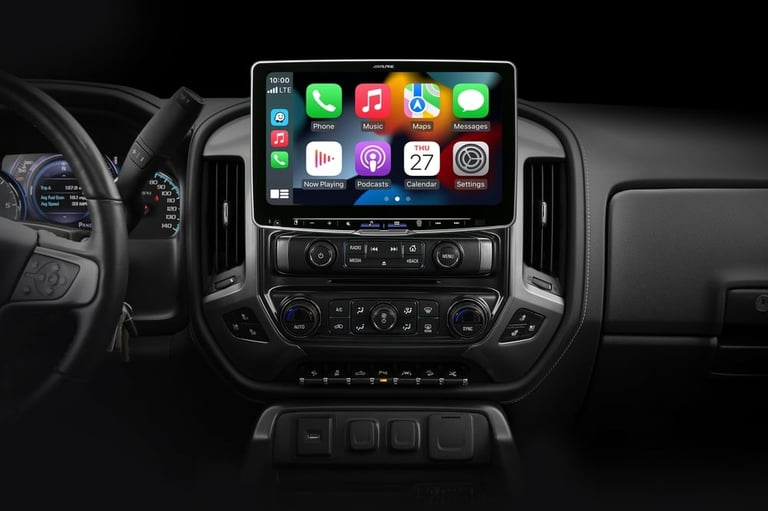

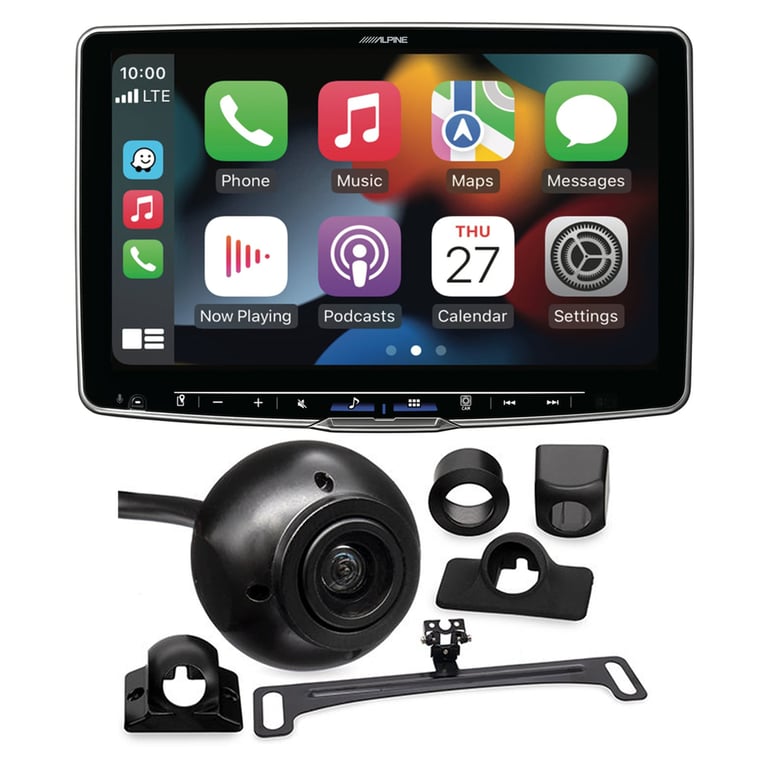

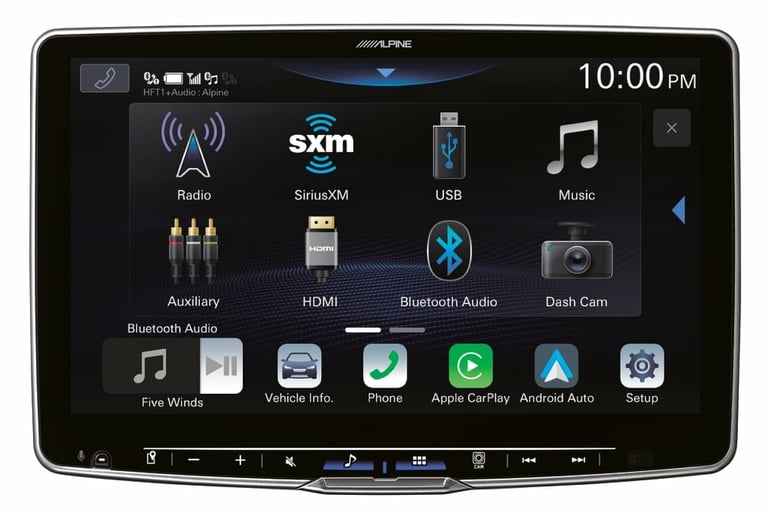

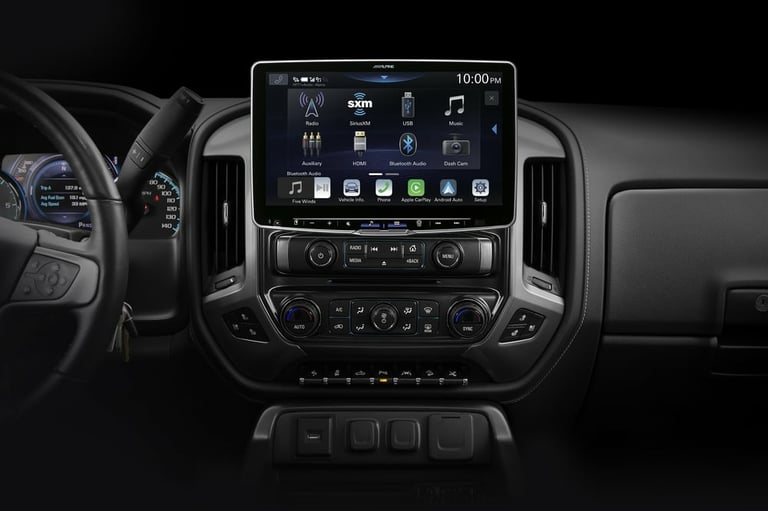

Alpine Halo11 iLX-F511 with Backup Camera

Product Details

• Single DIN In-Dash Bluetooth Digital Multimedia Receiver

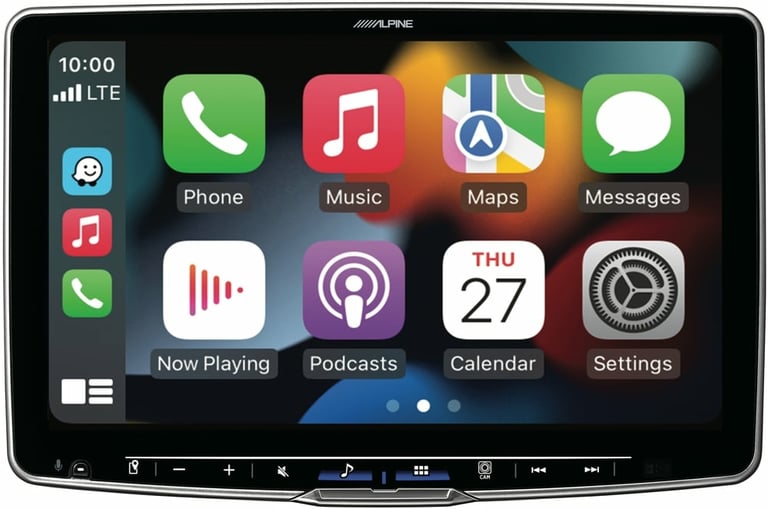

• 11" Capacitive Touchscreen Display Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 18 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control Alpine RUX-H02 sold separately
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: iLX-F511

Smartphone Features

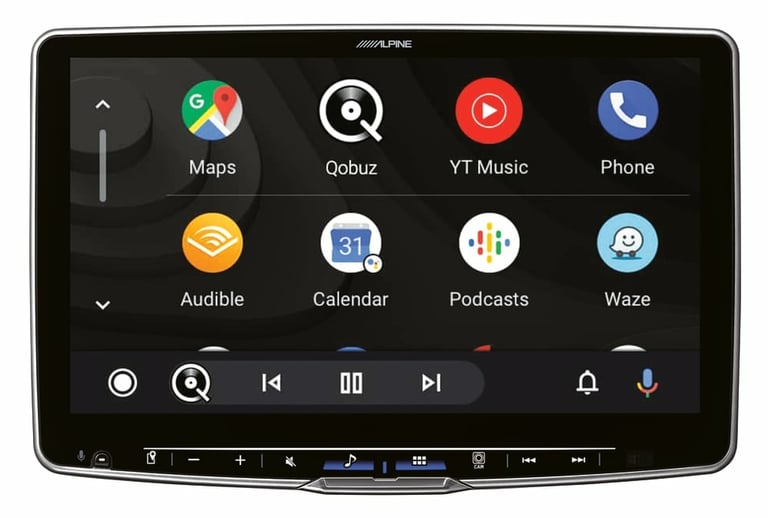

• Apple CarPlay and Android Auto compatible (wired and wireless)
• Display and control music, navigation, and other apps with iPhone and Android
• Pandora and Spotify capable
• Siri Eyes Free control for select iPhones
• Google Assistant
• Full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)
• Wired phone-mirroring via HDMI

Playback and Audio Features

• MP3 | WMA | WAV | AAC | FLAC (Hi-Res) Audio Playback
• MP4 | AVI | WMV | MOV Video Playback

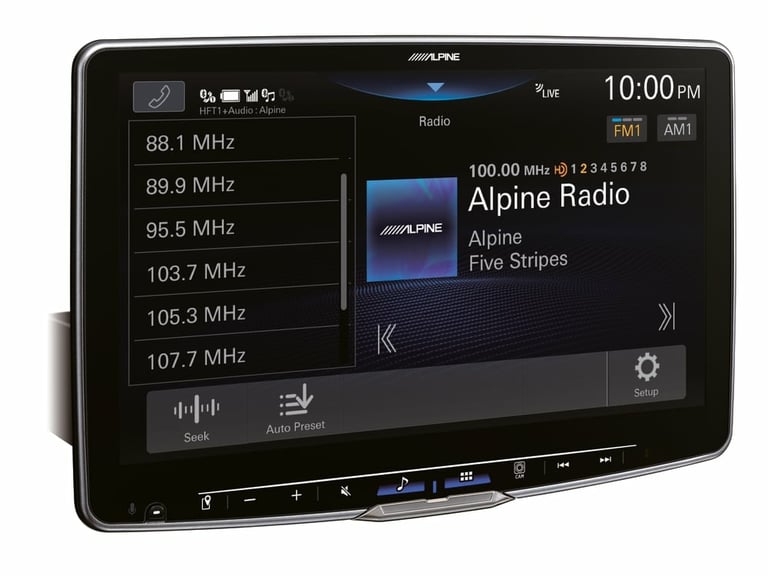

• AM/FM tuner with 18FM/12AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)

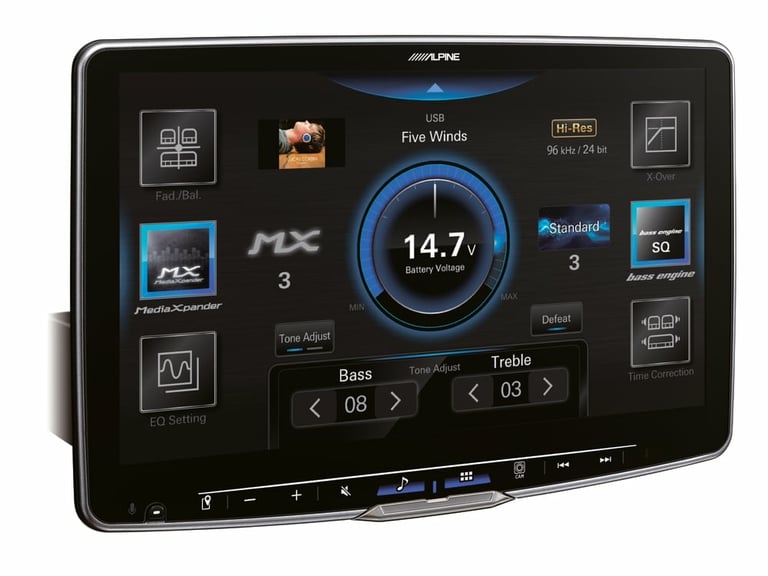

• 13-Band Parametric Equalizer
• 6-Channel Time Correction
• Bass Engine SQ
• MediaXpander HD

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately
• iDataLink ADS-MRR module compatible (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio.
• Control module for multiple camera system with the optional Alpine KCX-C2600B
• Compatible with optional Alpine DVR-C320R HD dash camera
• Access the latest maps without cell phone or Wi-Fi connection with Alpine KTX-NS01

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input
• Dual Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

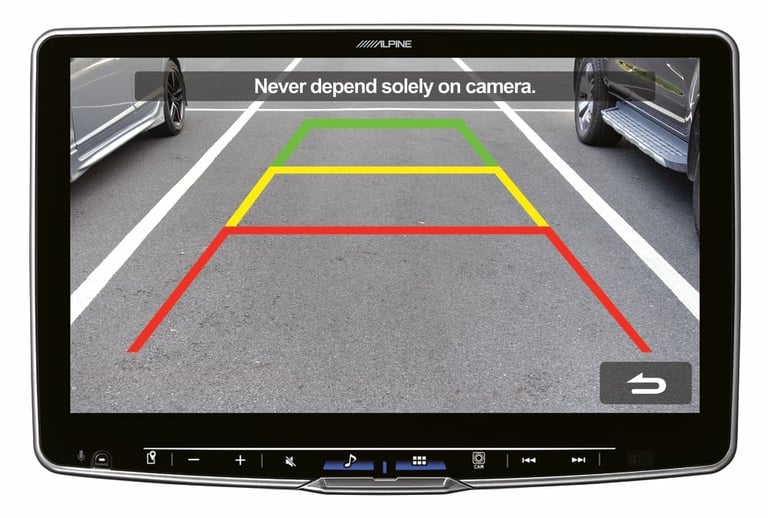

• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
• Rear HDMI input
• Rear HDMI output

Bluetooth Features

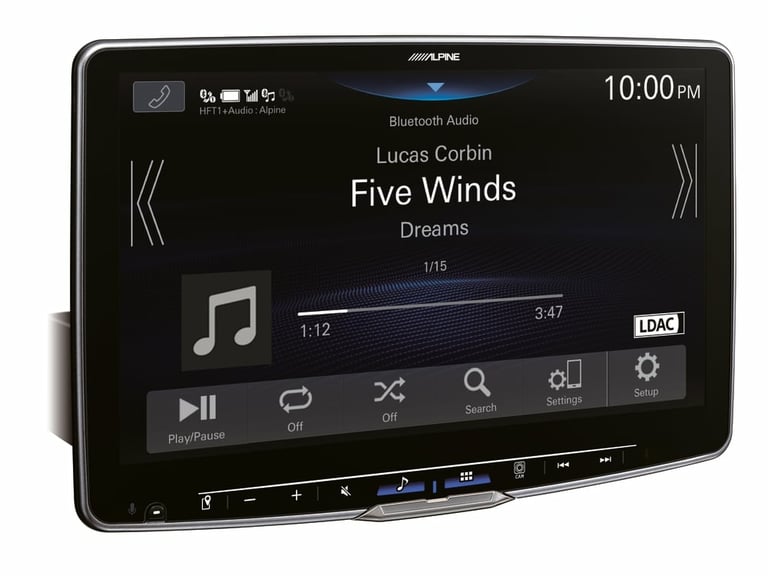

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a external wired microphone for clear, convenient, distortion-free talking

Product Details:

• NVX XC5N1

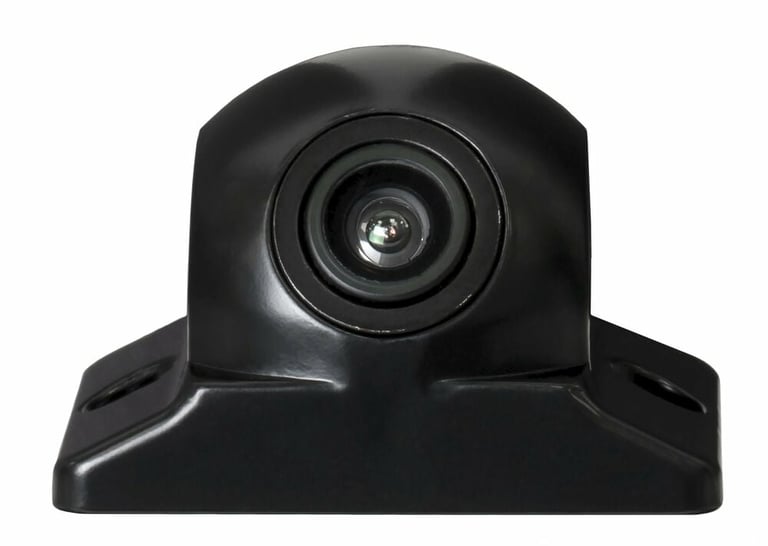

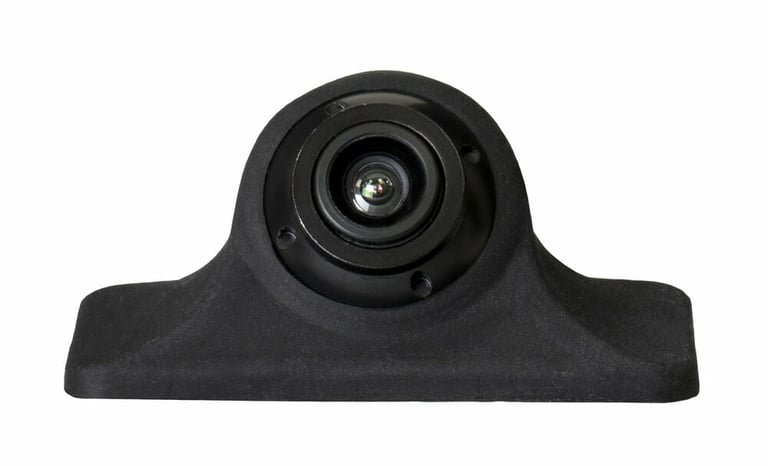

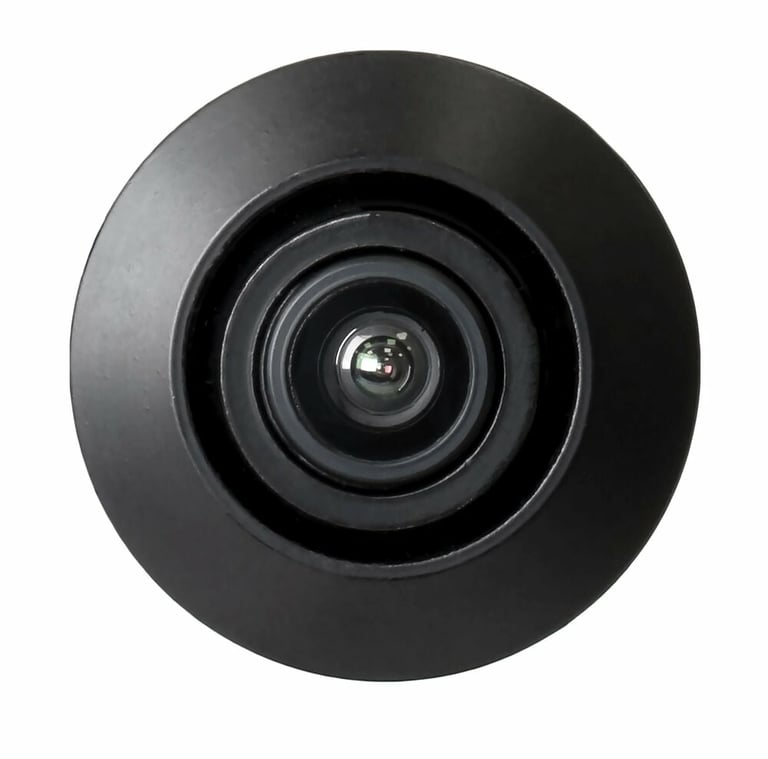

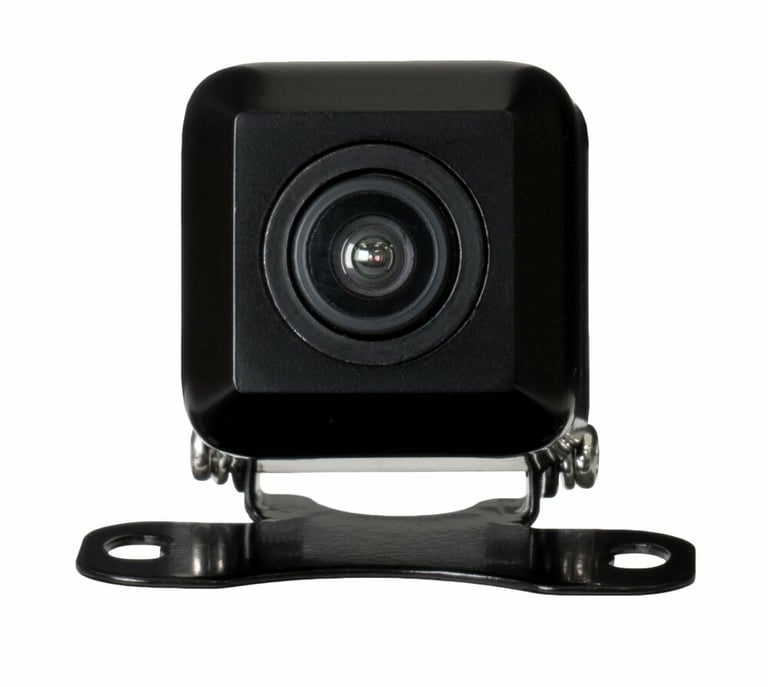

• Universal Rear View Backup Camera
• NATSC/PAL TV System
• Resolution: 720 x 480
• Mounting Style: Bracket Mount \ Surface Mount
• Adjustable 170° Viewing Angle
• Compact Small Design
• IP68 Waterproof Rating
• RCA Connections
• 12 Volt Power Usage
• Ultra low LUX for Low Light Conditions
• 0.08 Lux Minimum Illumination
• Video Output: CVBS 0.5M Pixels
• Operating Temperature: -31°F (-35°C) to 167°F (75°C)
• ON/OFF Parking Line Function
• Selectable Image Allows For Front and Rear Mounting
• Video Cable and Camera Harness Included

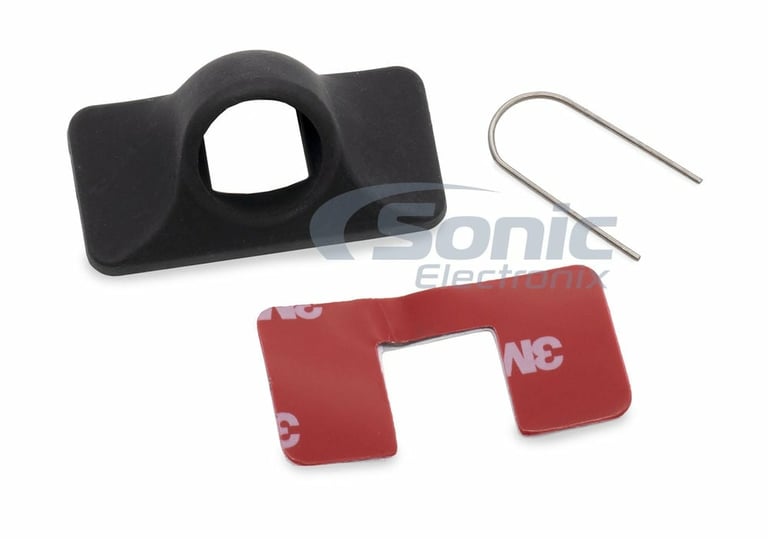

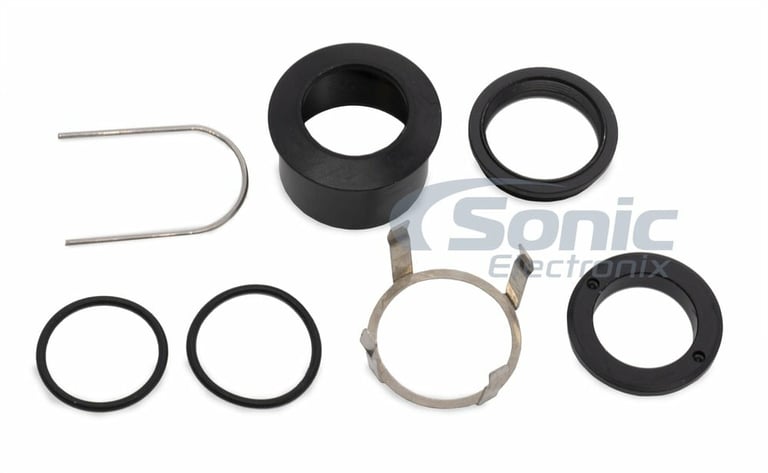

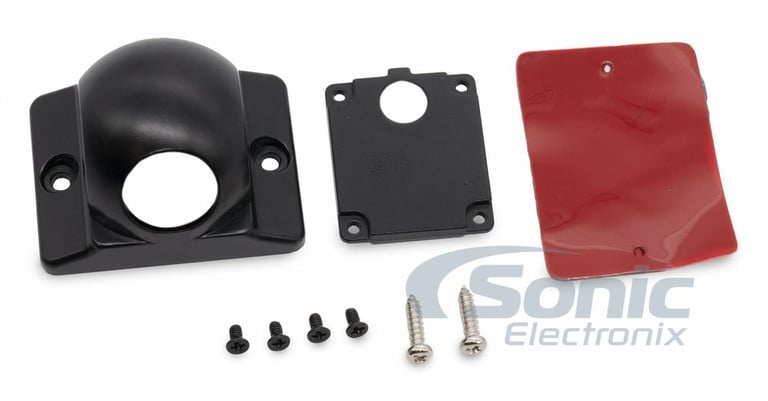

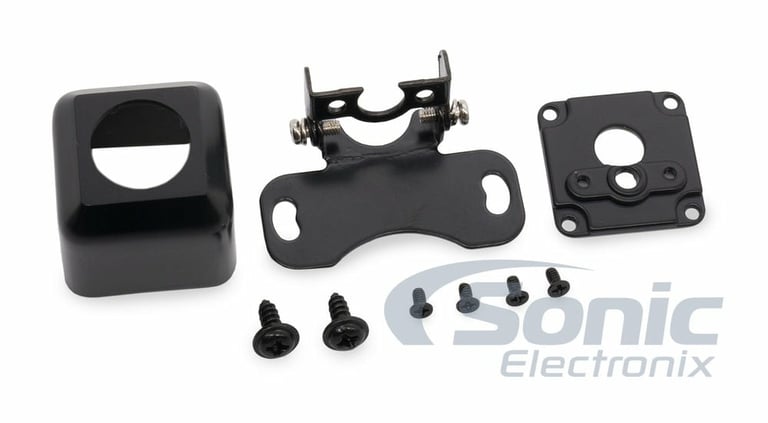

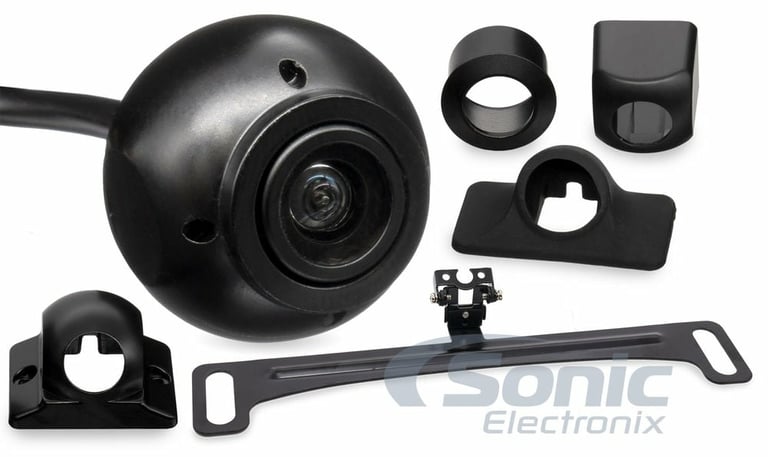

• Five Different Mounts Included:
• Square Mount
• Flush Mount
• Angle Mount
• Rubber Mount
• Metal Mount
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What's in the box?

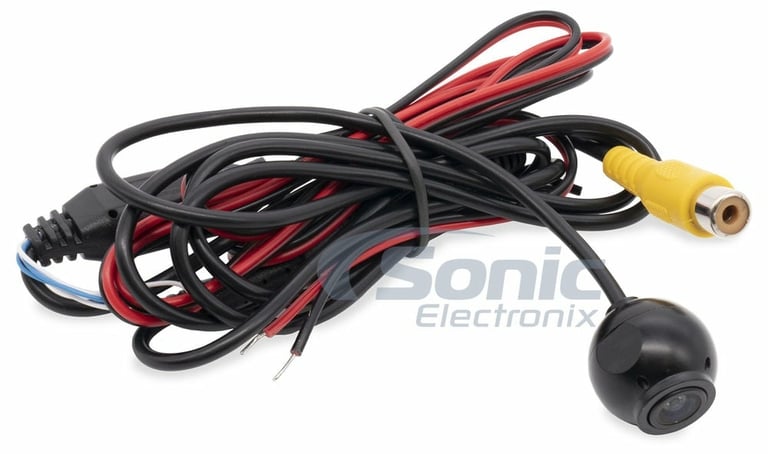

• Camera main wiring harness with 4-pin connector guideline + reverse view loops
• License plate mounting bar

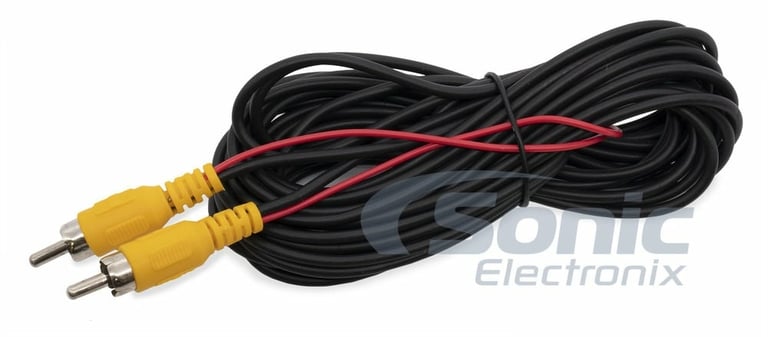

• 19ft extended connection cable
• Full metal mounting shell / camera housing

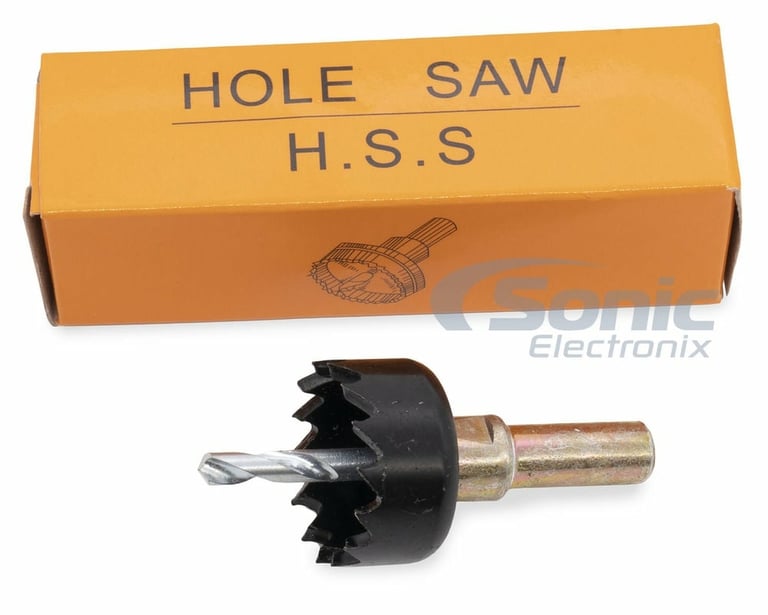

• Hole saw drillbit
• 3M adhesive strip
• Screws and mounting bits
• Misc installation hardware
• Installation guide
