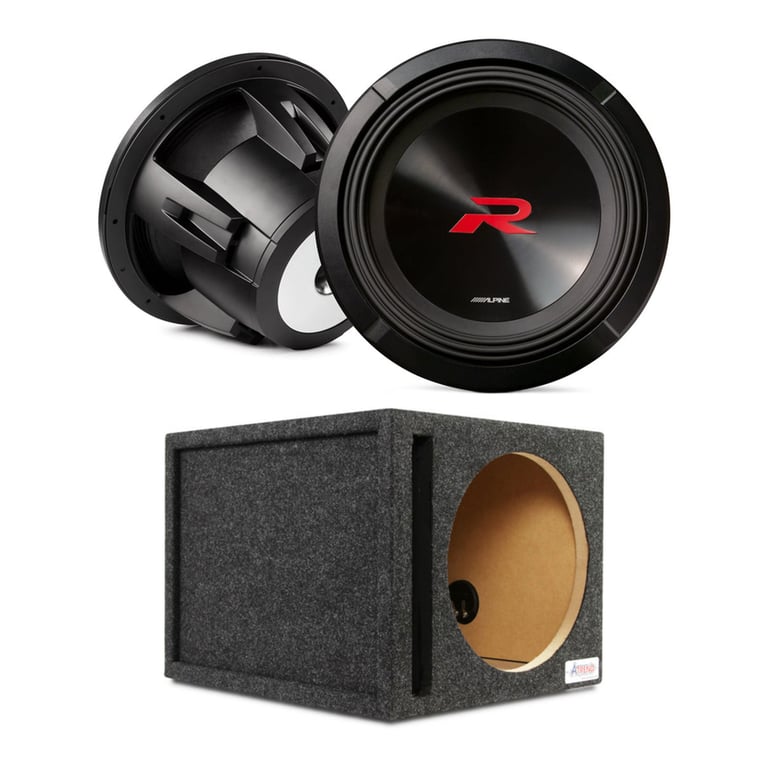

Alpine R2-W12D4 with Ported Enclosure

2250W Peak (750W RMS) 12" 750W R-Series Dual 4-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (H.A.M.R) Surround
• Impedance: Dual 4 ohm
• Sensitivity: 84.6 dB
• Includes Ported Enclosure

Learn more about the r2w12d4_12sqv

We apologize

This item has been discontinued


Loading...
NSH-5601 main

NVX NSH-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Mazda, Lincoln

-38.49%

$7.99

List price $12.99

99-5842T main

Metra 99-5842T TurboTouch Dash Kit

Single DIN or Double DIN Stereo TurboTouch Dash Kit and Harness for select 2010-2012 Flex without Navigation

-30.03%

$430.99

List price $615.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

VT1 main

Cerwin-Vega VT1

360W Peak (120W RMS) 1" Vega Series 2025 Edition 4-ohm Tweeters with External Crossovers

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

ADS-MRR main

iDataLink Maestro RR Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

36
-17.39%

$189.99

List price $229.99

Description


Alpine brand icon

Authorized dealer

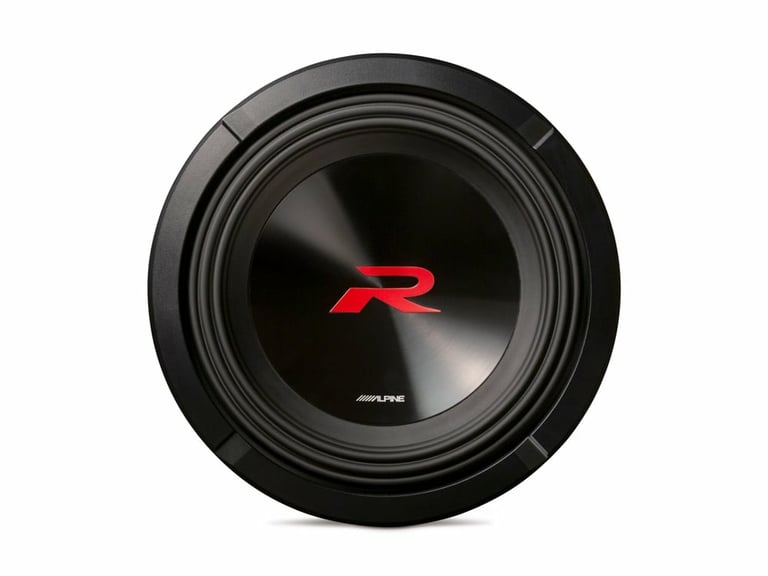

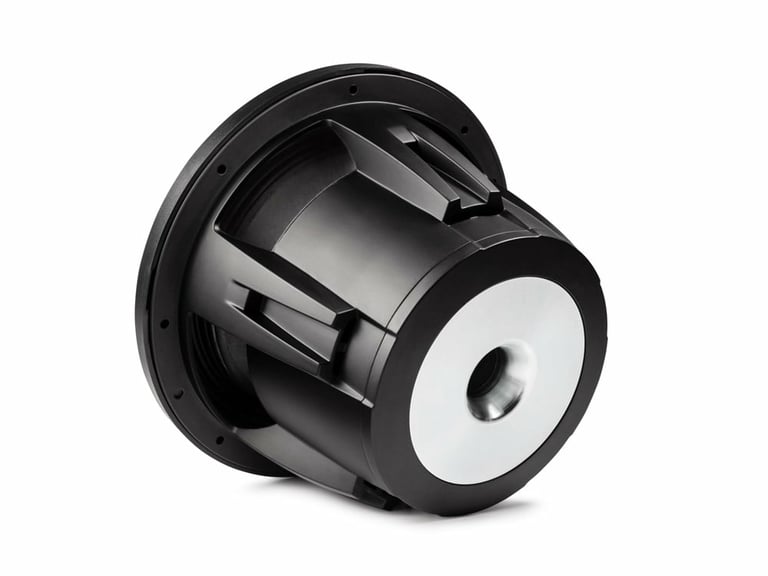

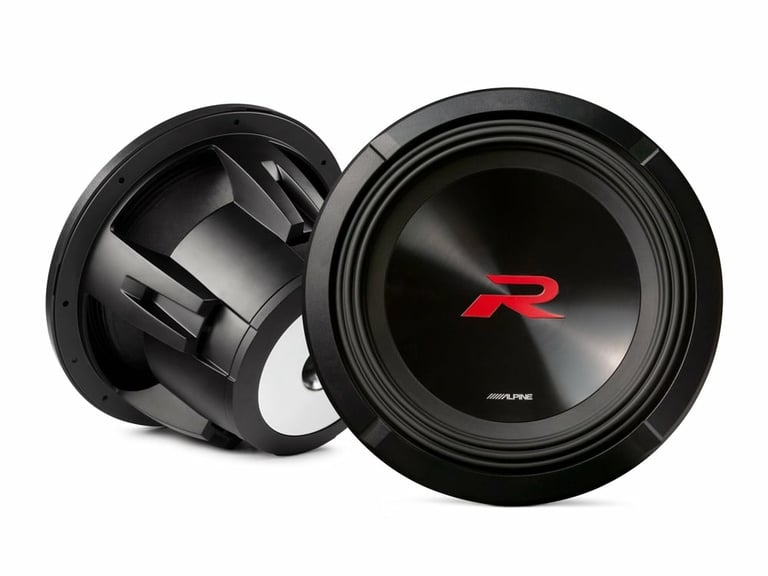

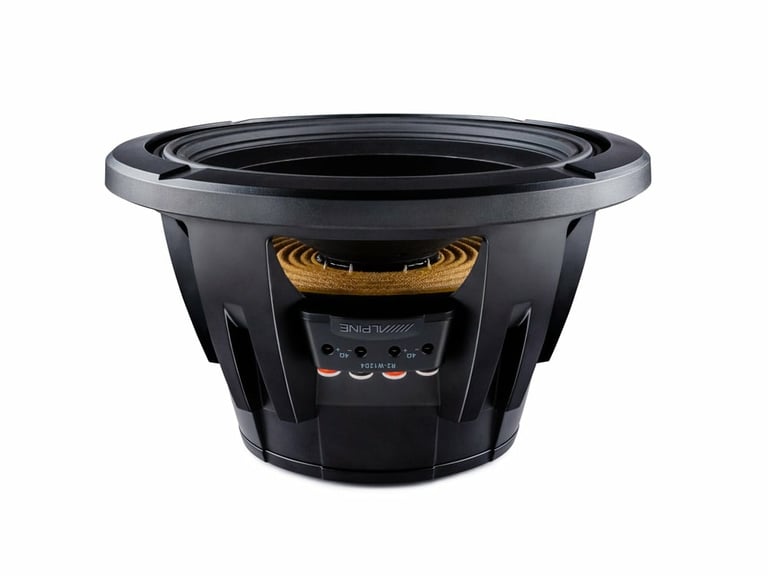

Alpine R2-W12D4

2250W Peak (750W RMS) 12" R2-Series Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm R2 Series Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Kevlar Reinforced Pulp Paper Cone
  • High-Amplitude Multi-Roll (HAMR) Surround
  • 2.6" High Temperature Voice coil
  • 20 mm Xmax
  • 144 oz. Double Stacked magnet motor structure
  • Frequency Response: 24 - 200 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Sensitivity: 84.6 dB
  • Recommended sealed box volume: .55 cubic feet - 1.0 cubic feet
  • Recommended ported box volume: 1.0 cubic feet - 1.5 cubic feet
  • Top-mount depth: 6.43"
  • Cutout diameter: 10.83"
  • Authorized Internet Dealer
  • Subwoofer grille Alpine KTE-12G optional (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconAlpine R2W12D4 owner’s manual

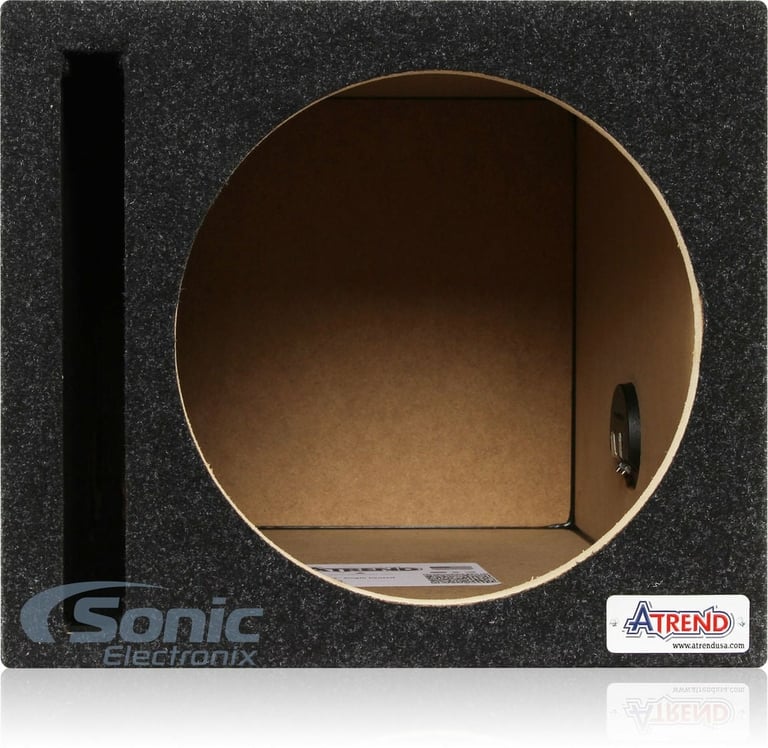

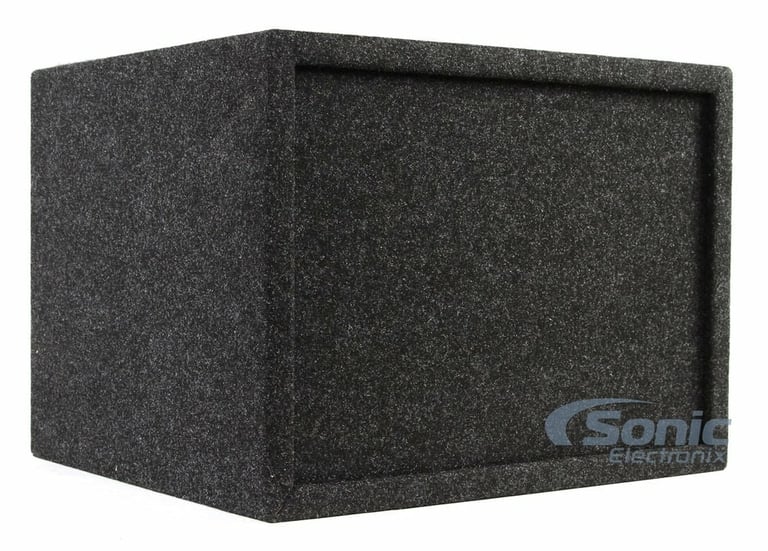

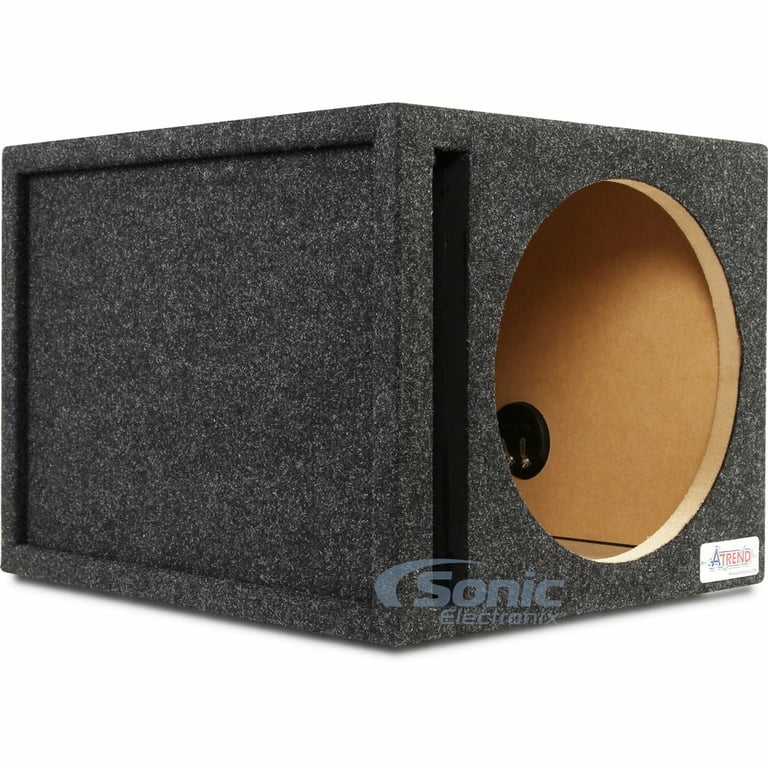

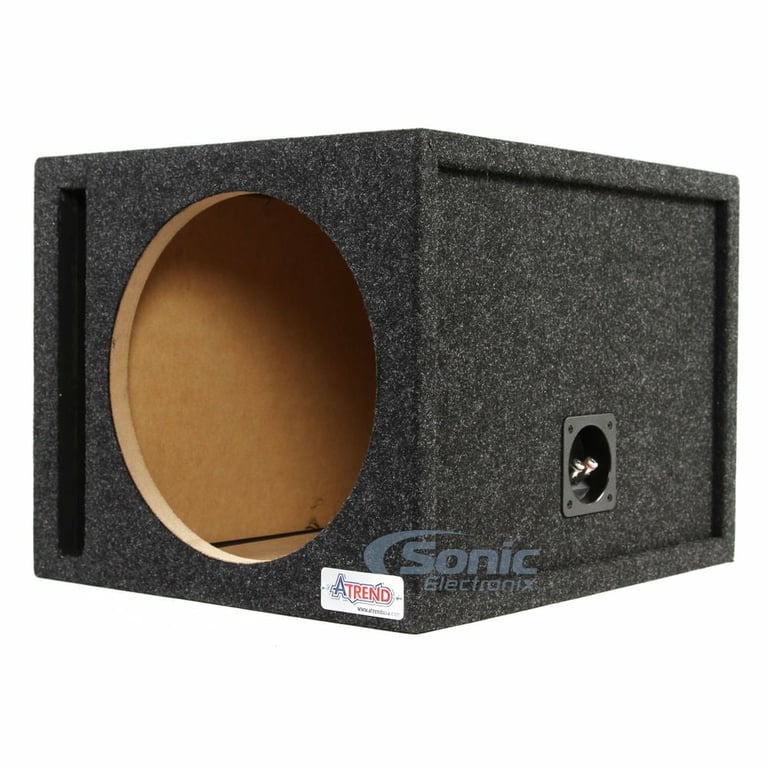

Atrend 12SQV

Empty Single 12" Vented Subwoofer Enclosure
Quantity: 1

Product Details:

  • 12" Single Ported Subwoofer Enclosure
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Mitered edge construction provides cleaner finish
  • Miter joints feature over 41% more surface area
  • More surface area translates into a stronger bond
  • Dado joints offer an 80% increase in surface area
  • Built using trick glue for up to 3600 PSI holding ability
  • Glued and braced with fasteners for added strength
  • Premium black carpeted finish for sleek modern look

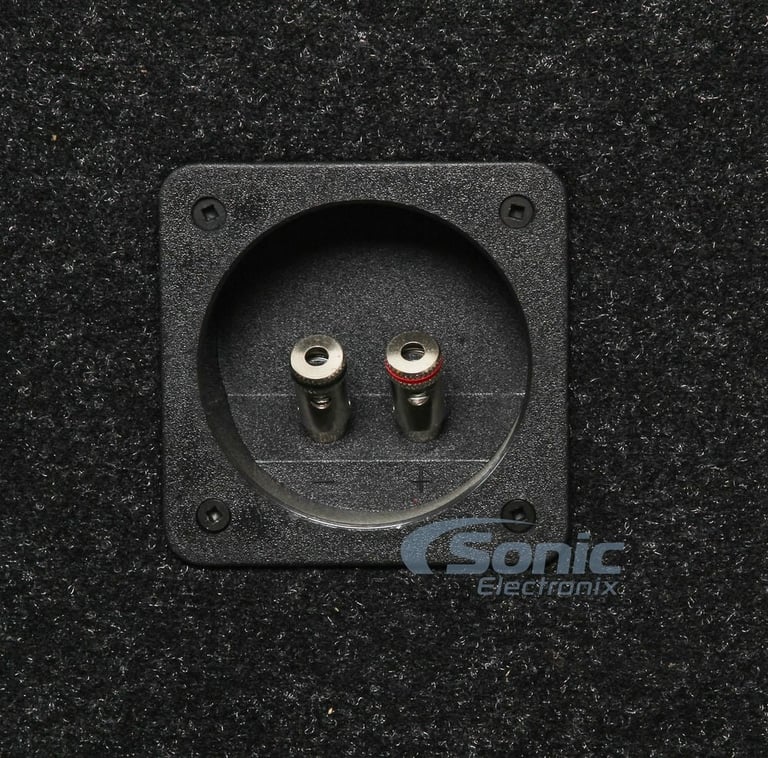

  • Silver spring-loaded terminal push cups
  • Maximum subwoofer mounting depth: 17.9"
  • Subwoofer cutout diameter: 11.12"
  • Total box volume: 1.2 cubic feet
  • Dimensions: 16" L x 14" H x 19" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Port Specifications:

  • Rectangular port
  • Number of ports: 1
  • Port length: 1.37"
  • Estimated port tuned frequency (fb): 36 Hz

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

P1-2X12 small

Rockford Fosgate Punch P1-2X12

• Two 12" Punch Series Stage 1 Subwoofers
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

(17)

$439.99

List price $489.99

CP212-W0v3 small

JL Audio CP212-W0v3

• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(14)

$449.99

List price $449.99

VL7S122 small

Kicker VL7S122 (44VL7S122)

• Ported enclosure with 1 12" Solo-Baric L7S Series Subwoofer
• 750 watts RMS (1500 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 18-3/4" L x 16" H x 14-3/4" W x 17-7/8" W2

(10)

$499.99

List price $549.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
12"
RMS Power Handling
750 watts
Peak Power Handling
2250 watts
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
High-Amplitude Multi-Roll (H.A.M.R)
Sensitivity
84.6 dB
Frequency Response
24 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Gray
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R2-W12D4, 12SQV

Weight:

57.00lbs

Internal SKU:

r2w12d4_12sqv

Internal Product ID:

199743

Customer Ratings & Reviews


Alpine R2-W12D4 with Ported Enclosure thumbnail image

5 star
50%
4 star
44%
3 star
6%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.7
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

review on the box amp and speaker that I bought great buy on all

The following review is for 12SQV, which is a part of the bundle you are viewing.

it was a great buy the sub was is the best sub I've ever bought definitely worth the value and the amp it was definitely worth the value also

By sonicSam on April 21, 2015 Checkmark Icon Verified purchase

46 found this helpful


Your choice...

The following review is for 12SQV, which is a part of the bundle you are viewing.

I bought the single 12 inch box for my rockford fosgate P3, the box makes my sub hit very clean and hard. The only problem is that Sonic Electronics ships the sub box with NO protection. I recieved the box with 3 dings in it but sonic couldnt help me out. So its hit or miss...

By Ryan on May 19, 2016 Checkmark Icon Verified purchase

36 found this helpful


It's a good box

The following review is for 12SQV, which is a part of the bundle you are viewing.

It's a good box but it didn't fit my re sub I had to cut the opening alittle so it can fit

By Robert on September 3, 2015

37 found this helpful


Atrend 12SQV

The following review is for 12SQV, which is a part of the bundle you are viewing.

For a prefab box it is good but if you want to get the best out of your speakers build a box to there spec's

By Anonymous on May 25, 2018 Checkmark Icon Verified purchase

28 found this helpful


Atrend 12SQV

The following review is for 12SQV, which is a part of the bundle you are viewing.

Solid build great look and fell, fits great in 97 Honda civic coupe trunk

By Anonymous on May 23, 2018 Checkmark Icon Verified purchase

27 found this helpful


Decent box for the price

The following review is for 12SQV, which is a part of the bundle you are viewing.

Gets the job done. Not the best looking thing in the world but I am pleased with it. For 70 bucks I couldn't pass it up and I am glad I didn't. Still holding up after a year of almost daily use with a Kicker CompVX in it being pushed pretty hard.

By John on January 22, 2021

26 found this helpful


Atrend 12SQV

The following review is for 12SQV, which is a part of the bundle you are viewing.

Id have to give it a honest for stars only because of the subwoofer I'm running needs a bigger box. Great for something that's putting out consistent thousand RMS at 35 to 55 Hertz.But for me I'm currently running 1600 rms.

By Anonymous on May 18, 2018

27 found this helpful


12 inch subwoofer enclosure

The following review is for 12SQV, which is a part of the bundle you are viewing.

It looks well made. I haven't installed it yet. I plan on installing a Rockford Fosgate T0 12inch sub with a RF BDCP1500 pushing it. Cutting the amp down to about 750 watts. I can't wait to hear how it sounds. Judging by past Attend enclosures I've owed, it should be a ground shaker!!!

By gdrakec22 on October 21, 2016

26 found this helpful


Good

The following review is for 12SQV, which is a part of the bundle you are viewing.

Good box for the alpine type r.! Made very well and high quality.

By Anonymous on June 7, 2019 Checkmark Icon Verified purchase

26 found this helpful


12 inch subwoofer enclosure (Attend)

The following review is for 12SQV, which is a part of the bundle you are viewing.

I have owned Attend enclosures before and most of the time they sound great. I plan on installing a Rockford Fosgate T0 12 inch subwoofer. I'm using a RF BDCP1500 cut down to about 700 to 750 watts. I know the sub can take it and we will see if the enclosure can. I've had those subs in a enclosure when I first got them with the BDCP1500 and they cracked the enclosure! The box wasn't an Attend though. If the enclosure doesn't hold up, you will be hearing from me again. Happy Pounding.

By gdrakec22 on October 21, 2016 Checkmark Icon Verified purchase

24 found this helpful




S-SB10V small

Alpine S-SB10V

Pre-Loaded S-Series 10-inch Subwoofer Enclosure

$349.95

List price $450.00

1SV12B, S-W12D4 small

Alpine S-W12D4 with Ported Enclosure

1800W Peak (600W RMS) 12" Type-S Series Dual 4 Ohm Car Subwoofer

(145)

$214.97

List price $339.98

1SV12G,BBSW167,W12S4 small

Alpine W12S4 Subwoofer Bass Bundle

12" 750 Watt 4-Ohm Subwoofer + Vented Sub Box and Speaker Wire

(1)

$174.99

List price $284.97

ICMP-400BLUE small

Nostalgia Electrics ICMP-400BLUE

4-Quart Plastic Bucket Ice Cream Maker, Blue

$49.99

List price $59.95

SBR-102CR small

Alpine SBR-102CR 10" Subwoofer + Ported Enclosure

(1)

$169.99

List price $299.99

No picture

Audiovox Mazda Carstream Bluetooth Streaming Kit (BT100MAZ ) Open Box Complete (Good, Used)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2002-2008 Mazda Factory Radios Open Box Complete (Good, Used)

$66.00

List price $179.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Flex

2013 Mitsubishi Outlander

1984 Porsche 944

1982 Porsche 924

1991 Saturn SC

2008 Acura MDX

1994 Geo Prizm

2013 Hyundai Accent

2013 Lincoln MKS

2020 Toyota 86

Vehicle
Store
Delete

2002 Harley Davidson FLHT/I Electra Glide Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
