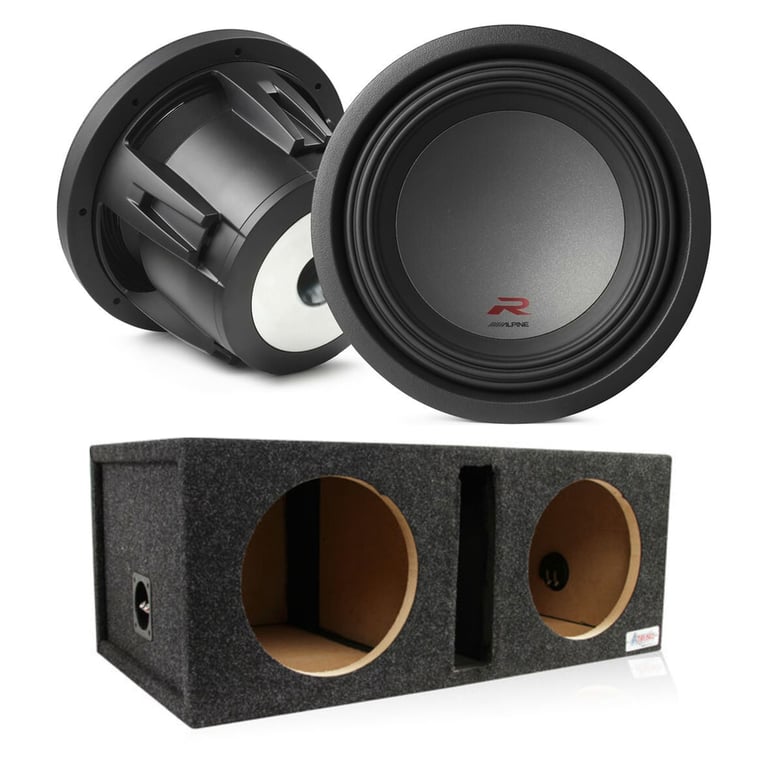

(2) Alpine R2-W10D4 with Ported Dual Enclosure

2250W Peak (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer

Shop all Alpine
Only 1 Left!

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (H.A.M.R) Surround
• Impedance: Dual 4 ohms
• Sensitivity: 82.8 dB
• Includes Ported Dual Enclosure

Learn more about the r2w10d4_10dqv
Was $829.99 Details
Thanks , You Pay:


 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one r2w10d4_10dqv.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Fri, Oct. 6
In Stock. Only 1 Left!
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award-Winning Service
FREE Shipping Orders $49+
60-Day Easy Returns
Guaranteed Lowest Price
In-House Experts



Authorized dealer

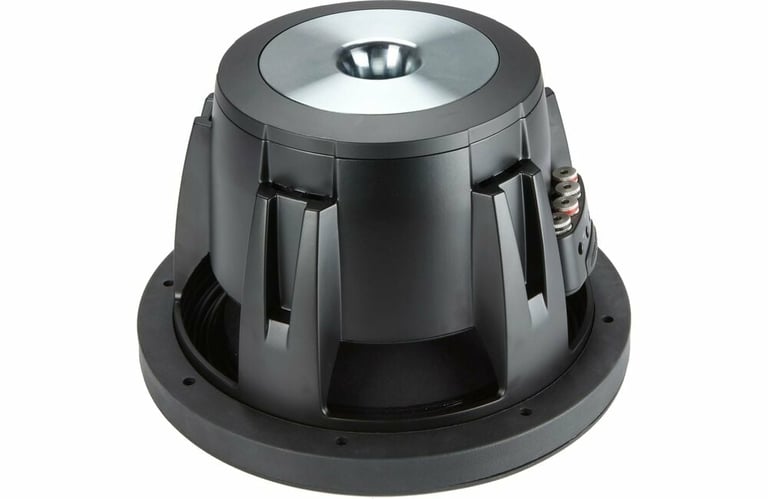

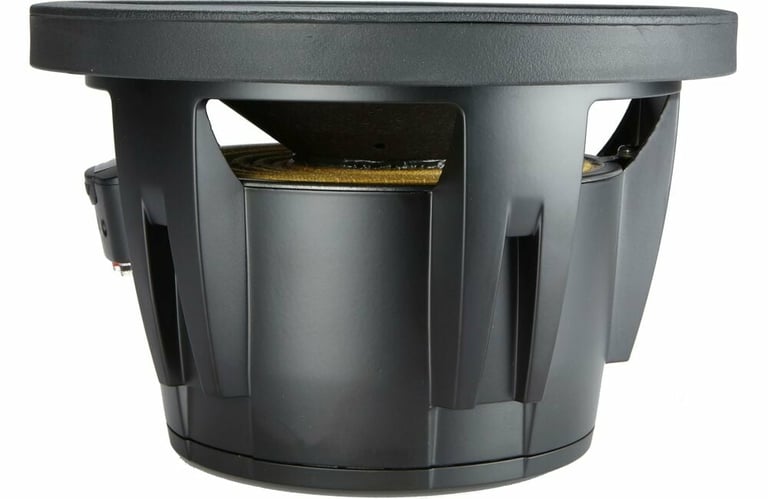

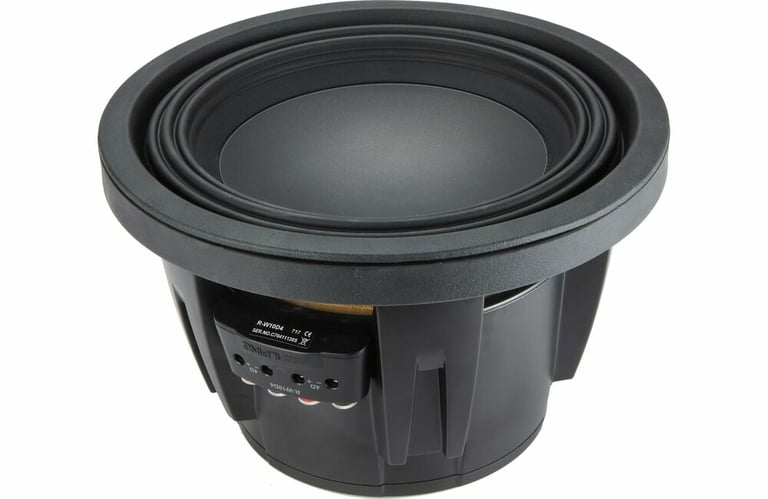

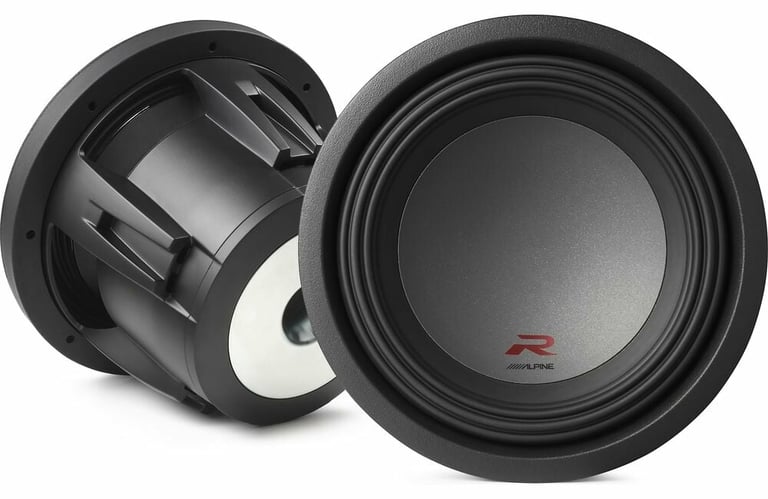

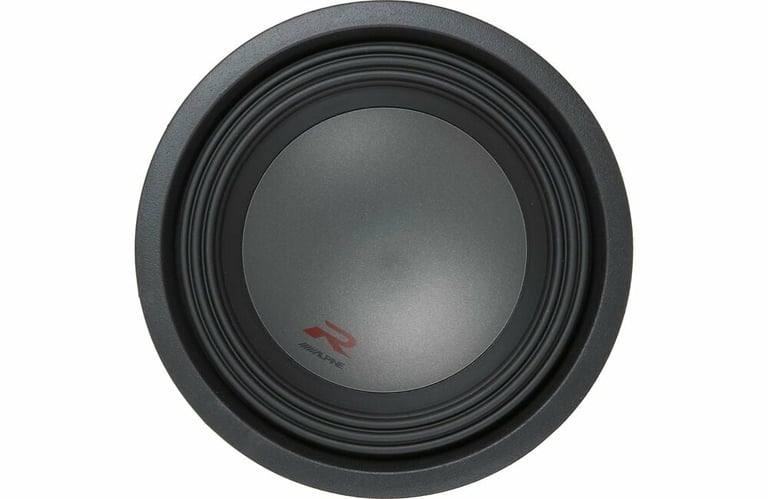

Alpine R2-W10D4 2nd Gen

2250W Peak (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer
Quantity: 2

Product Details:

  • 10" Dual 4 ohms Type-R Series Series Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Kevlar Reinforced Pulp Paper Cone
  • High-Amplitude Multi-Roll (H.A.M.R) Surround
  • Push-Type Speaker Terminals (Up To 8AWG Wire Size)
  • Oversized Dust Cap
  • 2.6" High Temperature Voice coil
  • 20 mm Xmax
  • 123 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 26 - 200 Hz
  • Resonance Frequency (Fs): 32 Hz
  • Sensitivity: 82.8 dB
  • Sealed box volume: .4 cubic feet - .85 cubic feet
  • Ported box volume: .75 cubic feet - 1.3 cubic feet
  • Top-mount depth: 6"
  • Cutout diameter: 9.6"
  • CTA-2031 Compliant: Yes
  • Authorized Internet Dealer
  • Protective subwoofer grille: Optional (Accessory required and sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

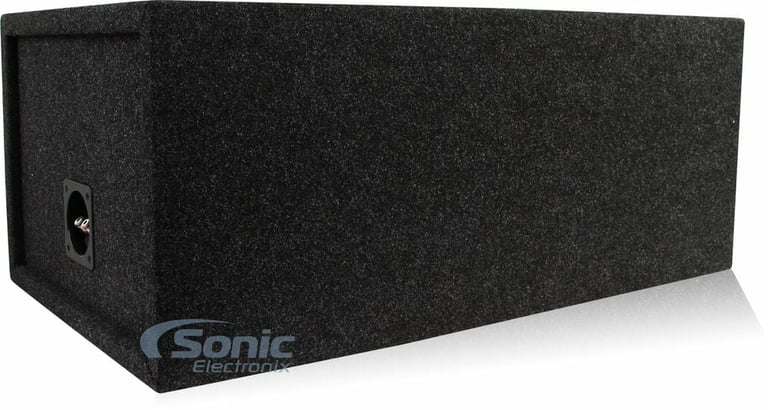

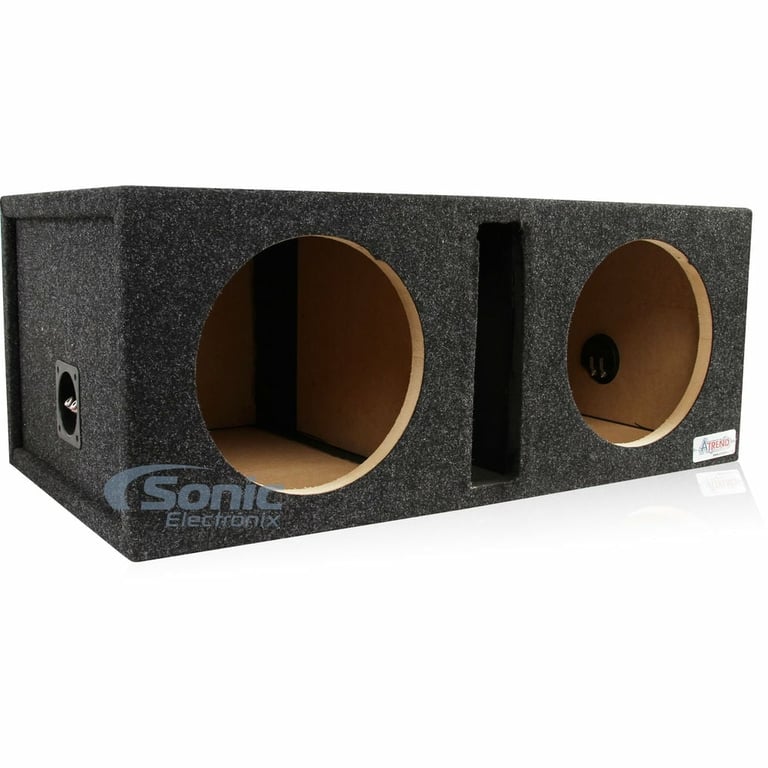

Atrend 10DQV

10" Dual Pro Series Vented Subwoofer Enclosure
Quantity: 1

General Features:
  • 10" Dual Pro Series Vented Subwoofer Enclosure
  • Made in the USA
  • Completely miter and dado end panels
  • Premium carpeted finish
  • Silver spring loaded terminal cups
  • 3/4" MDF construction
  • Glued and braced with fasteners
  • Box volume: 1.15 cubic feet (per chamber)
  • Total box volume: 2.70 cubic feet
  • Dimensions: 17"D x 30-1/4"W x 12"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details

Subwoofer Specifications
Type-R Series
Subwoofer Size
RMS Power Handling
750 watts
Peak Power Handling
2250 watts
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
High-Amplitude Multi-Roll (H.A.M.R)
82.8 dB
Frequency Response
26 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Number of Subwoofers
Box Style/Shape
Wood Thickness
Number of Terminals
Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Box Finish
Enclosure Second Depth
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider

Item Details


Model Number:

(2) R2-W10D4, 10DQV



Internal SKU:


Internal Product ID:


Customer Ratings & Reviews

5 star
4 star
3 star
2 star
1 star


Customer Photos & Videos

Customer Reviews

Sort by:


Great value

The following review is for 10DQV, which is a part of the bundle you are viewing.

I have 2 10 inch nvx vsw104 and they sound very good and the box seems to be made very well

By Tj on September 4, 2014


found this helpful.

Dual 10" vented sub box

The following review is for 10DQV, which is a part of the bundle you are viewing.

Very sturdy and heavy, well constructed, and everything went together with ease. The only drawback is that the speaker connections are on either side instead of the back, which made it more difficult to wire my DVC subs to a mono amp: excess speaker wire used and the wires show and may get caught up on things.

By Charles on June 10, 2016


found this helpful.

Great value and price

The following review is for 10DQV, which is a part of the bundle you are viewing.

Good solid well built box great price it's better value then building it it works great with my soundque HDC3 10's had to trim out circle a small bit because the HDC3 10's are a little bigger then normal tens but worth it like said great value on box saves time and money building one you can't beat it

By Robert on May 19, 2017


found this helpful.

Good product, good oricd

The following review is for 10DQV, which is a part of the bundle you are viewing.

Box was made well if 3/4" mdf and corners were sealed nicely. Carpeting was done nicely and the box terminal was a step up from the super cheap plastic crap.

By Nick on May 2, 2018


found this helpful.

Atrend 10DQV

The following review is for 10DQV, which is a part of the bundle you are viewing.

Right volume for Alpine Type R. Insulate with batting. Add a bit of polyfil. Sturdy. Well built.

By Anonymous on June 24, 2018


found this helpful.

Guinea pig review

The following review is for R2-W10D4, which is a part of the bundle you are viewing.

It seems I'm the only one that bought these from here lol, but you get what you pay for. Yes they are pricey but they are equivalent to infinity Kappa 93ix 6x9 in terms of crisp and clean. These subs are great so far, I bought them about 9 months ago and just put them in. So I can't speak on durability but great wire connectors that's included and the overall sound is great. If you have the extra money, I suggest getting it. I have 2 10's with the nvx 2000 watt amp running in my 71 Superbeetle. I was running a single 400 watt 10 inch Memphis sub with a 400 watt kicker amp, he did his thing and will again in the future. I just wanted to go back to duals in the bug. It's been since my college days. Buy it, only if you have the funds.

By Jay on August 3, 2023 checkmarkIcon Verified purchase


found this helpful.

Well worth it!

The following review is for R2-W10D4, which is a part of the bundle you are viewing.

I always been an Alpine man. I went from an S W10D4 to this R W10D4 and I am very happy I did. Bass is nice and on point. I would buy again!

By Jt on April 26, 2023 checkmarkIcon Verified purchase


found this helpful.
