Infinity Kappa 120.9W Open Box

350W 12" Kappa Series Single Voice Coil Selectable Smart Impedance Subwoofer

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 1400W Peak
• 350W RMS
• Coated Glass-Fiber Woofer Cone
• Thick Rubber Surround
• Selectable Smart Impedance (SSI)
• 2" Voice Coil Diameter
• Cast Aluminum Basket

Learn more about the LS-1209w-OB

We apologize

This item has been discontinued

Product Highlights


• 1400W Peak
• 350W RMS
• Coated Glass-Fiber Woofer Cone
• Thick Rubber Surround
• Selectable Smart Impedance (SSI)
• 2" Voice Coil Diameter
• Cast Aluminum Basket

Description


Infinity brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

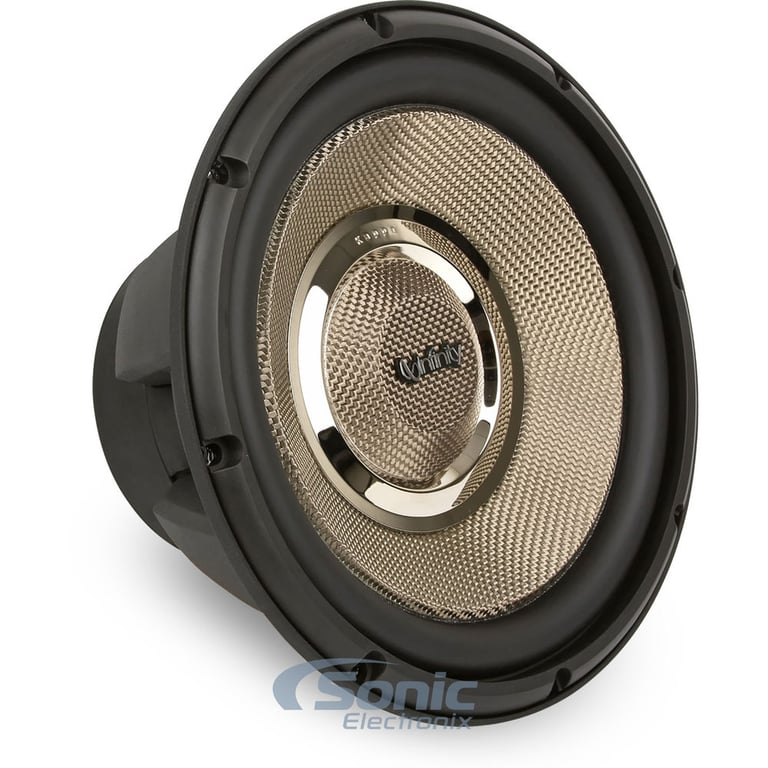

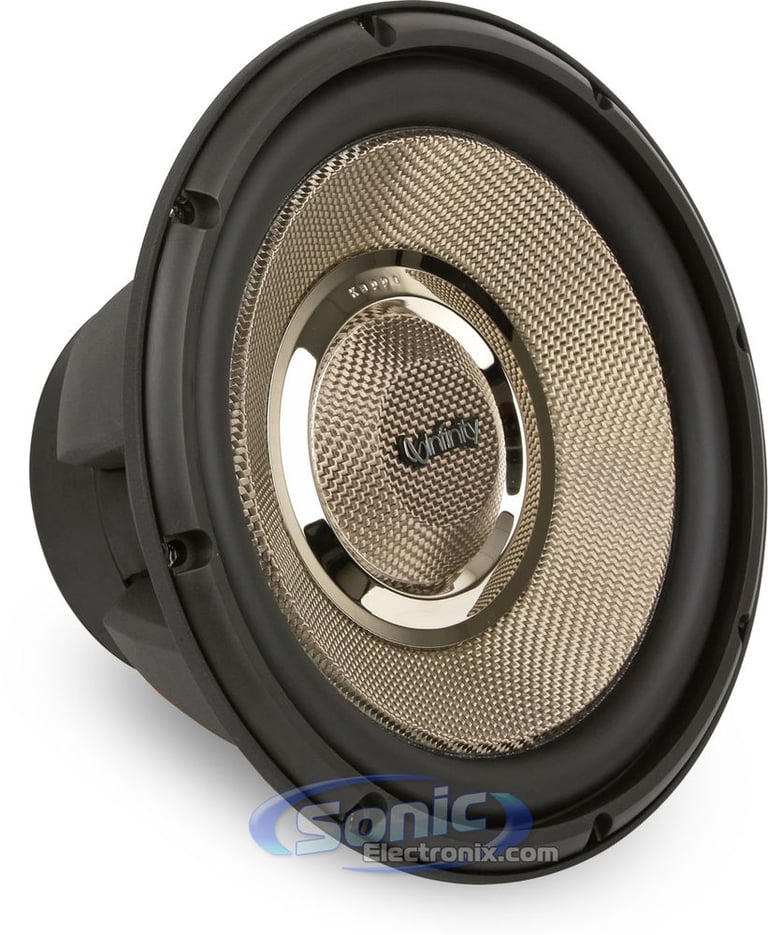

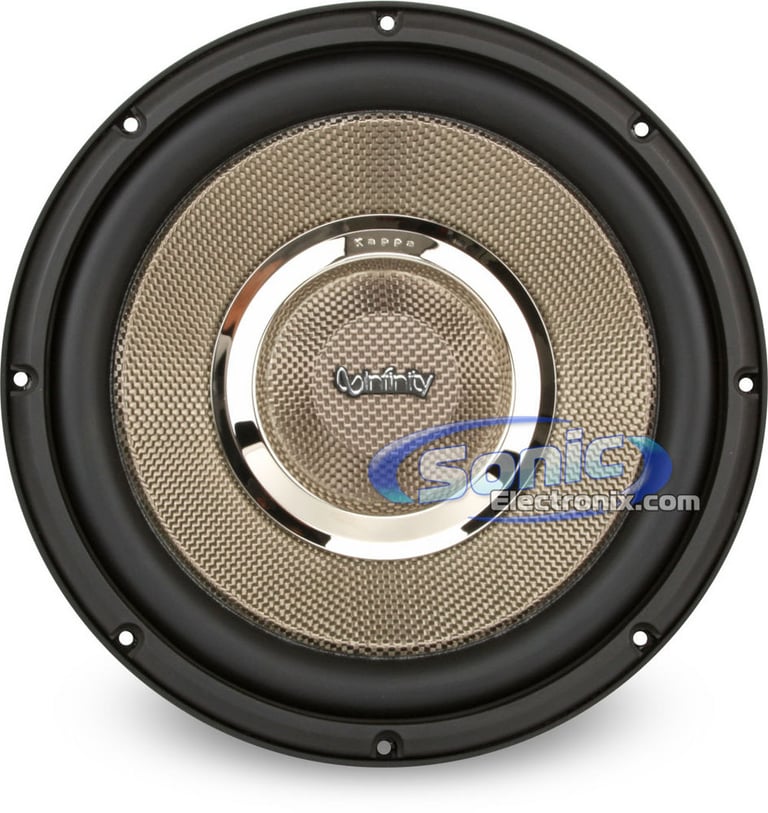

Infinity subwoofers have always distinguished themselves clearly from the competition. The Infinity SSI Kappa series subwoofers are no exception and fight on a playing field all their own. Right away the coated glass-fiber cone shows off an air of sophistication and style while offering incredible rigidity that minimizes distortion.

Once you get past the cultured exterior, the interior components uphold Infinities affinity for advanced technology. This Kappa sub utilizes a triple voice coil system which gives it the incredible ability to offer selectable impedance. Selectable Smart Impedance (SSI) technology allows this sub to run at 2 Ohms or 4 Ohms with the flick of a switch. This allows you to extract the most from your subwoofer amplifier in any situation. If you decide to add a subwoofer down the line, SSI makes it easy to reconfigure your entire system without buying different subwoofers or amplifiers.

The SSI Kappa subwoofers handle a remarkable amount of power and sound incredible in sealed or ported enclosures. If you want great sounding bass with unheard of wiring versatility, Infinity Kappa subs are technologically advanced enough to handle it.


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 12" SSI Kappa Series 2 Ohm or 4 Ohm Subwoofer
  • Product is Open Box
    • Inner Packaging Ripped
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 350 watts
  • Impedance: Selectable 2 or 4 ohm

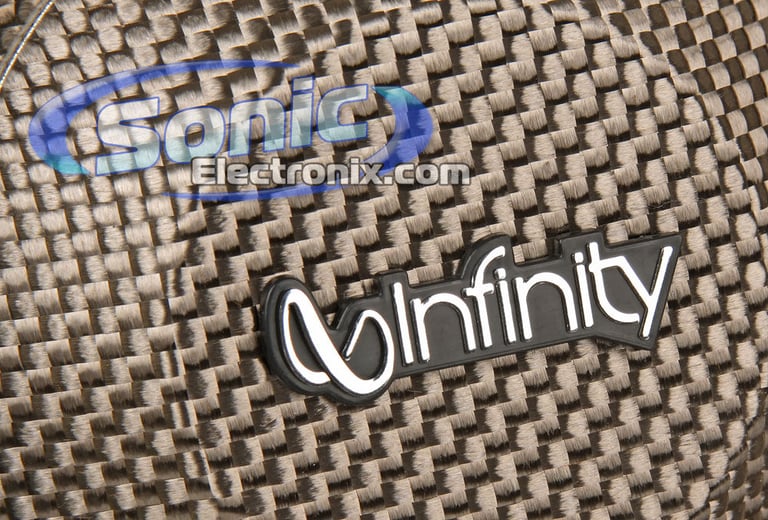

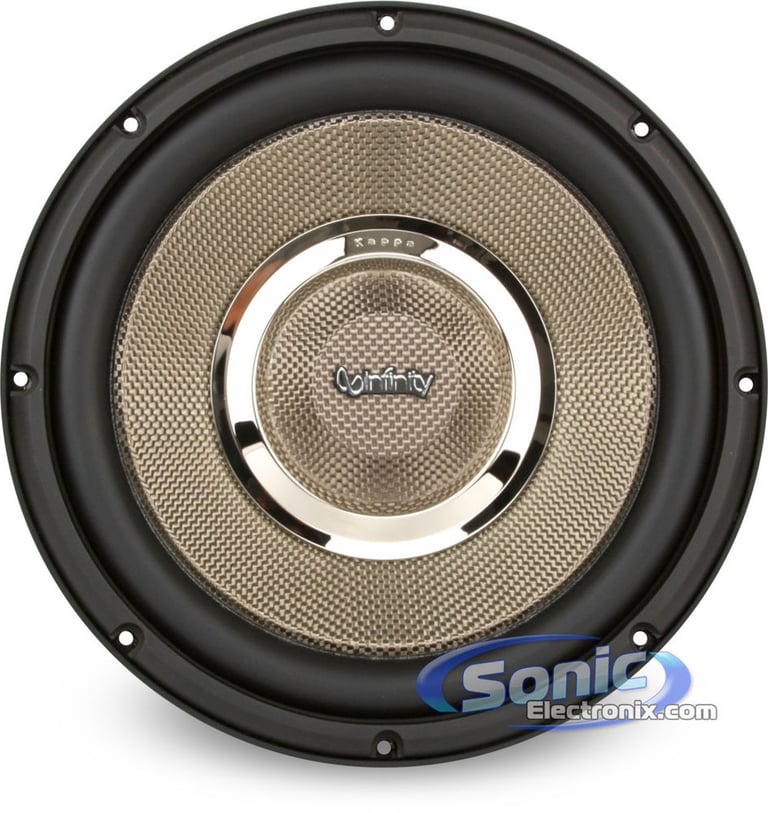

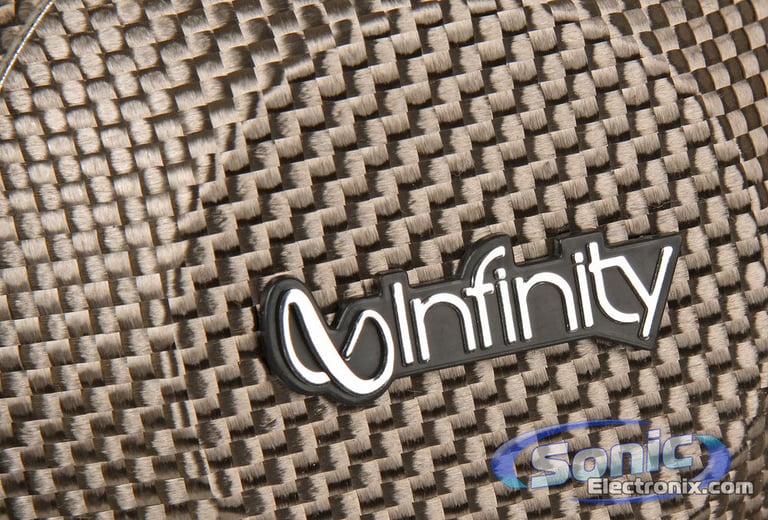

  • Coated glass-fiber woofer cone
  • Thick rubber surround

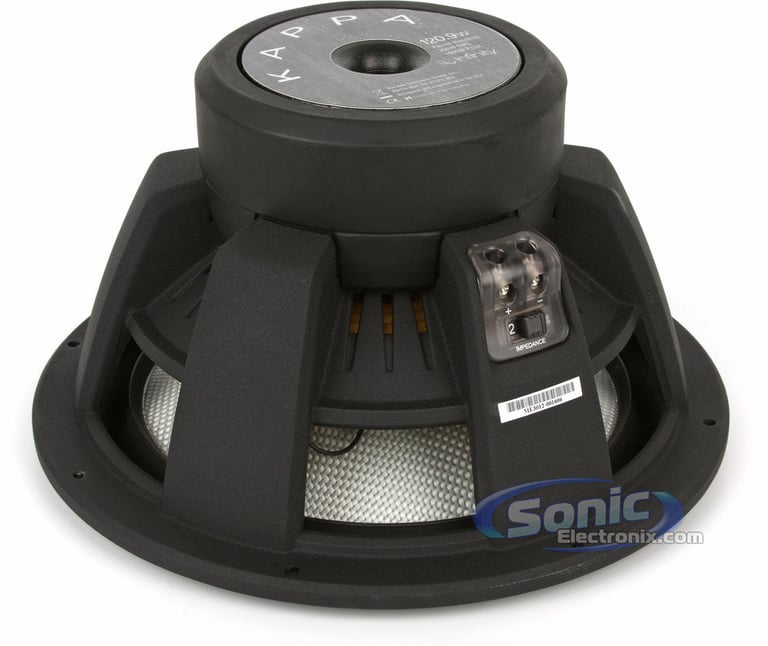

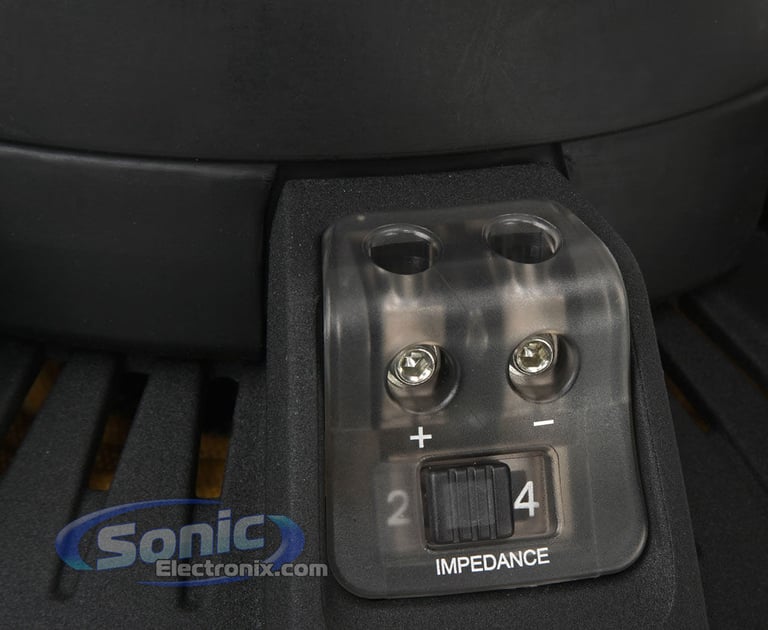

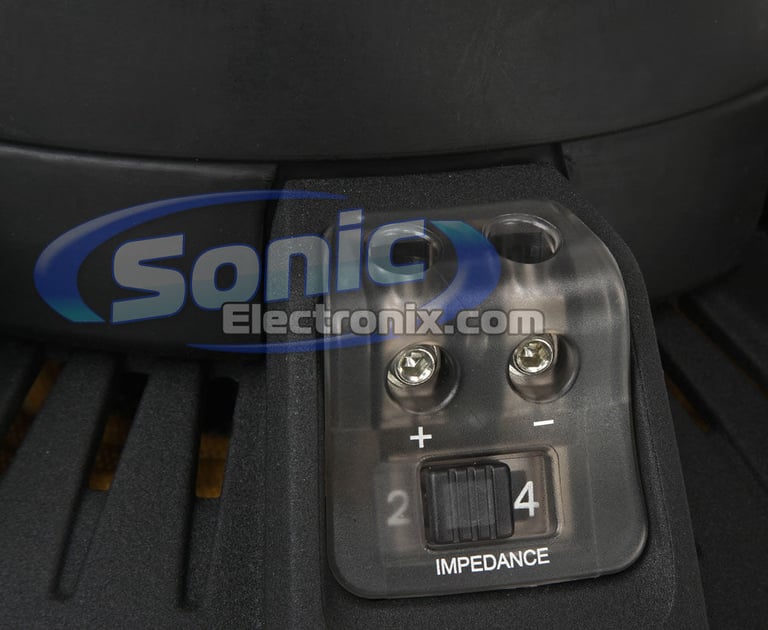

  • Selectable Smart Impedance (SSI) lets you set the subwoofers impedance with the flip of a switch

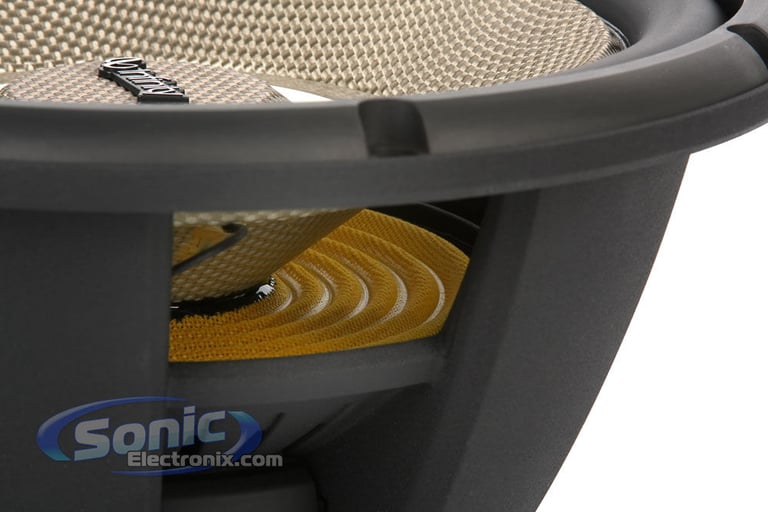

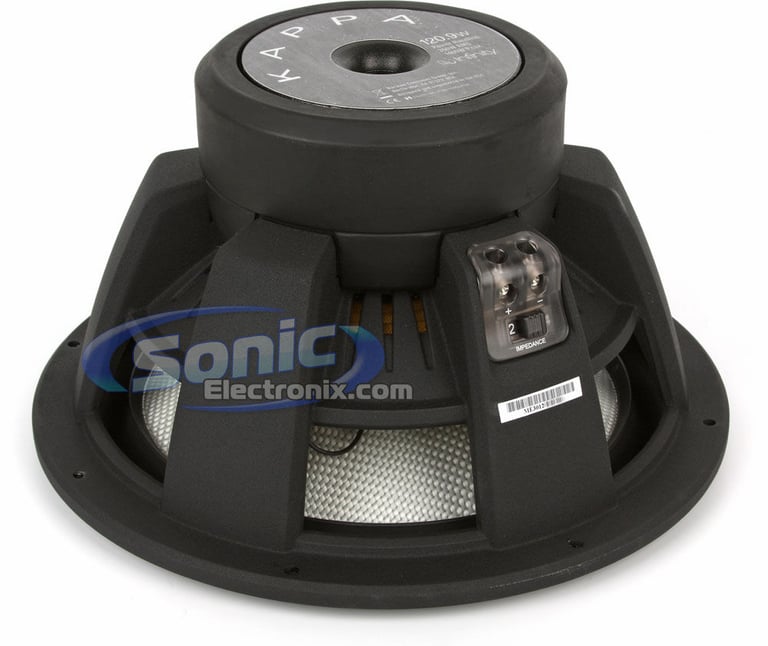

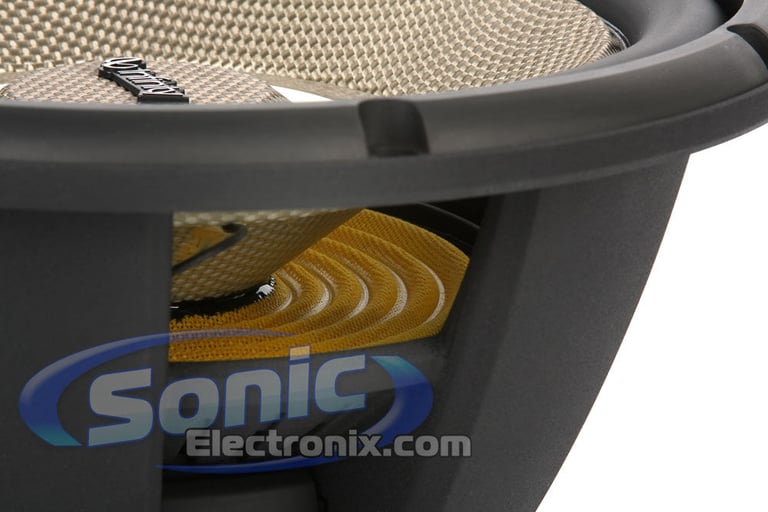

  • Cast aluminum basket with voice coil vents
  • Triple voice coil technology
  • 2" Voice coil diameter
  • Rubber boot surrounds the magnet structure
  • Frequency response: 23-400 Hz
  • Sensitivity: 91 dB
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Package Includes:

  • 120.9w SSI Subwoofer
  • Foam Mounting Gasket

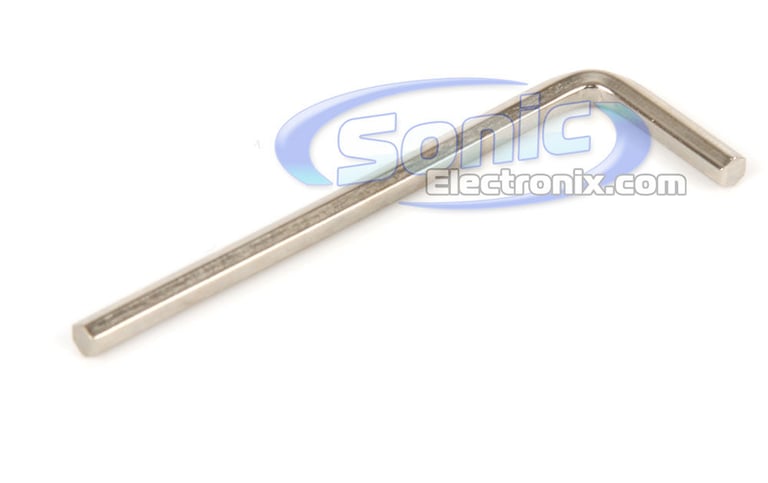

  • 3mm Hex Wrench

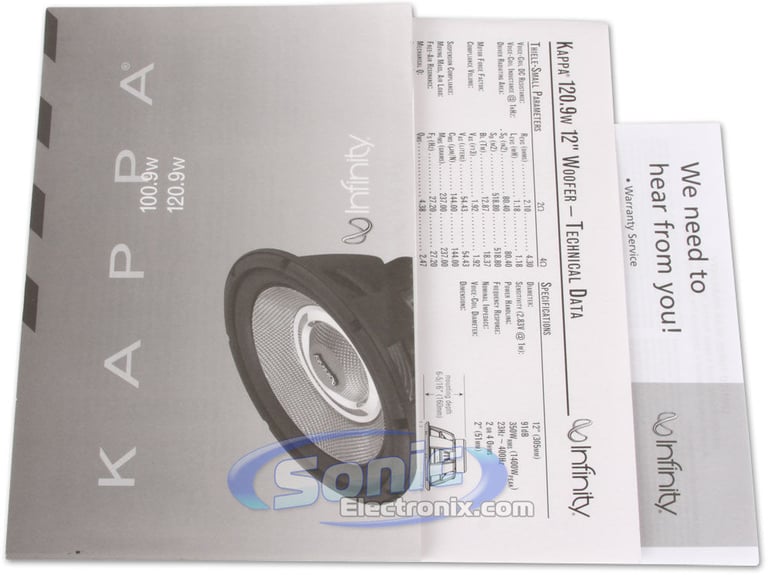

  • Owner's Manual
  • Technical Data Sheet

Read more about the 120.9W at our blog.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Kappa 120.9W Open Box Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Kappa 120.9W Open Box Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Kappa 120.9W Open Box Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Kappa 120.9W Open Box Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Kappa Series
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Frequency Response
23 - 400 Hz
Sensitivity
91 dB
Xmax (millimeters)
17.50 mm
Subwoofer Design
Round / Circle
Main Cone Color
Gold
Woofer Composition
Coated Glass Fiber
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
2.00 cubic feet
Maximum Ported Box Volume
2.00 cubic feet
Top-Mount Depth (Mounting Depth)
6-5/16"
Cutout Diameter
11-3/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS-120.9W-OB

Weight:

22.00lbs

Internal SKU:

LS-1209w-OB

Internal Product ID:

94801
