Alpine S2-SB12 (Open Box, Good)

1800W Peak (600W RMS) Loaded Single 12" Sealed PrismaLink Subwoofer Enclosure with RGB Light

Alpine
Shop all Alpine
highlight-star-icon

• Sealed enclosure with 1 12" S Series Subwoofer
• 600 watts RMS (1800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 16.5" L x 15" H x 13.25" W

Learn more about the ls-s2sb12-u7

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

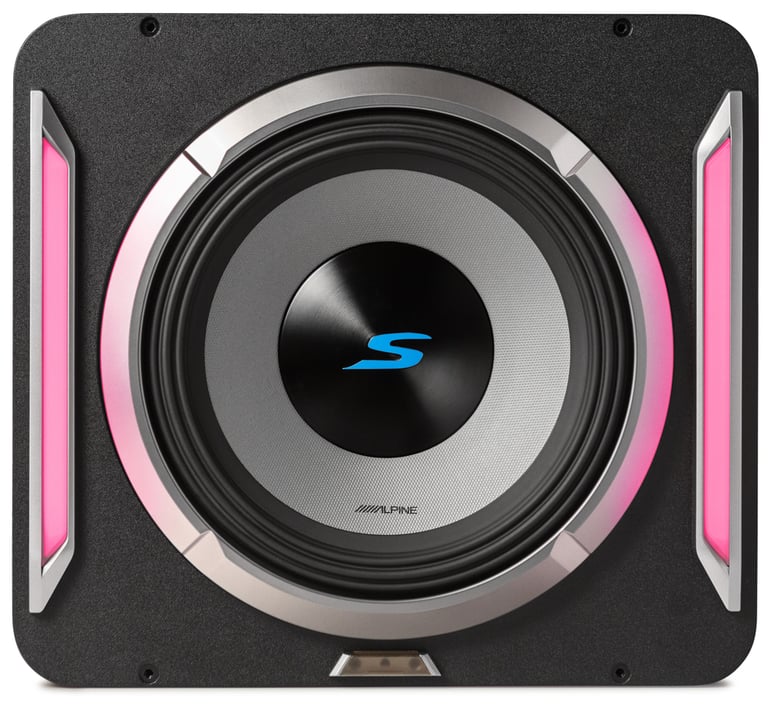

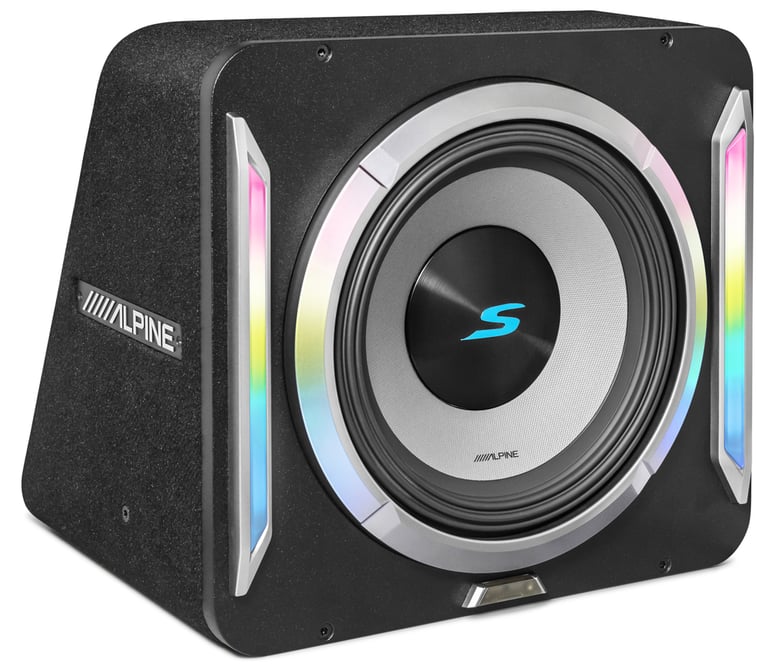

Alpine S2-SB12

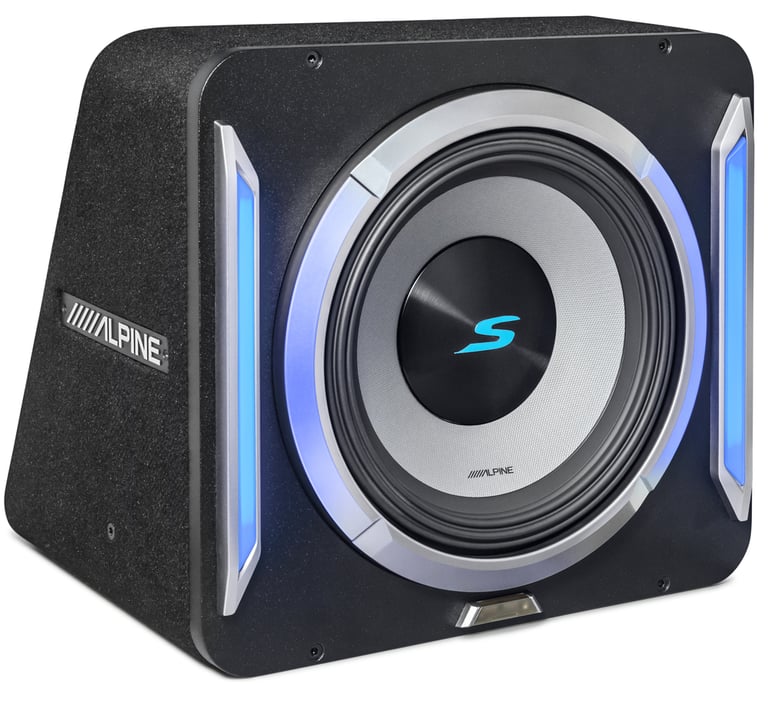

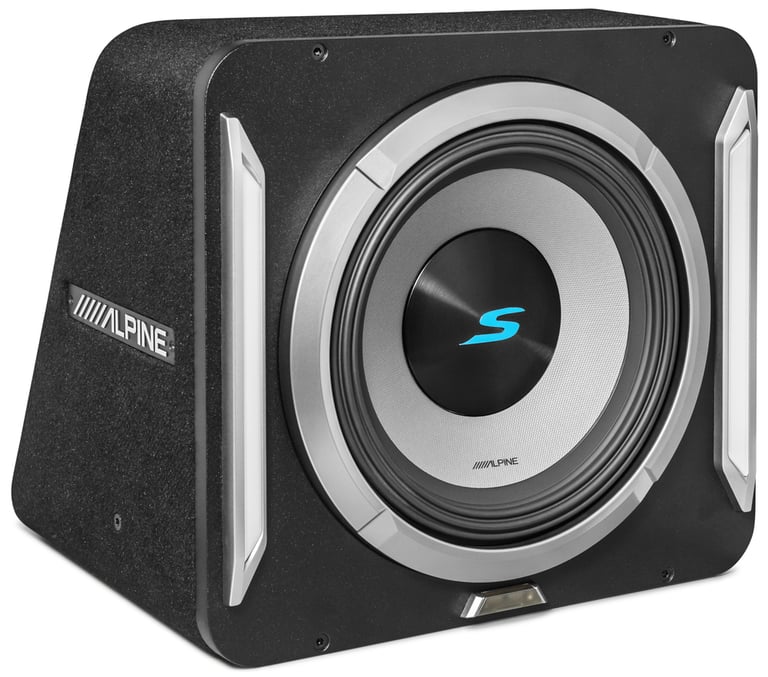

Color and sound collide to bring you an intentionally crafted 12-inch wedge style subwoofer enclosure, designed for optimal bass performance and vehicle fitment, and an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations. Manage the integrated RGBW trim bars effortlessly through the intuitive Lighting Link control screen on the iLX-W670 Receiver. With a simple touch, users can easily change the ambiance, adjust colors, and change modes on the PrismaLink® enclosures. Whether it's setting the perfect vibe for a late-night drive or enhancing the atmosphere of a weekend getaway, the intuitive interface empowers users to tailor their lighting experience with precision and ease.


Product Details:

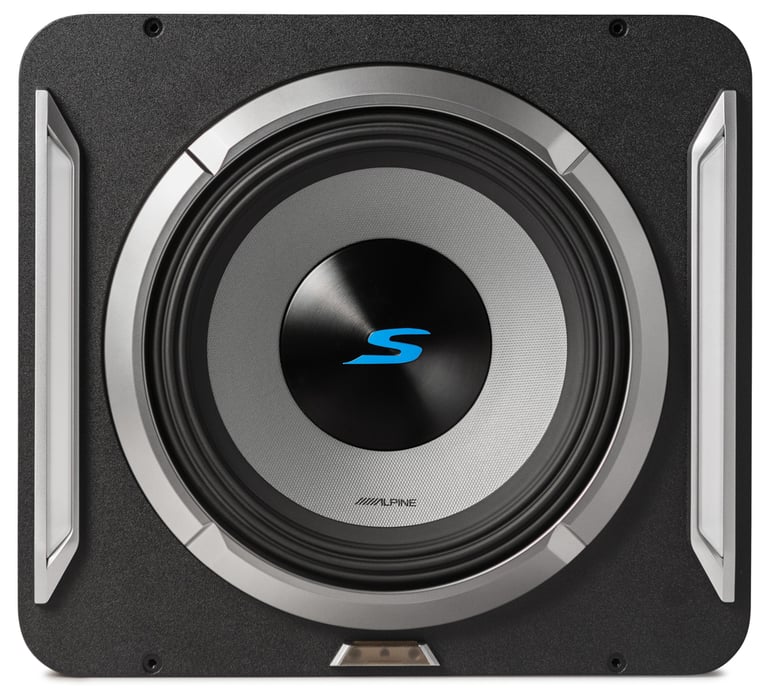

  • Sealed enclosure with 1 12" S Series Subwoofer
  • 3/4" medium-density fiberboard construction covered with Carpet
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Final Impedance: 2-ohm
  • Carbon Fiber Polypropylene cone
  • High-Amplitude Multi-Roll (HAMR) surround

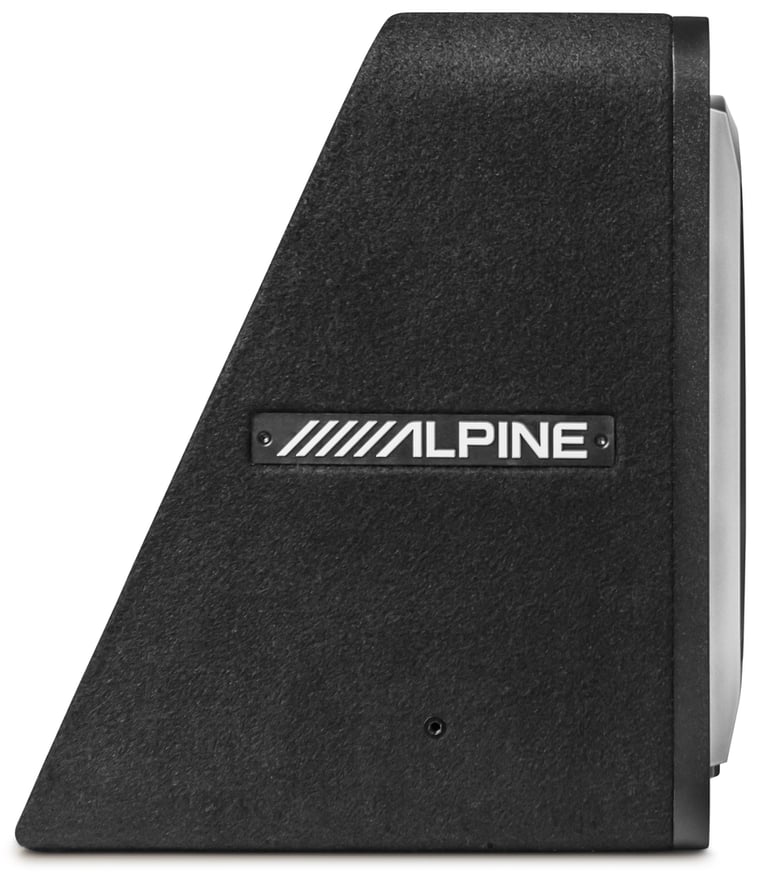

  • Sealed wedge style enclosure design

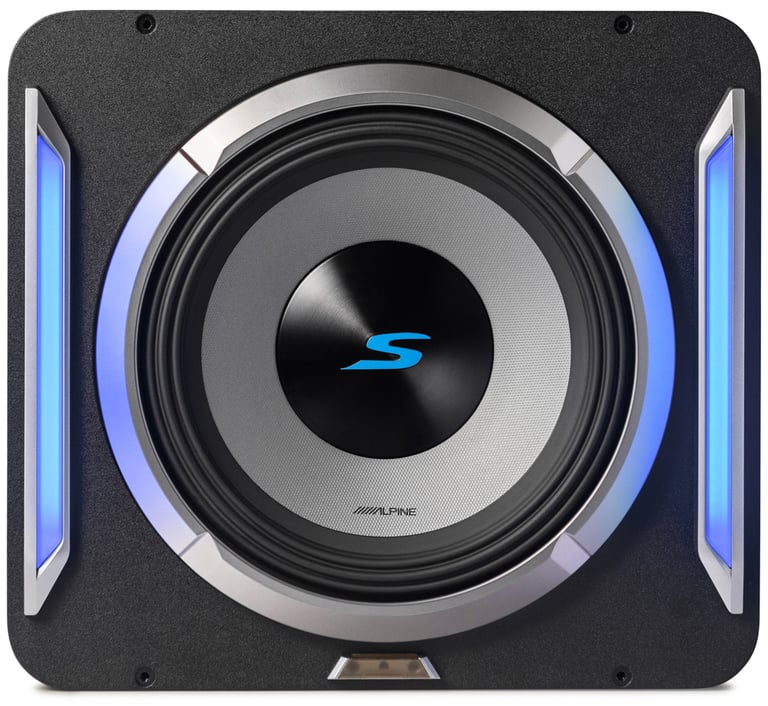

  • RGBW multi-color trim bar lighting with IR remote included

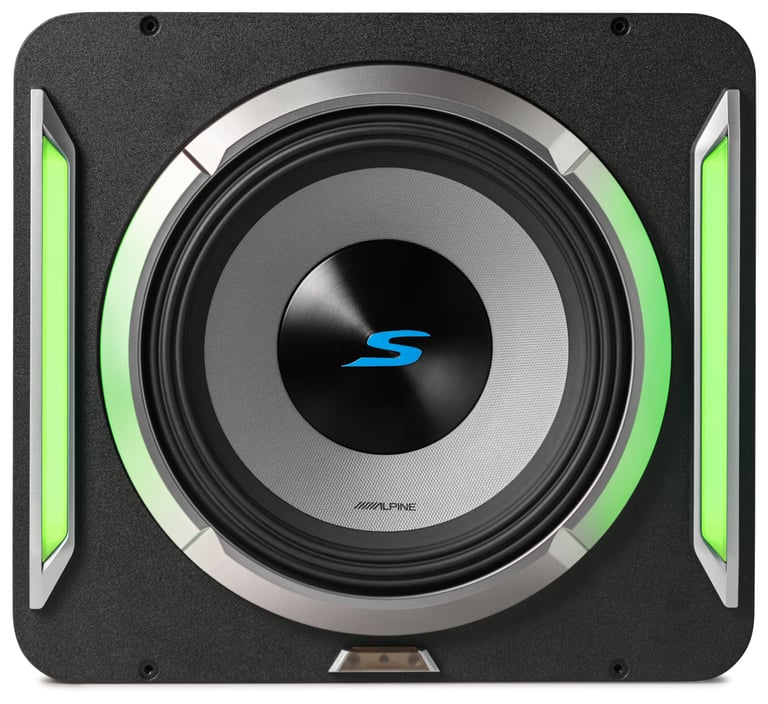

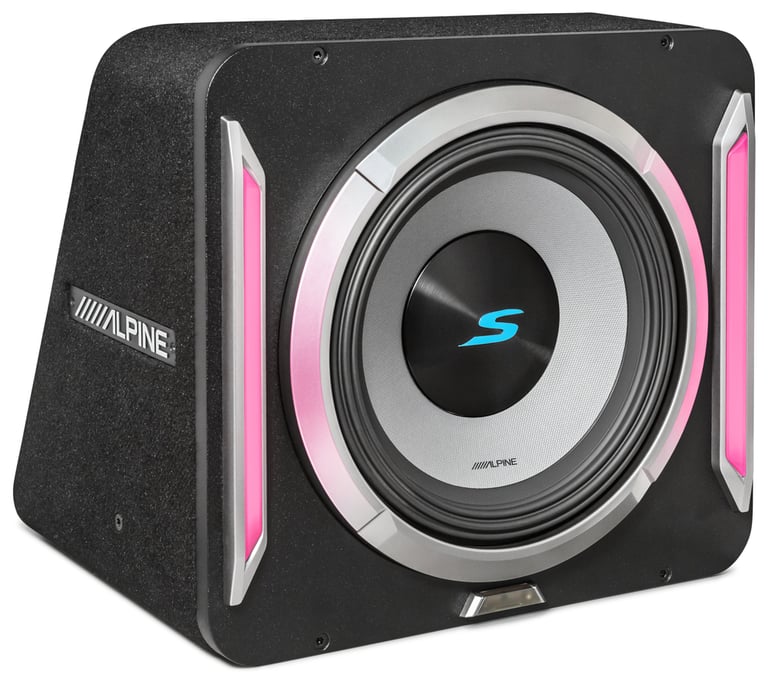

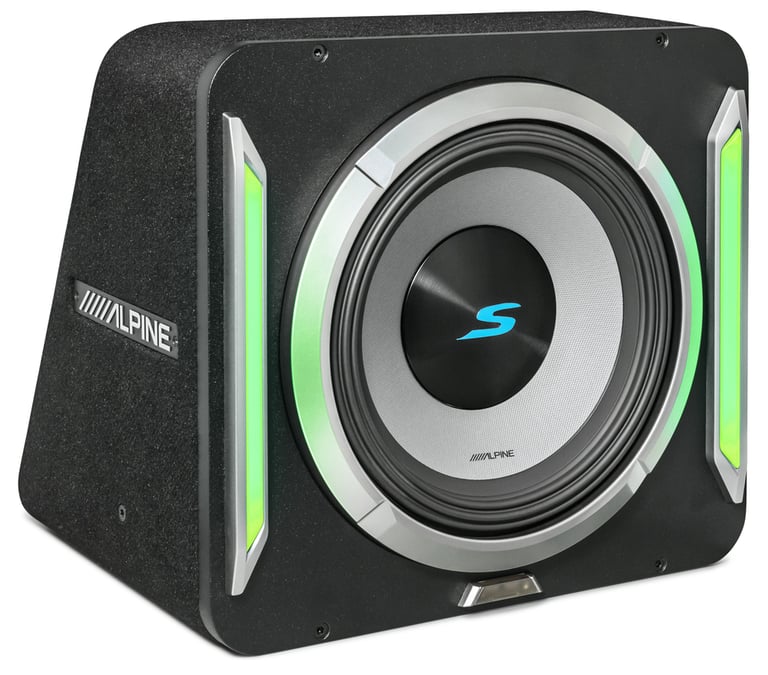

  • Lighting modes: 12 static colors, 4 dynamic modes
  • Multi-link capable (link 2 or more enclosures together)
  • Lighting link control via Alpine iLX-W670 (sold separately)
  • Lightweight construction, high output, low distortion
  • Enhanced "Punch" and accurate bass
  • Compatible with Alpine KTX-EBKT bracket (sold separately)
  • Compatible with Alpine KTX-LK12 linking bracket (sold separately)
  • Dual 4-ohm voice coils wired in parallel for a 2-ohm load
  • 2.6" high-temperature copper voice coil
  • 64 oz. magnet motor structure
  • Xmax (1-way): 15mm
  • Frequency Response: 23 - 215 Hz
  • Sensitivity: 86 dB
  • Dimensions: 16.5" L x 15" H x 13.25" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Subwoofer Specifications
Series
S Series
Subwoofer Size
12"
Final Wired Impedance
2-ohm
RMS Power Handling
600 watts
Peak Power Handling
1800 watts
Woofer Composition
Carbon Fiber Polypropylene
Woofer Surround
High-Amplitude Multi-Roll (HAMR)
Sensitivity
86 dB
Frequency Response
23 - 215 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Wedge-Style
Wood Thickness
3/4"
Number of Terminals
1

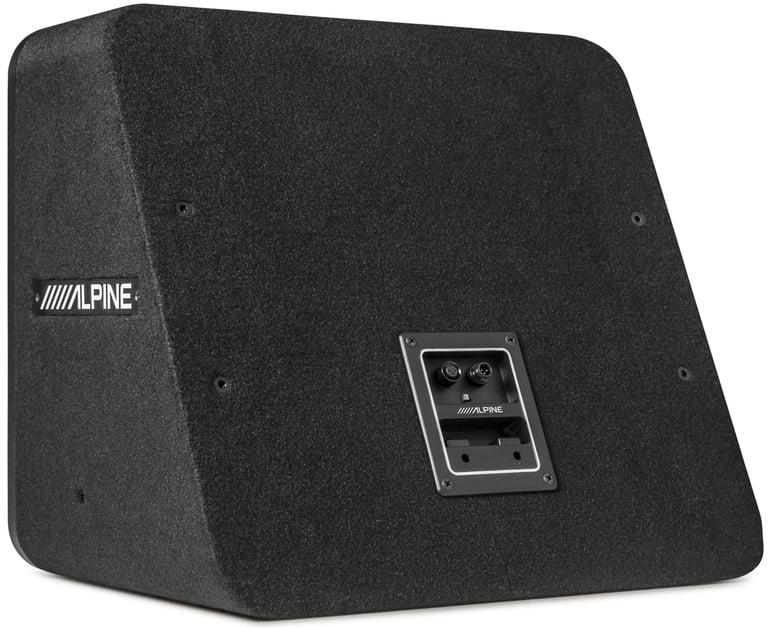

Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Enclosure Width
16.5"
Enclosure Height
15"
Enclosure Depth
13.25"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S2-SB12

Weight:

30.00lbs

Internal SKU:

ls-s2sb12-u7

Internal Product ID:

230149
