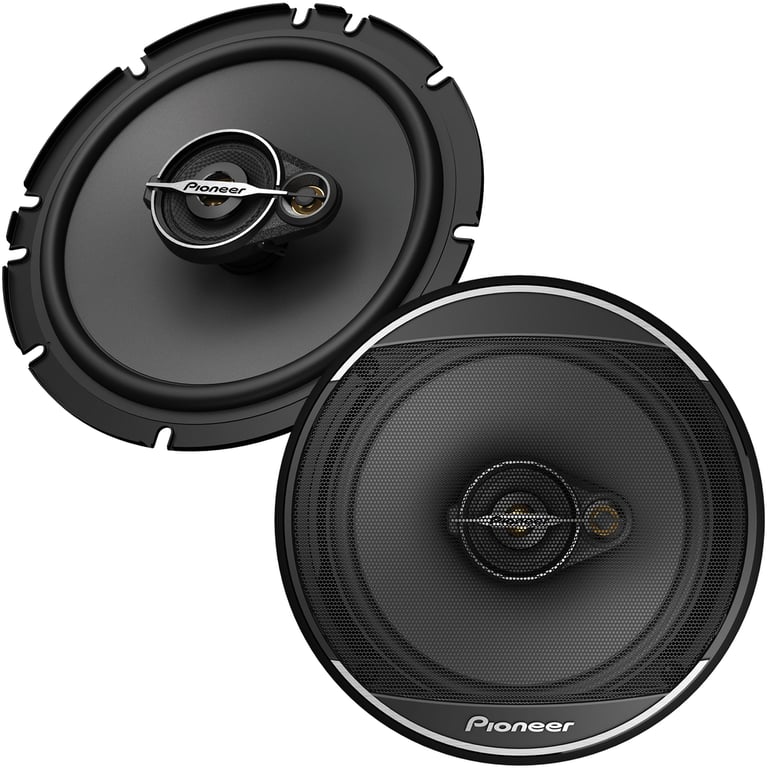

Pioneer TS-A1671F (Open Box, Good)

640W Peak (140W RMS) 6.5” A-Series 3-way 4-ohm Coaxial Car Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

• 320 watts Peak Each, 70 watts RMS Each
• 3/8" PET Hard Dome tweeters
• Carbon and Mica Reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

Learn more about the ls-tsa1671f-u7

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

Pioneer TS-A1671F

Introducing the Pioneer A-Series speakers, your ticket to a premium audio experience that won't leave your wallet feeling lighter. These speakers not only deliver better audio details with rich bass notes, louder output, and clear and balanced audio but also do it in an affordable manner.

Their sound design purposefully matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high-impact bass that lets you hear and feel the music, all without breaking the bank. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

The A-Series lineup not only expands flexibility and improves acoustic performance but also does it affordably. The integrated inline crossover network allows for increased installation flexibility without the need for an outboard module. And as an added bonus, the Pioneer A Series includes multi-fit installation adapters and tweeter mounts (when applicable) to make upgrading your car's audio system easier on your budget. Enjoy premium sound without sacrificing your savings with Pioneer A-Series speakers.

Product Details:

  • 6-1/2" A Series 3-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 640 watts per pair / 320 watts each
    • RMS: 140 watts per pair / 70 watts each
  • CEA-2031 compliant
  • Carbon and Mica Reinforced Injection Molded Polypropylene cone material
  • Elastic Polymer speaker surround
  • 3/8" PET Hard Dome tweeters with neodymium magnets
  • Copper voice coil with glass imide bobbin
  • Ferrite magnet motor structure
  • Iron Plate Press basket material
  • Open & Smooth sound concept between the midrange and tweeter
  • CarSoundFit in-car sound simulator-compatible
  • Top-mount Depth: 1-7/8"
  • Cutout Dimensions: 5-5/8"
  • Impedance: 4 ohm
  • Frequency Response: 37 - 31,000 Hz
  • Sensitivity: 91 dB
  • 2 speaker grilles included
  • Authorized Internet Dealer
  • MFR #: TS-A653FH
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6-1/2"
Design
3-way Coaxial
Tweeter Design
Hard Dome
Tweeter Size
3/8"
Tweeter Composition
PET
Woofer Composition
Carbon and Mica Reinforced Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Peak Power Handling
320 watts
RMS Power Handling
70 watts
Total PEAK Per Pair/Set
640 watts
Total RMS Per Pair/Set
140 watts
Sensitivity
91 dB
Frequency Response
37 - 31,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
1-7/8"
Cutout Dimensions
5-5/8"
CTA-2031 Compliant
Yes
General specifications
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Speakers
Mounting Brackets/Hardware
Speakers (2)
Washers
Grilles (2, detached)
Mounting screws (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-A1671F-3

Weight:

3.57lbs

Internal SKU:

ls-tsa1671f-u7

Internal Product ID:

230120
