Pioneer TS-A1301C (Open Box, Great)

600W Peak (100W RMS) 5.25" A-Series 2-way 4-ohm Component Speaker System

Pioneer
Shop all Pioneer
highlight-star-icon

• 300 watts Peak Each, 50 watts RMS Each
• 1-3/16" Polyetherimide Hard Dome tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

Learn more about the ls-tsa1301c-u8

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Pioneer TS-A1301C

Introducing the Pioneer A-Series speakers, your ticket to a premium audio experience that won't leave your wallet feeling lighter. These speakers not only deliver better audio details with rich bass notes, louder output, and clear and balanced audio but also do it in an affordable manner.

Their sound design purposefully matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high-impact bass that lets you hear and feel the music, all without breaking the bank. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

The A-Series lineup not only expands flexibility and improves acoustic performance but also does it affordably. The integrated inline crossover network allows for increased installation flexibility without the need for an outboard module. And as an added bonus, the Pioneer A Series includes multi-fit installation adapters and tweeter mounts (when applicable) to make upgrading your car's audio system easier on your budget. Enjoy premium sound without sacrificing your savings with Pioneer A-Series speakers.

Product Details:

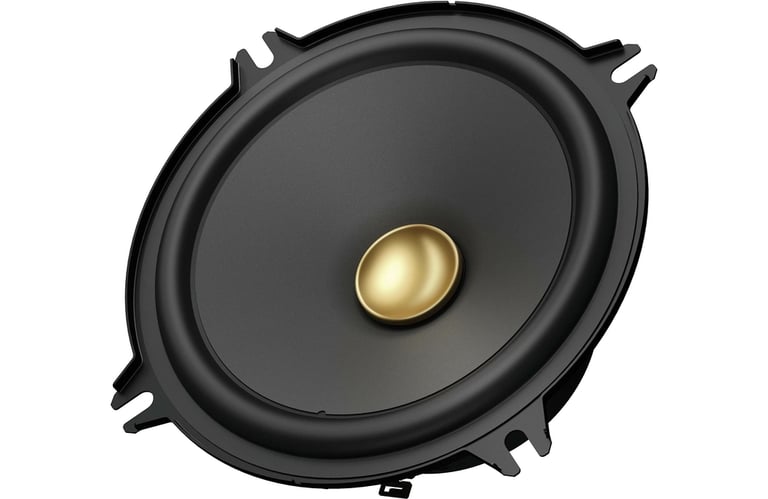

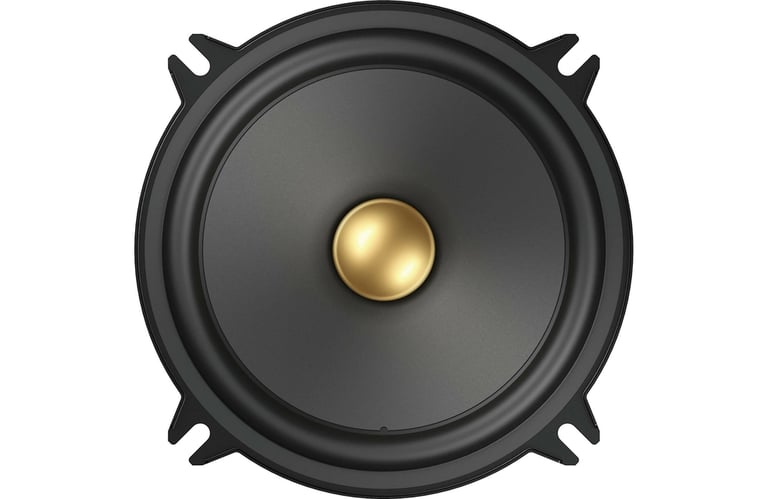

  • 5-1/4" 2-way Component System Car Speakers
  • Power Handling:
    • Peak: 600 watts per set / 300 watts each side
    • RMS: 100 watts per set / 50 watts each side
  • Injection Molded Polypropylene cone material
  • Elastic Polymer speaker surround

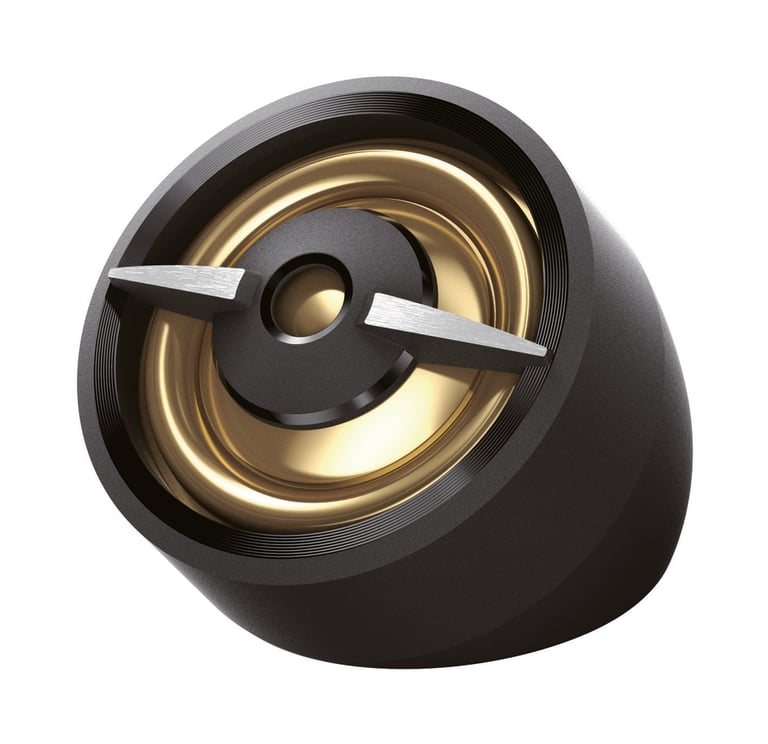

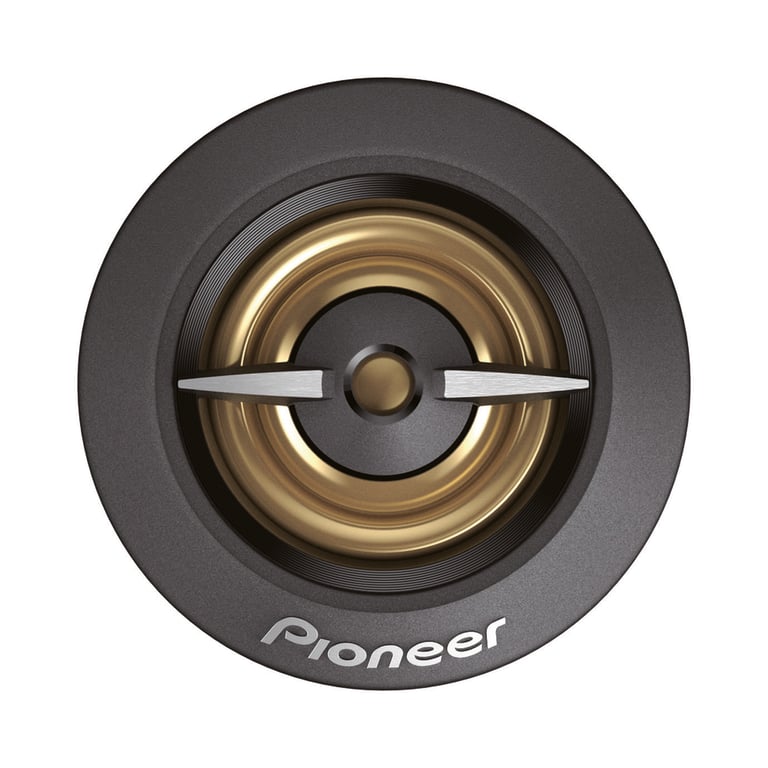

  • 1-3/16" Polyetherimide Hard Dome tweeters
  • CEA-2031 compliant: Yes

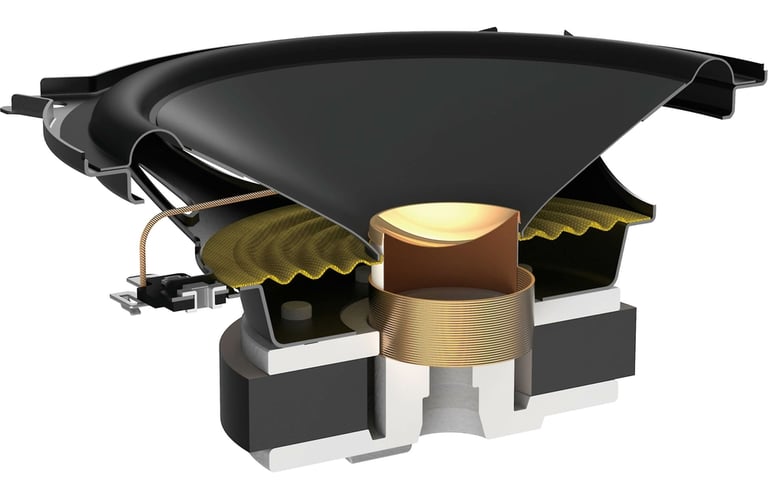

  • Copper voice coil with glass imide bobbin
  • 7.14 oz. Ferrite magnet motor structure
  • Iron Plate Press basket material
  • Iron plate-press basket material
  • Open & Smooth technology between the midrange and tweeter
  • CarSoundFit-compatible
  • Easy OE installation
  • Top-mount Depth: 2-1/8"
  • Cutout Dimensions: 4-9/16"
  • Impedance: 4 ohm
  • Frequency Response: 42 - 58,000 Hz
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

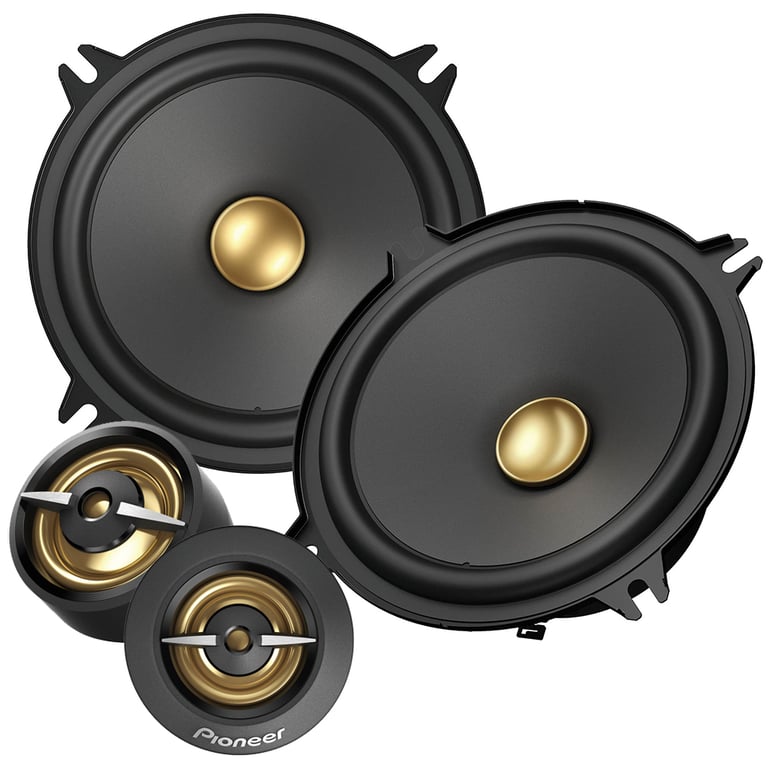

  • Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Hard Dome
Tweeter Size
1-3/16"
Tweeter Composition
Polyetherimide
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Peak Power Handling
300 watts
RMS Power Handling
50 watts
Total PEAK Per Pair/Set
600 watts
Total RMS Per Pair/Set
100 watts
Sensitivity
89 dB
Frequency Response
42 - 58,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet weight
7.14 oz.
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
4-9/16"
CTA-2031 Compliant
Yes
General specifications
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
Warranty/Registration card
WITB: Speakers
Speakers (2)
Tweeters (2)
Tweeter angle mounts (2)
Tweeter flush mounts (2)
Mounting screws (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-A1301C-2

Weight:

2.91lbs

Internal SKU:

ls-tsa1301c-u8

Internal Product ID:

211961
