Product highlights

• 460 watts Peak Each, 105 watts RMS Each
• 3/4" PEI (Polyetherimide) Hard Dome tweeters
• Aramid fiber reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

Learn more about the ls-tsa693ch-u8

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Header

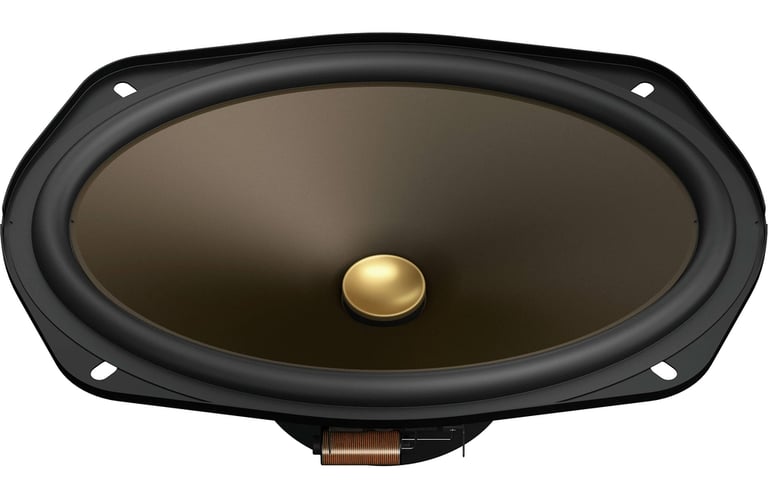

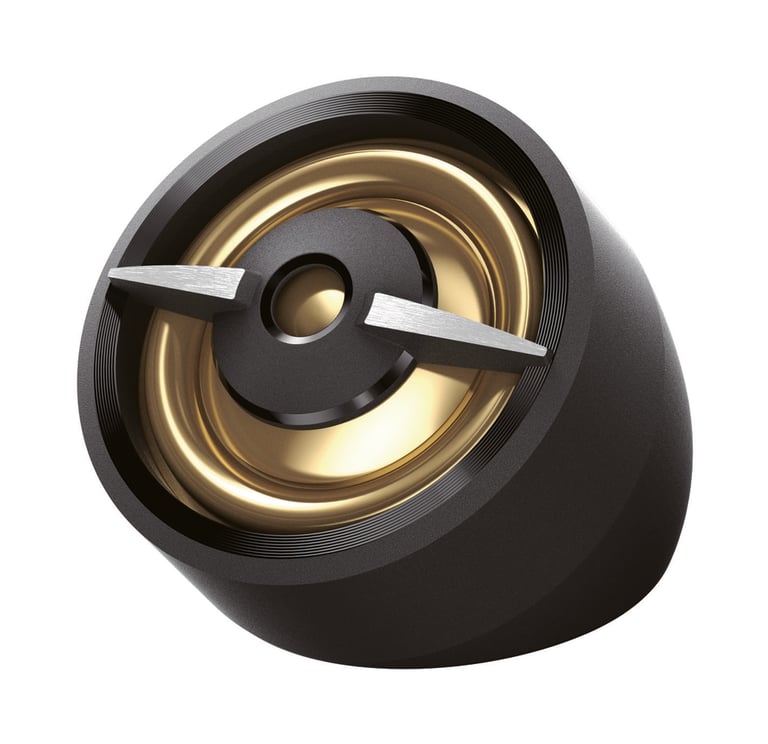

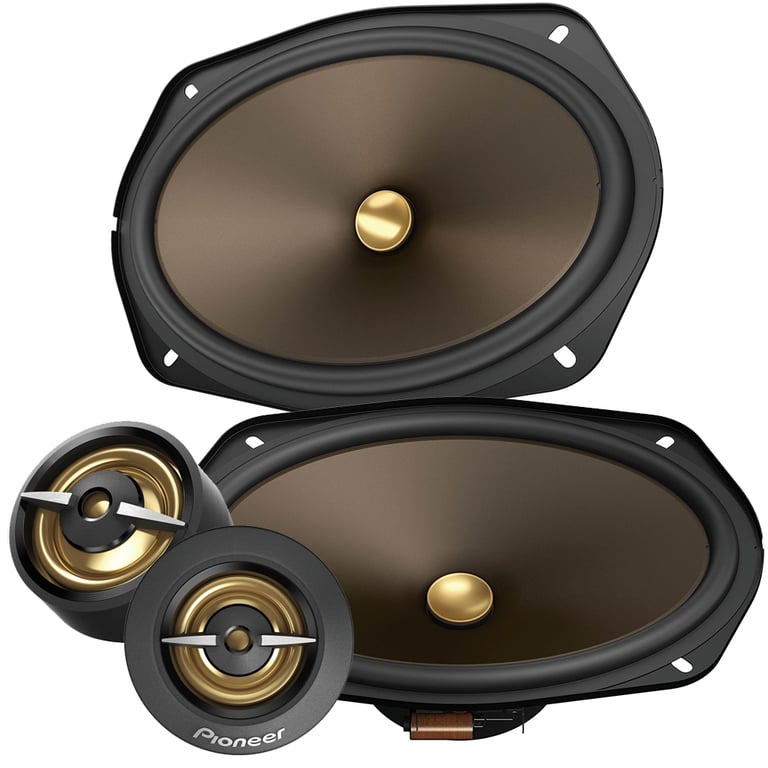

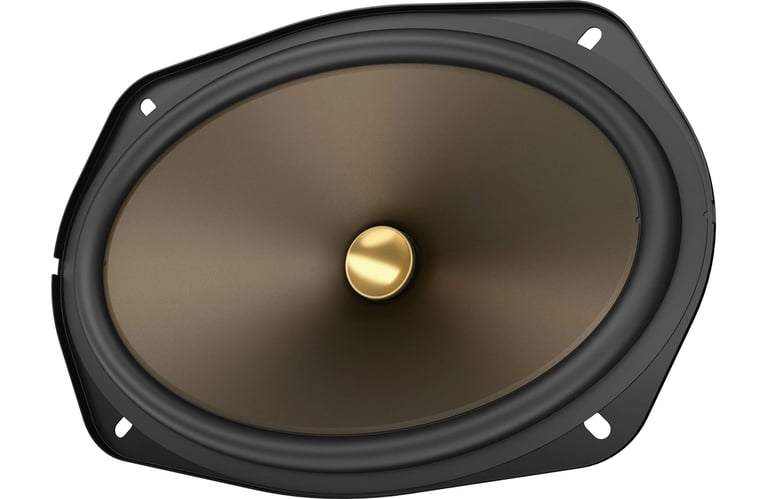

The Pioneer TS-A693CH 6" x 9" speakers component system can handle power up to 460 W Max (105 W RMS). The woofer cone is made of Aramid Fiber reinforced polypropylene for rigidity, low-frequency responsiveness, and weather resistance. The woofer comes with adjustable woofer brackets to use in all kinds of makes and models. Install the separate 20mm tweeters with the included tweeter mounts in an area high in your vehicle for better sound.

Product Details:

6" x 9" 2-way Component System Car Speakers
Power Handling:

Peak: 920 watts per set / 460 watts each side
RMS: 210 watts per set / 105 watts each side

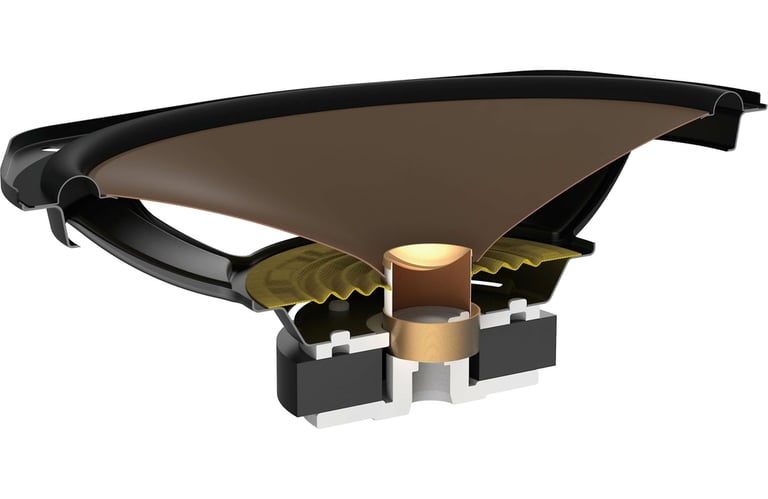

Aramid fiber reinforced Injection Molded Polypropylene cone material
Rolled Elastic Polymer speaker surround

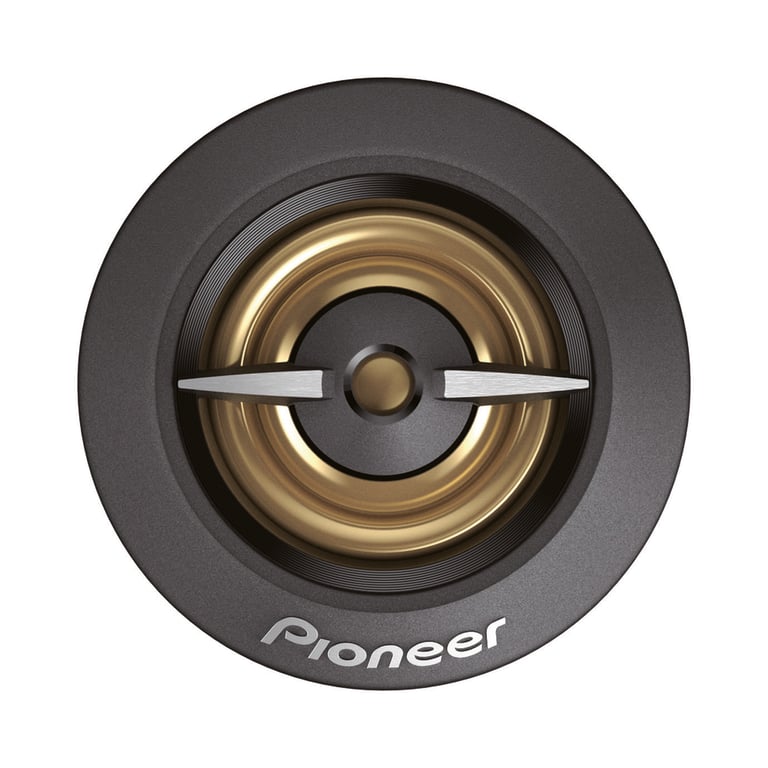

3/4" PEI (Polyetherimide) Hard Dome tweeters
Copper voice coil with glass imide bobbin
13.1 oz. Ferrite magnet motor structure
Universal metal woofer basket material
Open & Smooth sound concept for a smooth transition between the midrange and tweeter
Multi-fit adapters for installation flexibility
Compatible with Pioneer's CarSoundFit app
Lug-type wire terminals
Top-mount Depth: 2-7/8"
Cutout Dimensions: 6" x 8-3/4"
Impedance: 4 ohm
Frequency Response: 30 - 58000 Hz
Sensitivity: 92 dB
CEA-2031 compliant: Yes
Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Per Complete Component System: 2 midwoofers, and 2 tweeters

Specifications & Details

Speaker Specifications

Series

A Series

Priced Per

Pair

Number of Speakers

2 Speakers + 2 Tweeters

Speaker Size

6" x 9"

Design

2-way Component System

Tweeter Design

Hard Dome

Tweeter Size

3/4"

Tweeter Composition

PEI (Polyetherimide)

Woofer Composition

Aramid fiber reinforced Injection Molded Polypropylene

Woofer Surround

Elastic Polymer

Peak Power Handling

460 watts

RMS Power Handling

105 watts

Total PEAK Per Pair/Set

920 watts

Total RMS Per Pair/Set

210 watts

Sensitivity

92 dB

Frequency Response

30 - 58000 Hz

Impedance (Per Voice Coil)

4 ohm

Voice Coil Diameter

Shallow Mount Installation

Magnet weight

13.1 oz.

Magnet Type

Ferrite

Top-Mount Depth (Mounting Depth)

2-7/8"

Cutout Dimensions

6" x 8-3/4"

CTA-2031 Compliant

Yes

General specifications

Hi-Res Certified

Color

Black

Illumination

None

Speaker Grilles

Includes Damping Kit

without Damping Kit

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Speakers

Mounting Brackets/Hardware
Speakers (2)
Grilles (2, attached)
Tweeters (2)
Tweeter angle mounts (2)
Tweeter flush mounts (2)
Tweeter surface mounts (2)
Crossover networks (2)
Mounting screws (8)
Mounting clips (8)

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
