See all parts that fit your 1995 Ranger

Hertz MPS 250 S2 (Open Box, Good)

1000W Peak (500W RMS) 10" Mille Pro Series Single 2-ohm Shallow Car Subwoofer

Hertz
Shop all Hertz
highlight-star-icon

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Polypropylene Cone material
• Rubber Surround material
• Mount depth: 3.25"
• Sensitivity: 82.5 dB

Learn more about the ls-mps250s2-u7

We apologize

This item has been discontinued

Description


Hertz brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.


Hertz MPS 250 S2

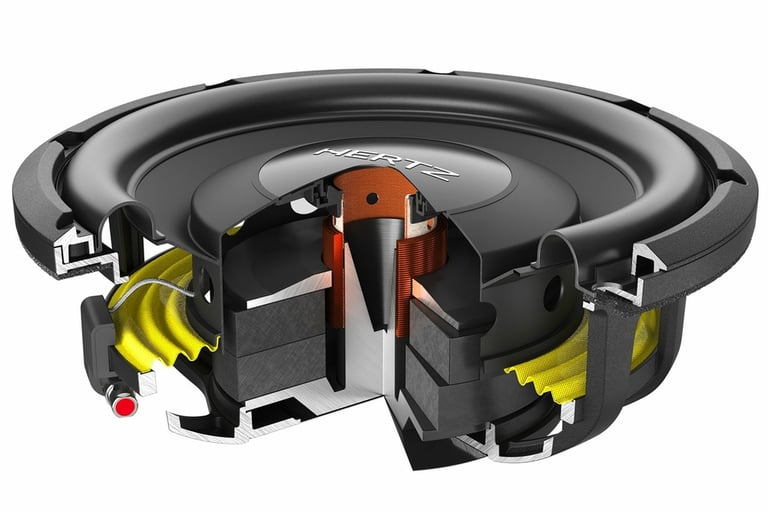

Hertz MPS 250 S2 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box. Mille PRO shallow subwoofers have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design. This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.


Product Details:

  • 10" Single 2 ohm Mille Pro Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Polypropylene Cone material
  • Rubber Surround material
  • Six layer 1.5" High Temperature Copper Voice coil
  • 16.8 mm Xmax
  • Single Stacked Ferrite magnet motor structure
  • Ultra-shallow overall depth construction
  • Optimized for extremely-compact sealed enclosure
  • Features Air Intercooling Revolution (A.I.R) to prevent air compression
  • Mechanical excursion with +20% over traditional designs
  • Non-vented rear design allows reduced enclosure depth
  • Durable die-cast aluminum basket frame
  • Frequency Response: 25 - 400 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Sensitivity: 82.5 dB
  • Recommended sealed box volume: 0.5 cubic feet
  • Recommended ported box volume: 0.6 cubic feet
  • Top-mount depth: 3.25"
  • Cutout diameter: 9.12"
  • Authorized Internet Dealer

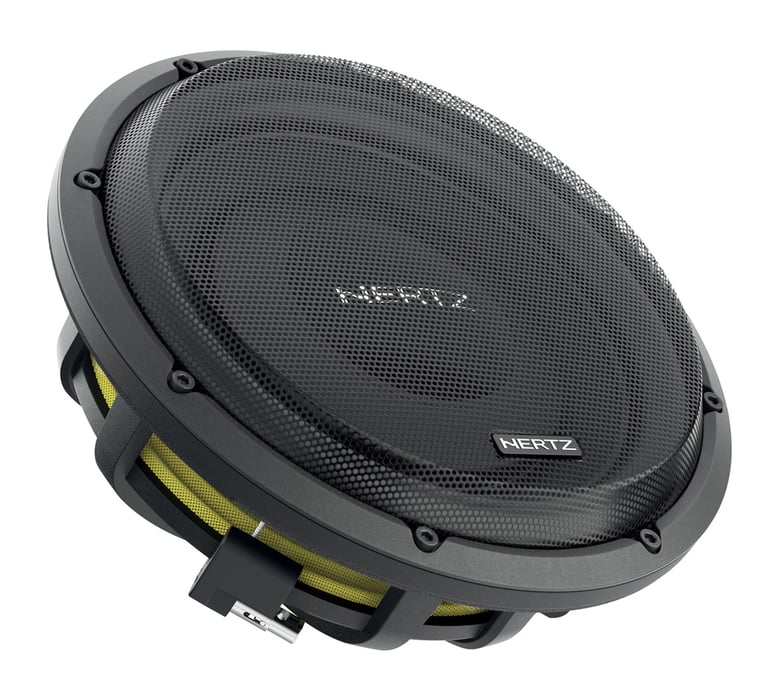

  • Robust screw-less mesh grille with black screws included
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconHertz MPS250S2 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hertz MPS 250 S2 (Open Box, Good) Subwoofer

Mono Amp

Wiring Guide to Wire 2 Hertz MPS 250 S2 (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Hertz MPS 250 S2 (Open Box, Good) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Hertz MPS 250 S2 (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Mille Pro Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Copper
Voice Coil Diameter
1.5"
Frequency Response
25 - 400 Hz
Sensitivity
82.5 dB
Xmax (millimeters)
16.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Magnet Type
Ferrite
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.5 cubic feet
Optimum Ported Box Volume
0.6 cubic feet
Top-Mount Depth (Mounting Depth)
3.25"
Cutout Diameter
9.12"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
24.5 liters
Total Speaker Q Value (Qts)
0.41
Electrical Q Value (Qes)
0.45
Electrical Resistance of Voice Coil (Re)
2.2 ohm
Mechanical Q Value (Qms)
5.3
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide
WITB: Subwoofers
Subwoofer
Grille (attached)
Mounting screws (4)
Other Accessory #1
Grille removal tool
Other Accessory #2
4mm Allen Head bit
Other Accessory #3
8 Speed clips
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MPS 250 S2

Weight:

13.96lbs

Internal SKU:

ls-mps250s2-u7

Internal Product ID:

231507
