Name: Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great)
Brand: Infinity
SKU: ls-ref507cf-u8
Price: 153.97 USD
Availability: Discontinued

by Infinity

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great) Image 1 — Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great)

Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great) Image 2 — Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great)

Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great) Image 3 — Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great)

Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great) Image 4 — Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great)

Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great) Image 5 — Infinity REF507CF (INFSPKRF507CFUS) (Open Box, Great)

Product highlights

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

Learn more about the ls-ref507cf-u8

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Infinity REF507CF (INFSPKRF507CFUS)

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One woofers offer more surface area for higher bass output and enhanced midrange performance. Plus, their newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes, they’re the perfect upgrade from factory speakers.

Product Details:

5-1/4" 2-way Component System Car Speakers
Power Handling:

Peak: 390 watts per set / 195 watts each side
RMS: 130 watts per set / 65 watts each side

Polypropylene cone material
Rubber speaker surround

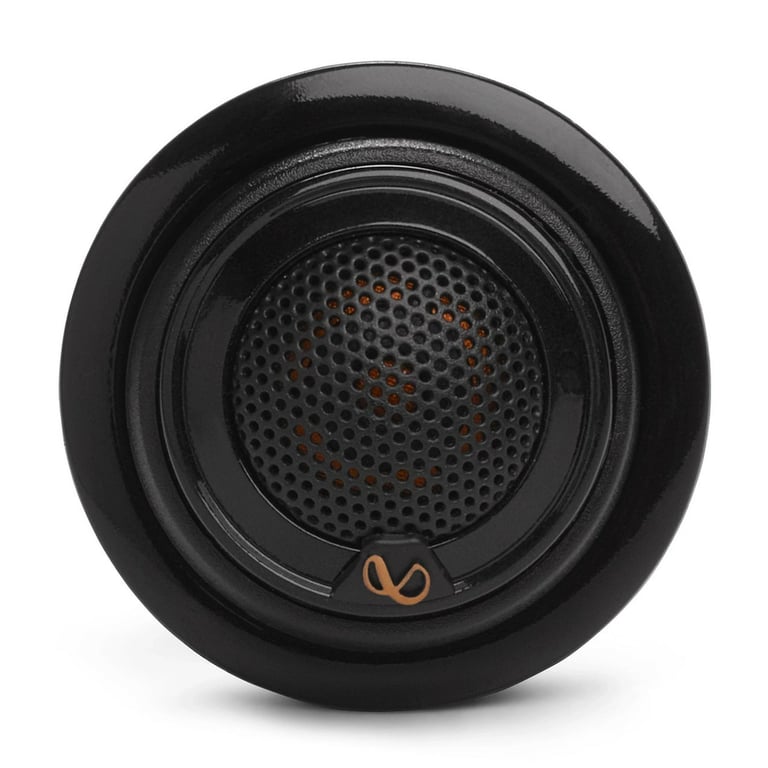

3/4" Textile Edge Driven Dome Tweeters

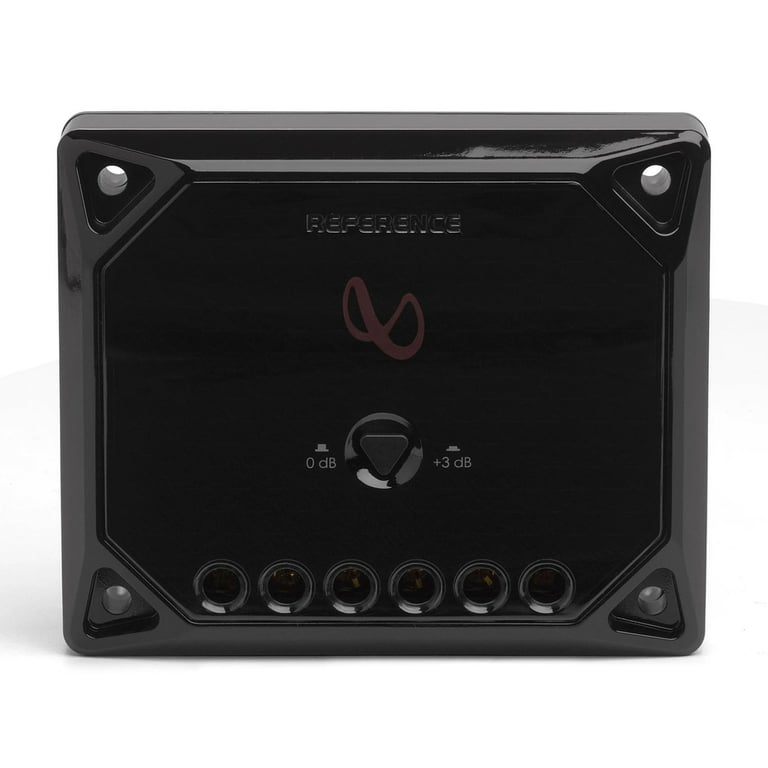

+3dB tweeter boost switch function
3-ohm impedance combines with speaker wire for 4-ohm load

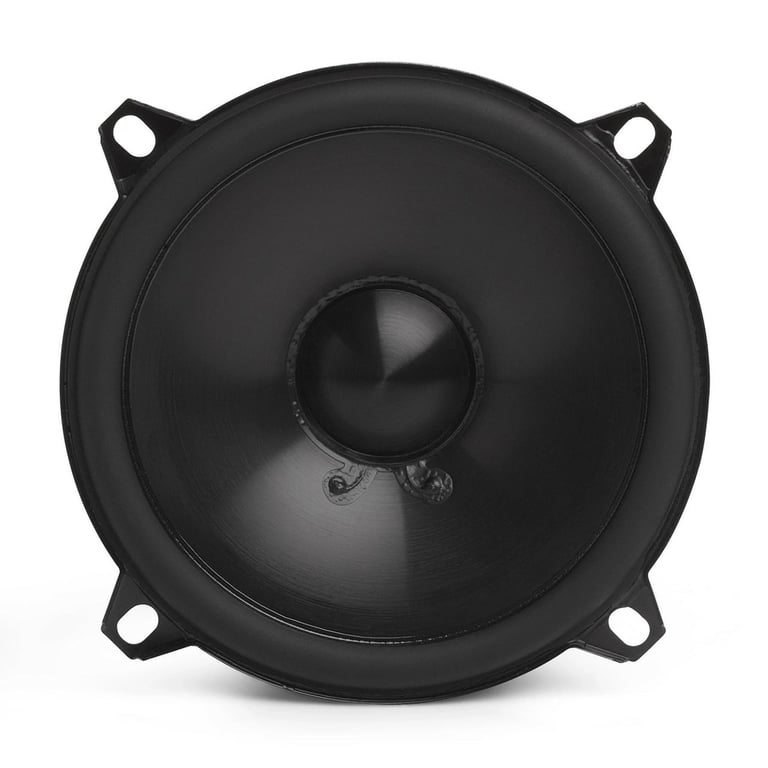

Features Plus One woofer cone architecture
Increased low-frequency output and accurate sound production
Optimized frame size featuring compact design
Adjustable tweeter output level control to suit installation location
Top-mount Depth: 1-15/16"
Cutout Dimensions: 4-1/2"
Impedance: 3 ohm
Frequency Response: 67 - 21000 Hz
Sensitivity: 93 dB
Authorized Internet Dealer
1-year Manufacturer's Warranty

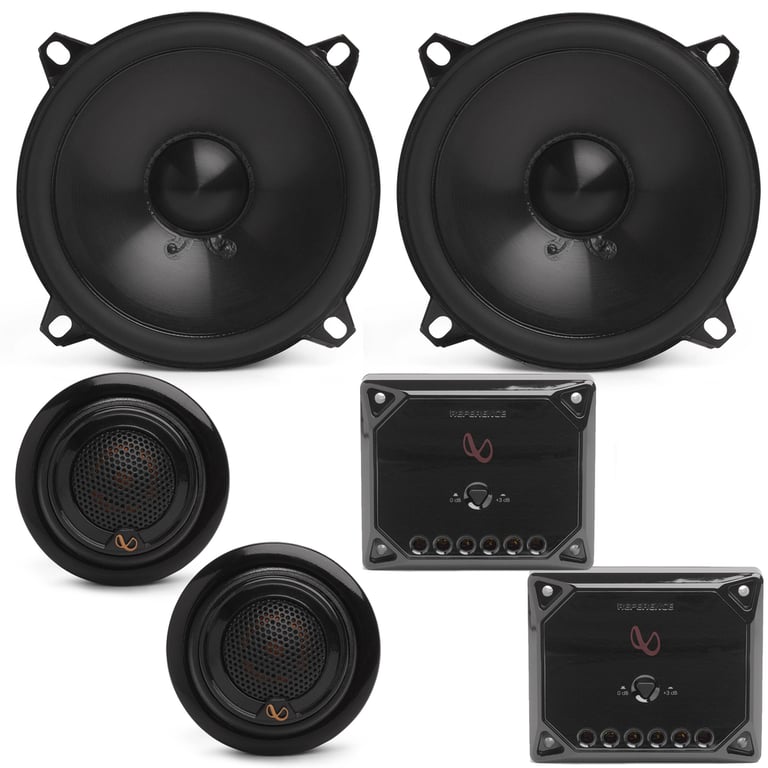

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Specifications & Details

Speaker Specifications

Series

Reference Series

Priced Per

Pair

Number of Speakers

2 Speakers + 2 Tweeters

Speaker Size

5-1/4"

Design

2-way Component System

Tweeter Design

Edge Driven Dome

Tweeter Size

3/4"

Tweeter Composition

Textile

Woofer Composition

Polypropylene

Woofer Surround

Rubber

Peak Power Handling

195 watts

RMS Power Handling

65 watts

Total PEAK Per Pair/Set

390 watts

Total RMS Per Pair/Set

130 watts

Sensitivity

93 dB

Frequency Response

67 - 21000 Hz

Impedance (Per Voice Coil)

3 ohm

Shallow Mount Installation

Top-Mount Depth (Mounting Depth)

1-15/16"

Cutout Dimensions

4-1/2"

CTA-2031 Compliant

General specifications

Marine Certified

Hi-Res Certified

Color

Black

Illumination

None

Speaker Grilles

Includes Damping Kit

without Damping Kit

Compatible vehicle types

Car/Truck/SUV/Van

What is in the box?

Paperwork

User manual

WITB: Speakers

Foam Gasket
Speakers (2)
Washers
Tweeters (2)
Tweeter flush mounts (2)
Tweeter surface mounts (2)

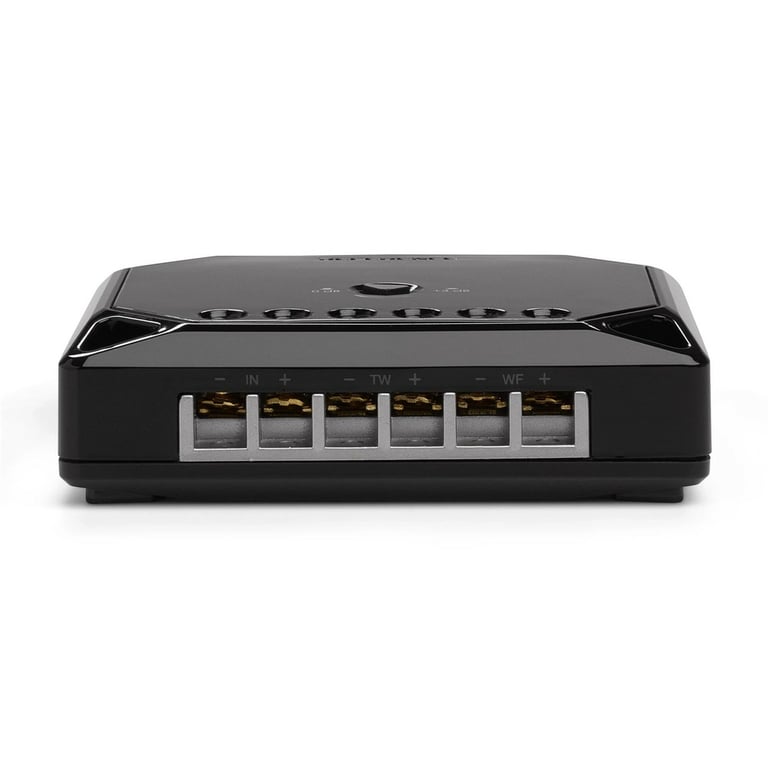

Crossover networks (2)
Mounting screws (8)
Mounting clips (8)
Adhesive brand badges

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
