See all parts that fit your 2004 Envoy XL

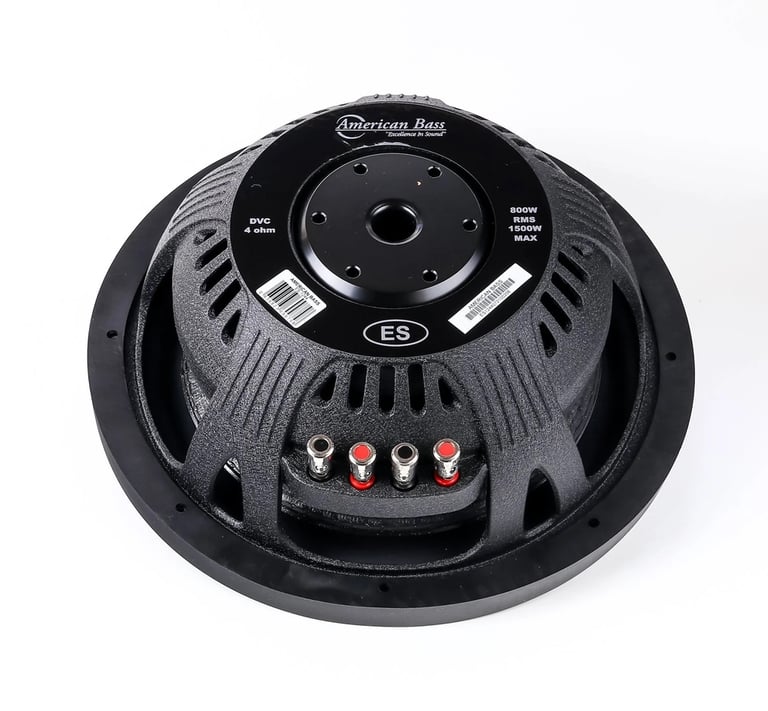

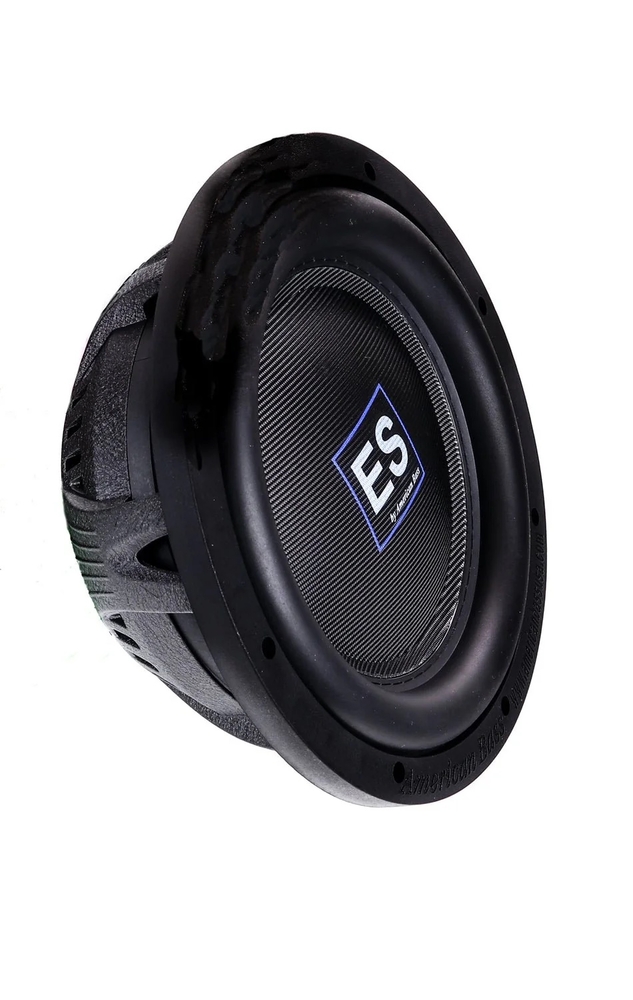

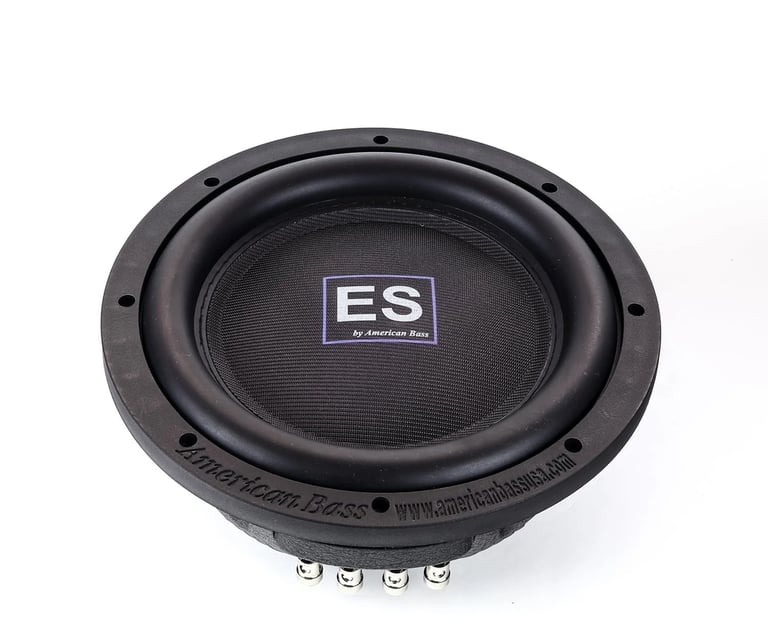

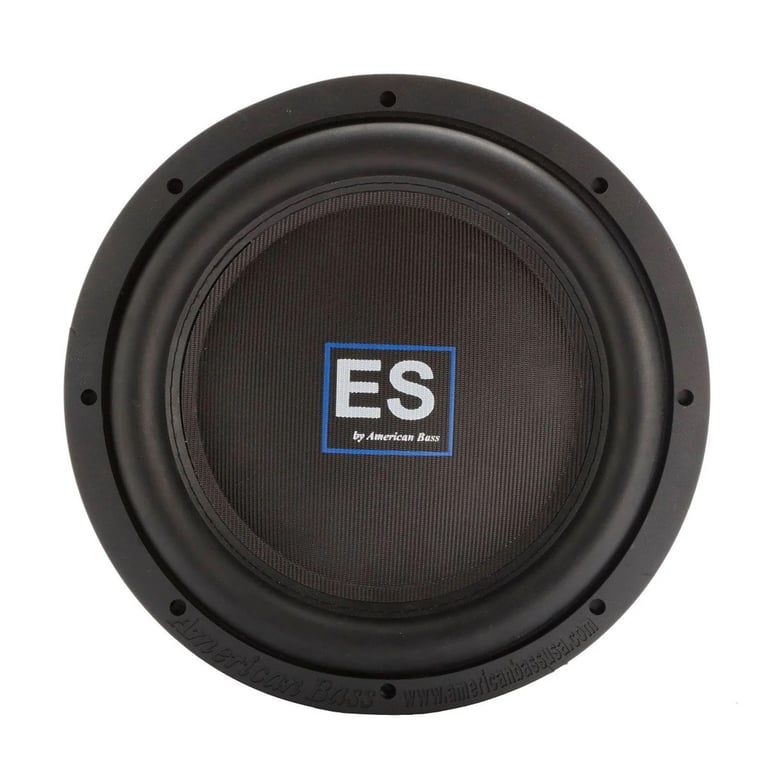

American Bass ES-1244 (Open Box, Great)

1500W Peak (800W RMS) 12" ES Series Dual 4-ohm Shallow Subwoofer

American Bass
Shop all American Bass
highlight-star-icon

• Peak Power: 1500 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Non-Pressed Paper Cone
• Rubber Surround
• Mount depth: 4.3"
• Sensitivity: 84 dB

Learn more about the ls-es12-u8

We apologize

This item has been discontinued

Description


American Bass brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.


American Bass ES-1244

Need some bass in your life, but don't have the space? Look no further than American Bass' ES Slim Subwoofer. At only 3.6" to 4.3" mounting depth, this woofer is as slim as they come but don't let its size fool you - packing a 2.5" DVC (Dual Voice Coil) sitting atop a 65oz Magnet and Fiberglass Reinforced Dust Cap, it can put out up to 1500 watts of powerful sound! The ES Subwoofer is available in 10" and 12" sizes so whatever your set-up needs, there's something here for you. Get more from less with an ES Slim Subwoofer from American Bass.


Product Details:

  • 12" Dual 4 ohm ES Series Subwoofer
  • Recommended amp: American Bass PH 2500 (sold separately)
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 800 watts
  • Non-Pressed Paper Cone
  • Rubber Surround
  • Fiberglass reinforced dust cap
  • PVC gasket ring construction
  • 2.5" Aluminum Voice coil
  • 65 oz. Double Stacked magnet motor structure
  • Frequency Response: 30 - 500 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Sensitivity: 84 dB
  • Recommended ported box volume: 0.75 cubic feet
  • Top-mount depth: 4.3"
  • Cutout diameter: 10.79"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconAmerican Bass ES12 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 American Bass ES-1244 (Open Box, Great) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 American Bass ES-1244 (Open Box, Great) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 American Bass ES-1244 (Open Box, Great) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 American Bass ES-1244 (Open Box, Great) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
ES Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.5"
Frequency Response
30 - 500 Hz
Sensitivity
84 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Magnet weight
65 oz.
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
0.75 cubic feet
Top-Mount Depth (Mounting Depth)
4.3"
Cutout Diameter
10.79"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ES-1244-2

Weight:

13.00lbs

Internal SKU:

ls-es12-u8

Internal Product ID:

217788
