NVX NPKG212 (Open Box, Good)

1000W MAX (500W RMS) Loaded Dual 12" Subwoofer with Slot Ported Enclosure and Monoblock Amplifier with Remote Bass Knob

NVX
Shop all NVX
Product videos
highlight-star-icon

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

Learn more about the ls-npkg212-u7

We apologize

This item has been discontinued

Product Highlights


• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

2-Way 6.5 Inch Coaxial Speakers
Woven Tinsel Leads 25 MM Tweeter Rubber Surround
Carbon Fiber Cone

Package Features:

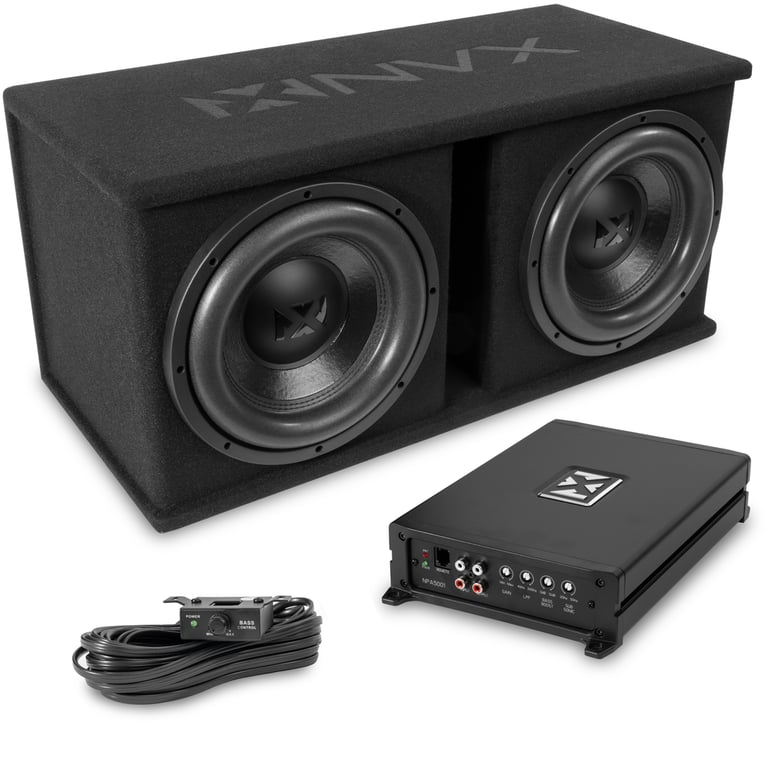

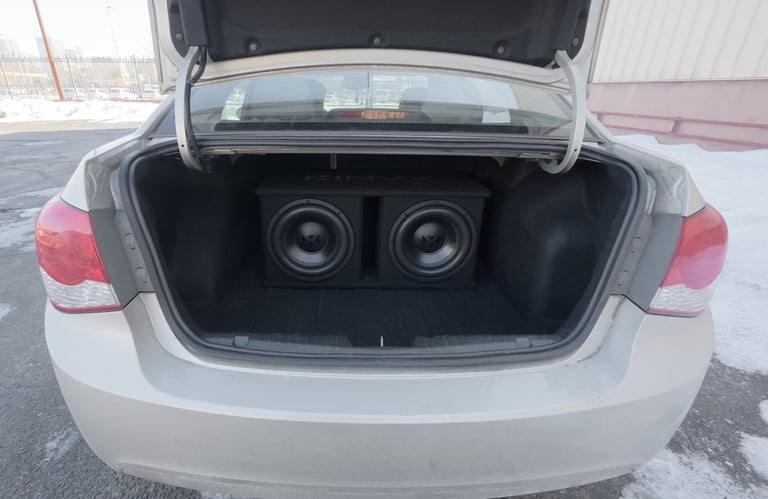

  • Dual 12" Ported Loaded Subwoofer Enclosure with Amplifier
  • 1000W Max (500W RMS) Class D Monoblock Amplifier
  • Includes Remote Bass Level Controller
  • Precision-engineered CNC Ported MDF Enclosure
  • Works with Both Factory and Aftermarket Audio Systems
  • 8 AWG Gauge Power and Ground Wiring is Recommended for Installation
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

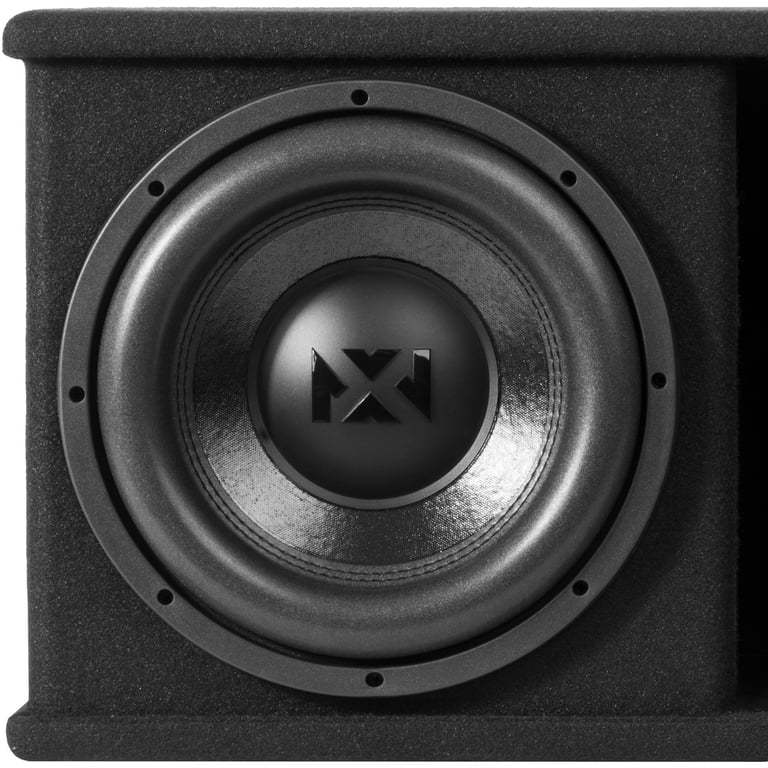

Subwoofer Features:

  • 12" Single Voice Coil 4-Ohm Subwoofers
  • Non-Pressed Paper Cone
  • High Roll Foam Surround with Black Stitching
  • 2.0" High Temperature Voice Coil
  • Ferrite Magnet Motor Structure
  • Frequency Response: 20 - 200 Hz
  • Sensitivity: 87 dB

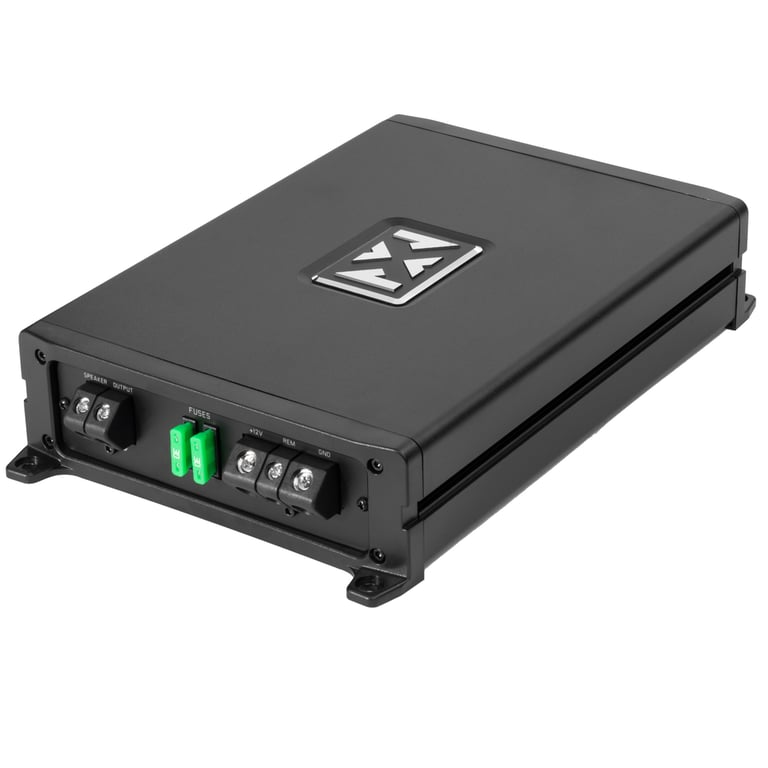

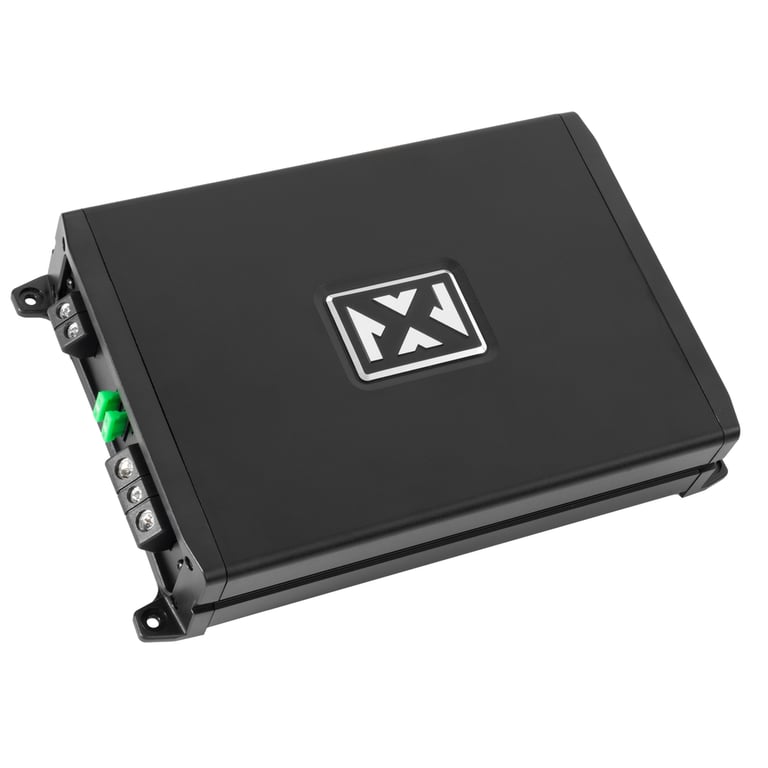

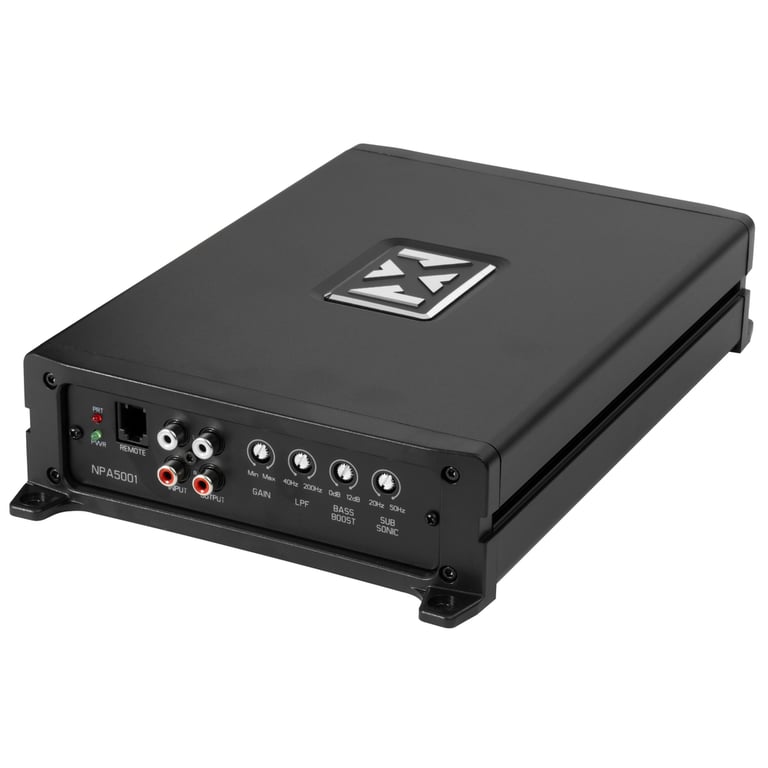

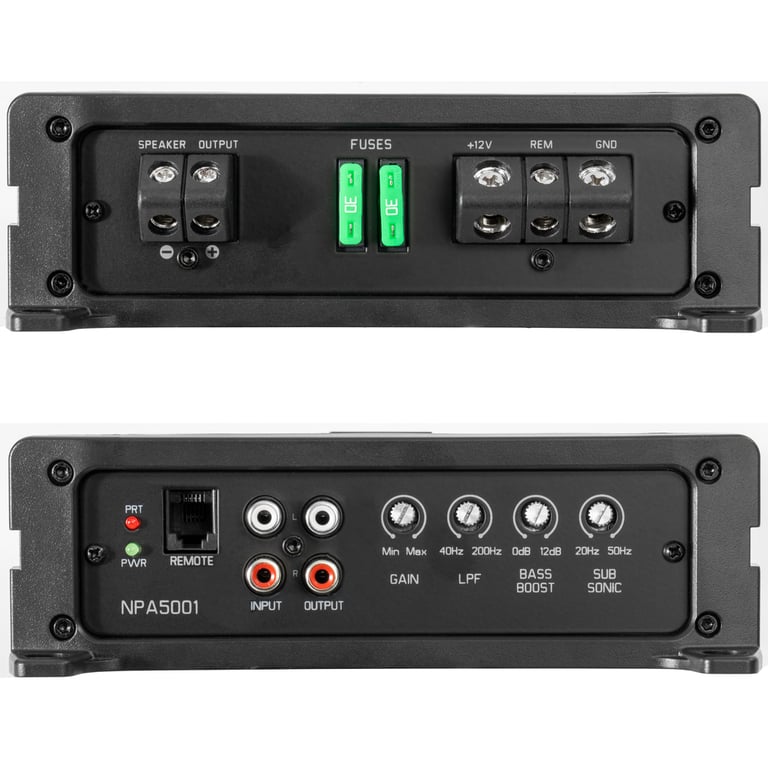

Amplifier Features:

  • Class D Monoblock Amplifier
  • RMS Power Rating:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Low-Pass Crossover Frequency: 40 - 200 Hz
  • Bass Boost: 0 - 12 dB
  • Subsonic Filter: 20 - 50 Hz
  • RCA Preamp Output: 1 pair
  • Input sensitivity: 100mV - 6 volts

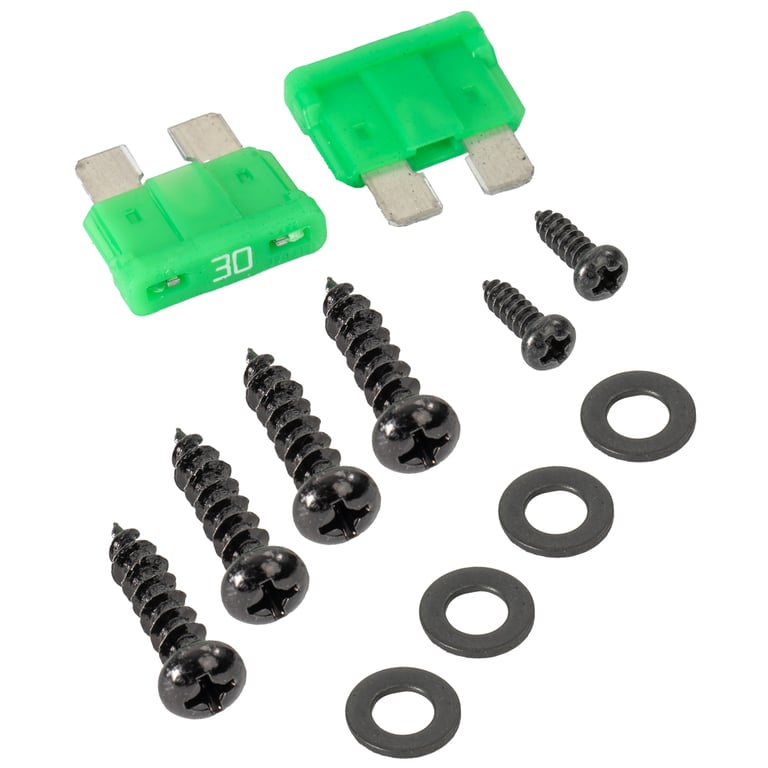

  • Fuse Rating: 40A x 2

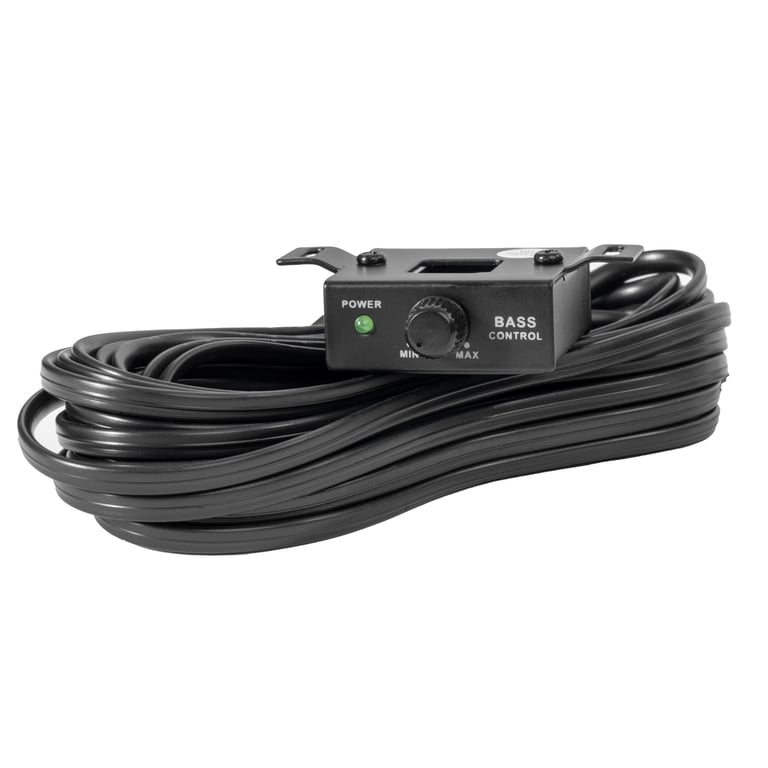

  • Includes Remote Bass Level Controller

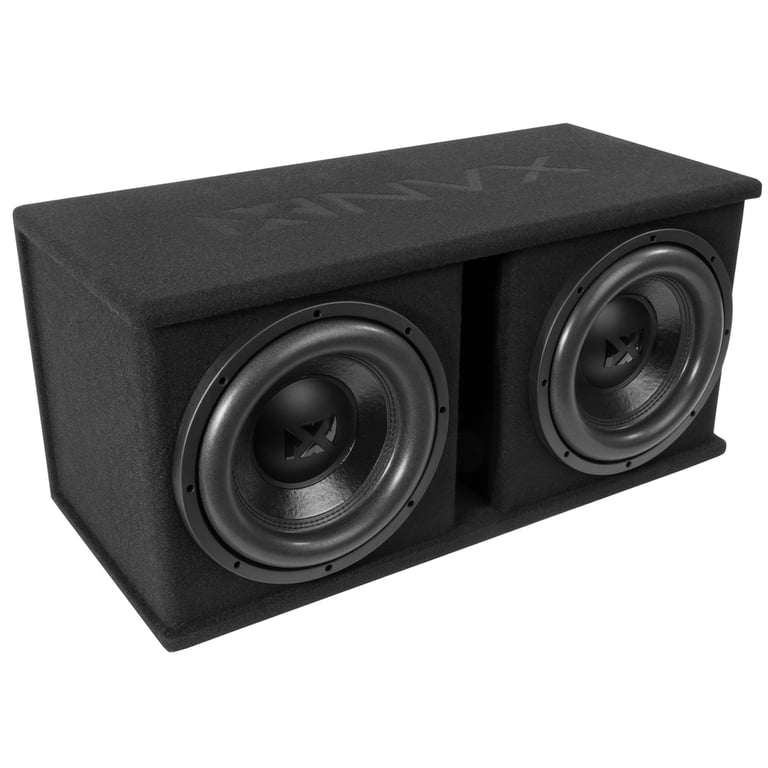

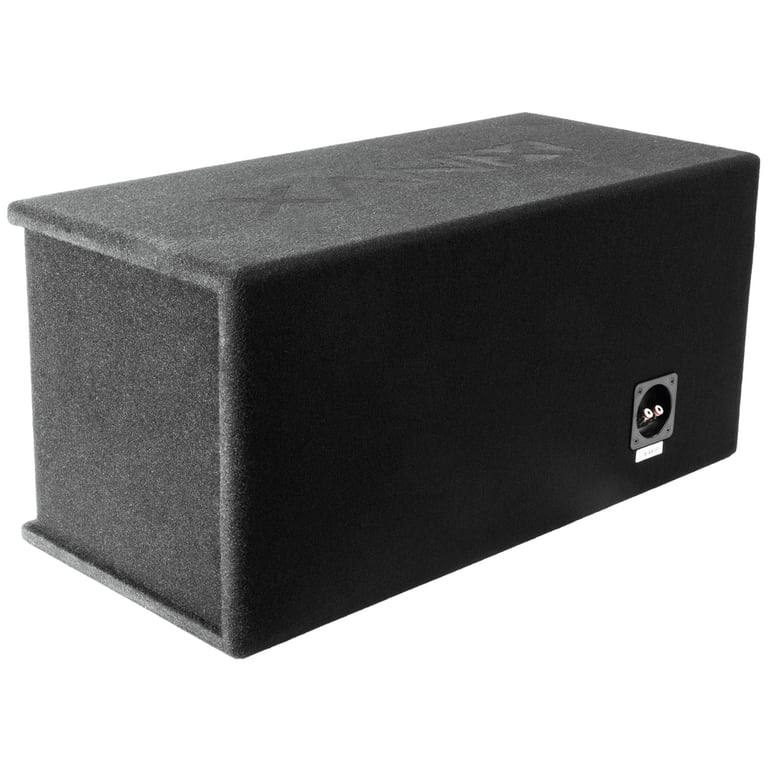

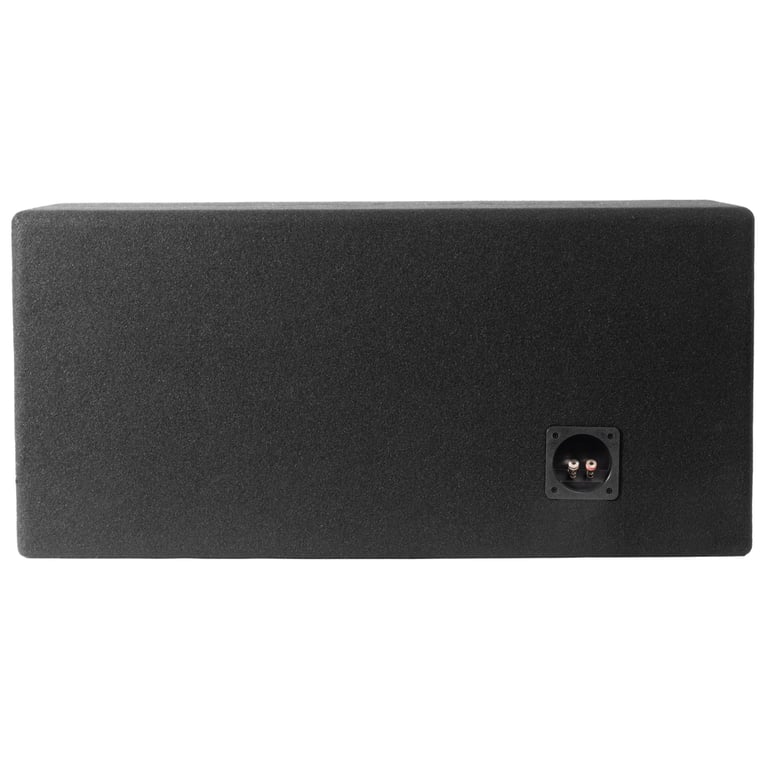

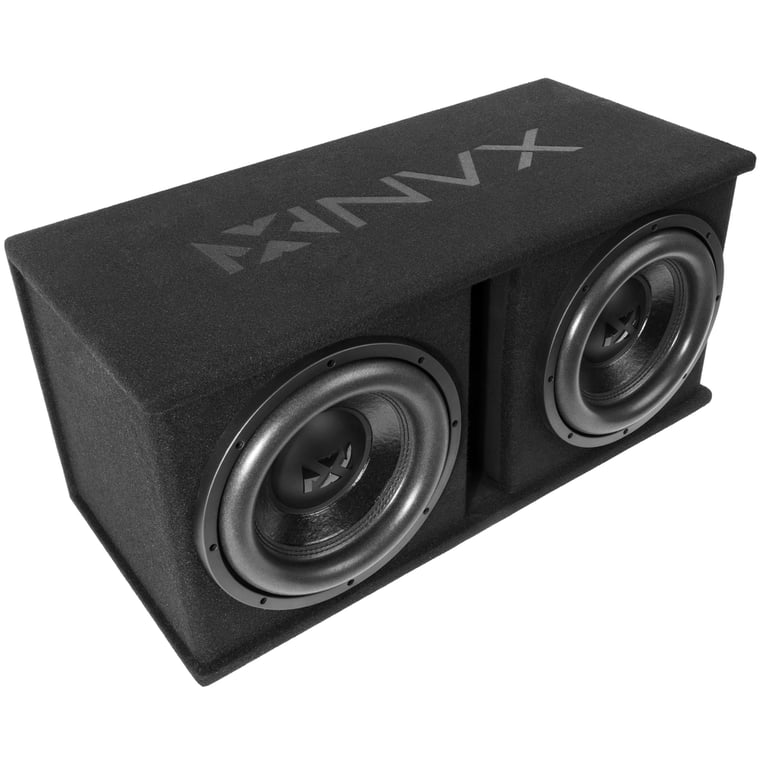

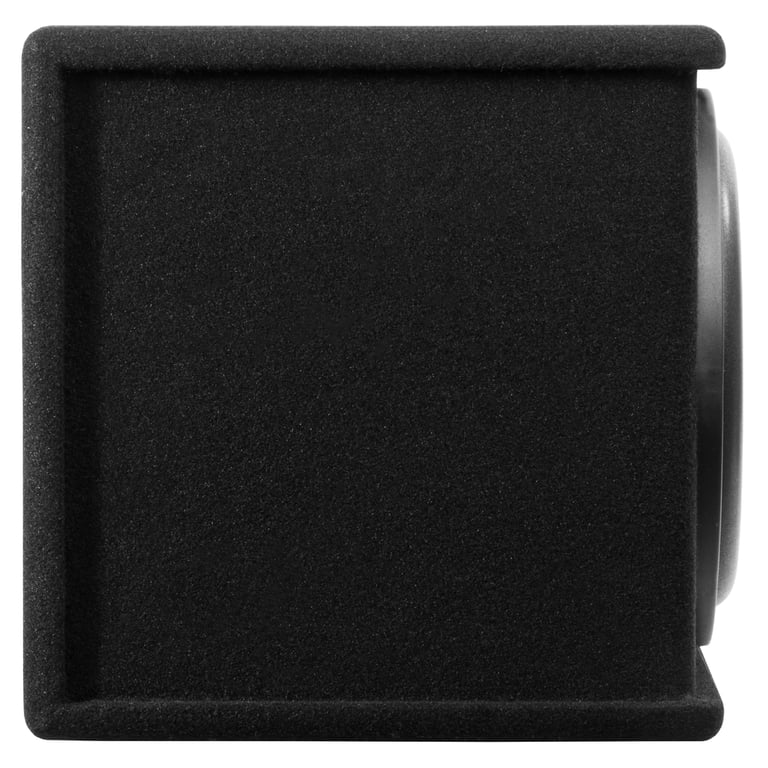

Enclosure Features:

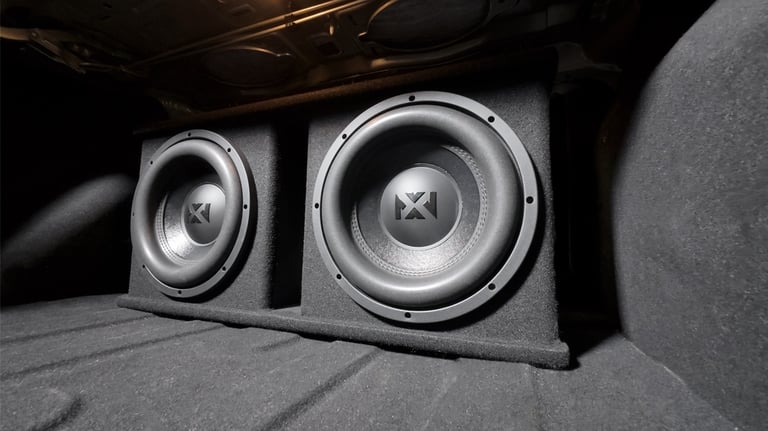

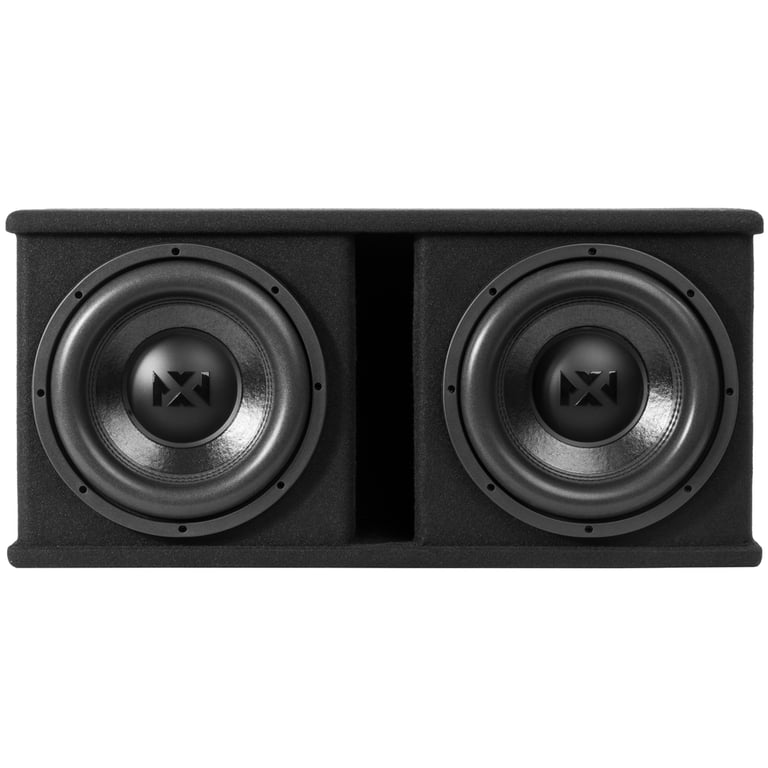

  • Preloaded Dual 12" Slot Ported Enclosure
  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Total Box Volume: 2.50 cubic feet
  • Tuning Frequency: 30 Hz
  • Black Carpet with Black NVX Stitched Logo

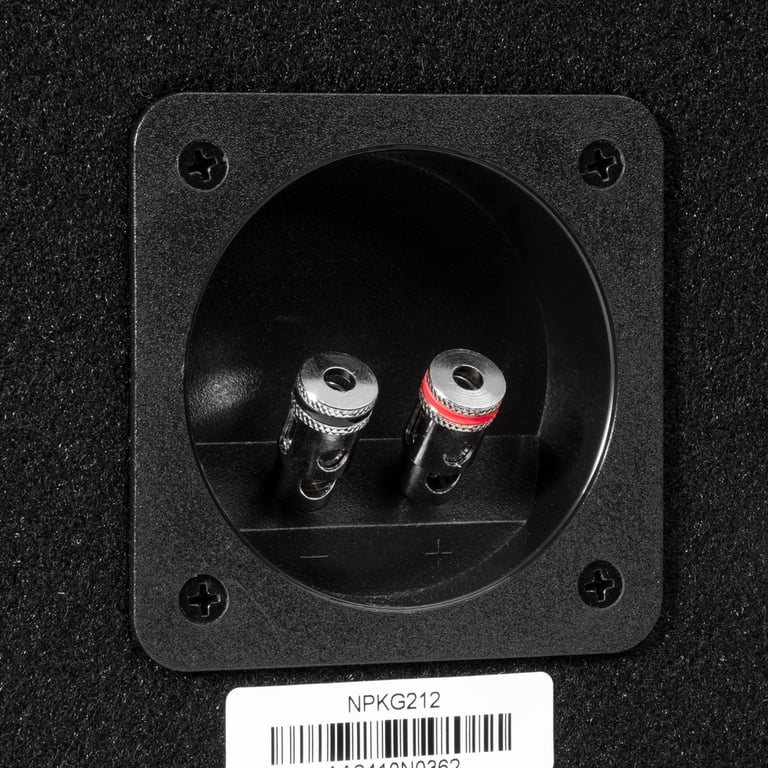

  • Spring Loaded Push Terminals
  • Final Impedance: 2-ohm
  • Enclosure Dimensions: 31.89" L x 14.57" W x 14.96" H

Specifications & Details


Series
Series
E-Series
Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
>1%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 200 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
98 dB
Low-Level Input Sensitivity
100mV - 6 volts
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
250 watts
Total RMS Power Handling
500 watts
Peak Power Handling
500 watts
Total Peak Power Handling
1000 watts
Woofer Surround
High Roll Foam
Woofer Composition
Non-Pressed Paper
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.0"
Magnet Type
Ferrite
Sensitivity
87 dB
Frequency Response
20 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Total Box Volume
2.50 cubic feet
Height
14.96"
Width
14.57"
Wood Thickness
3/4"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Carpet
Tuning Frequency
30 Hz
Final Wired Impedance
2-ohm
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

LS-npkg212-u7

Weight:

69.22lbs

Internal SKU:

ls-npkg212-u7

Internal Product ID:

214252
