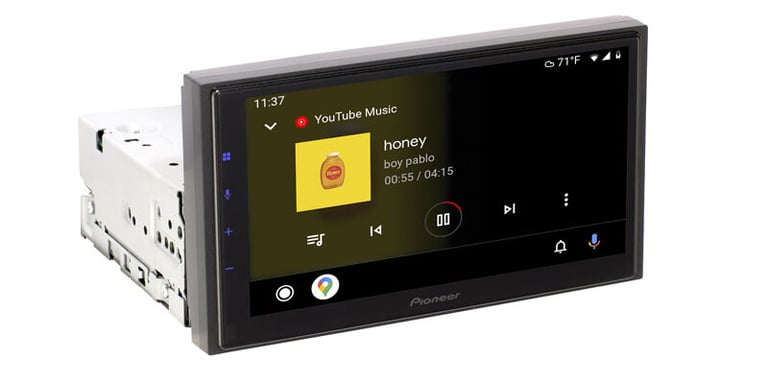

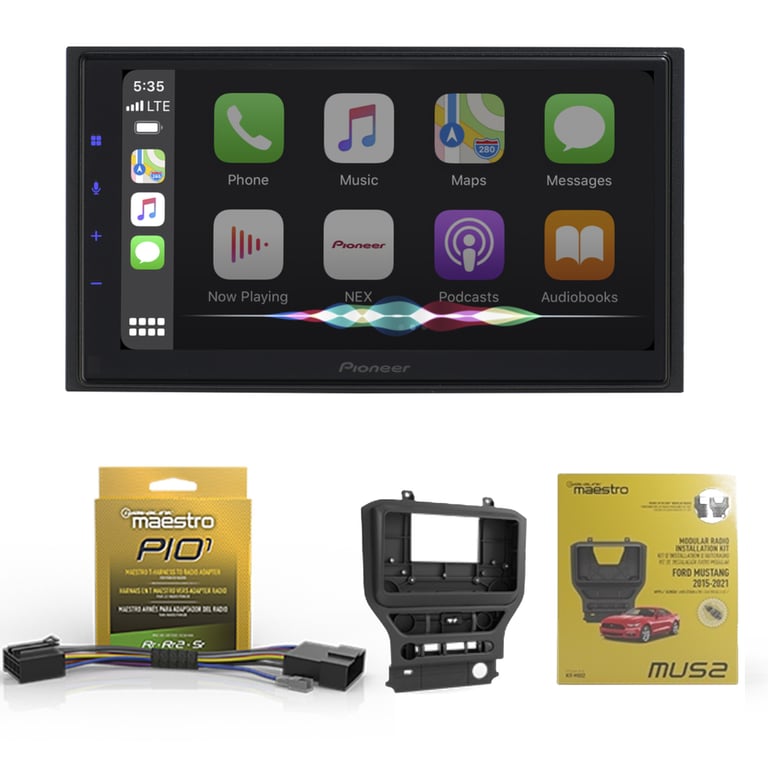

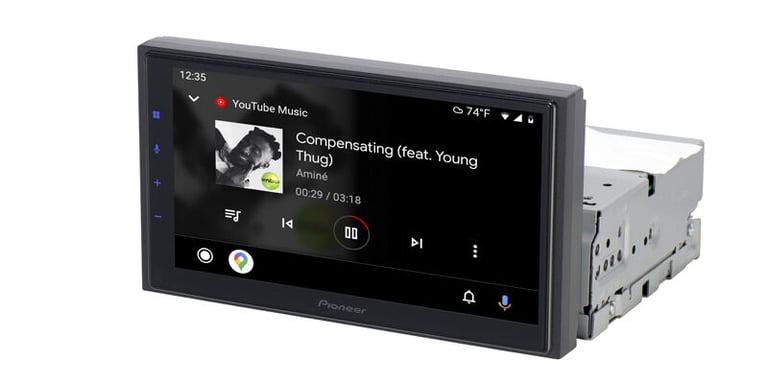

Pioneer DMH-WC5700NEX for 2015-2023 Ford Mustang

Product Details

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 14 watts x 4 channel

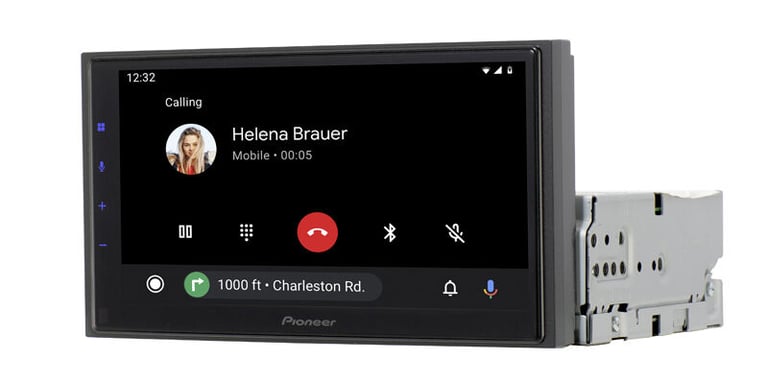

• Bluetooth hands-free calling and audio streaming
• Wireless remote control included
• Built-in HD Radio Tuner
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DMH-WC5700NEX

Smartphone Features

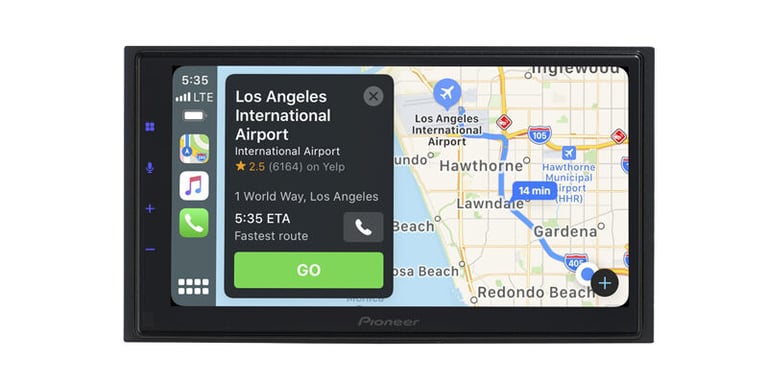

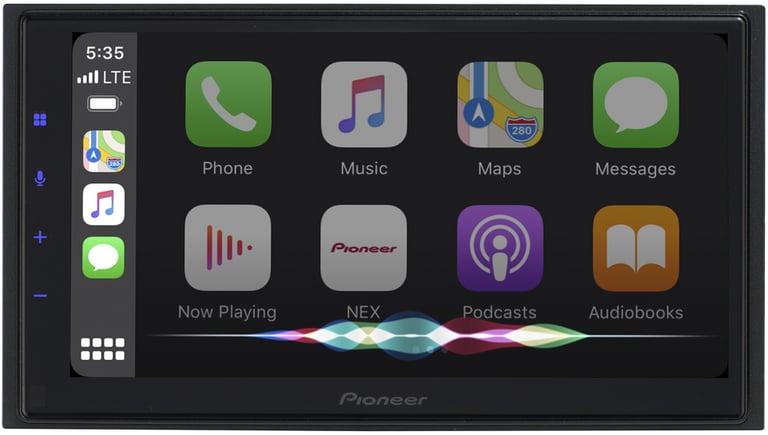

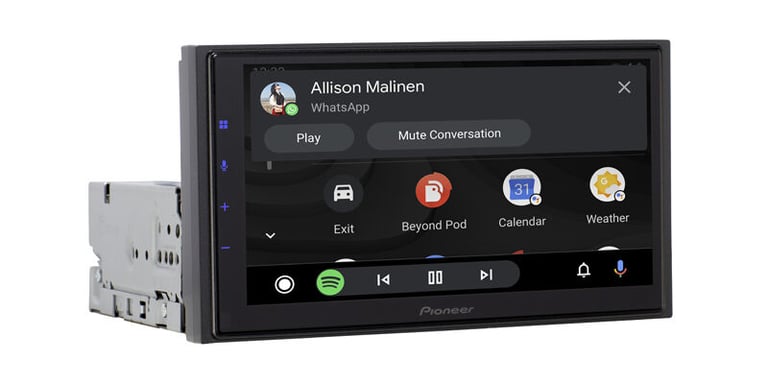

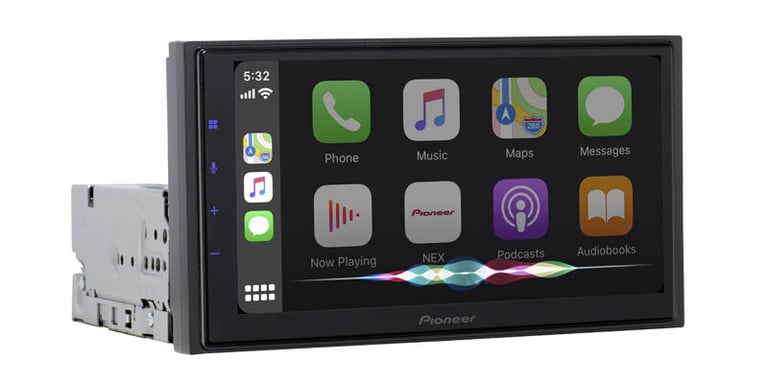

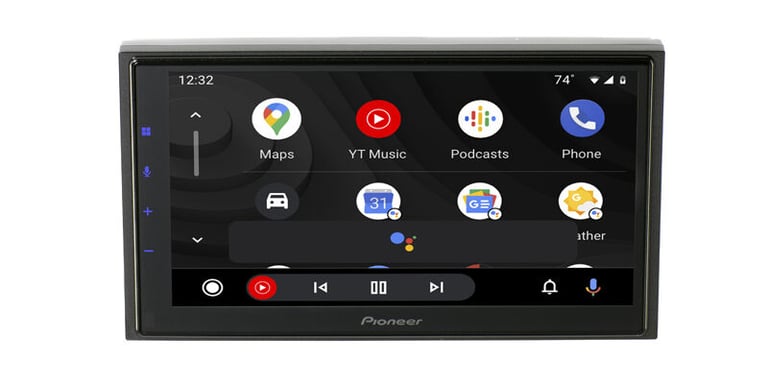

• Apple CarPlay and Android Auto compatible

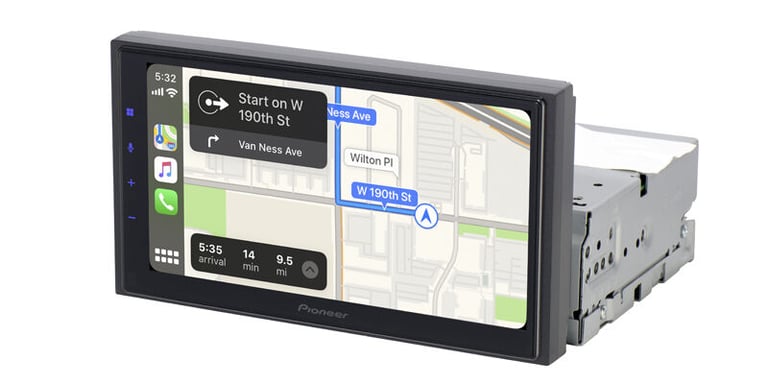

• Display and control music, navigation, and other apps with iPhone and Android

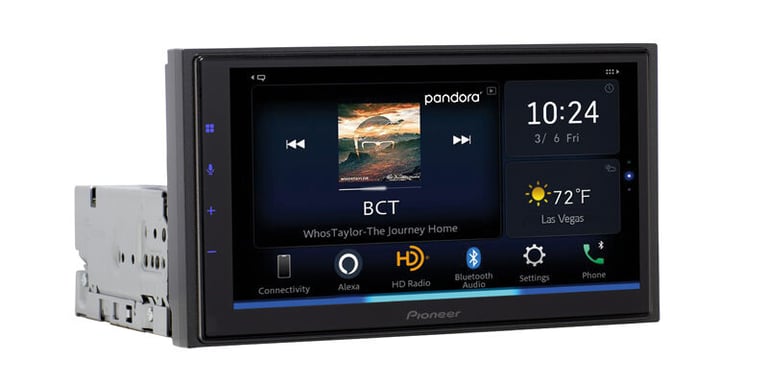

• Pandora and Spotify capable
• Built-in Amazon Alexa (with Wi-Fi connection)
• Siri Eyes Free control for select iPhones and Voice assistant button for Siri or Google Assistant
• CarAvAssist allows for customization of your receiver's home screen

Playback and Audio Features

• MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) | DSD (Hi-Res) Audio Playback
• AVI | MP4 | MPG | MOV and WMV Video Playback
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB-C Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Includes USB-C to USB-A adapter
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
• Rear HDMI input

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes external wired microphone for clear, convenient, distortion-free talking

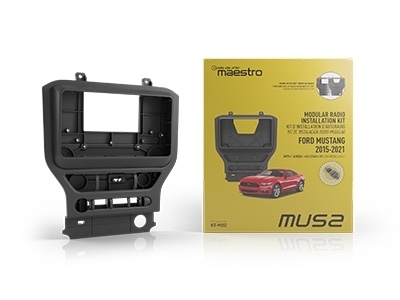

Product Details:

• Installation Dash Kit and Harness for iDataLink Maestro-compatible Double DIN Head Units
• Compatible with select 2015-2025 Mustang and Mustang GTD with 4.3" factory screens
• Designed to allow the installation of an aftermarket car stereo receiver
• iDataLink ADS-MRR or iDataLink ADS-MRR2 modules required (Sold separately)
• Features factory grade fit and finish
• High-grade ABS plastic construction
• Compatible Stereos:
• Pioneer DMH-WC6600NEX
• Pioneer DMH-WC5700NEX
• Pioneer DMH-C5500NEX
• Pioneer DMH-C2550NEX

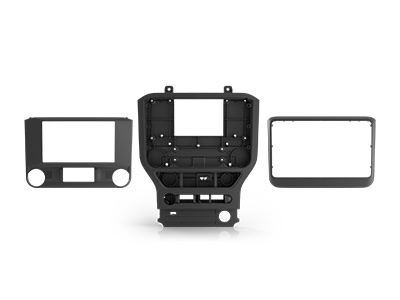

• Includes interchangeable panels
• Retains factory premium audio amplifier with turn-on, fader, gain adjustment, DSP and speed compensated volume
• Retains the steering wheel controls with two function buttons for expanded radio functions
• Retains the access and modification of factory vehicle settings
• Retains the secondary vehicle display (if equipped)
• Retains the backup camera, as well as 360-degree cameras, front and side cameras for stereos with multiple camera inputs
• Retains factory USB port
• Retains RAP and factory warning chimes
• Provides parking brake, reverse light and Vehicle Speed Sense (VSS) outputs)
• Color: Dark Gray
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

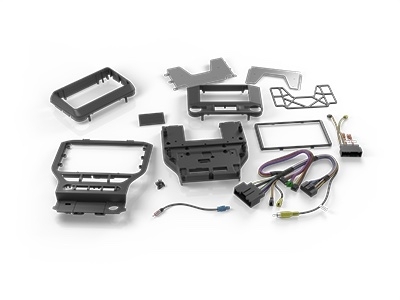

Kit Includes:

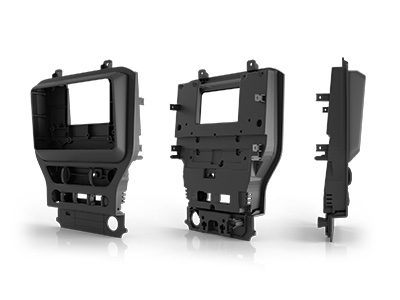

1. Monitor housing
2. Cover panel
3. 2 brackets (front and rear)
4. Trim ring
5. Trim panel
6. Antenna adapter
7. Vehicle harness
8. USB harness
9. OBDII harness
10. 6 machine screws
11. 6 long self-tapping screws
12. 12 short self-tapping screws
13. 4 speed clips
14. 2 washers
15. Cutout template
16. Quick start guide

Product Features:

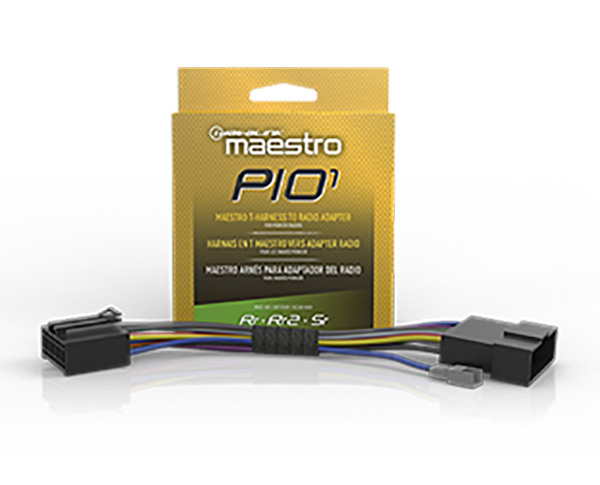

• Head unit adapter to connect select Pioneer stereos to compatible Maestro T-harnesses
• Connects directly to compatible T-harness without splicing or cutting wires
• Use with iDataLink ADS-MRR, iDataLink ADS-MRR2, or iDataLink ADS-MSR module to replace radio and retain steering wheel control (required and sold separately)
• Adapter will only work with the use of an iDataLink Maestro module and a compatible iDataLink Maestro T-harness
• Easy installation, plug-n-play connection
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
