Sundown Audio E12 v.4 D2 12" (E12V4D2) (Open Box, Good)

1500W Peak (750W RMS) 12" E Series Dual 2-ohm Car Subwoofer (SW-EV412D2)

Sundown Audio
Shop all Sundown Audio
highlight-star-icon

• Peak Power: 1500 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 6.50"
• Sensitivity: 85.7 dB

Learn more about the ls-ev412d2-u7

We apologize

This item has been discontinued

Description


Sundown Audio brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.


Sundown Audio E12 v.4 D2

The subwoofer showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.


Product Details:

  • 12" Dual 2 ohm E-Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Pressed Paper Cone
  • Pressed Foam Surround
  • Optimized for ported enclosures (sealed not recommended)
  • Vented magnetic gap and pole piece for superior cooling
  • High strength stamped steel frame added durability
  • High temperature 4-layer copper voice coil wire
  • High quality push terminals for easy installation

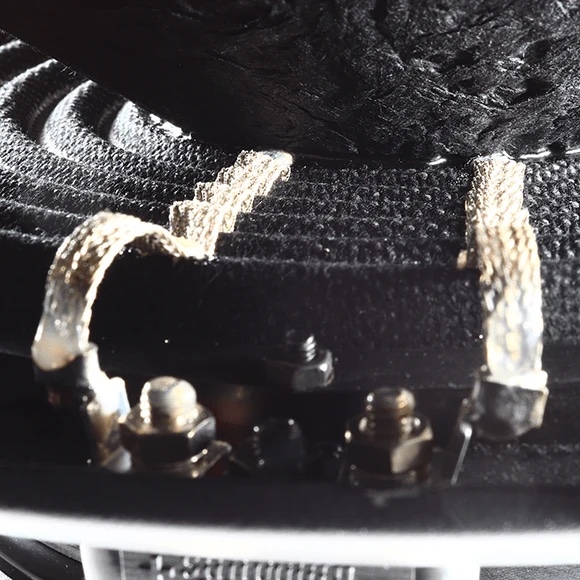

  • Stitched-on mini-XL tinsel leads
  • 2.5" High Temperature Copper Voice coil
  • 14 mm Xmax
  • Double Stacked magnet motor structure
  • Resonance Frequency (Fs): 28.480 Hz
  • Sensitivity: 85.7 dB
  • Recommended ported box volume: 1.75 cubic feet
  • Top-mount depth: 6.50"
  • Cutout diameter: 11.125"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sundown Audio E12 v.4 D2 12" (E12V4D2) (Open Box, Good) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sundown Audio E12 v.4 D2 12" (E12V4D2) (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sundown Audio E12 v.4 D2 12" (E12V4D2) (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Sundown Audio E12 v.4 D2 12" (E12V4D2) (Open Box, Good) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
E-Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Copper
Voice Coil Diameter
2.5"
Sensitivity
85.7 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Paper
Woofer Surround
Pressed Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
6.50"
Cutout Diameter
11.125"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28.480 Hz
Equivalent Compliance (Vas)
53.059 liters
Total Speaker Q Value (Qts)
0.464
Electrical Q Value (Qes)
0.509
Electrical Resistance of Voice Coil (Re)
4.030 ohm
Mechanical Q Value (Qms)
5.249
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV412D2

Weight:

20.20lbs

Internal SKU:

ls-ev412d2-u7

Internal Product ID:

230970
