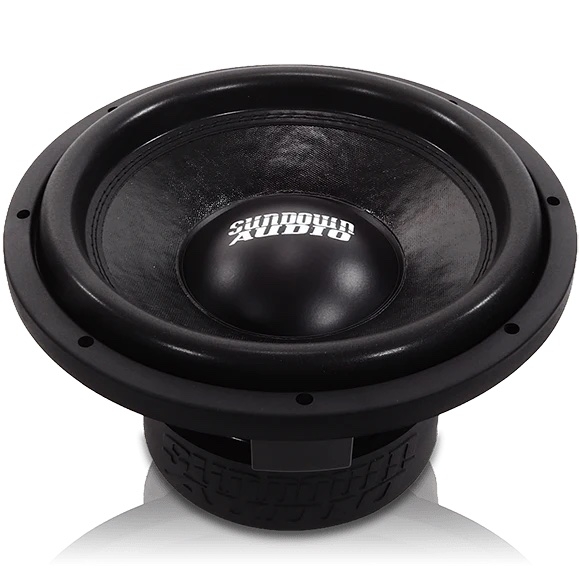

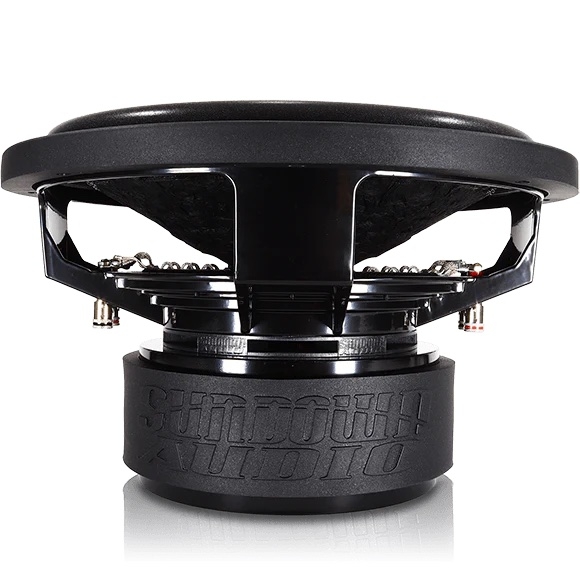

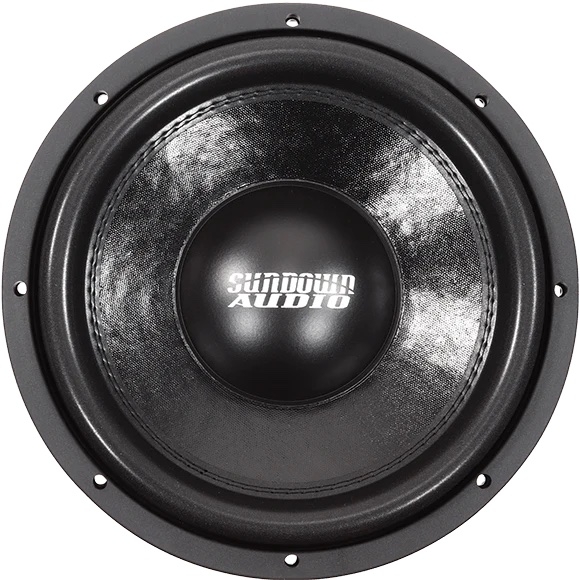

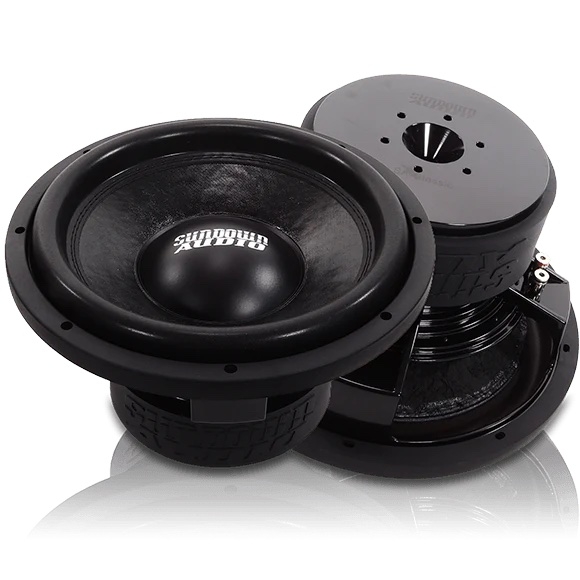

Sundown Audio SW-SACL12D4 (Open Box, Great)

750W RMS 12" SA Classic Series Dual 4-ohm Subwoofer

highlight-star-icon

• RMS Power: 750 watts
• Impedance: Dual 4 ohm
• Competition Grade Paper Cone
• Mount depth: 6.5"
• Sensitivity: 84.22 dB

Learn more about the sacl12d4_obg

We apologize

This item has been discontinued

Description


Sundown Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Sundown Audio SA-12 Classic D4 12" (SA12CLD4)

2000W Peak (1000W RMS) 12" SA Classic Series Dual 4-ohm Car Subwoofer (SW-SACL12D4)
Quantity: 1

Product Details:

  • 12" Dual 4 ohm SA Classic Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Competition Grade Paper Cone
  • Treated Foam Surround
  • Optimized for small ported, sealed, and band-pass enclosures
  • Large aluminum Faraday ring for smooth acoustic response
  • High strength cast aluminum frame
  • Low distortion motor construction
  • Spring-loaded terminals for easy connection

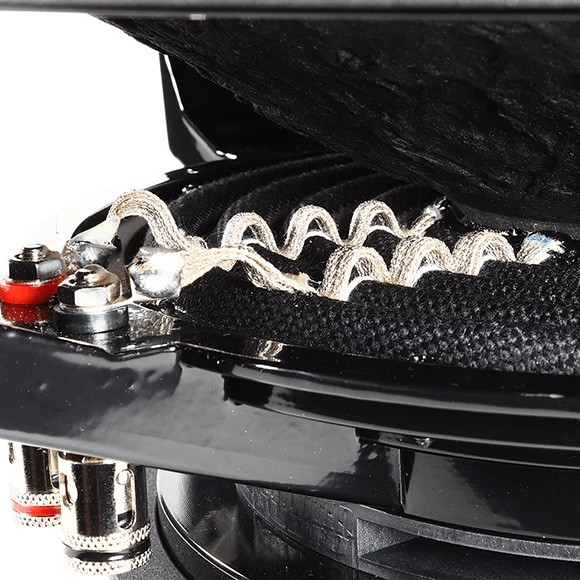

  • Stitched-on “XL” tinsel lead wires
  • 2.5" High Temperature Aluminum Voice coil
  • 19 mm Xmax

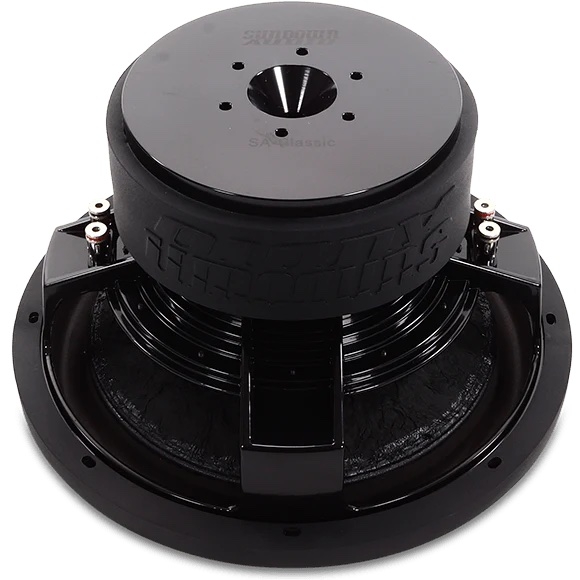

  • Double Stacked magnet motor structure
  • Resonance Frequency (Fs): 33.96 Hz
  • Sensitivity: 84.22 dB
  • Recommended sealed box volume: 1.0 cubic feet
  • Recommended ported box volume: 1.75 cubic feet
  • Top-mount depth: 6.5"
  • Cutout diameter: 11.125"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sundown Audio SW-SACL12D4 (Open Box, Great) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sundown Audio SW-SACL12D4 (Open Box, Great) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sundown Audio SW-SACL12D4 (Open Box, Great) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Sundown Audio SW-SACL12D4 (Open Box, Great) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
SA Classic Series
Subwoofer Size
12"
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.5"
Sensitivity
84.22 dB
Xmax (millimeters)
19 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Competition Grade Paper
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
6.5"
Cutout Diameter
11.125"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33.96 Hz
Equivalent Compliance (Vas)
24.63 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.55
Electrical Resistance of Voice Coil (Re)
7.07 ohm
Mechanical Q Value (Qms)
5.15
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SACL12D4_OBG

Weight:

58.00lbs

Internal SKU:

sacl12d4_obg

Internal Product ID:

224501

Customer Ratings & Reviews


Sundown Audio SW-SACL12D4 (Open Box, Great) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.7
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

The following review is for SW-SACL12D4, which is a part of the bundle you are viewing.
By Steven on June 20, 2025 Checkmark Icon Verified purchase

1 found this helpful


Great value on a great sub

The following review is for SW-SACL12D4, which is a part of the bundle you are viewing.

Sub arrived on time and looks and sounds great! Good price too!! I ordered two I only received one so far so hopefully the other shows up tomorrow and I'll really be able to see what they can do!

By Tyler on February 4, 2026 Checkmark Icon Verified purchase
2018 Hyundai Elantra


Great sub!

The following review is for SW-SACL12D4, which is a part of the bundle you are viewing.

This sub is amazing, sounds great when given enough power! Put this sub in a ported box tuned to 32hz, give it the right box and good amp and it’ll sound great!

By Angel on June 28, 2025 Checkmark Icon Verified purchase


Good value and sounds great.

The following review is for SW-SACL12D4, which is a part of the bundle you are viewing.

I bought a JL Audio W3 12” high output box and sub package and the JL sub blew within 2 minutes of use. Powered by an Audio Control 1.800 . No clipping and gain just barely reached 1/2. I know, I know, it was too much power. But really a $450 sub and has a paper/ plastic voice coil.
We bought this sub (Sundown SA Classic 12”) and it slams. We put it in the JL HO box and it fit. Just barely. I did have to sand the opening just a bit as the Sundown needed 1/10 of an inch bigger opening. At half the price of the the JL I learned my lesson. This sub with the AC 800 watt amp flexes the roof of the car pretty good. Sounds great. Tight clean bass.
