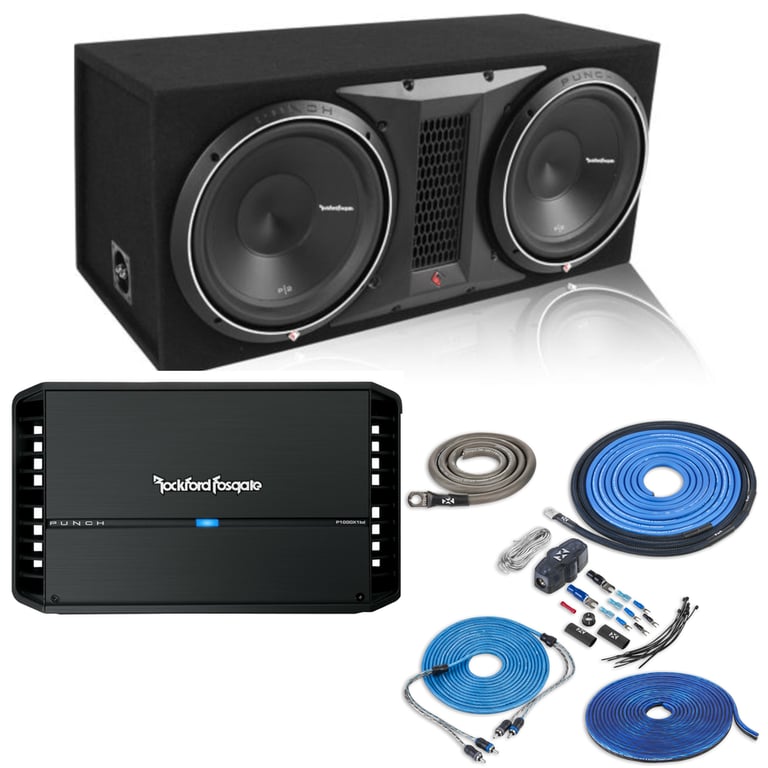

Rockford Fosgate Punch P2-2X12 with Amplifier and Amp Wiring Kit

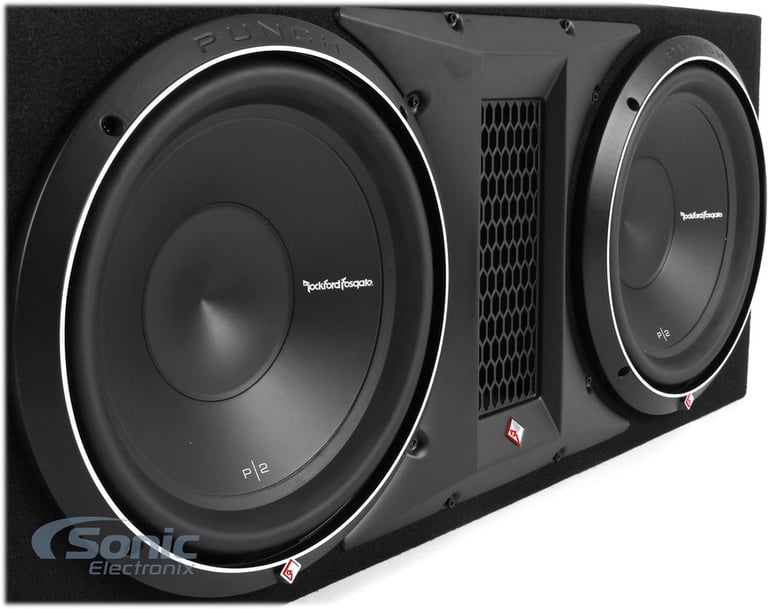

General Features:

• 12" Dual Punch Stage 2 Subwoofer
• Power Handling:
• Peak: 1600 watts total
• RMS: 800 watts total
• Recommended power range: 600 - 1000 watts RMS @ 1-ohm
• CEA-2031 Compliant
• Klippel Verified
• Flex-fit Mounting pattern
• Proprietary spider venting/cooling technique
• StampCast basket with integrated spider venting
• Sturdy 16 gauge compound bend frame geometry
• High modulus Kevlar re-inforced paper-pulp cone
• Semi-flexible, PVC removable protective motor cover
• Multi-point high-temp/high-strength neck joint bonding technique
• Tall-profile VAST Santoprene surround for larger surface area
• Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
• Fatigue resistant and reduced strain "stitched on" flexible lead wire design
• Proprietary all metal, radially oriented compression input terminal assembly
• Optimized motor magnetics with extended pole and bumped vented backplate
• High temp 2.25" voice coil w/ spun-laced Nomex insulating re-inforcement collar
• Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
• Stamped Mesh Grille Insert Available: Rockford Fosgate P2P3G-12
• Magnet Weight: 72.80 oz
• Frequency Response: 27.2 - 250 Hz
• Xmax: 13.3mm
• Sensitivity: 86 dB @ 1 watt / 1 meter
• Matching Amplifier: (two drivers)
• Rockford Fosgate R2-750X1, @ 1ohm
• Rockford Fosgate P1000X1BD, @ 1ohm
  ✔ Preferred Match
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

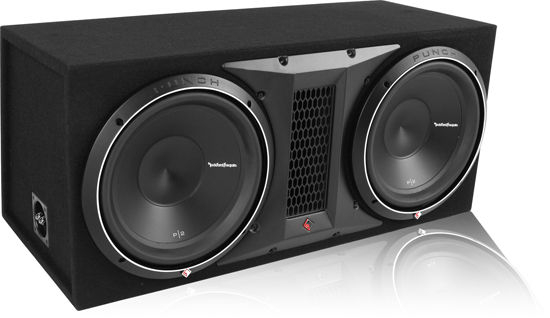

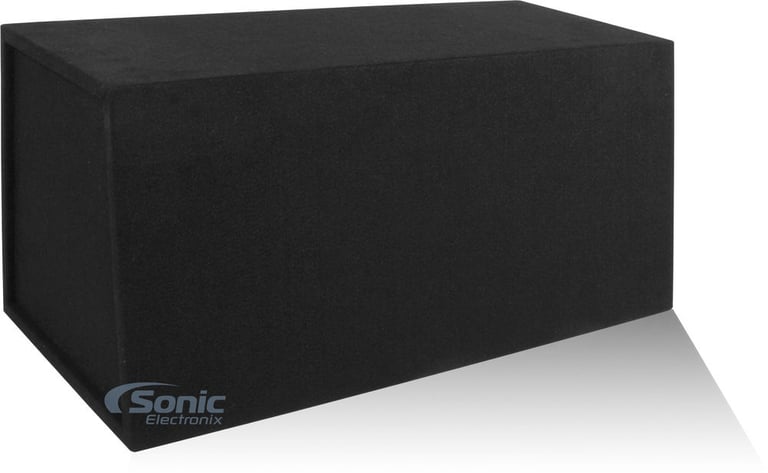

Enclosure Features:

• Dual 12" Loaded, Ported Box
• Solid 5/8" MDF Construction
• Front-firing tuned port

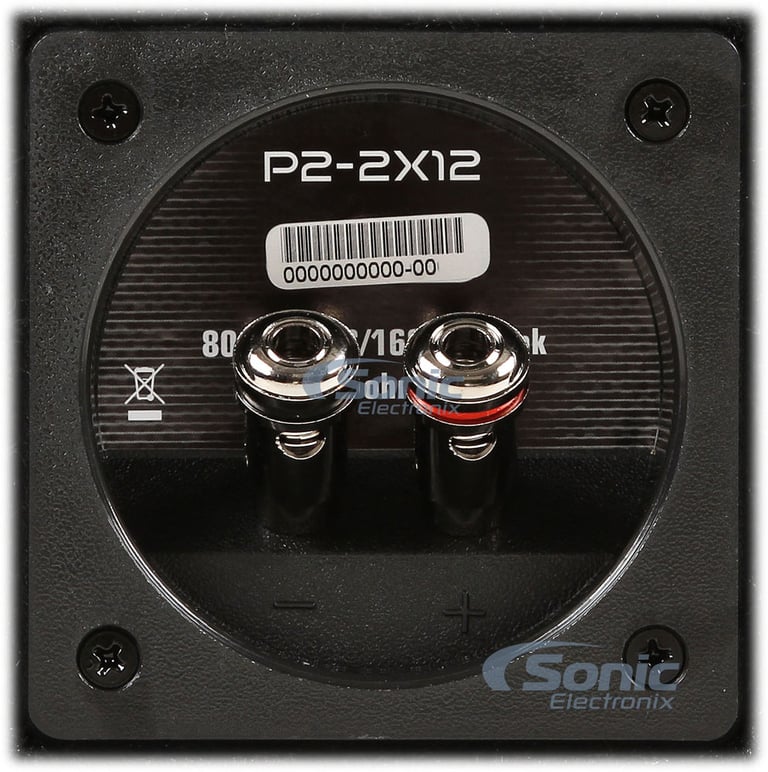

• Spring-loaded binding posts
• Complete with high-density black box carpeting
• Dimensions: 15-3/4"D x 33-7/8"W x 15-1/8"H

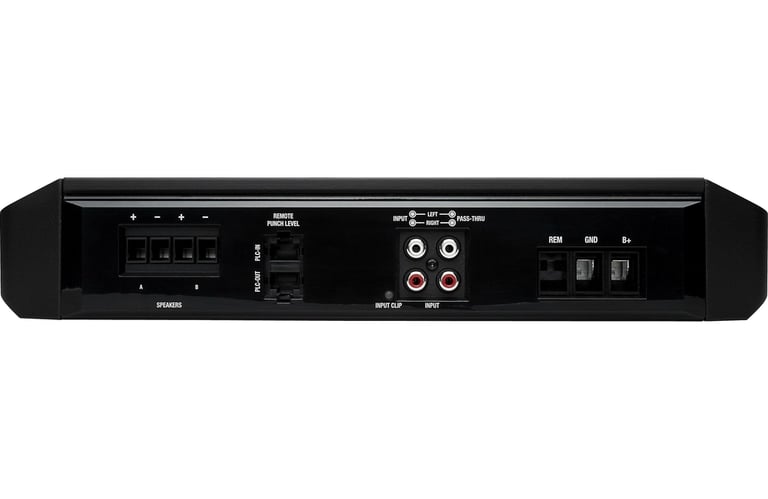

Product Details:

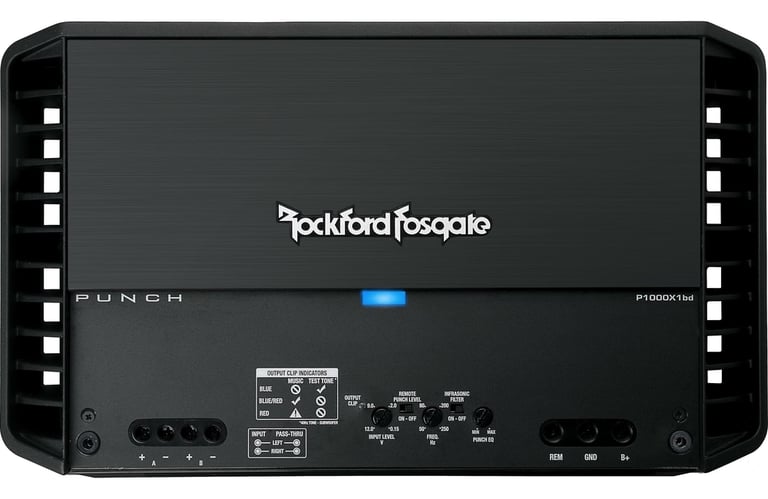

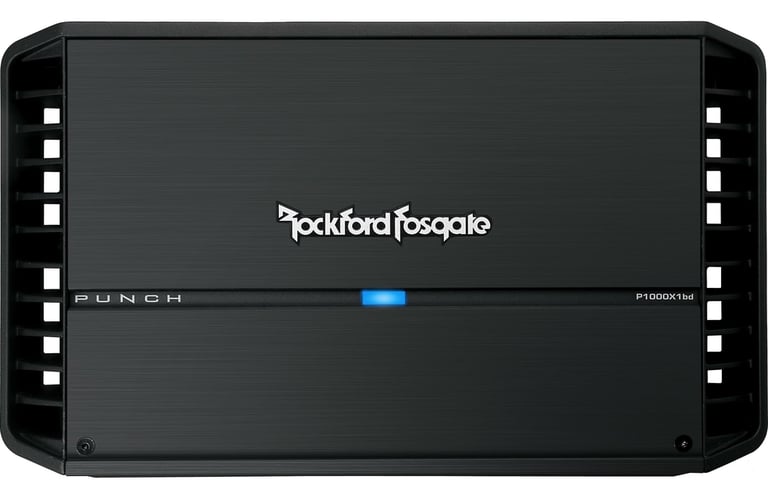

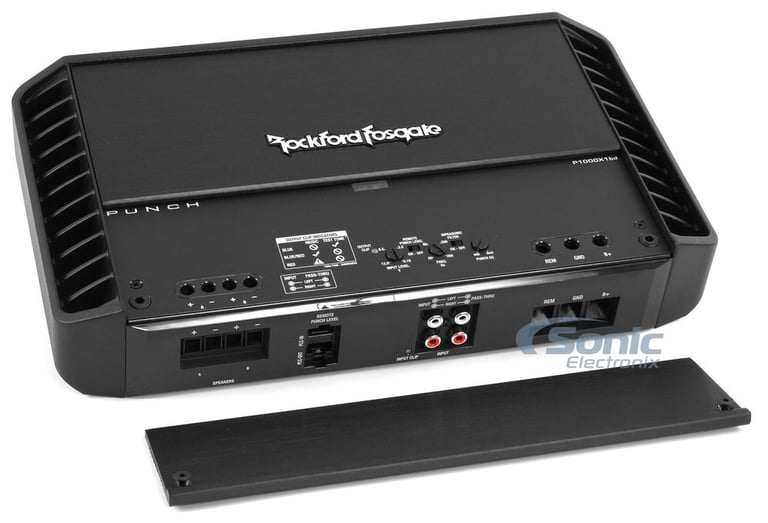

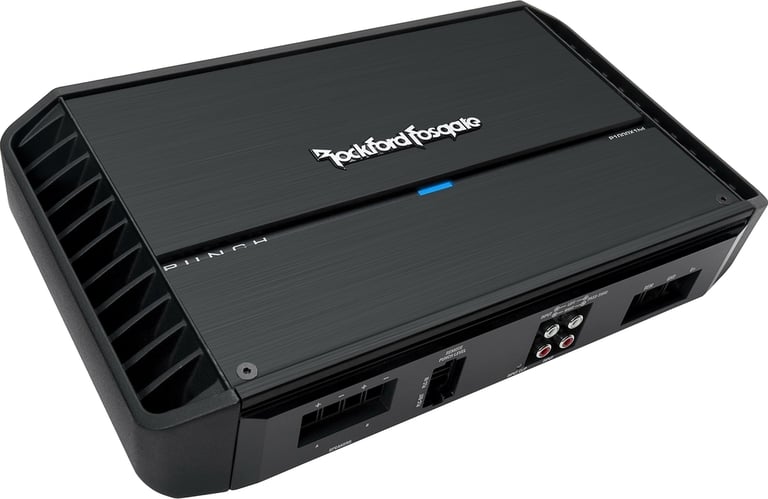

• Punch Series Class BD 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 300 watts x 1 channel
• 2 ohm: 500 watts x 1 channel
• 1 ohm: 1000 watts x 1 channel
• Total RMS power output: 1000 watts
• Power, protect, thermal, input, and output clip LED visual indicators
• Wired bass level remote control with optional Rockford Fosgate PLC2
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• 1 pair of pre-amp outputs
• Features C.L.E.A.N. Set-up
• RCA pass-thru outputs
• 12dB/octave Butterworth crossover
• High level input capable with Auto Turn-On circuit
• Short circuit and over current protection
• Cast aluminum heatsink
• Stealth top mounted control panel
• Muted turn on
• On-board Punch EQ with +18dB boost @ 45Hz
• CEA-2006 compliant
• Input sensitivity: 150mV - 12 volts
• Frequency Response: 20 - 250 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 80 dB
• Variable low-pass filter: 50 - 250 Hz
• Subsonic filter: Fixed at 28Hz @ 12dB/Octave
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 140A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.76" L x 13.28" W x 2.38" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: P1000X1BD

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

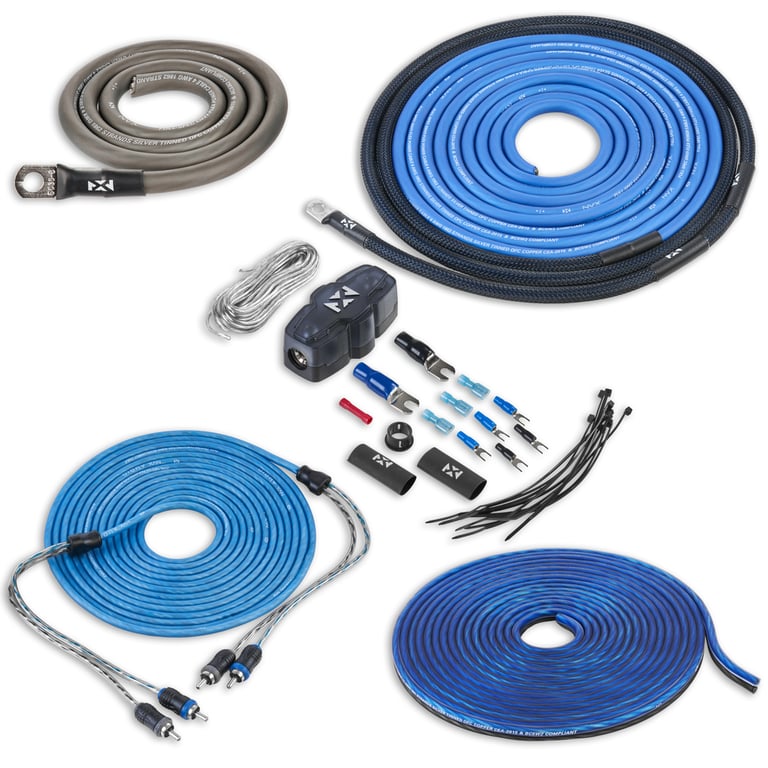

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

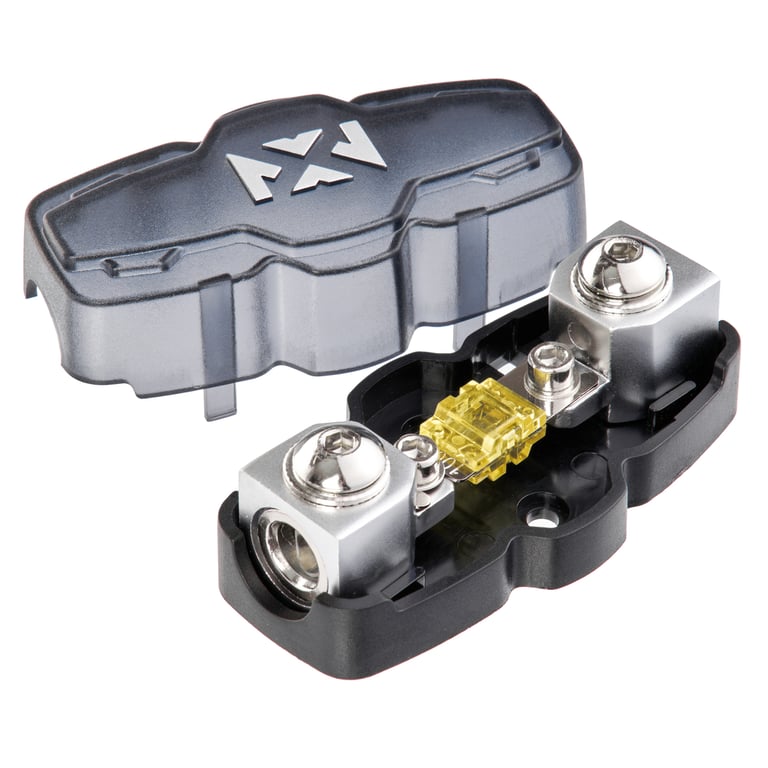

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
