Memphis SRXS1244V

600W Peak (300W RMS) 12" Street Reference Series Dual 4-ohm Shallow Subwoofer

Memphis
Shop all Memphis
highlight-star-icon

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.7"
• Sensitivity: 85.2 dB

Learn more about the srxs1244v

We apologize

This item has been discontinued

Description


Memphis brand icon

Authorized dealer

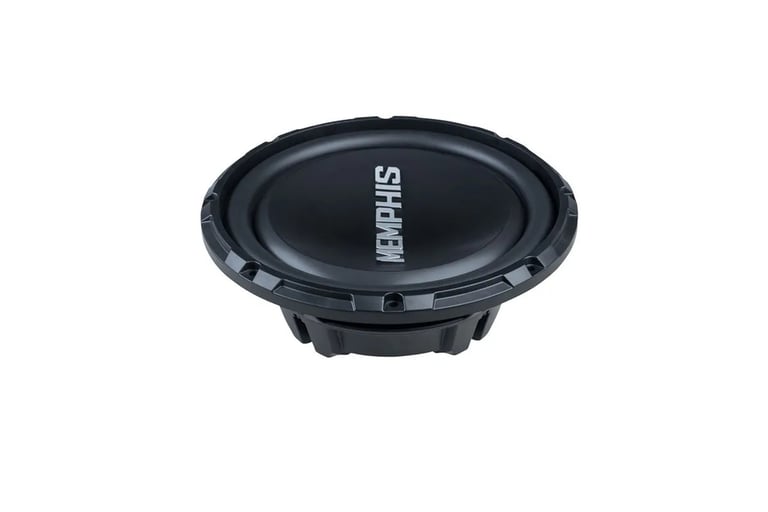

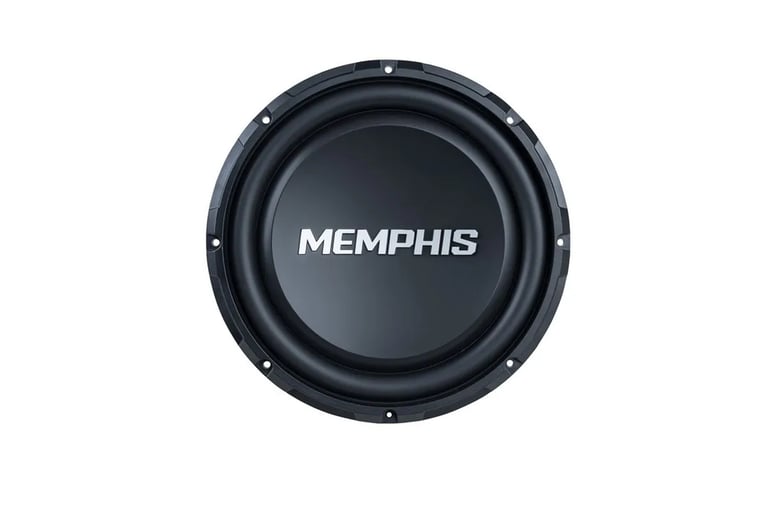

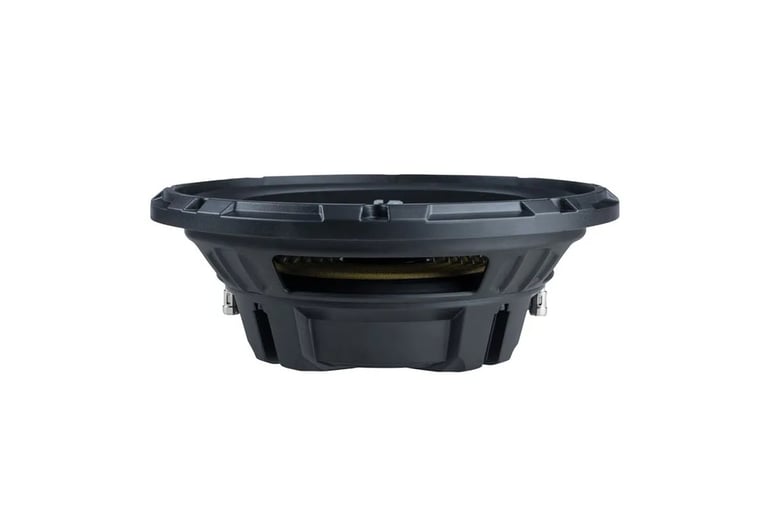

Memphis SRXS1244V

Street Reference Shallow Subwoofers are a budget-friendly yet high-performance solution for tight-space applications. With a mere 3.3″ for 10″ subs and 3.7″ for 12″ versions, these subwoofers effortlessly fit into compact areas, delivering robust bass in any vehicle. Engineered with a polypropylene cone, rubber surround, and anodized aluminum voice coil former, and designed for both sealed and ported enclosures, these subwoofers fit any application. Street Reference shallow subs are available in single or dual 4 ohm voice coil options and boast 300W RMS power. This sleek subwoofer ensures you get powerful bass without compromising your budget or space constraints.


Product Details:

  • 12" Dual 4 ohm Street Reference Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Polypropylene Cone
  • Rubber Surround
  • Progressive poly cotton spider
  • Optimized for sealed and ported enclosure

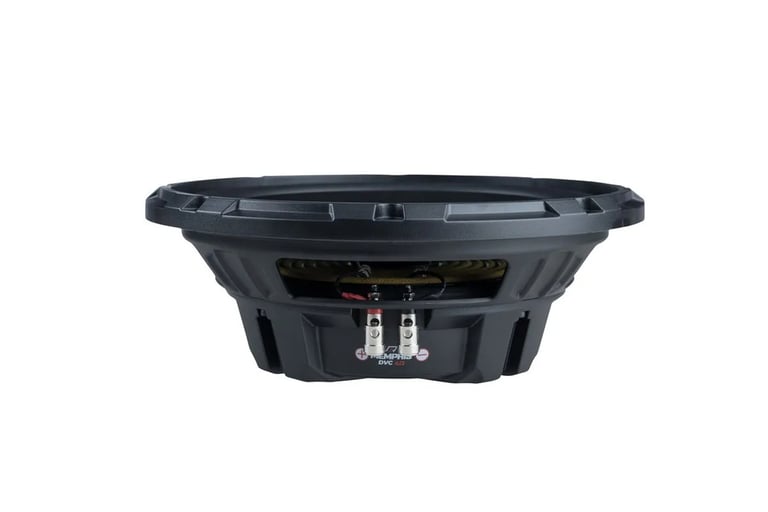

  • 12 AWG compression terminals
  • Stamped steel frame
  • High Temperature Aluminum Voice coil
  • Sensitivity: 85.2 dB
  • Recommended sealed box volume: 0.75 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 3.7"
  • Cutout diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Memphis SRXS1244V Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Memphis SRXS1244V Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Memphis SRXS1244V Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Memphis SRXS1244V Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Street Reference
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Sensitivity
85.2 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
3.7"
Cutout Diameter
11"
Shallow Mount Installation
Yes
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRXS1244V

Weight:

11.80lbs

Internal SKU:

srxs1244v

Internal Product ID:

208356
