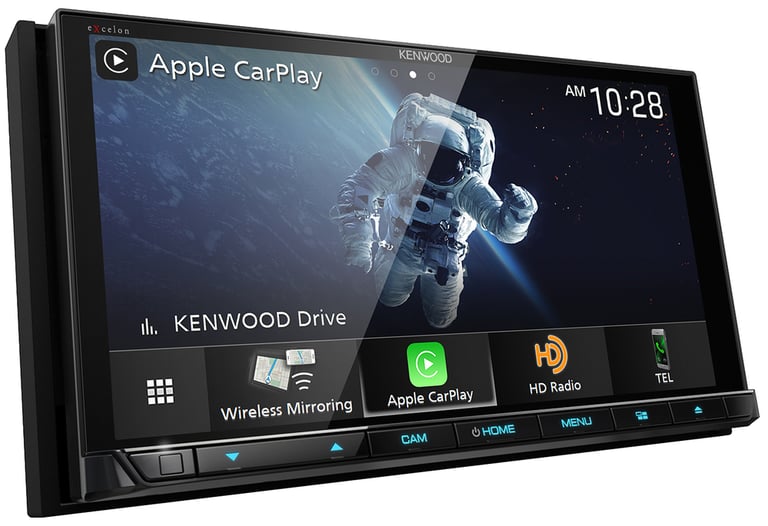

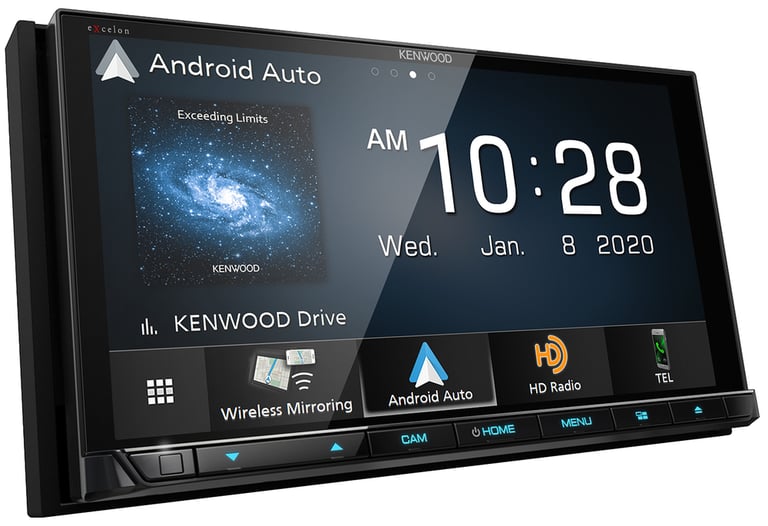

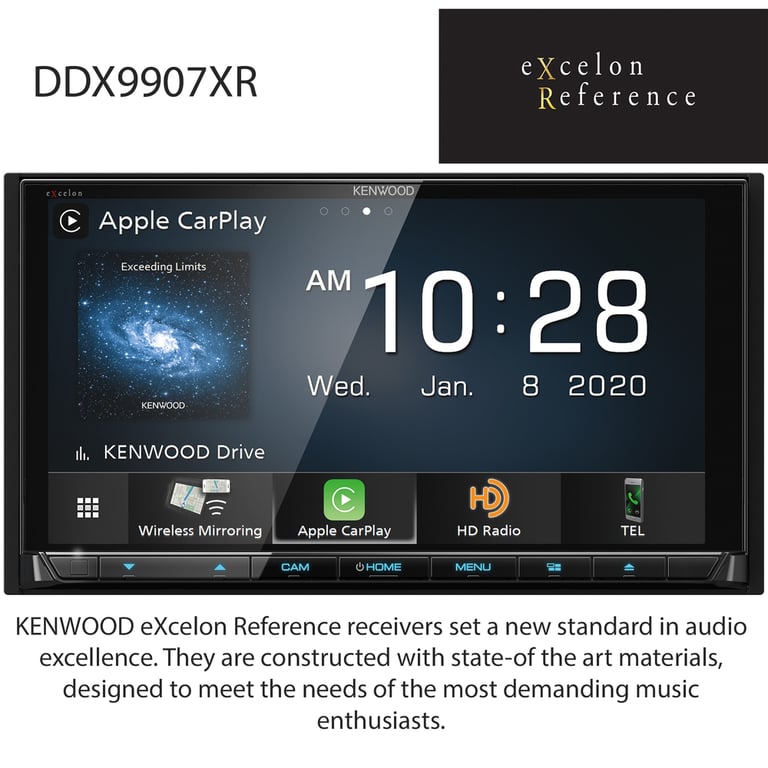

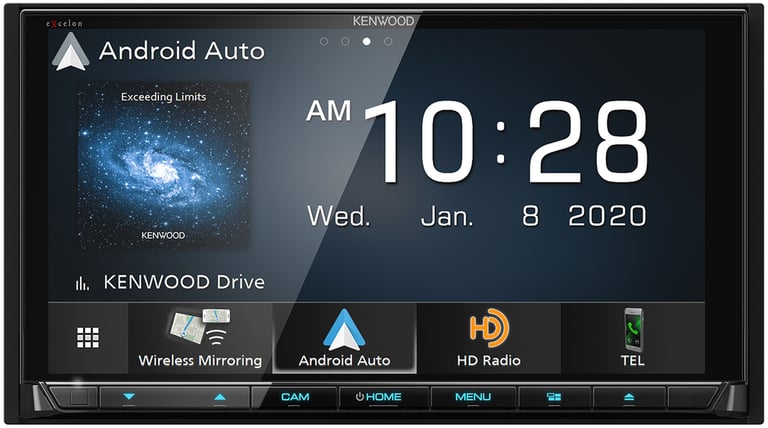

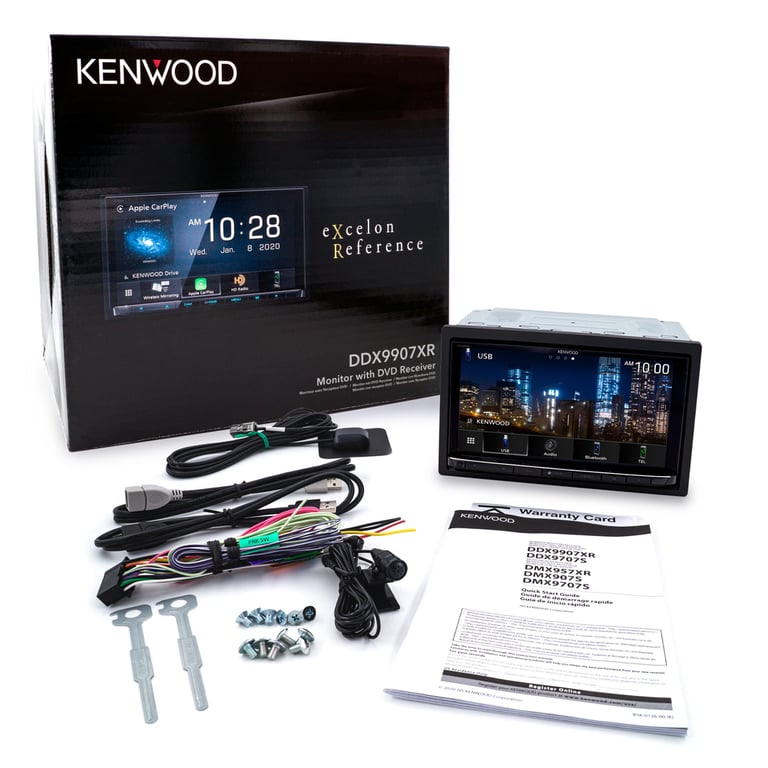

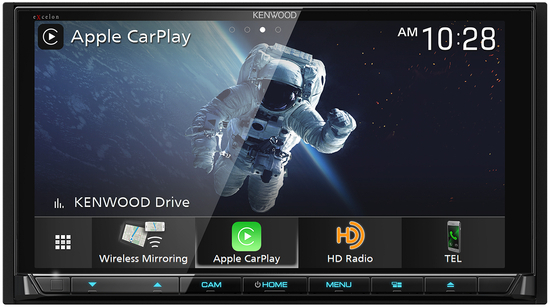

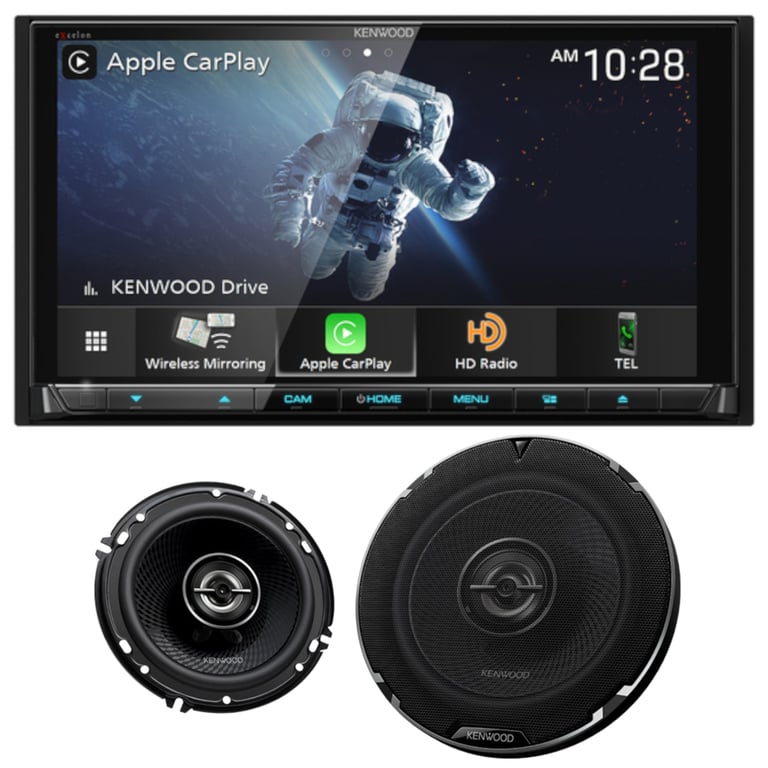

Kenwood eXcelon DDX9907XR with 6.5" KFC-1698RS

Product Details

• Double DIN In-Dash Bluetooth CD/DVD Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control Kenwood KNA-RCDV331 (sold separately)
• Built-in HD Radio tuner
• Wi-Fi connection certified
• Built-in LDAC
• High-definition touch panel
• Customizable multi widget
• High-Resolution wireless audio
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DDX9907XR

Smartphone Features

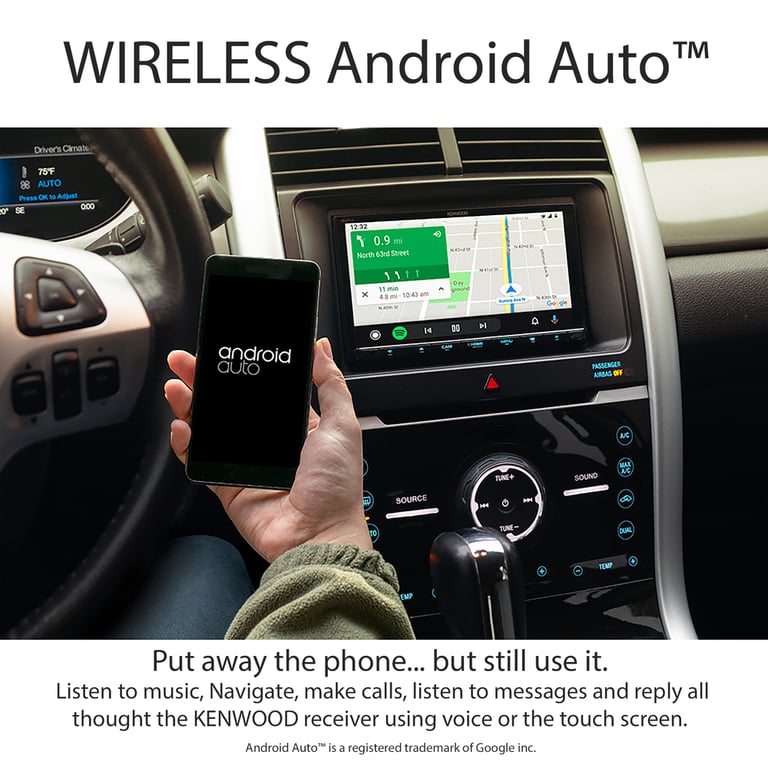

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, and other apps with iPhone and Android
• Pandora and Spotify capable
• Control the stereo using Kenwood's free Remote S app
• Siri Eyes Free control for select iPhones
• Wired phone-mirroring for select devices via USB

Playback and Audio Features

• CD | CD-R/RW | DVD±R/RW | MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MP4 | MPG | MOV and WMV Video Playback
• AM/FM tuner with 15FM/5AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with Digital Time Alignment
• DriveEQ boosts specific frequencies to compensate for road noise
• Subwoofer level, phase, and low-pass crossover controls
• Dual Phone Connection
• Music Mix up to 5 Bluetooth® devices can be paired to the receiver

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.
• 4 Camera Inputs for optional camera connection method for up to 4 cameras in various configurations
• HD Rear Camera (CMOS-740HD) can be connected for High Definition viewing
• Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen

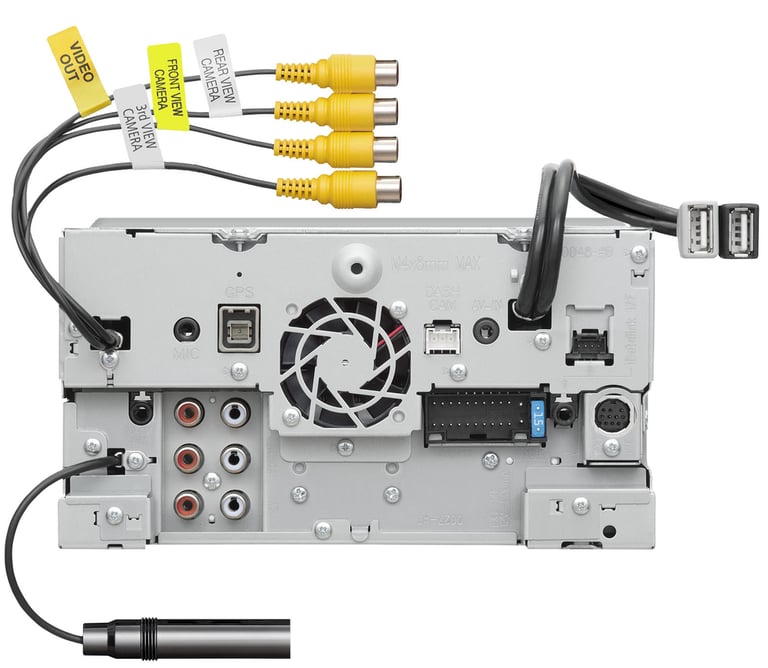

Audio/Video Inputs and Outputs

• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• 2 Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes external 10" wired microphone for clear, convenient, distortion-free talking

Kenwood DDX9907XR owner’s manual

Product Details:

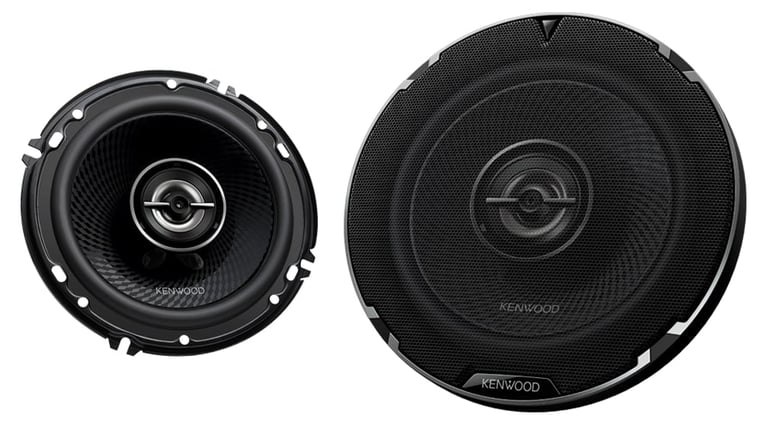

• 6-1/2" RS Series 2-way Coaxial Car Speakers
• Power Handling:
• Peak: 700 watts per pair / 350 watts each
• RMS: 200 watts per pair / 100 watts each
• Polypropylene cone material
• Rubber speaker surround
• 1" Balanced Dome Tweeters
• Ferrite magnet motor structure
• Diamond array pattern enhances sound and reduces distortion
• Acoustic sound harmonizer produces smooth, natural sound
• Sound field enhancer via unique shape of tweeter
• Tweeter height design allows speakers to easily fit in most factory locations
• Steel-made black painted yoke and plate for efficient heat release
• Optimized woofer damper shape for smoother sound response
• Steel-made basket material for added durability
• Top-mount Depth: 1-7/8"
• Cutout Dimensions: 4-7/8"
• Impedance: 4 ohm
• Frequency Response: 76 - 18000 Hz
• Sensitivity: 88 dB
• Speaker Grilles Included
• Authorized Internet Dealer
• MFR #: KFC-1698RS
• 1-year Manufacturer's Warranty



Priced Per Pair
