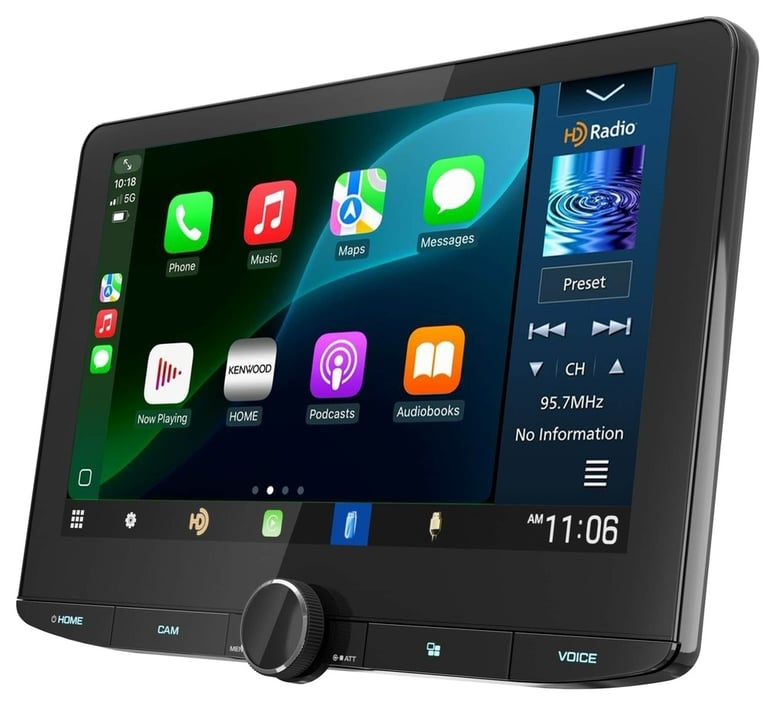

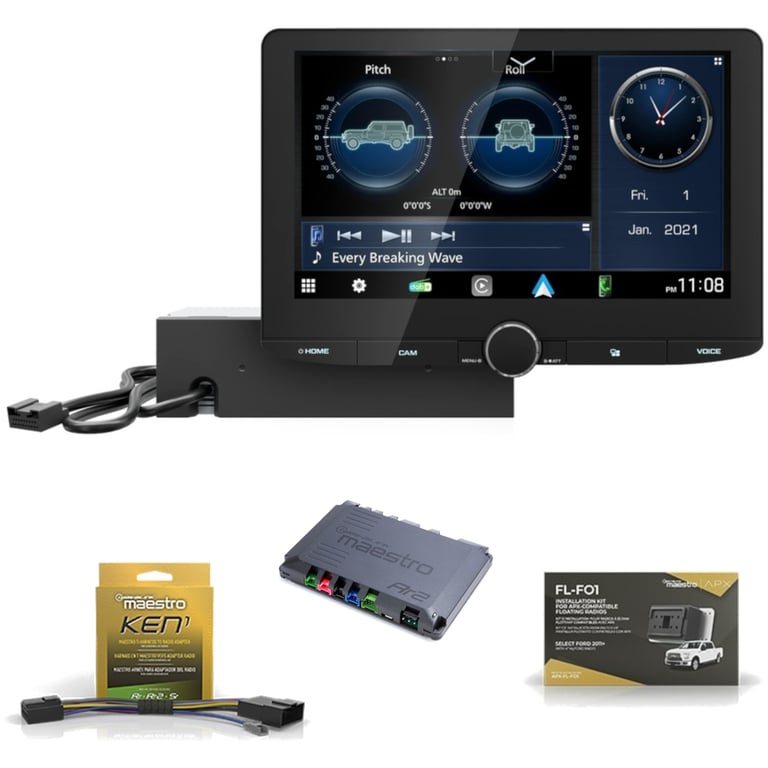

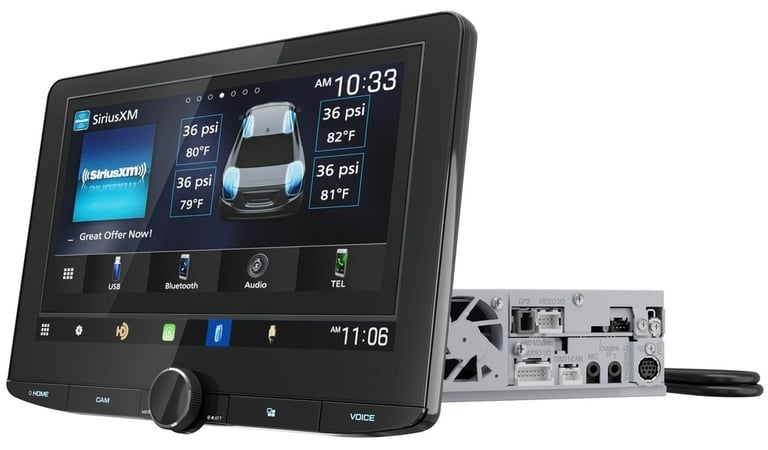

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

Product Details

• Direct OEM Replacement In-Dash Bluetooth Digital Multimedia Receiver
• Compatible with select 2011-2023 vehicles from Jeep, Ford
• 10.1" Capacitive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 29 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control Kenwood KCA-RCDV340 (sold separately)
• 4 Camera Inputs (HD front and rear camera ready)
• iDataLink Maestro and SiriusXM ready

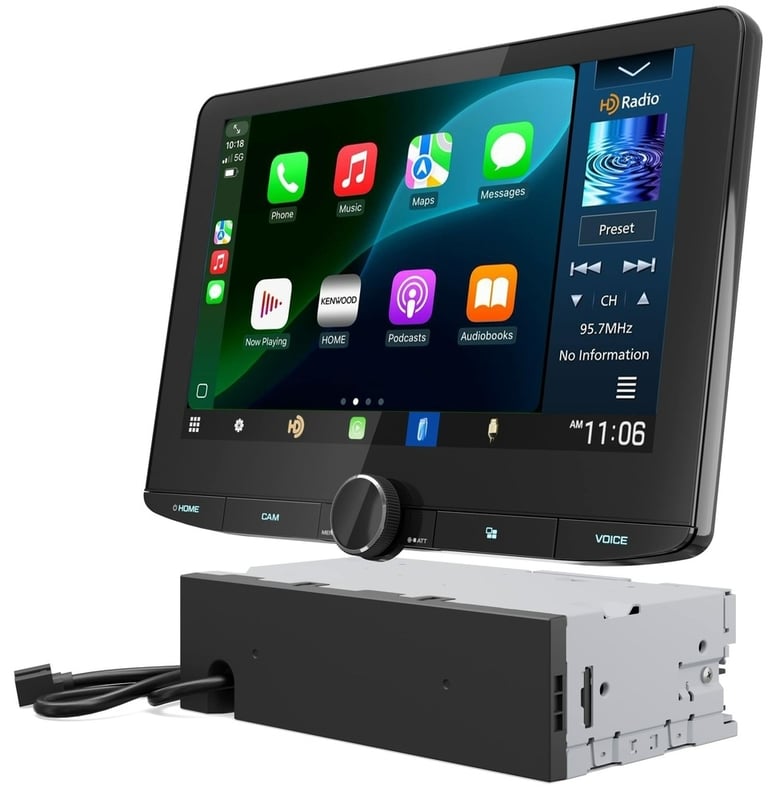

• Floating panel mechanism and modular chassis design
• Built-in HD Radio Tuner and Wi-FI connection
• Customizable widgets with icons
• 3-Way Crossover Mode

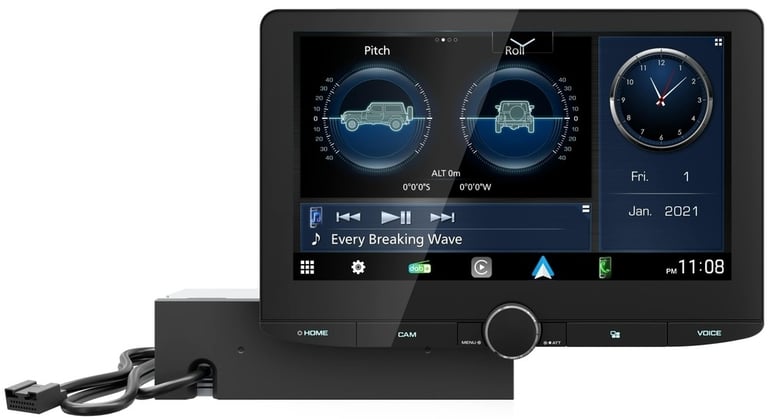

• Pitch and roll widget function
• Compatible 10.1" floating stereo dash kits (all sold separately):
• iDataLink APX-FL-FO1
• iDataLink APX-FL-JL1
• iDataLink APX-FL-CH2
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DAX1050XR

Smartphone Features

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Siri Eyes Free control for select iPhones, Voice assistant button for Siri or Google Assistant
• Wired phone-mirroring for select devices via HDMI or USB
• Split screen view for Apple CarPlay

Playback and Audio Features

• MP3 | WMA | WAV | AAC | FLAC | Vorbis Audio Playback
• MPEG1/2 | MPEG4 | WMV | H.264 and MKV Video Playback
• Built-in HD AM and FM Radio Tuner
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR and iDataLink ADS-MRR2 module (compatible and sold separately)

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
• Rear HDMI input: Display your smartphone screen or other device

Navigation Features

• Navigation and maps determined by phone connected
• Can be accessed through Apple Maps for iPhone or Google Maps for Android

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a built-in microphone for clear, convenient, distortion-free talking
• HFP (V1.7) (Hands Free Profile) and SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (V1.6) (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)

Product Features:

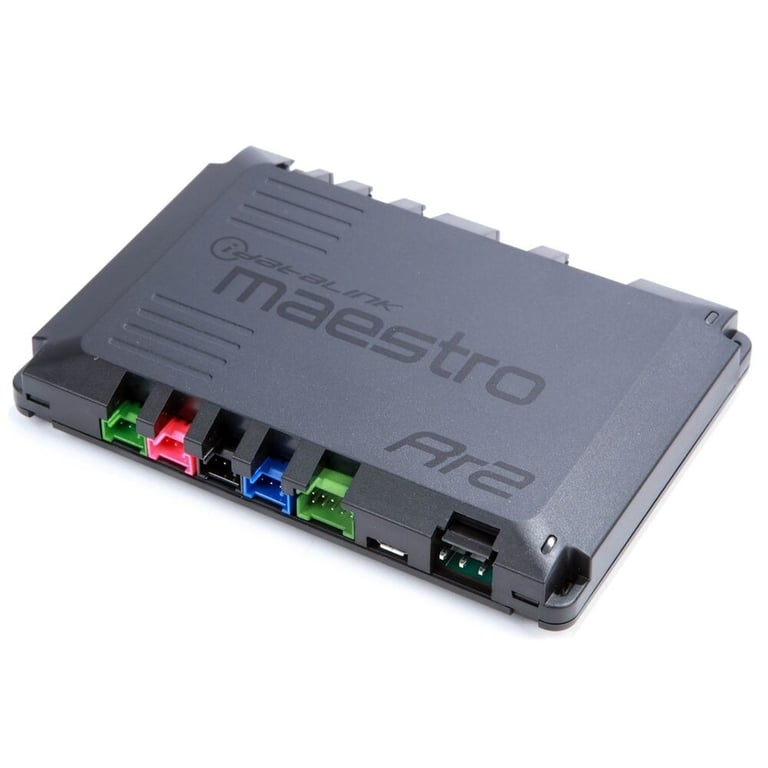

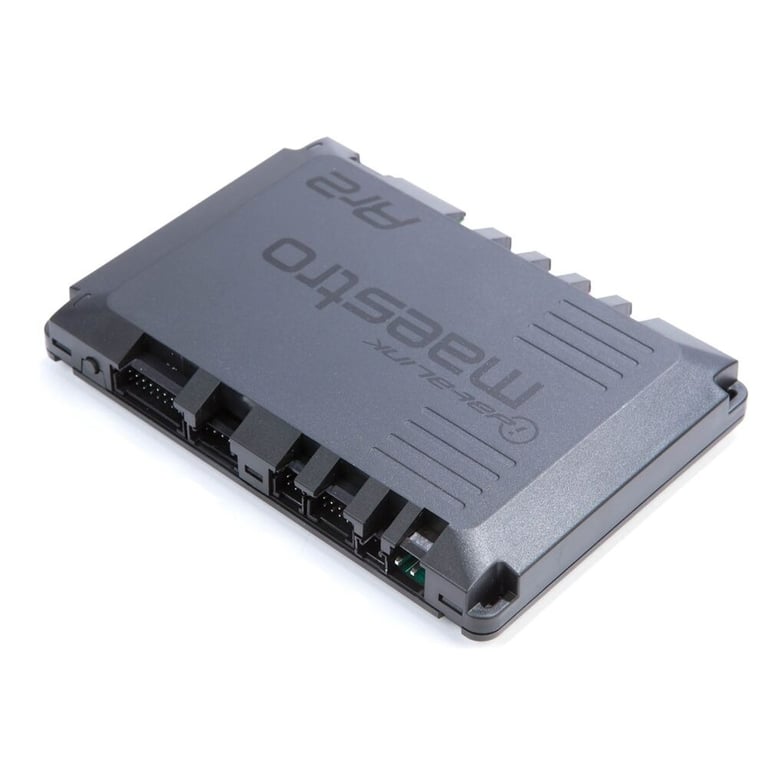

• Connect iDataLink compatible stereos to Maestro RR2
• Covers 4860 vehicle models from 2002-2024
• Allows installation of stereo in select 2006-up Chrysler, Fiat, Ford, GM, Honda/Acura, Subaru, Toyota/Scion, and Volkswagen
• Provides gauges, vehicle info, parking assistance, climate control, and radar detection
• Retains factory infotainment features such as steering wheel control, voice commands, etc.
• Enables Bluetooth programming directly from your iOS and Android mobile device
• Basic stereo retention features are available with non-iDataLink compatible stereos
• Allows for integration of factory steering wheel controls and factory amplifier with an aftermarket stereo
• Retains OnStar, SYNC and uConnect in select iDataLink ready stereos
• Displays engine performance data on select iDataLink ready stereos
• Use Bluetooth enabled device or mini USB to USB-A cable for setup
• With 3 programmable output control relay-driven aftermarket accessories
• Dedicated port connects to select Escort radar detectors (sold separately)
• Compatible with vehicle-specific harnesses (sold separately)
• Authorized Dealer
• 1-year Manufacturer's Warranty

Product Details:

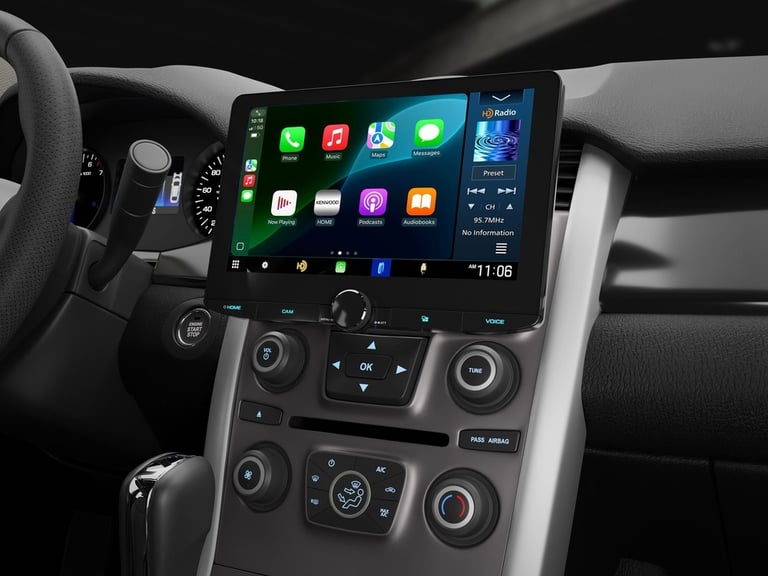

• Installation Dash Kit for Kenwood or JVC 10.1" APX floating touchscreen stereos
• Compatible with select 2011-2023 vehicles from Ford with 4" MyFord Touch stereos
• Accommodates ISO Custom-Fit mount
• Designed to allow the installation of an aftermarket car stereo receiver
• Compatible with Kenwood DAX1050XR or JVC KW-Z100AW (Sold separately)
• iDataLink ADS-MRR or iDataLink ADS-MRR2 modules required (Sold separately)
• Features factory grade fit and finish
• High-grade ABS plastic construction
• Gapless fit between the dash and the kit
• Painted to match factory dash color
• Factory matched texture style
• Retains the steering wheel controls with two function buttons for expanded radio functions
• Retains the factory climate display and controls, as well as vehicle settings
• Retains the secondary vehicle display
• Retains the steering wheel controls with two function buttons for expanded radio functions
• Retain the factory USB ports
• Allows a wired Apple CarPlay and Android Auto connection via USB
• Retains the backup camera with dynamic parking guidelines and park assist chimes
• Retains the factory 360 camera, as well as factory auto-camera switching
• Retains the factory warning chimes
• Provides the display vehicle information
• Provides selectable performance gauges, including 'track pack' gauges
• Provides 12V accessory power and illumination outputs
• Provides parking brake, reverse and vehicle speed sensor (VSS)
• Color: Black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. Floating monitor bracket
2. 5 spacer mounts
3. Small and large USB housings
4. USB trim panel and trim ring
5. APX-FL-FO1-02 mounting plate
6. APX-S8-FO1-11 and APX-S8-FO2-12 mounting brackets

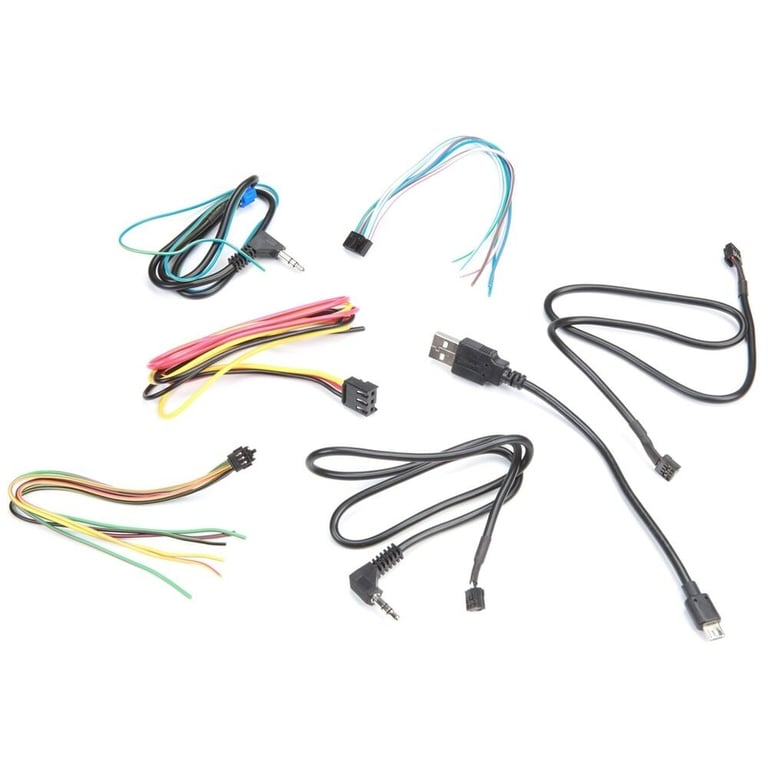

7. Vehicle interface wiring harness
8. Yellow/black wire harness
9. CAM2 and MIC2 harness
10. OBDII harness
11. USB-C cable
12. USB-C to USB cable
13. Antenna adapter
14. Four M5x45mm screws
15. Four M5x6mm screws
16. Two M5x12mm screws
17. Four M4x10mm screws
18. Four M5x8mm screws
19. Four M4 nuts
20. Four M4 split washers
21. Four M5 nuts
22. Four M5 split washers
23. 3M tape
24. Pry tool
25. Hex tool
26. Quick start guide

Product Features:

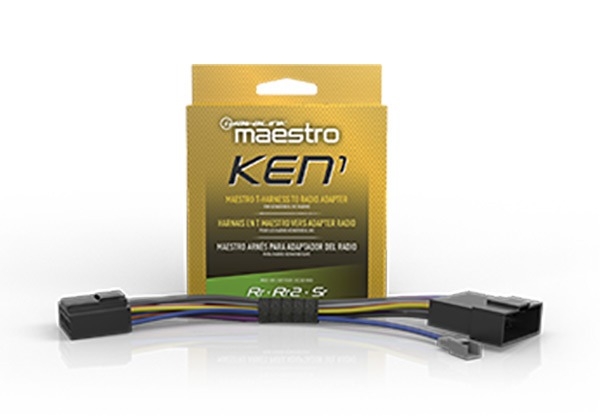

• Head unit adapter to connect select Kenwood and JVC stereos to compatible Maestro T-harnesses
• Connects directly to compatible T-harness without splicing or cutting wires
• Use with iDataLink ADS-MRR, iDataLink ADS-MRR2, or iDataLink ADS-MSR module to replace radio and retain steering wheel control (required and sold separately)
• Adapter will only work with the use of an iDataLink Maestro module and a compatible iDataLink Maestro T-harness
• Easy installation, plug-n-play connection
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
