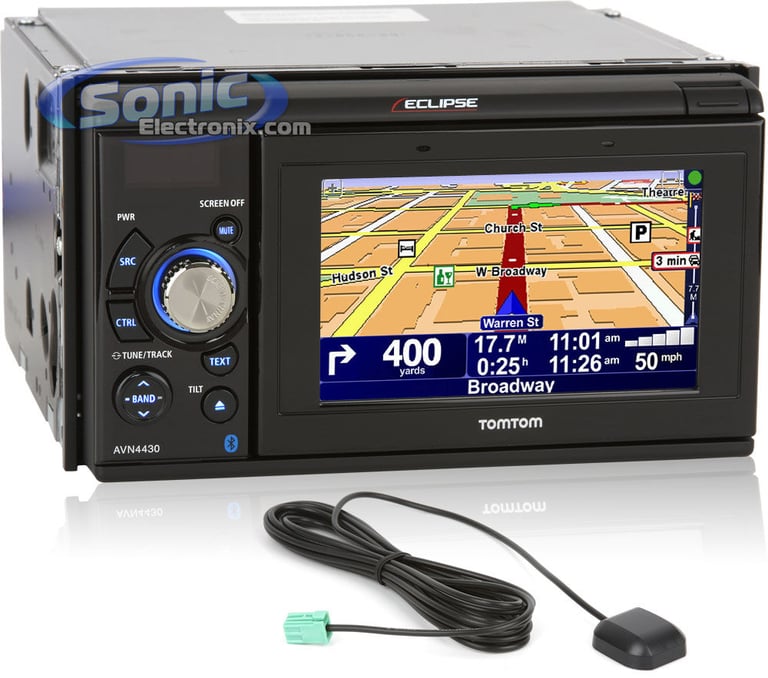

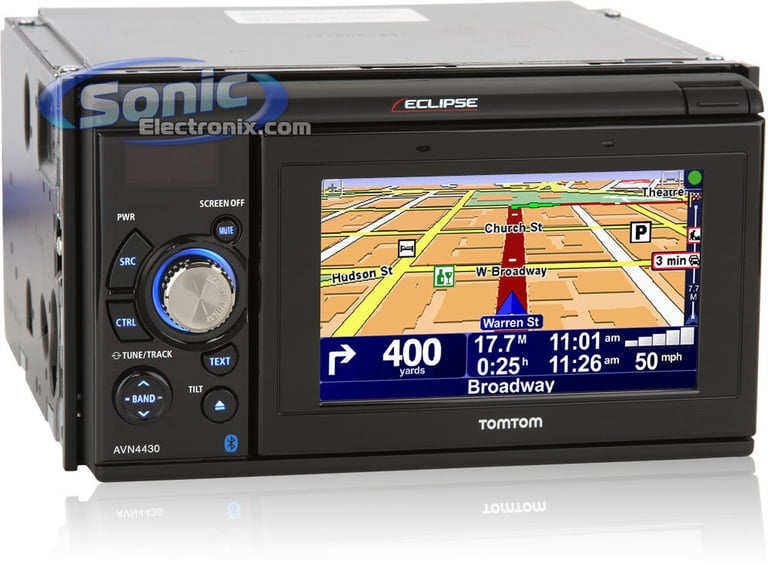

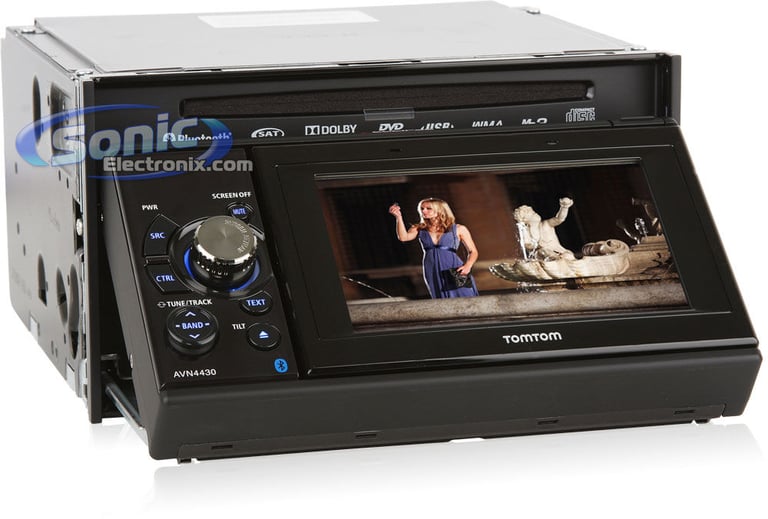

Eclipse AVN4430 In-Dash DVD/CD/MP3/WMA/USB Receiver w/ Navigation

Eclipse AVN4430 (AVN-4430)

In-Dash DVD/CD/MP3/WMA/USB Receiver with Detachable 4.3" Tom-Tom Navigation and Built-in Bluetooth

• Built-in Navigation by TomTom
• Built-in Bluetooth
• 4.3" Detachable Screen and Navigation Device
• 3 Sets of 3V Preamp Outputs
• A/V Inputs
• A/V Outputs
• Rear USB

We apologize

This item has been discontinued


General Features:

  • In-dash AM/FM, DVD, CD, MP3, WMA Receiver

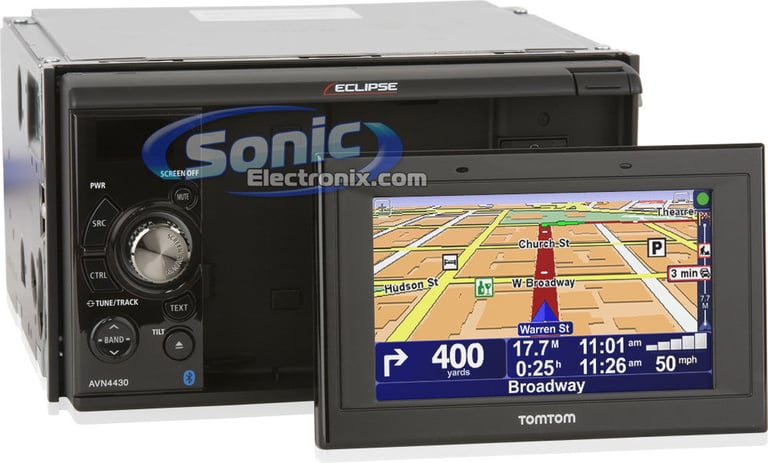

  • Built-in and detachable TomTom portable navigation device
  • Bluetooth built-in for handsfree talking
  • Detachable face for security and convenience
  • 4.3" Full color LCD touchscreen display
  • Switchable blue and red button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 15 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year warranty

Playback and Audio Features:

  • Playback of DVD, CD, CD-R, CD-RW, MP3, and WMA
  • Tuner with 18FM/6AM presets
  • European tuning frequencies
  • Built-in low-pass filter for greater customization of audio playback, especially with the addition of amplifiers and subwoofers
  • 3-band parametric equalizer with preset tone curves
  • 24-bit digital-to-analog converter enhances the overall sound quality of the music

Expandability Options:

  • 3 Sets of 3V preamp outputs (front, rear and subwoofer)
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • SIRIUS or XM Satellite Radio Ready: XM Satellite or SIRIUS Satellite package required and sold separately

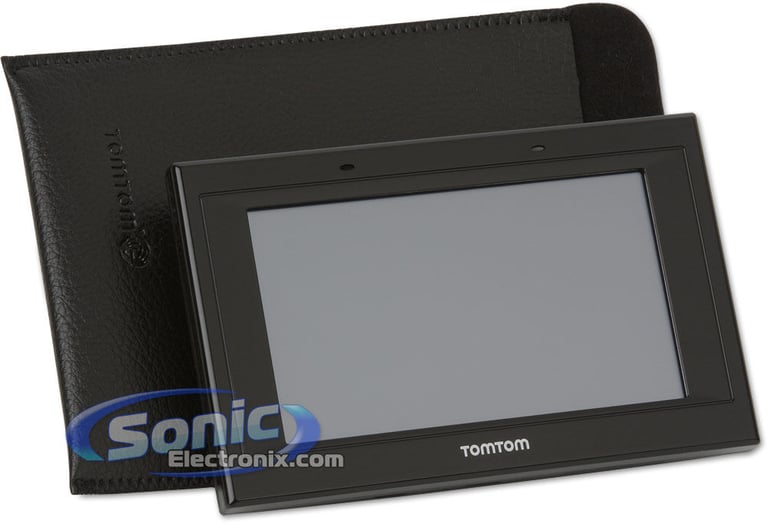

  • Protect your TomTom while traveling with the optional Travel Kit
  • iPod Ready: Eclipse iPC-409 required and sold separately for audio and video playback from the iPod
  • Dedicated Backup Camera Input: The Eclipse BEC-108 is required and sold separately
  • Steering Wheel Control Ready: PAC SWI-ECL2v1 or the Axxess ASWC required and sold separately

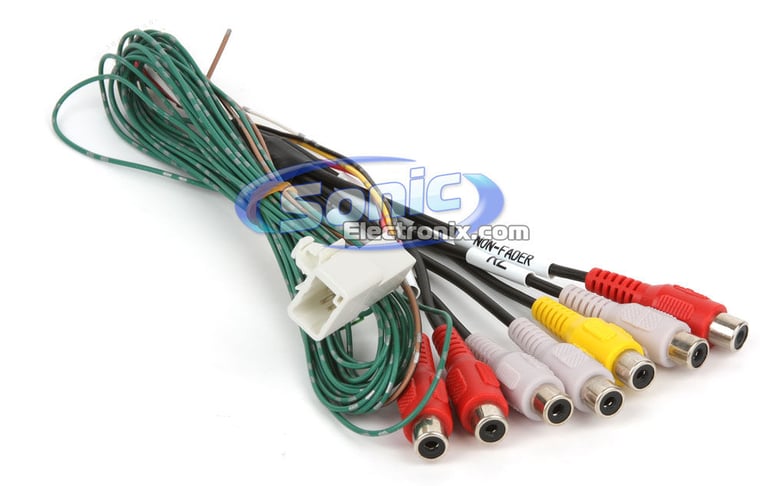

  • Rear RCA Audio/Video Outputs: Used for connection to separate monitors and devices
  • Rear RCA Audio/Video Inputs: Used for connecting video accessories such as game consoles, video cameras, etc.
  • Integrated universal steering wheel remote controls

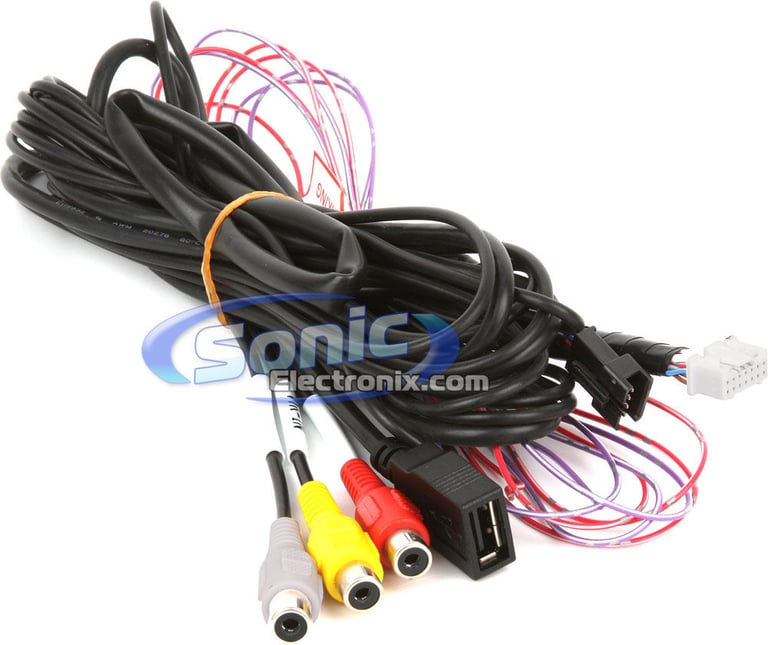

  • Rear USB input for the connection of digital USB devices and the playback of digital files

Navigation Features:

  • Navigation by TomTom
  • TomTom Navigation is fast, quick responding, intuitive, and accurate
  • Provides the latest real-time traffic information for added travel convenience
  • TomTom's Map Share technology allow innovative map updating features, such as user-editing map correction and online sharing of maps with other users

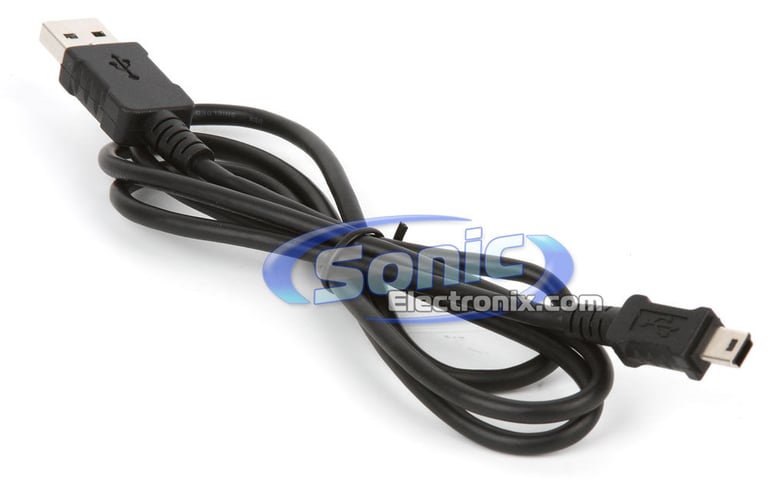

  • Connect the TomTom navigation device to a computer to download the latest map updates, POIs, navigation voice change, map color, and more
  • City Map mode creates representations of specific building and landmarks in select cities
  • 3 Million points of interest for local hotels, restaurants, and other interests
  • Turn-by-turn guidance
Get the Combo Instead and unlock the full potential of the Eclipse AVN4430

Click here to buy the combo package!
Key features
Key features
In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Faceplate
Motorized Faceplate
Remote Control
Peak Power Output
50 watts x 4 channels
RMS Power Output
15 watts x 4 channels
Preamp RCA Outputs
6-channel (3 pairs)
Dedicated Subwoofer Preamp RCA Output
Preamp Voltage
3 volts
Built-In Equalizer
3-band parametric equalizer with preset tone curves
Display Type
TFT-LCD Monitor
Display Color
Full Color
Button Color
Blue and Red
CD Signal-to-Noise
75 dB
CEA-2006 Compliant
Playback Features
AM/FM Tuner
FM Presets
AM Presets
Radio Data System (RDS)
CD-R/RW Playback
MP3 Playback
WMA Playback
Video playback
Dual Zone
Hi-Res Certified
Video in-motion bypass
Audio / Video Inputs
USB Input
Number of Front USB Inputs
Number of Rear USB Inputs
Additional Audio/Video Inputs
1 Set of Rear RCA A/V Inputs
Monitor Screen Features
Screen Size
Monitor Angle Adjustment
Device Mirroring
Navigation Features
Map Database
Traffic Lane Guidance
Complete 50 USA
Navigation During Audio Playback
Navigation During Video Playback
Map Dimensional Display
Speed Display
Search Options
Point-of-Interest (POI) Name
Point-of-Interest (POI) Vicinity
Map Source
Built-In Flash Memory
Points of Interest
3 Million
Customizable POI
Expandability Features
Yes (Built-In/Included GPS Navigation)
Compatible Smartphones
Audio/Video Outputs
1 Set of Audio/Video RCA Outputs
Satellite Radio
HD Radio
Bluetooth Connectivity
Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included])
Steering Wheel Control Compatible
Maestro Compatible
Rear View Camera Input
Yes (Accessory required and sold separately)
Memory Card Reader
Smartphone Integration
iPhone/iPod Features
iPod Audio Integration
Optional (Accessory Required and Sold Separately)
iPod Video Connection
Optional (Accessory required and sold separately)
Android Features
Android Video Connection
What is in the box?
Product and accessories
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Specials with this Item
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
  • Eclipse AVN4430 Bluetooth and Navigation Car Receiver
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101
Eclipse AVN4430 (AVN-4430)

Eclipse AVN4430 (AVN-4430)



Write a review

Overall rating distribution

5 star
4 star
3 star
2 star
1 star

By feature average rating



August 3, 2012

Great GPS Unit!

I was looking for an inexpensive double din GPS unit for my truck. Most GPS units start in the $500 and above range. The cheaper ones are for mostly no-name brands that were a little sketchy. I saw this Eclipse unit and was a little skeptical also. Upon checking reviews, I found out it is made by Fujitsu (bought my first laptop from them).

Installation was pretty straight forward. If you have ever installed a stereo before, it is pretty simple. 8 wires for speakers (2 front, 2 back), ground wire, always on +12 and switched +12. That's about it - there are a few more if you want to hook up illumination control, steering wheel remote, etc, but I did not use those. The only other things you need to plug in are the antenna cable and the GPS antenna.

So far this stereo/GPS works great. It even has bluetooth, so my phone is hooked up and I can make/receive calls hands free. GPS is based on the TomTom brand and the GPS unit can be detached from the stereo to use as a stand alone GPS or so it will not be stolen. The stereo will still work without the GPS in place - it even has a small readout that tells you the station you are on!

The only extra thing you need to buy is the Eclipse Ipod cable - plugging the ipod into the USB adapter will not work. Plus it allows you to play videos from your ipod on the stereo screen.

Great unit for the price - it has features that units that cost 4 times as much have.


found this helpful.


April 25, 2013

What a great unit !

Great unit with great features, fantastic product, fantastic price too!.
I can't imagine going anywhere else for my electronix.


found this helpful.


October 13, 2013

Great Product

Easy install in my motor coach with little modification. Good sound and GPS works great


found this helpful.


July 1, 2012

Charles Green, Investor

The performance, the price & service are impeccable!


found this helpful.


July 5, 2013

Nice for the price

A nice affordable unit, install was very easy, however I did not use all of the features (back up camera). It's nice that the shaped sensor does not have to be hooked up as you can use unit in older cars. iPod control is not the greatest but it works. Maps are from 2007.


found this helpful.


February 26, 2013


great unit & would recommend to everyone. the sound, durability is second to none


found this helpful.


September 24, 2013

Not too bad

It seems to be a good value for the cost. It does have a couple of features I do like better than other brands. The rest of it seems to operate flawlessly. Some things are not as straight forward as they could be but once you get use to it, it all OK. The Blue-Tooth capability is limited so you need to make sure your product is compatible if that is important to you. I've only had it for a relatively short period of time so I don't know about it's durability yet. Over all, A good buy.


found this helpful.


September 15, 2013

Excellent for price!

Installed a few months ago, great unit. My only complaint is I can't always scroll through my list on the iPod. Other than that it is an excellent head unit and navigation.


found this helpful.


September 10, 2012

Unit is ok, could be much better

My wife and up got this unit for our new Subaru Forester, and we are not impressed.

The user interface for both, the mp3 cd and usb files is minimalistic, the gps data input is touchy, radio reception is ok, and speakers output power could be higher.

Our biggest complain is the turn by turn voice instructions. It constantly goes mute, and the only way to follow the gps is by looking at the screen. This can be temporarily fixed by removing and reinserting the gps unit.

The price is great, but for about $100.00 or so, one can get a much better unit.

I'd not recommend this unit.


found this helpful.


October 24, 2013

Eclipse AVN4430

I was highly impressed with the services provided by Sonic Electronix, they were prompt and courteous in their responses, and the products that they sold me was outstanding. I am truly ecstatic with the performance of their auto entertainment. The DVD, but particularly the auxiliary option was so dynamic. I was able to play from my ipad, & ipod.

Overall, I will gladly recommend this product, or any product marketed by Sonic Electronix for that matter to anyone. They have won my confidence and respect.


found this helpful.


June 5, 2013

Horrible Unit

This is perhaps the worst head unit I have ever owned. The GPS is from 2007 updates are needed right away and it cost money to upgrade. Blutooth is awful when used with iPhone 4 no volume adjustment is available. Over all sound is muddled, music sounds like someone put a heavy blanket over the speakers and control of iPod is poor. The whole concept is great but so poorly implemented. It is so bad I had pulled it out of my new 2012 Subaru Forester and put in a Pioneer AVIC-D3 that was from a 2007 Honda Civic car of mine. Right away the sound improved and the Forester does not have very good speakers in it. Run away fast from this model.


found this helpful.


September 27, 2012

Works great!

I have the avn-4430 installed in my 1996 Celica for about 5 days now. I could not be happier with the unit or the service from Sonic. First thing i did was to update the maps on the pnd. I don't watch Dvds in car so i don't care about that feature but i tried it and it works as advertised. Bluetooth calling works good but sometimes the voice just sounds too bad on the speakers, i dont know if its because of a bad cell connection or shoddy bluetooth connection. Another thing to note is that it does not have A2DP, so it won't stream audio, just bluetooth calling. Also, phone calls and directions are in single channel only so the sound comes from only one side of the car, Unit pauses the music when speaking directions if you are playing cd, usb etc, but not on FM radio. A small glitch that i can live with but to be noted nonetheless. Another thing to note is that it does not have auxiliary in. I am trying to figure a way out around it. Overall value wise, could not be happier. This unit was a perfect fit for my car and everybody who sees it is impressed. Sounds much better than my older jvc. You won't get better value on in dash navigation anywhere else.


found this helpful.

Mossman 11

September 19, 2012

Great sound from the AVN-4430

Had a JVC unit in my dash, but wanted built-in nav fratures at a good price. This unit is superb, sounds even better than the JVC Bongiovi unit, and way better than the factory stereo. Unit is easy to hook up, only extra I installed was the antenna for the nav, does not seem to need any other sensor wires for accurate location.

As for the sound, I am hearing details I have never heard before on my MP3s. The voice feature on the nav is handy, as is the ability to use the nav away from the car. Add built-in Bluetooth, and you cannot go wrong with this unit. A great chance to own a unique car stereo.


found this helpful.


September 15, 2012

Good value for the price.

I replaced my existing 7-inch multimedia head unit without a nav which I found somewhat useless when you need to go to a place not familiar with.
Well, thanks Sonic for selling this at this price.
For me this unit is pretty and and really go well with my Honda Pilot.
The screen is removable and can be used by itself. The nav is very accurate and can be updated easily. Except for a lane guidance (which the unit doesn't have) I think it has everything that most expensive ones have.
Although its screen is only 4.3", I did not miss the 7" screen of the previous unit.
The ipod/iphone interface have some inconveniences but does not bother me at all. Like your settings will not be remembered once you remove your key from the car. And, something like it limits your ability to look for your music files beyond a set amount while the parking brake is not engage as what other owners have noted. However, you can still select the playlist and the shuffle mode.
For the video, if you have an overhead video screen you can connect this unit to it and even though the screen is blank when the car is moving, the passenger on the back can still watch the movie.
When your in the radio or Ipod mode the screen is simple white with just the info of what is playing. The time is in small characters at the upper right corner.
I tested the bluetooth connected to my blackberry and its very clear on both ends.
So far, I did not regret buying this head unit. And it does worked for me.
I hope this review like what others did, can help anyone to decide if this unit is for you or not.


found this helpful.

3:23 Tech

January 8, 2015

Pretty good for the money

Well I can honestly say for the money it's a great little unit! I also love the fact we can use the tom tom in rental cars or any other car away from this unit. It has all the features you would want in a unit. However, the menus aren't very intuitive. It takes a while to figure out where everything is in this unit. Once you get it all figured out though we haven't had any issues. For a unit under $300 this thing really has all you need.


found this helpful.
