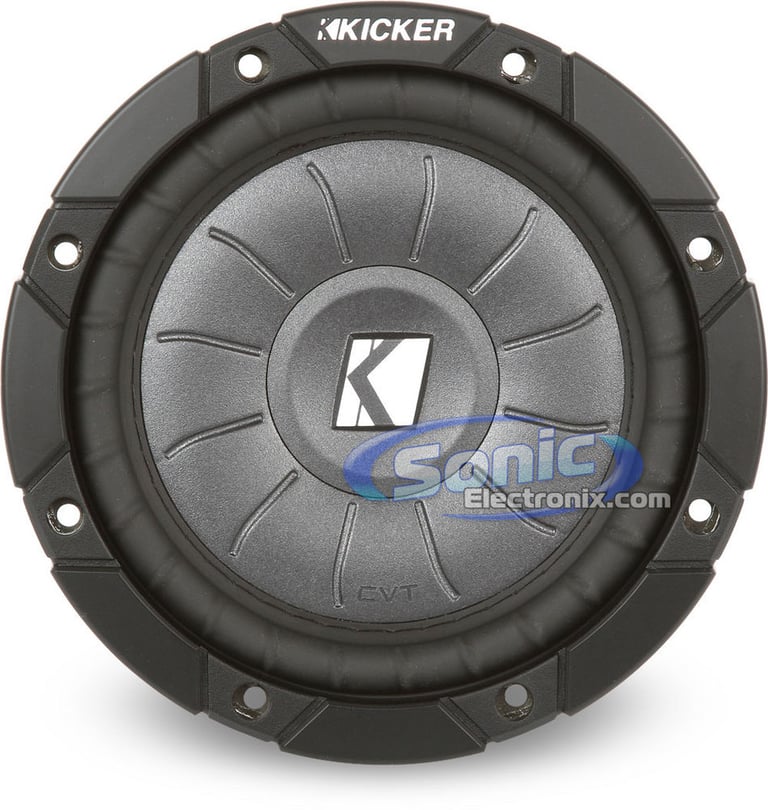

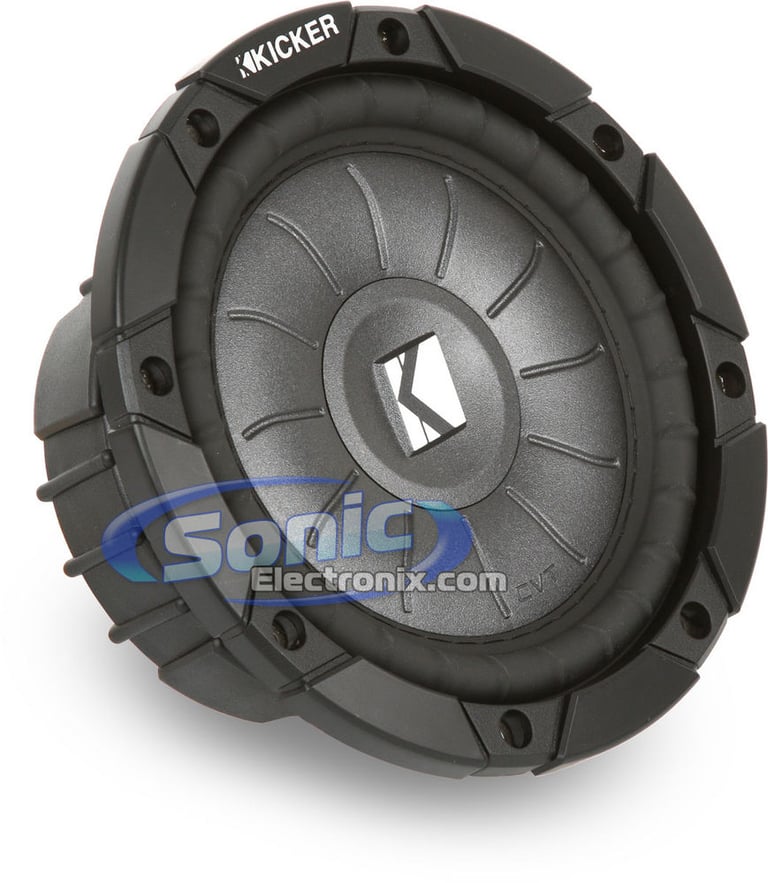

Kicker CVT654 (10CVT654)

6-1/2" Single 4 ohm Shallow-Mount Comp VT Series Car Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

6.5" CompVT Subwoofer • Single 4 Ohm • Shallow Mount • 300 Watts Max • 150 Watts RMS • Rigid SoloKon Cone • Ribbed Santoprene Surround • Shallow Steel Basket • Four-Layer Voice Coil • Includes Steel Mounting Plate

Learn more about the 10cvt654

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
AXLOC-CH5 main

Axxess AXLOC-CH5

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ram, Dodge, Jeep with Non-Amplified Systems

10
-10.48%

$93.99

List price $104.99

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AP4-CH41 main

PAC AP4-CH41 R.2

Amplifier Integration Interface for select 2013-2023 vehicles from Ram, Jeep, Dodge

4
-16.03%

$419.00

List price $499.00

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

KIT-RAM1 main

iDataLink Maestro KIT-RAM1 Dash Kit

Double DIN Dash Kit and Wire Harness for select 2013-2025 vehicles from Ram (Requires ADS-MRR or ADS-MRR2 module)

1
-20.00%

$159.99

List price $199.99

95-6518B main

Metra 95-6518B

Double DIN Stereo Dash Kit and Harness for select 2013-2022 vehicles from Ram, Jeep, Chrysler

15
-44.75%

$20.99

List price $37.99

LPHCH41 main

PAC LPHCH41

Vehicle Specific Audio Integration T-Harness for select 2013-2024 vehicles from Ram, Jeep, Dodge

-43.41%

$73.00

List price $129.00

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

RSRAM72 main

Kleinn RSRAM72 Remote Start for 2018-2024 RAM, Dodge, Jeep, Chrysler

Easy DIY Remote Starter Kit with Key-to-Start and Push-to-Start, Takes less than 1 hour to install (RSRAM72)

-14.82%

$229.99

List price $269.99

AXAMP-CH5 main

Axxess AXAMP-CH5

Amplifier Integration Interface for select 2014-2023 vehicles from Ram, Jeep, Dodge

-10.07%

$410.99

List price $456.99

Product Highlights


6.5" CompVT Subwoofer • Single 4 Ohm • Shallow Mount • 300 Watts Max • 150 Watts RMS • Rigid SoloKon Cone • Ribbed Santoprene Surround • Shallow Steel Basket • Four-Layer Voice Coil • Includes Steel Mounting Plate

Description


Kicker brand icon

Authorized dealer

Raising the Competition with Kicker's CompVT Series

Kicker is a very well known company within the car audio industry and are constantly striving to be the best in innovation, quality, and power output. Their 2010 shallow mount CompVT series subwoofer accomplish all of those qualities and more. This series of subwoofer is available in various sizes with different power ratings to suit any preference desired. The single 2 ohm or 4 ohm version allows for multiple wiring configurations, giving the subwoofer some true versatility. The CompVT features a shallow mount design which is perfect for those with limited space but that still want a subwoofer that can really hit. The built-in steel clearance adapter plate, allows for real shallow installations by replacing part of the enclosure wall. These subwoofers are equipped with an injection molded SoloKon cone woofer and ribbed Santoprene surround for rigidity and optimum performance. The use of stitched surrounding enhances the strength of the cone giving you a product that you can depend on for a long period of time. Spring loaded terminals make installation quick and easy with an added secure connection. The CompVT uses a ventless pole piece and high temperature, shallow four-layer voice coil for heat dissipation. This reduces distortion and increases cleaner power output. Its shallow mount design and other features make the CompVT subwoofer perfect for any installation or application.

Subwoofer Features:

  • 6.5" Single 4 Ohm CompVT (CVT) Subwoofer
  • Shallow mount subwoofer allows for deep bass with minimum mounting depth
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: Single 4 Ohm
  • Injection molded SoloKon cone
  • Ribbed Santoprene surround
  • Stitched surround for enhanced cone-to-surround strength
  • Extra strong adhesive and stitching prevents the cone from detaching from the surround
  • Spiralead tinsel lead technology weaves the tinsel leads into the spider
  • Super rigid cone and 360-degree back bracing eliminate distortion

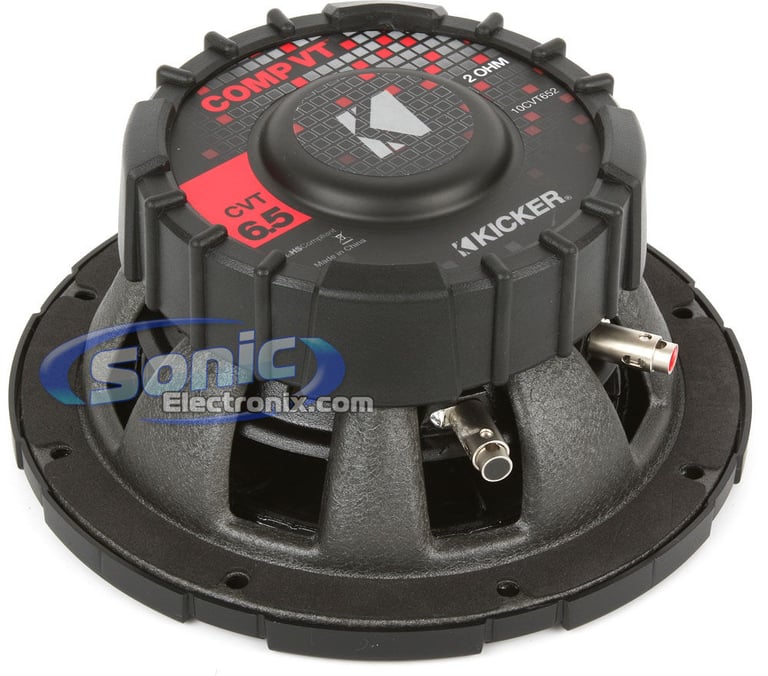

  • Sturdy steel basket holds the subwoofer mounted firmly
  • Steel basket features perimeter venting around the single voice coil
  • Strong spring-loaded terminals
  • Newly re-designed 2010 basket structure

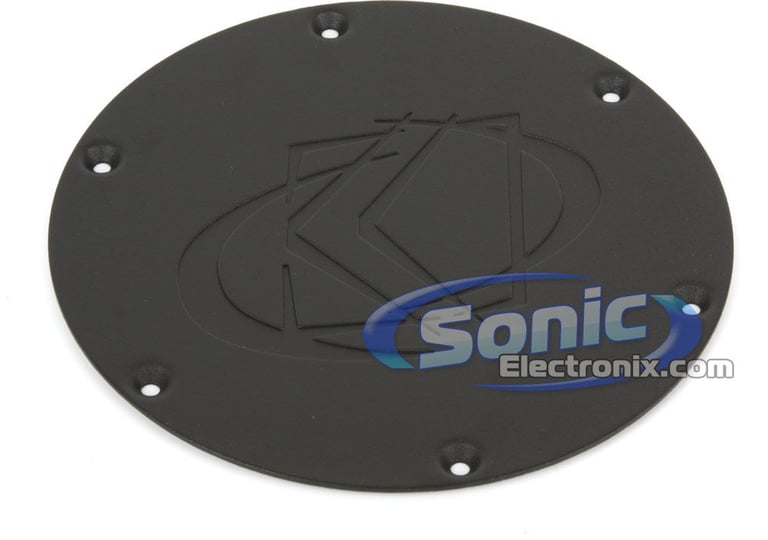

  • Includes a built-in steel clearance adapter plate, which replaces part of the enclosure wall to allow shallower installations
  • Shallow mount subwoofer allows for deep bass with minimum mounting depth
  • Ventless pole piece for extreme power handling
  • Shallow four-layer voice coil
  • High-Temperature voice coil
  • Powerful rear magnet
  • Frequency response: 25-350 Hz
  • Mounting depth: 2-7/8"
  • Also found as: 10CVT65-4 ohm, CompVT654, CompVT 654, CompVT 6.5" 4 ohm, 2010 CVT654
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
2011 Kicker Authorized Online Dealer and eBay Seller

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker CVT654 (10CVT654) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CVT654 (10CVT654) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CVT654 (10CVT654) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kicker CVT654 (10CVT654) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

DRQC20C-TN main

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2002-2018 vehicles from Ram, Dodge

1
SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

51K5RDL7T102 main

Kicker 51K5RDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

-10.53%

$849.99

List price $949.99

TXRM02D10 main

AudioControl TXRM02D10

1200W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2018 1500 and 3500 and 2500

-7.70%

$1,199.00

List price $1299.00

KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

189
-38.14%

$255.32

List price $412.71

51KR_46CXA_RCT_XK42_NK_49K main

Kicker KRDL7T10 Sub Enclosure + CXA1200.1 Amp + Remote w/ Free Amp Install Kit

1000W RMS Dual 10" Sealed Truck Enclosure, 1200W RMS Class D Monoblock Amp, Wired Bass Remote, 4 Gauge OFC Amp Kit, and 2 Koozies

158
-18.40%

$1,290.01

List price $1580.93


Best selling similar products

SW-UV16.5D4 small

Sundown Audio U-6.5SW D4 6.5" (U65SWD4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Pressed Paper Cone
• Double-Stitched Surround
• Mount depth: 5.71"
• Sensitivity: 78.14 dB

(3)

$199.99

List price $239.99

V65DV4 small

Cerwin-Vega V65DV4

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.65"
• Sensitivity: 82 dB

$129.99

List price $155.99

SW-SA6.5SWD2 small

Sundown Audio SA-6.5 SW D2 6.5" (SA65D2)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 2 ohm
• Paper Cone
• Foam Surround
• Mount depth: 3.79"
• Sensitivity: 81.6 dB

$129.99

List price $167.99

Specifications & Details


Subwoofer Specifications
Series
CompVT Series
Subwoofer Size
6.5"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 350 Hz
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
SoloKon Polypropylene
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.2 cubic feet
Maximum Sealed Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
2-7/8"
Cutout Diameter
5-9/16"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10CVT654

Weight:

5.00lbs

Internal SKU:

10cvt654

Internal Product ID:

21928
